all(zone): S3H multi-layered house features exterior cut-outs



all(zone) has formed an overlapping system of walls and openings in the ‘S3H house’, slicing the dwelling into several layers. the 550 square meter family home is located in a typical suburb of bangkok, surrounded by standard real estate developments. borrowing traditional elements from these neighboring buildings, the design manages to assimilate into its context, while incorporating a new language.

 all(zone)
the design is based around a series of cut out, overlapping spaces
image © piyawut srisakul / all images courtesy of all(zone)





the cream structure exposes a layering of different spaces, as one is led from the outside to the interior rooms. a pitched-roof above the garage and the double-height volume behind, further enhance this journey from public to private. varying geometric cut-outs offer a contrast to the triangular roof with large, recessed windows that appear to be removed from an exterior skin. this pulling and pushing is applied throughout the building’s overall form, helping to both define and separate the spaces.

all(zone)
exterior perspective
image © piyawut srisakul

all(zone)
view under the pitched roof garage
image © piyawut srisakul

all(zone)
looking back out towards the street
image © piyawut srisakul

all(zone)
the overlapping of different spaces defines this house in bangkok
image © piyawut srisakul

all(zone)
transition between the more public street entrance towards the building’s interior
image © piyawut srisakul

all(zone)
the layering of geometric volumes helps to filter light through
image © piyawut srisakul

all(zone)
view from the staircase looking into the interior
image © piyawut srisakul

all(zone)

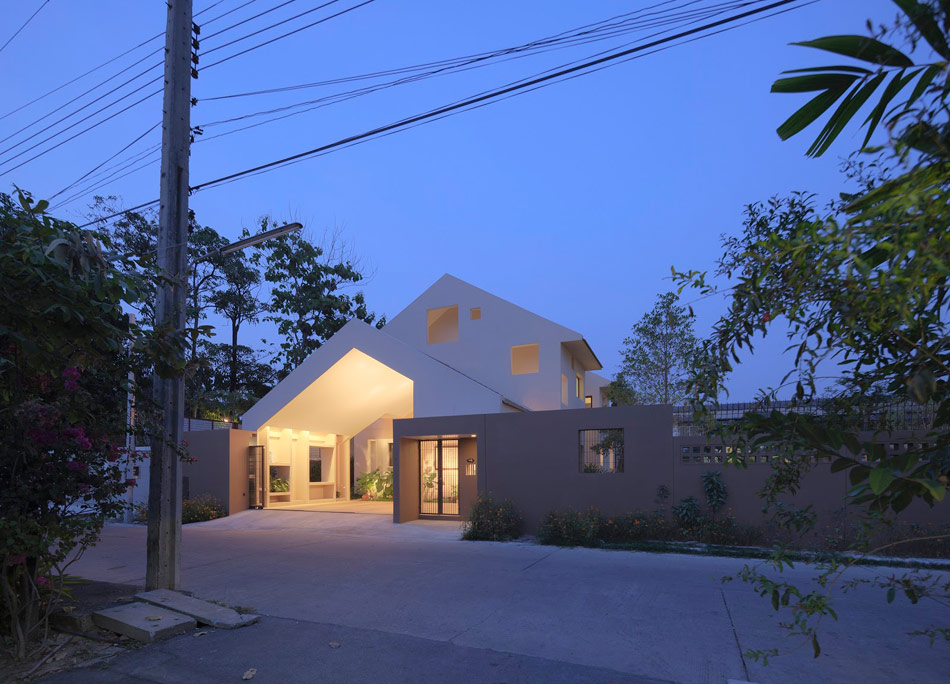

nighttime perspective from the street
image © piyawut srisakul









project info:



type: single house
location: ramkamheng 118 road, bangkok
total area: 550 sqm
owner: mingmitpattanakul’s family
architect: allzone, co.,ltd.
project team: rachaporn choochuey, sorawit klaimark, namkhang anomarisi, tharit tossanaitada
engineer: CM one co. ltd.
contractor: sittanant co. ltd.
photography: piyawut srisakul
