Dec 06, 2012

first image
'rosie house' by artechnic, tokyo, japan
all images courtesy of artechnic

on a pentagonal-shaped property line oriented towards the west, the 'rosie house' by japanese firm artechnic arose from the architects'
desire to turn the disadvantage of site into the beauty of the architecture. the extremely narrow site also came with strict height regulations,
as the surrounding houses to the north must still receive natural light. as a result, the house uses the only two parallel axes as the base walls,
with the rest of the building using each of the odd angles of its context to inform the footprint of the house and its relationship to the site;
it finds comfort in its irregularity. to tackle the height issue, the ground floor is lowered below grade on a floor slab that integrates into the rigid
reinforced concrete structure, in this way the second floor containing the bedrooms may benefit from plenty of daylight and exterior balconies
without screening its neighbors. the backyard space is occupied by a wooden deck with a sharp angle used to accentuate the sight lines of the house.
the interior is finished with plaster and paint and topped with hardwood floors to create a warmer liveable space. the air conditioning/heater is
placed under the floor and exits into the space at the peripheral registers like a combination air conditioning/radiant floor heating system.

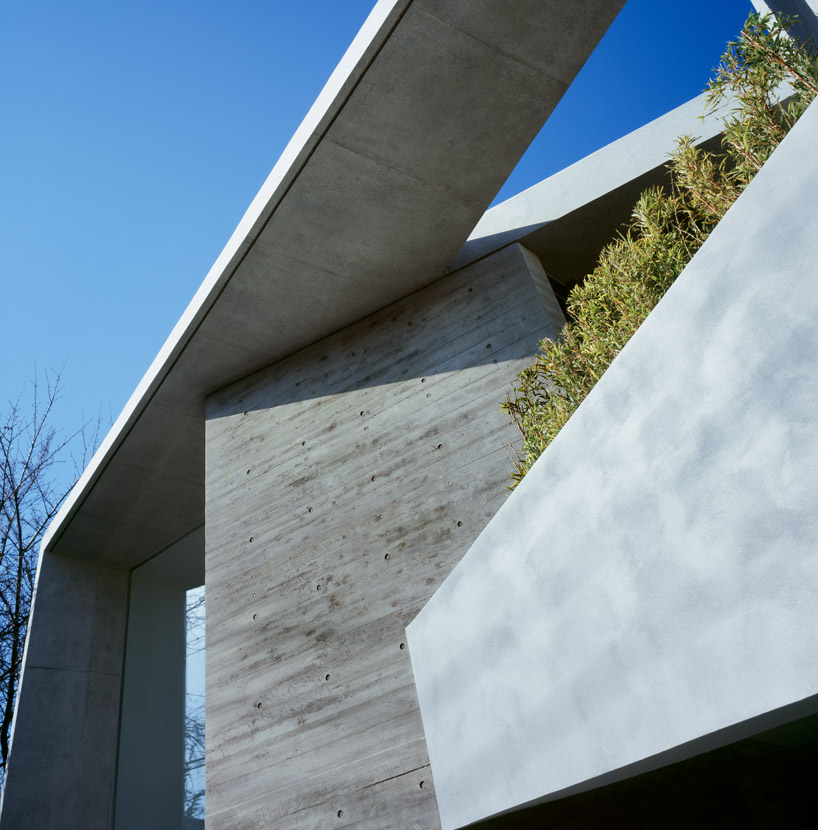

balcony connected into exposed shear wall

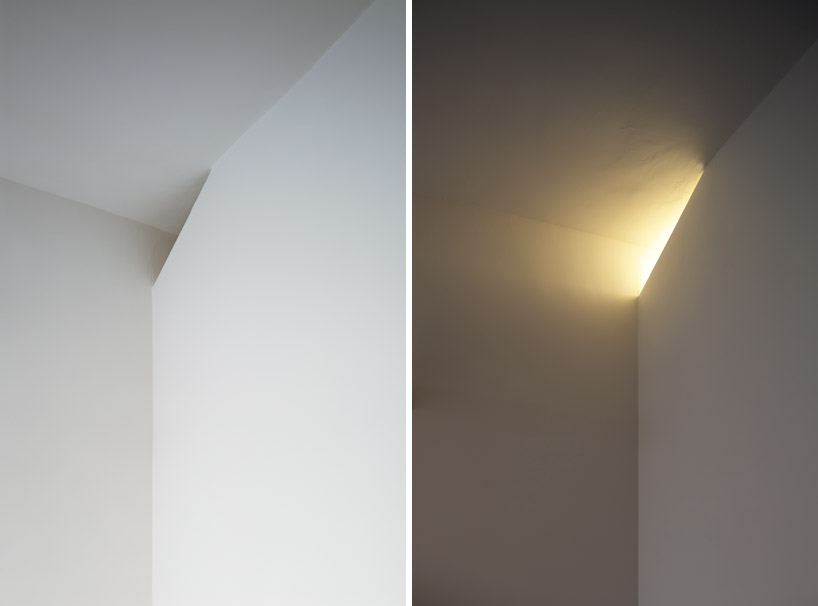

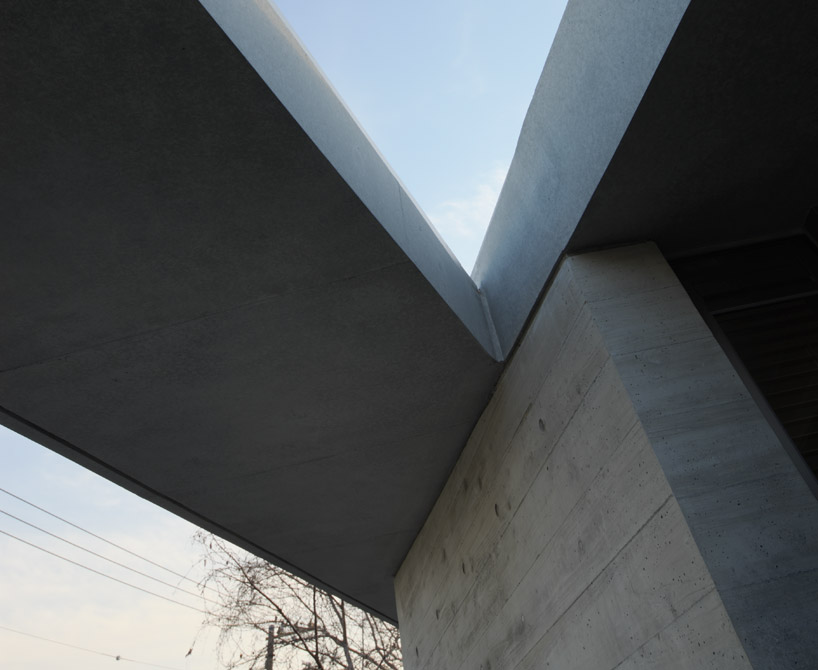

house contains many different angles

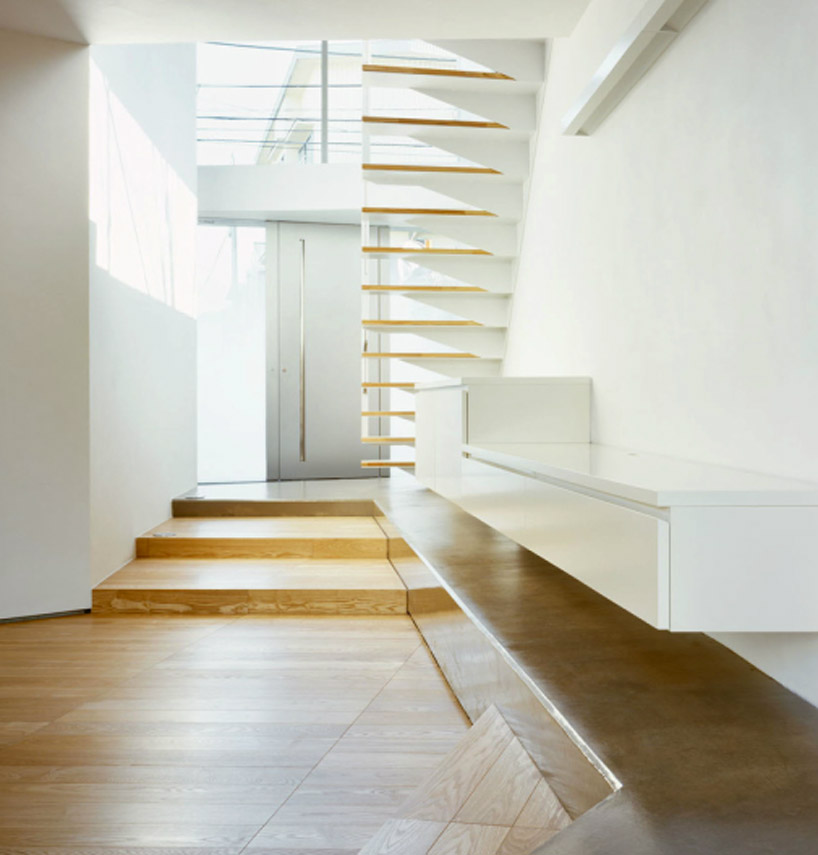

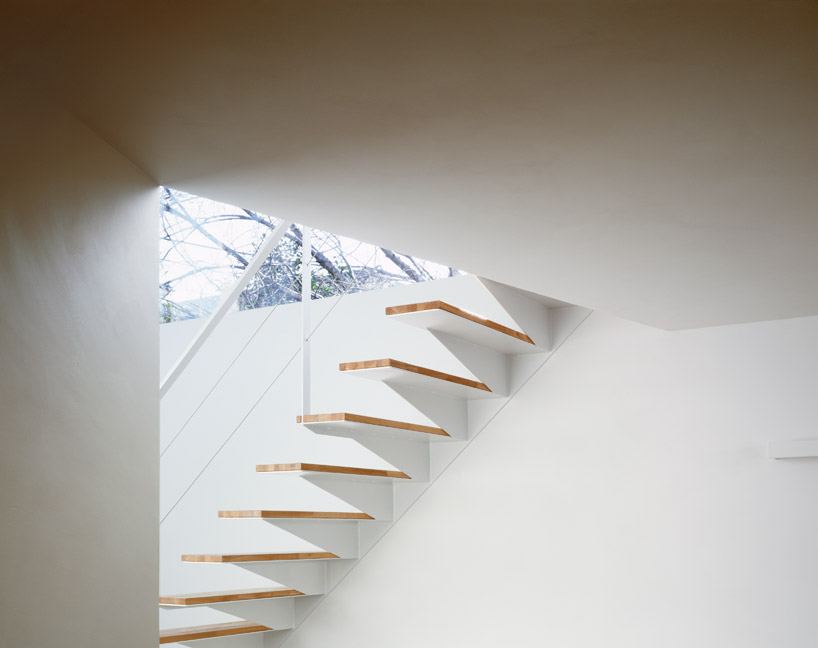

stairs to grade/ upper floor with bedrooms

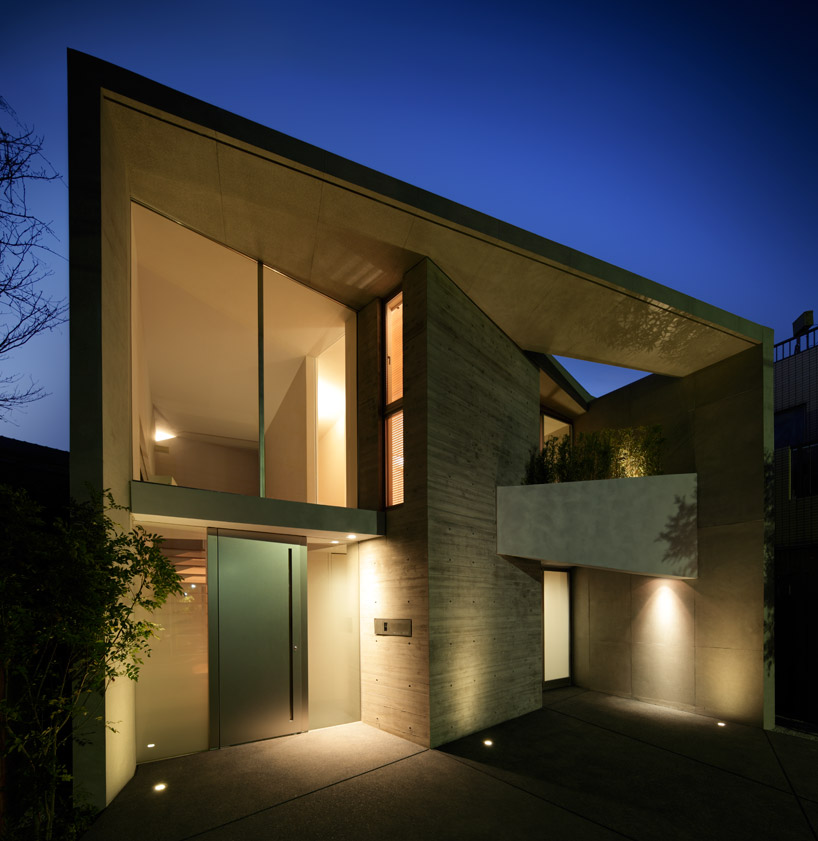

front door

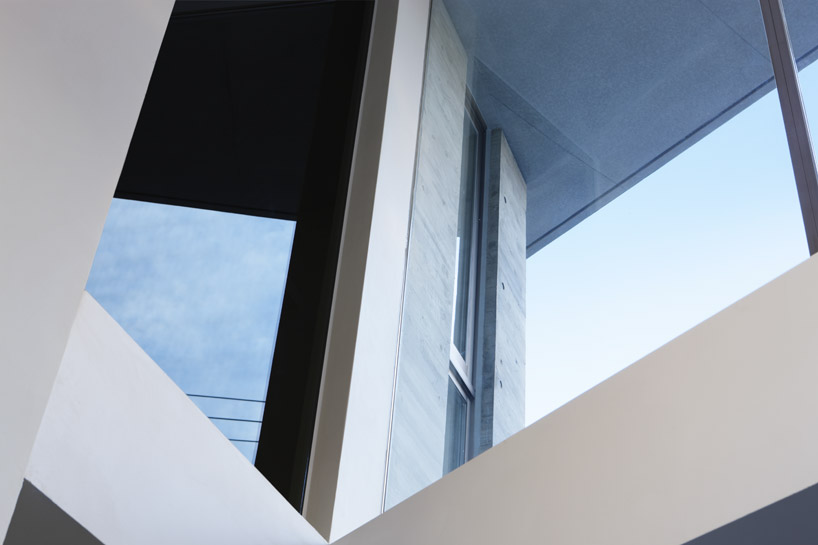

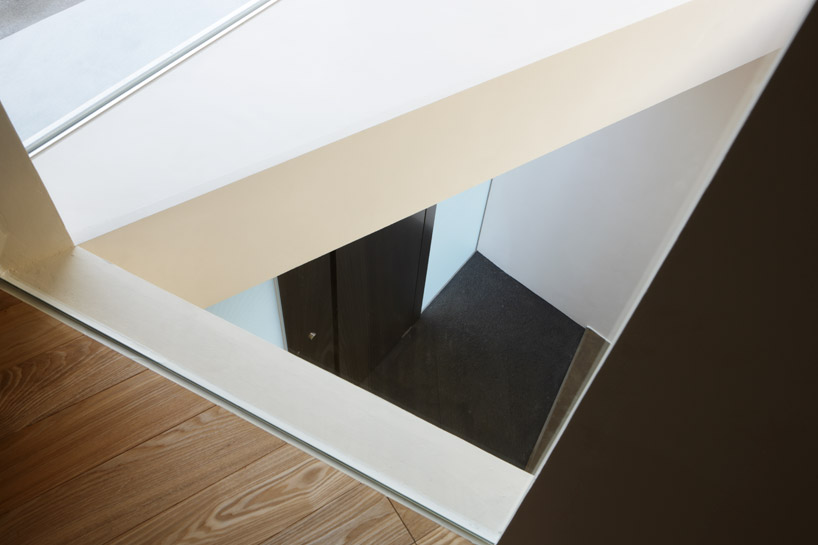

view to the front door from the upstairs

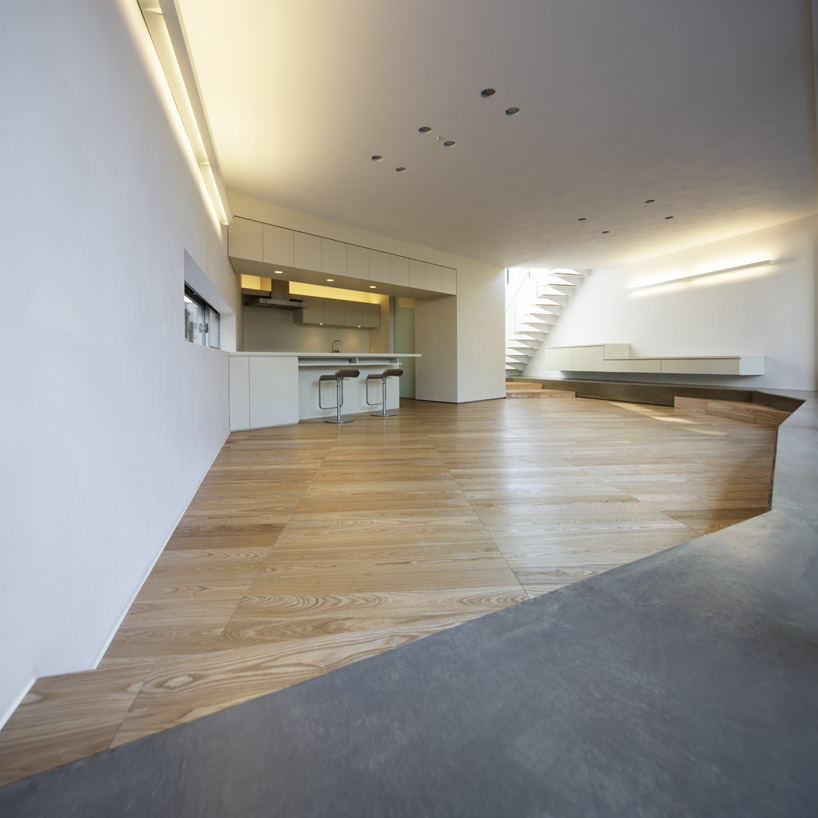

kitchen and living room below grade

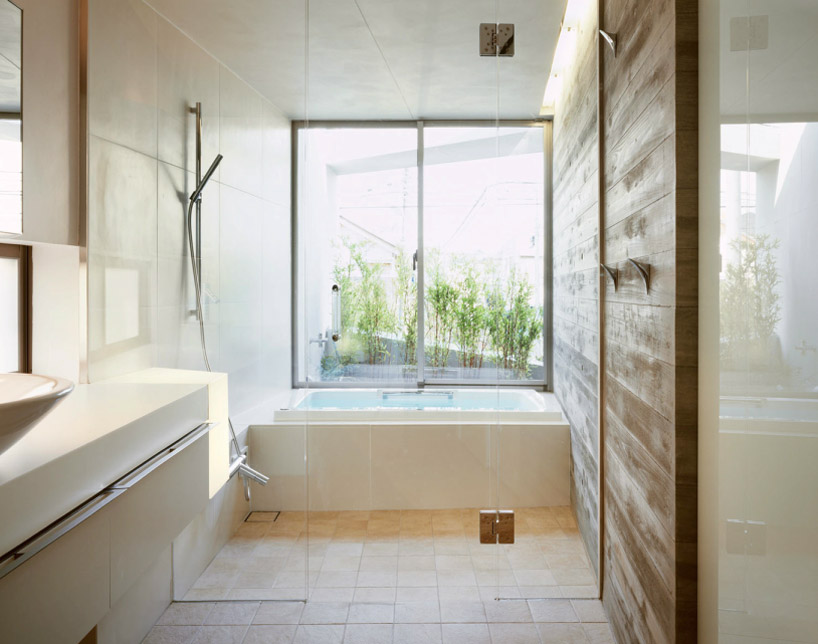

upstairs bathroom

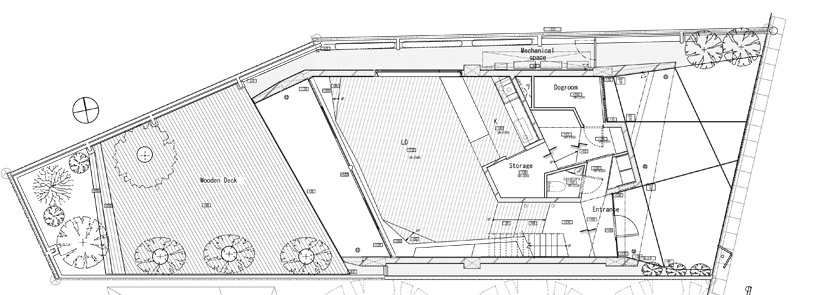

floor plan / level 0

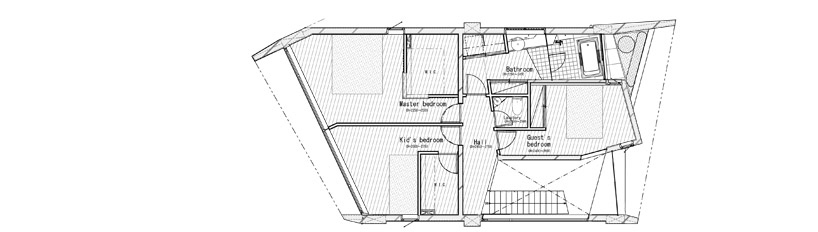

floor plan / level 1

project info:

location: setagaya, tokyo, japan
use: private residence
structure: reinforced concrete
site area: 232 m2
total floor area: 151 m2

danny db

12.06.12
