bamboo houses shape ibuku's green village community in indonesia bamboo houses shape ibuku's green village community in indonesia
oct 17, 2012

bamboo houses shape ibuku's green village community in indonesia

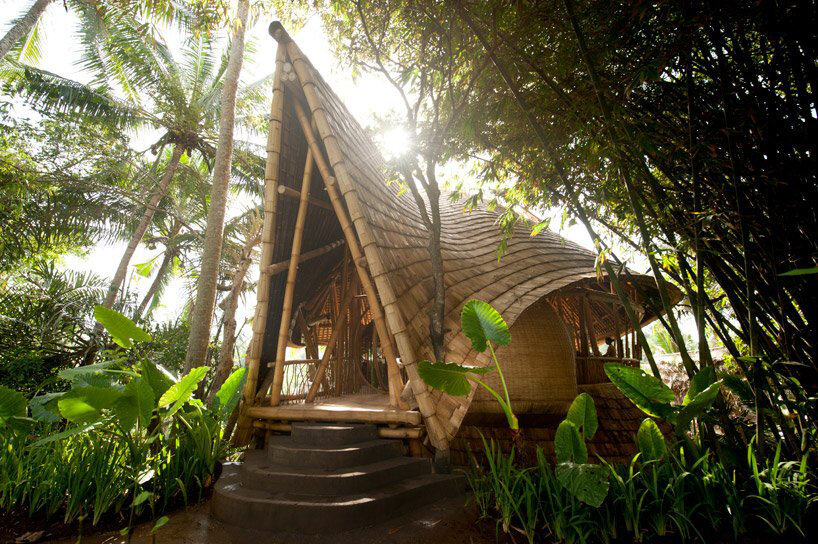

‘green village’ by ibuku, bali, indonesia
image © ibuku
all images courtesy of green village

working in conjunction with the green school in bali, the ‘green village’ is a community of ecological houses sitting along the ayung river,
within walking distance of the educational facility. local balinese practice ibuku has designed several houses that co-exist with the
natural landscape, using bamboo as its only building material on a multitude of scales. the houses are amongst the first structures
that use very traditional building methods and local craftsmen that result in a high quality structure and life. architect elora hardy
explains the sustainable nature of the entire project:

‘even sustainable timber can’t begin to compare with bamboo as a
conscientious building material. with very few resources or
attention a
bamboo shoot can become a structural column within three years, and that
house could stand strong for a lifetime.’

each residence has its own unique character, as the architects work hand-in-hand with the client to tailor the design to their specific needs,
with a percentage of the proceeds going to the green school. to date, 15% of the local student body is able to study on a full scholarship,
as a percentage of money made from each house is donated to the school.


main living area of the ayung villa
image © ibuku

the dwellings are typically based around radially located clusters of
thick bamboo columns, like tendrils that weave into the floor beams and
eventually attach to the bamboo tile or thatch canopy. it is then
treated in different methods to perform various tasks within the home.
larger stocks are cut into longitudinal sections to make a ladder-like
frame that can be used as a semi-opaque wall component or furniture
structure. thin strips are woven to make a solid but light-weight
partition. bent members create an original circular opening with a
swiveling
door. the readily available, malleable material property of bamboo makes
it possible to create free-flowing sweeping forms that maintain
their structural capacity and can be easily integrated into natural stone foundations.


ayung villa stone and bamboo kitchen
image © ibuku


ayung villa unique furniture also made of bamboo
image © ibuku


integrated fixtures into the structure – ayung villa
image © ibuku


top floor office in the garden vila
image © ibuku


ayung villa living area
image © ibuku


ayung villa dining area
image © ibuku


living space
image © ibuku


swiveling circular door and full-height wall panels open the interior
image © ibuku


bedroom
image © ibuku


image © ibuku


wall texture from section-cut bamboo stocks

image © ibuku


natural stone foundation and pool
image © ibuku


tall pointed roofs in line with traditional architectural style
image © ibuku


image © ibuku


image © ibuku


local craftsman contributed in every aspect of the design and construction process

image © ibuku


site plan


example villa 2 : floor plan / level 0


example villa 2 : floor plan / level 1


example villa 2 : floor plan / level 2


example villa 2 : floor plan / level 3


example villa 1 : floor plan / level 0


example villa 1 : floor plan / level 1


example villa 1 : floor plan / level 2


example villa 1 : floor plan / level 3


ayung villa : floor plan / level 0


ayung villa : floor plan / level 1


ayung villa : floor plan / level 2


ayung villa : floor plan / level 3


garden villa : floor plan / level 0


garden villa : floor plan / level 1


garden villa : floor plan / level 2


villa 5A : floor plan / level 0 and materiality


hilary’s house : elevation
