bates masi divides american family home into interconnected courtyard pavilions
all images © michael moran

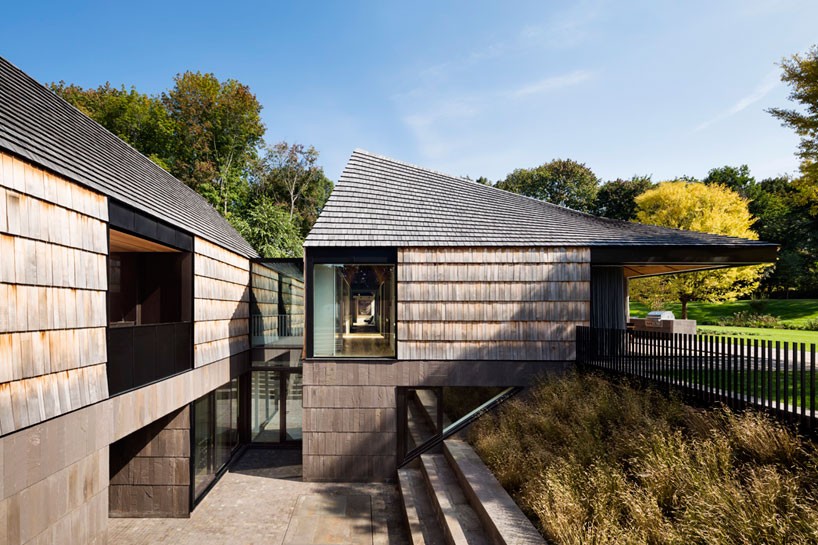

occupied by a family in matinecock, new york state, bates masi + architects has developed this suburban home defined by its close reference and relationship to its green landscape and the site’s original heritage. its design is based on quaker settlements, the form of the scheme divided into a series of modest-sized gabled structures, each one focused inward on its own garden courtyard.

bates-masi-architects-underhill-house-new-york-designboom-02
the form of the entire dwelling has been divided into a series of modest-sized gabled structure







establishing a sense of space and orientation to nature, every interior space is connected to the exterior on two sides. the layering of programs from exterior to interior to courtyard breaks the boundaries between them. each volume has a sculpted roof that funnels light and air into the center of the structure.

bates-masi-architects-underhill-house-new-york-designboom-03







the choice of materials references the early quaker settlement buildings in the area – seen in the shingle coursing and pitched roofs. a limited number of materials are carefully detailed to accentuate the geometric form of each pavilion. a pronounced shadow line traces around each building and articulates the scale of the oversized shingles and under-coursing layer. on the roof, the shingles are an ideal material as they accommodate tapering courses that follow the roofs compound pitches.

bates-masi-architects-underhill-house-new-york-designboom-04
weathered metal straps on the ceiling further emphasize this geometry







the idea of the pavilion is evident; the structure’s inverse form is carved out of the earth to create a lower courtyard at the basement level. planted retaining walls slope down to let light and air into the lower level. similarly, a sloped, depressed area forms a destination in the landscape, where a grove of trees grows and creating a contemplative area. overall, the architects’ strategy of introducing modern touches and a rich palette of natural materials has created a contemporary yet comfortable living space.

bates-masi-architects-underhill-house-new-york-designboom-05
the design references nature and the local quaker settlements

bates-masi-architects-underhill-house-new-york-designboom-05
every interior space is connected to the exterior on two sides

bates-masi-architects-underhill-house-new-york-designboom-05
the kitchen area faces onto a secluded courtyard

bates-masi-architects-underhill-house-new-york-designboom-05
invisible corners seen throughout the home open completely to the generous garden

bates-masi-architects-underhill-house-new-york-designboom-05
a contemplative area

bates-masi-architects-underhill-house-new-york-designboom-05
each pavilion space is connected through glass corridors

bates-masi-architects-underhill-house-new-york-designboom-05
each volume has a sculpted roof that funnels light and air into the center

bates-masi-architects-underhill-house-new-york-designboom-05
bedroom with an invisible corner open up to the garden

bates-masi-architects-underhill-house-new-york-designboom-05
underhill house in new york state
