garrison architects: red hook green
May 07, 2010
'red hook green'
'red hook green' designed by american firm garrison architects in collaboration with
developer jay amato is new york’s first sustainable zero-energy building planned
for completion in late summer of 2010 at the red hook section of brooklyn. as defined
by the US department of energy, 'a net zero-energy building (ZEB) is a residential
or commercial volume with greatly reduced energy needs supplied by renewable technologies.'
this design follows the ZEB concept as it receives all its energy supply from low-cost,
locally available, nonpolluting, renewable sources such as solar or wind power.
a 3-D rendering illustrating the modular assembly and 360 degree views of the structure.
this approximately 4,000 square foot live/work facility houses a single family home,
garages with workshop/studio space including solar powered vehicle charging stations,
offices and outdoor green space. to generate enough energy for the main building, the
design proposal features sanyo's HIT® bifacial solar panels which capture additional
ambient or scattered sunlight to produce more power at any angle and any direction
than single sided panels.
structurally, the second floor south wall is kept open to expose the steel substructure
and covered in translucent glass to provide overall protection, shading and privacy.
meanwhile, the fourth floor canopy allows the overall design to have a more symmetric
relationship with the lower structure and simplifies the construction process.

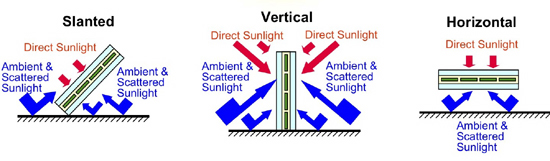

the cross section drawing of the solar panels are lifted off the roof to allow ambient
light to be captured as well as under the awning over the fourth floor.
first in progress 3D rendering of the project attempting to integrate key neighbourhood themes.
the first envisioned design as seen in the rendering above attempted to integrate key
neighbourhood themes. the structural support of the modular buildings, the walls
garage and the green space work to blend with the historical
nature of the many
neighboring civil war era warehouses. the container-like metal and glass factory-built
modular sections pay tribute to the rich steve doring history of redhook.
3d rendering side view
in the evolution of the design, the rooms expanded to 3,964 square feet to accommodate
live/work needs and code requirements. the modular structures shifted from a perpendicular
orientation to dikeman street to a parallel one. as seen in the final design, solar panels in
this rendering are housed on the roof of the top floor.
additional power can range from 0-30% more, and depends on the system design and site characteristics.
most system typically achieve around 15 -20% more power with sanyo's HIT® bifacial solar panels

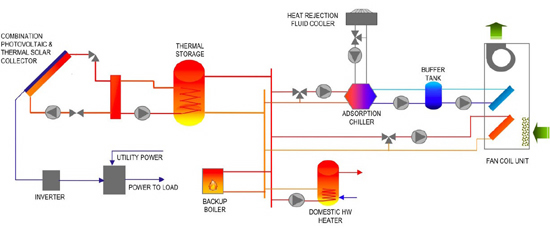

schematic diagram of power generation and HVAC system
'red hook green' is a demonstration of what urban centers can do to reduce dependency
on foreign oil via renewable resources and to significantly reduce greenhouse-gas
emissions. looking at sustainability strategies, 'red hook green' illustrates the
towards zero-energy buildings around the world, applying new construction
improved wind and solar technologies and more energy-efficient HVAC and
