GGMPU arquitectos + lucio morini: bicentennial civic center, argentina
a faceted facade constructed out of concrete is made up of morphing prisms to create a tri-dimensional surface through a series of rhomboid-based combinations.
located on the edge of the historic center of the city, in the province of córdoba, argentina, sits the bicentennial civic center, an administrative complex designed by argentine practice GGMPU arquitectos and lucio morini. measuring more than 700 meters, the structure is situated along the suquia river connecting the two separated communities via a new vehicular bridge. the landscaping of the promenade area has transformed this once abandoned sector into a new downtown front.

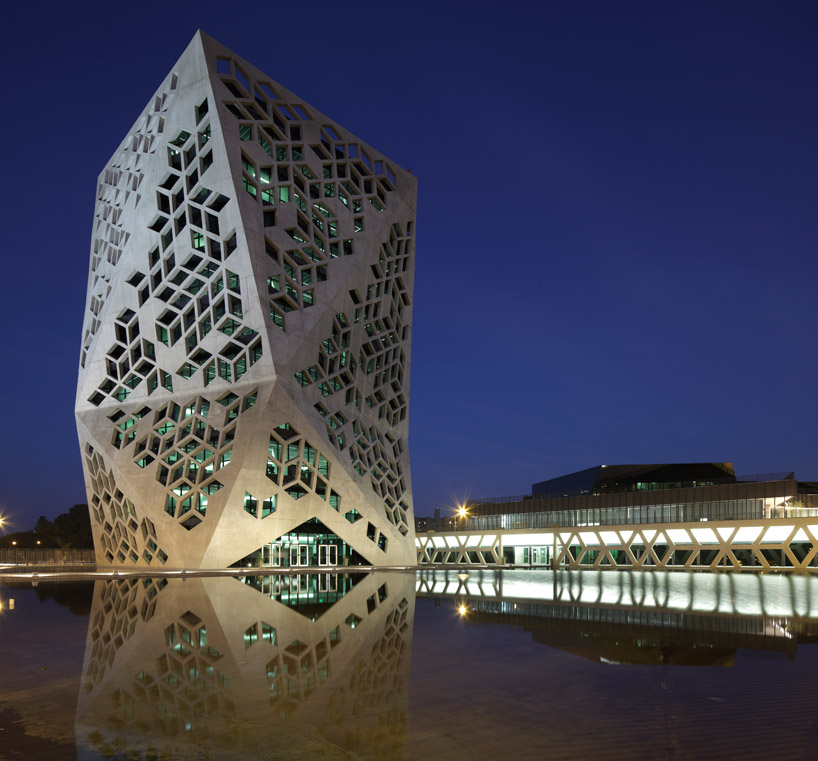

image © claudio manzoni (also main image)
the development consists of two new buildings, the first is a medium-rise structure which houses the ministries. the faceted prism is made entirely of concrete based on a square cuboid measuring 45 meters high with a 20-degree rotation at 16 meters. the movement generates a complex morphology based on triangles, producing a distinct play of light and shadows. a series of geometric rhomboid-based combinations were explored to instill tri-dimenstionality to the planes of the facade. the edifice is located over a shallow pool which can be drained for larger public gatherings and events.
bridge to compleximage © claudio manzoni
the second building houses the administrative functions and continues the language of the first structure with smaller scaled rhomboids located along its horizontal volume. situated over a concrete base, parking and areas for social events are incorporated into the complex. the top surface hosts a green roof with grass and foliage to help regulate the temperature of the structure, allowing the sun to reach the edifice in the winter while sheltering it in the summer. the extension of the section provides spaces free of partitions allowing the configuration of offices to be arranged as desired. the governor’s house is located on top of this plane, consisting of a single story freestanding object with mirror-clad faces. the next phase of the project is the completion of the administrative area, and the construction of the convention center.
rhomboid facadesimage © claudio manzoni
located in front of a shallow pool to reflect the structureimage © claudio manzoni
image © claudio manzoni
image © claudio manzoni
image © claudio manzoni
image © leonardo finotti
image © GGMPU+lucio morini
outdoor corridorimage © GGMPU+lucio morini
image © leonardo finotti
image © claudio manzoni
image © GGMPU+lucio morini
conference hallimage © claudio manzoni
interior stair wellimage © claudio manzoni
open officesimage © claudio manzoni
governor’s houseimage © GGMPU+lucio morini
interior courtyardimage © leonardo finotti
site plan, phase 1
site plan, phase 2 & 3
elevation
elevation
elevation
section
floor plan / level 0
floor plan / level 1
floor plan / level 2
floor plans
detail
detail
detail
detail
project info:
title: centro civico del bicentenariolocation: córdoba, argentina.client: government of the province – córdobacompletion / construction: 2011- 2012architects: GGMPU arquitectos: gramática/morini/pisani/urtubey + lucio moriniproject manager: arq. guillermo pozzobóncollaborators: arqs. julia garayoa, adrián castagno, verónica gordillo, diego andres gómez, mariana pelliza, guadalupe daher, cecilia villareal, luciana antonucci, agustín elies, gonzalo manzanaresconsultants: fragueiro & novillo ings., arq. h. pasetti, ingenia, tecnoseguridad, m. mangupli & cia, peusso , twins ingenieria, vanoli & associates, decibel, tecno riego, del bianco & associatesbuilding area: 24.781,60 sqmconstruction company: electroingenieria s.a
