jose maria saez + daniel moreno flores: algarrobos house, ecuador

‘algarrobos house’ by jose maria saez + daniel moreno flores, puembo, ecuadorimage © sebastian crespoall images courtesy of jose maria saez and daniel moreno flores





not all projects have the luck or the privilege of being located on a breathtaking site, this is not one of those projects. situated at the top of a valley overlooking the mountains of puembo, ecuador, amongst deep crevices, snow-covered caps, plateaus and native vegetation is the ‘algarrobos house’designed by local architect jose maria saez and ecuadorian architect daniel moreno flores for a private family. the peculiar context posed a great challenge: to bring the grandiose presence of the landscape to a relatable, digestible human scale; as a result, the residence is based around three points: the user, the function, and the surroundings. the structure then follows these principles, with a concrete foundation embedded into the hillside setting the floor areas and dimensions of different rooms.



the most notable feature is comprised of eight massive 18-meter long steel beams that overlap each other on the x,y, and z axes. like arms reaching out in all directions, the girders provide cantilevered structures from which certain parts of the program are allowed to nest, being immersed into the scenery with unabridged views. they also act as an intermediary between the larger site lines and the smaller-scale elements of the house.filling the voids between the members and further defining individual spaces are a substructure of wooden  frames, whose repetition and simplicity bring the scale down one step further to delineate several functions without confining them into being literal ‘rooms,’ still allowing a direct exposureto the exterior.






timelapse showing construction of the metal structure
video © jose maria saez and daniel moreno flores





profile extends to the landscape in all directionsimage © sebastian crespo





to complete the construction, a transparent glass skin wraps the entire construct, not only helping to insulate the interior but adds a new layer of complexity to the project in the form of angles and reflectance. the design is very much rooted in the dwelling’s relationship to the site, in addition to the owner’s relationship to the dwelling. the three dimensional planes of glazing and rooftop reflecting pools allow a new connection to the landscape, at times offering a simple view from various elevations, at others reflecting the landscape so that the hearth essentially disappears.





cantilevering spaces of repetitive frame structuresimage © raed gindeya muñoz





image © raed gindeya muñoz

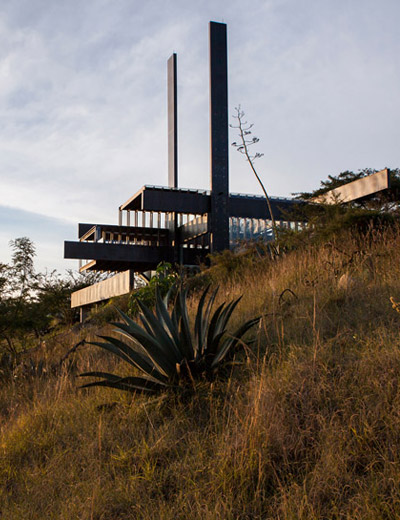

(left) view form belowimage © sebastian crespo(right) cantilevering bedroom volumeimage © raed gindeya muñoz





deck looking over the siteimage © jose maria saez and daniel moreno flores





glass envelope creates reflections and transparenciesimages © raed gindeya muñoz





rooftop reflecting poolimage © jose maria saez and daniel moreno flores





entrance to house on gradeimage © raed gindeya muñoz





image © sebastian crespo





entry courtyardimage © sebastian crespo





entryimage © raed gindeya muñoz





interior stairs, concrete foundation, and steel beamsimages © raed gindeya muñoz





bedroomimage © sebastian crespo





image © raed gindeya muñoz





bathroomimage © raed gindeya muñoz





dining room and kitchenimage © jose maria saez and daniel moreno flores





living room opens up to the exteriorimage © sebastian crespo





located in a mountainous landscapeimage © sebastian crespo





construction of the steel beams with square sockets and sections fitting together like lock and key to support enormous weightimage © jose maria saez and daniel moreno flores





image © jose maria saez and daniel moreno flores





construction of wooden ribsimage © jose maria saez and daniel moreno flores





image © jose maria saez and daniel moreno flores





image © jose maria saez and daniel moreno flores





image © jose maria saez and daniel moreno flores





floor plan / level 0





floor plan / level -1





floor plan / level -2





section





section

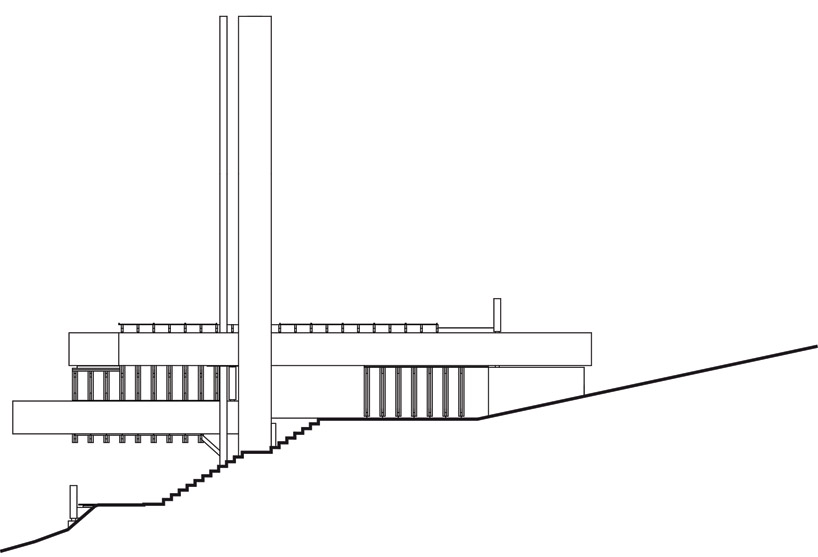

elevation





elevation





project info:





start date: 2009construction: 2010-2011construction: luis guamancollaborators: margarida marques, estefanía jácome, santiago vaca, claudia ponce, estefanía luna, adrián beltrán, joe jivaja, dennise paredes, valentina benalcazar.engineer: césar izurietacost: 290,000floor area: 338 m2total area: 495 m2
