located in the rural village of yulin in china, the ‘yan ancestral hall’ by shanghai based design studio M.O.D.E.S looks into the feasibility of low-tech strategies for a digitally designed and non-standard architectural layout. here the workflow is suitably chosen for the country’s general circumstances, meaning that a process has been developed by looking into the local labourer’s understanding. given the rural context, conventional material quality and labor skills are surprisingly deficient. hence, local clay brick and recycled roof tiles have been favoured over other elements.

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
night view of the western façade





the main challenge for M.O.D.E.S has been the front façade, a morphologic deformation mirroring the client’s family name  (yan). in that case, the architect has generated a pattern projection with brick length iteration on the west elevation — while all aforementioned restrictions in the vernacular culture have been taken into consideration for digital modelling. during implementation, the ‘flemish bond’ brick pattern is adopted: ‘stretchers’ are picked for cutting repetitions while ‘headers’ serve as reference grids for labourers.



‘this project […] uses computation capacity to bypass and control vernacular limitations. it emphasizes the digital thinking and the work-flow reformation in a conventional materialization technique, which led to an explorative result’.

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
general perspective of the ancestral hall in yulin





naturally, information transmission remains analog to ‘low-tech’ implementations. however, the formats can be different by using diagrams, guidelines, or only number tags that are more effective than regular construction drawings. in this case, the architect has marked all bricks and digitally colored them by categories, then combined all information from the script into the printed layouts. the brick cutting process has been done afterwards, as the material waste has been minimized.

070
the house included an original deformation that mirrored the client’s family name: 闫 (yan)

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
front door wooden structure and name plate

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
the main hall of the building, lit during nighttime

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
a skylight in the main hall, and an old beam from a previous ancestral hall is preserved

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
the view to the side room during daytime

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns

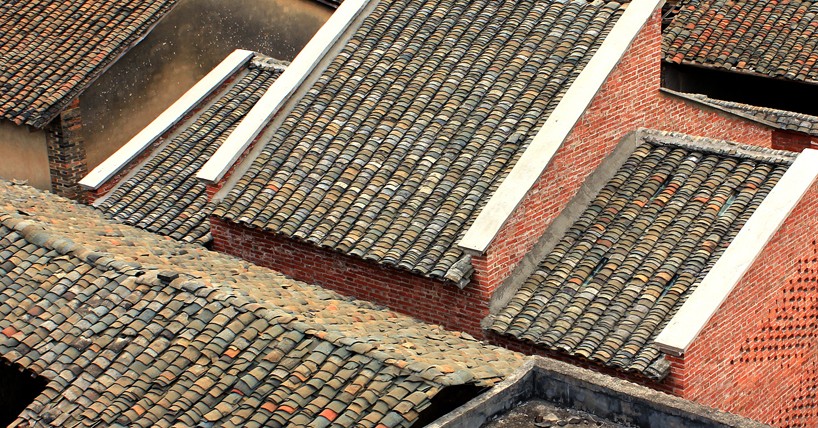

skylight in the side room infiltrating through the recycled roof tiles

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
CNC prefabricated wood window frames

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
different material representations ad overlap across the design

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
the brick pattern follows the structural design of a  ‘flemish bond’

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
the construction of the steel structure for roofing

M.O.D.E.S constructs chinese ancestral hall based on digitized brick patterns
‘low-tech’ implementation involves simple information transmission





project info:



team: nicholas wang, liumeng lou, kexin lu
completed: december 2016
location: yulin, china
