mass studies: songwon art center

‘songwon art space’ by mass studies, seoul, koreaimage © kyungsub shinall images courtesy of mass studies

acclaimed firm mass studies has just shared images with us of their new ‘songwon art space’ in seoul, korea, situated on a challengingly irregularsite with a significant transverse grade change and a slender angle where two roads converge. the footprint came about by this perimeter restrictionand the neighboring heritage house informed the height of the structure as it could not block sunshine to the protected site. the result is a mostlysubterranean building with exhibition spaces and parking in the basement levels where light can be more easily controlled and a commercial restaurantin the top two levels where the sun is fully invited. the underground skeleton is made up of a customized pilotis system that raises the building off thethe ground allowing the necessary dimensions for cars while creating an area for the entrance. the edifice above ground in contrast is made up of a solidreinforced concrete shell and a dramatically sloping translucent roof. along the sharp corner of the site, a two windows unexpectedly reveal the secretof the building, extending views 11 meters upwards through the public space and 8 meters downwards through the exhibit functions, and suddenly the scope of the project is revealed as the visitor finds themselves floating in the middle.

the glass canopy is composed of a triple-glazed system with embedded expanded steel mesh that helps filter direct light. this same louver mechanism is applied into the display areas, not to filter but rather to manipulate light. exposed subtle materials were used throughout the project, white and polished surfaces provide a neutral backdrop for any art exhibit and rough untreated textures and colors define the social programmatic elements. the exterior metal panels were manufactured by a local steel manufacturer who supports the songwon culture foundation and whose technologies make it possible to create affordable sheets of glavanized steel, roll painted with any color and texture to appear as another material.

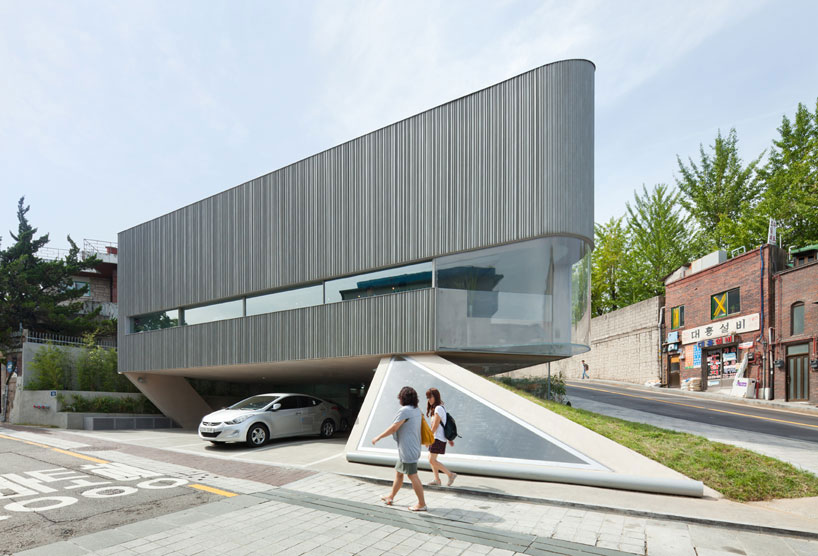

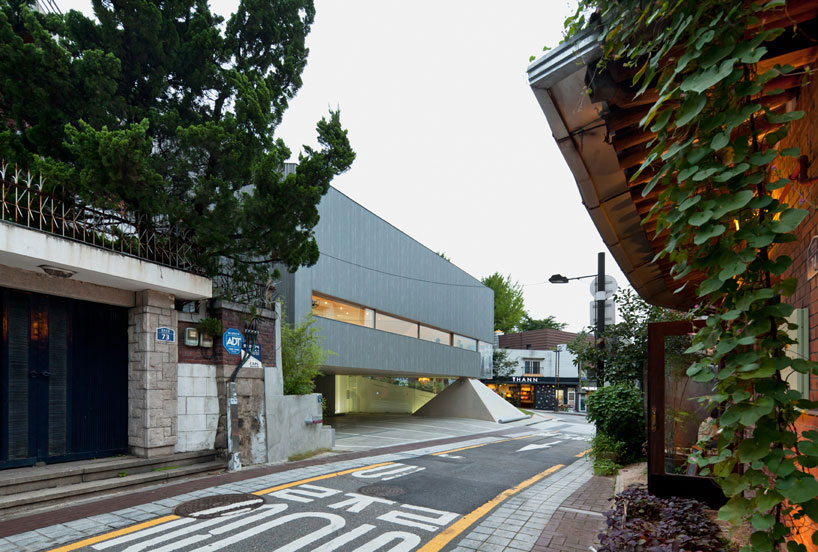

elevation from the streetimage © kyungsub shin

steel panels made to look like concreteimage © kyungsub shin

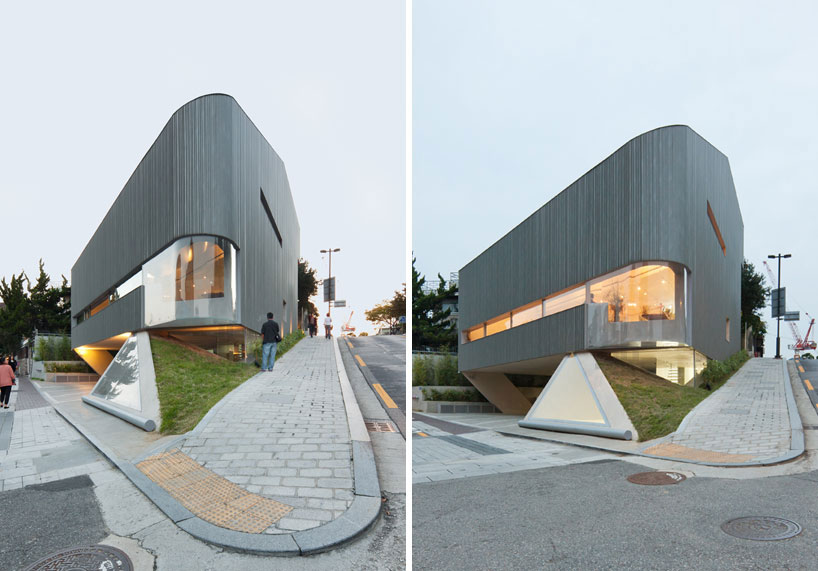

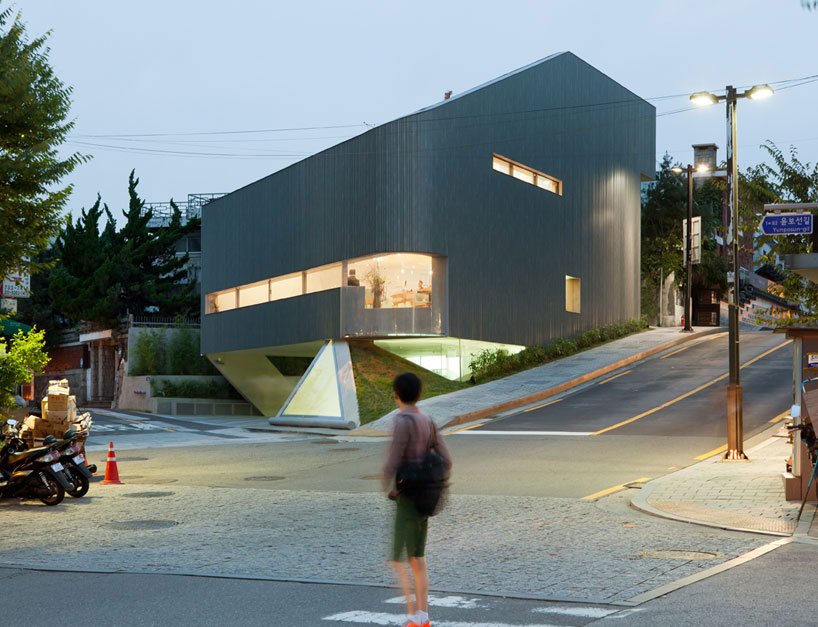

corner siteimage © kyungsub shin

image © kyungsub shin

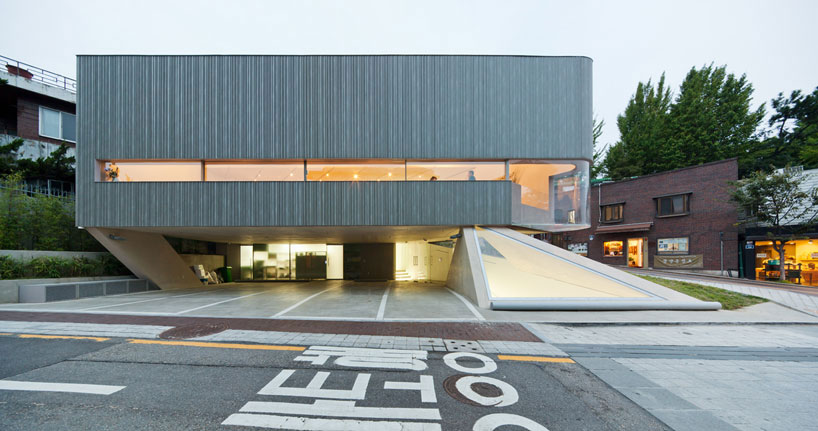

car entry on gradeimage © kyungsub shin

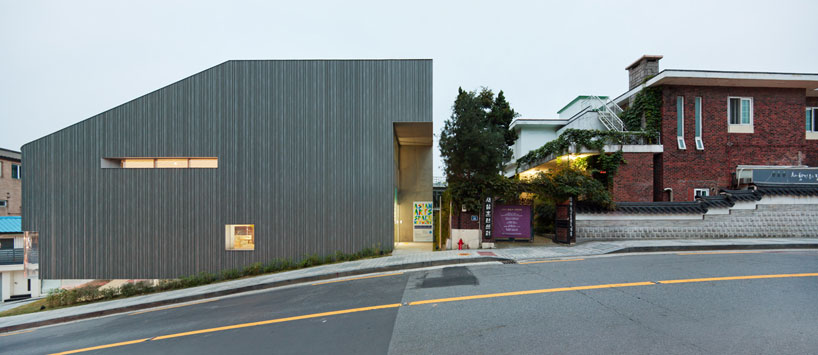

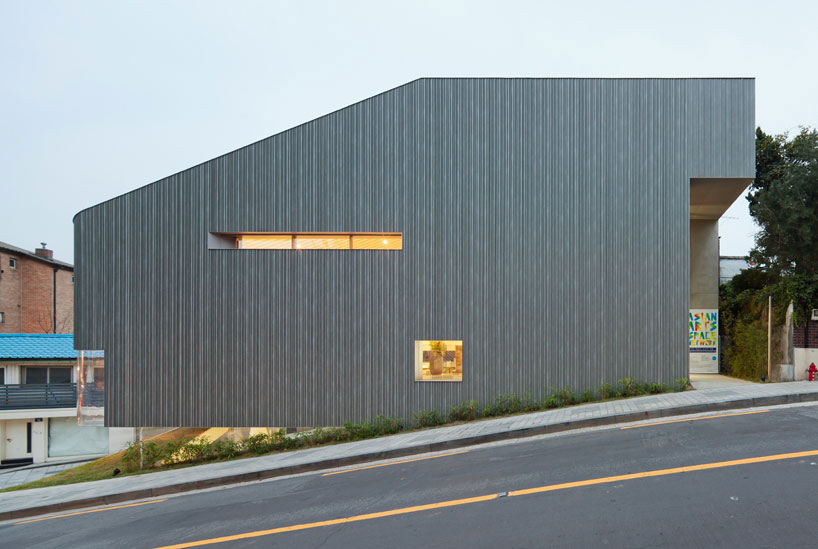

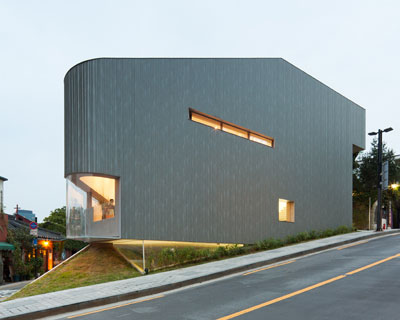

front elevationimage © kyungsub shin

in the urban contextimage © kyungsub shin

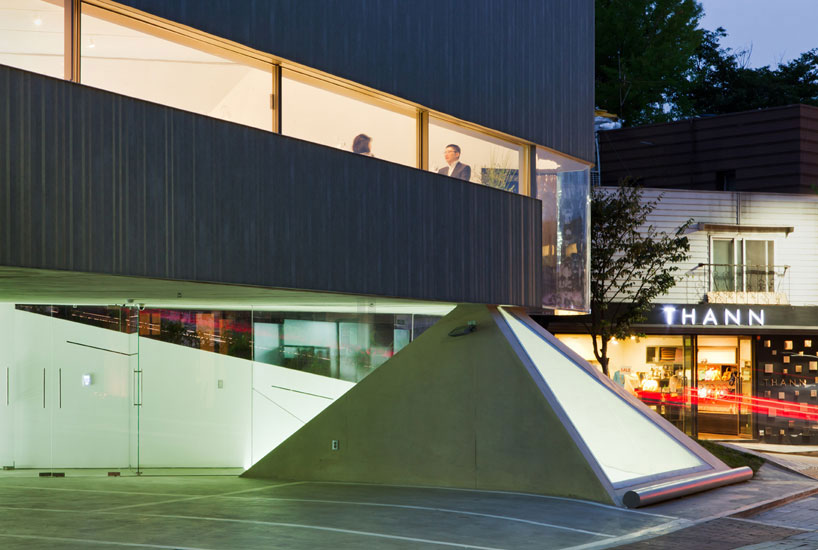

triangular skylight reveals the total depth of the structureimage © kyungsub shin

entrance vestibuleimage © kyungsub shin

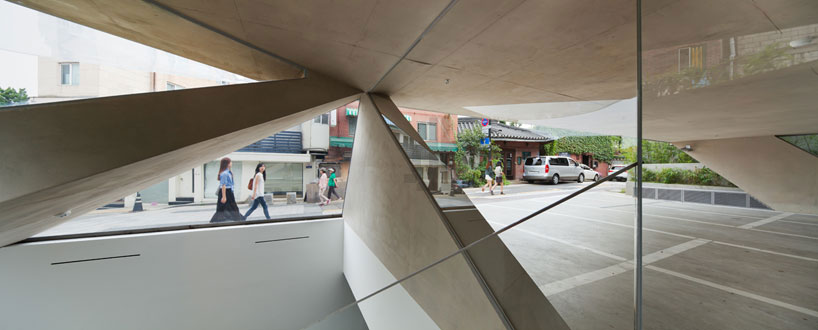

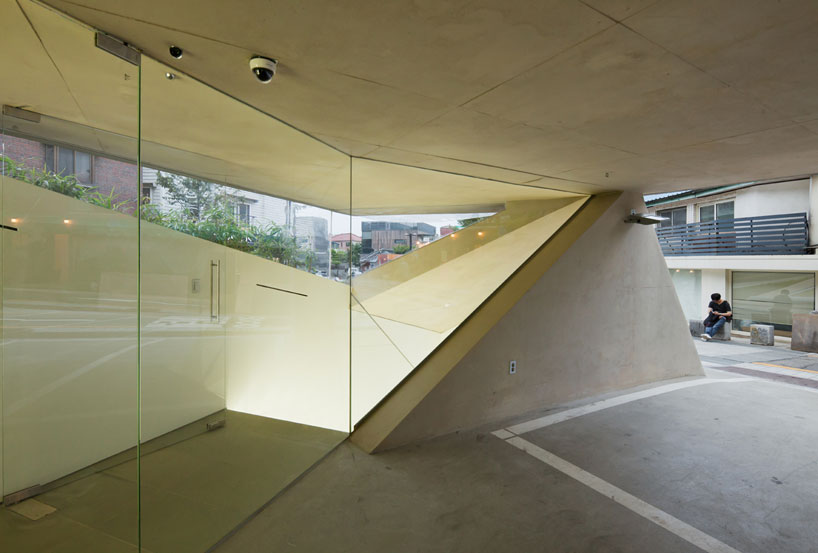

underside of entryimage © kyungsub shin

image © kyungsub shin

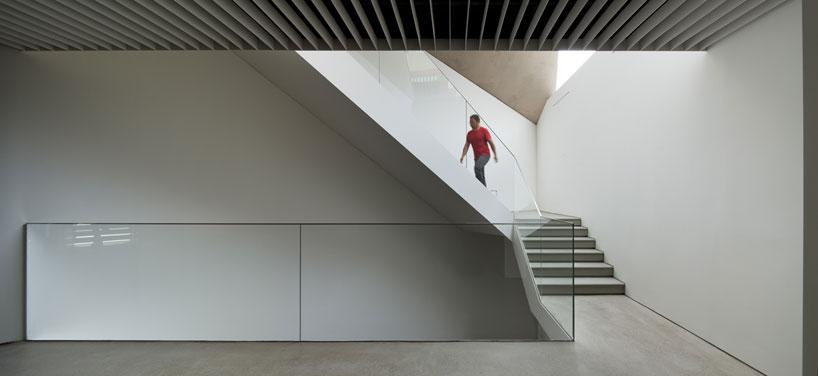

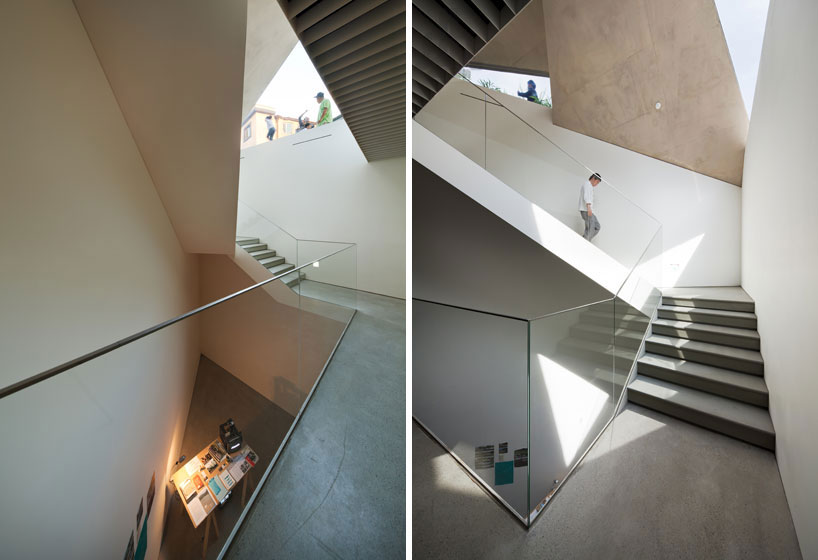

stairwellimage © kyungsub shin

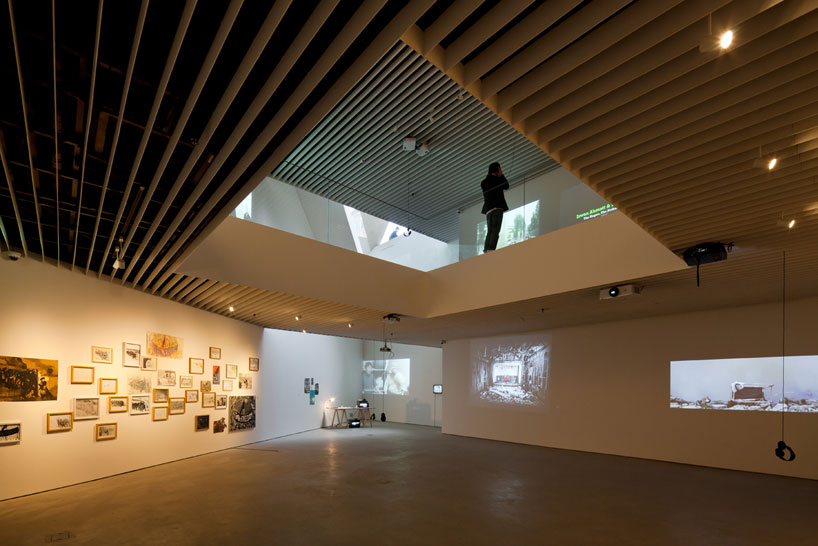

exhibition spaceimage © kyungsub shin

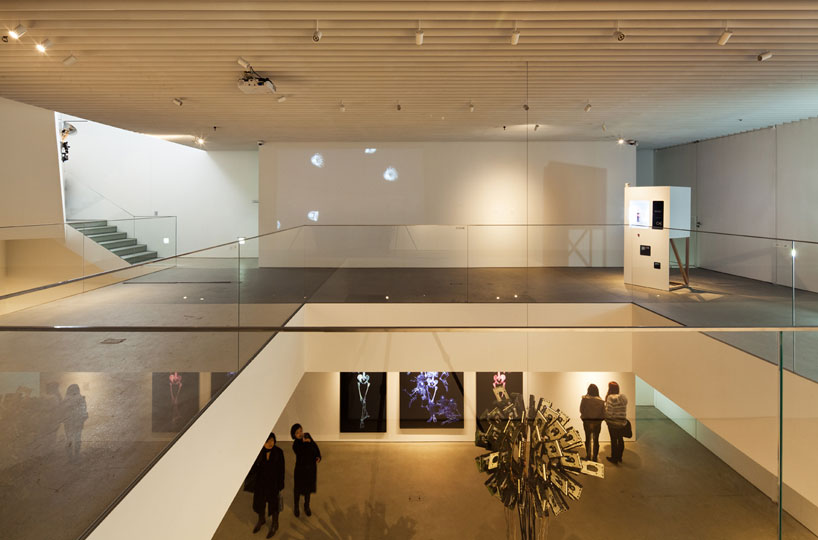

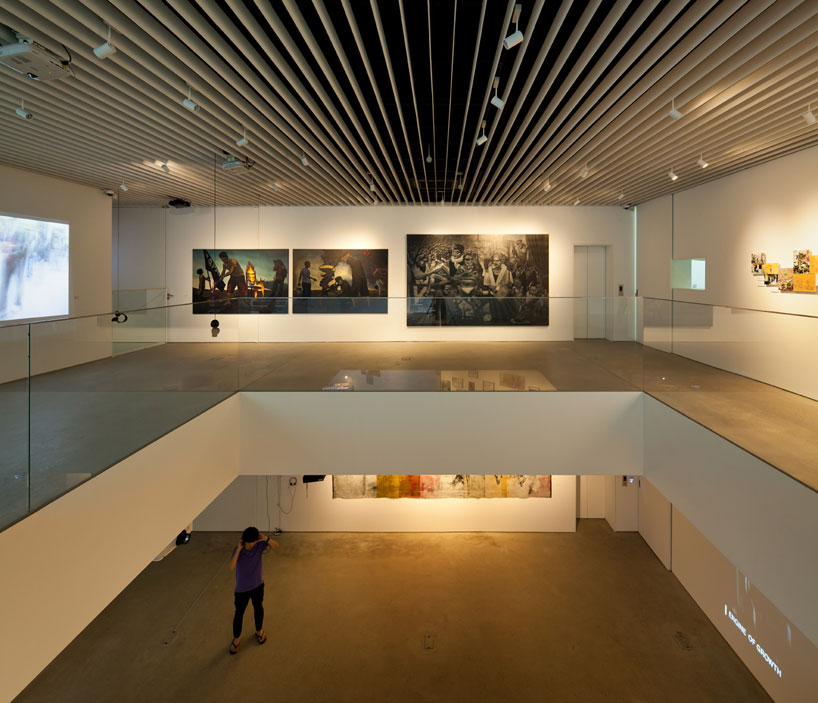

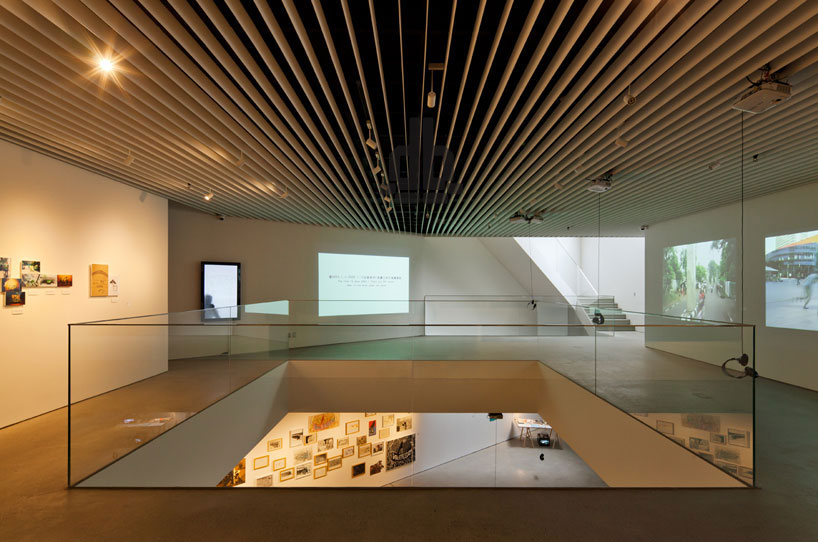

void in the floor creates a larger spaceimage © kyungsub shin

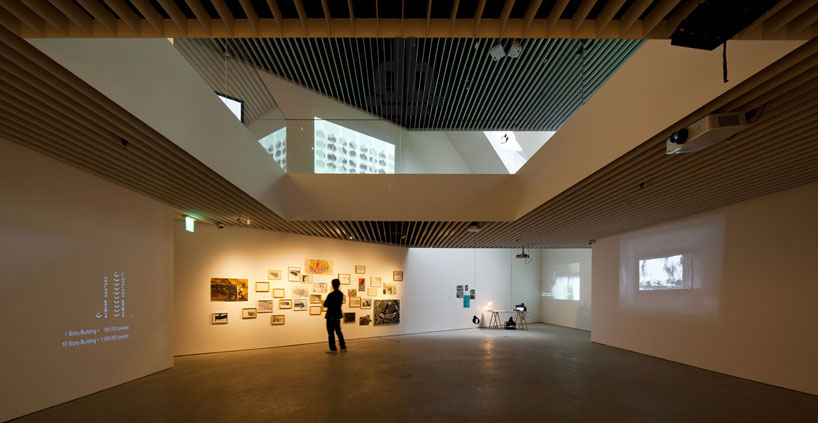

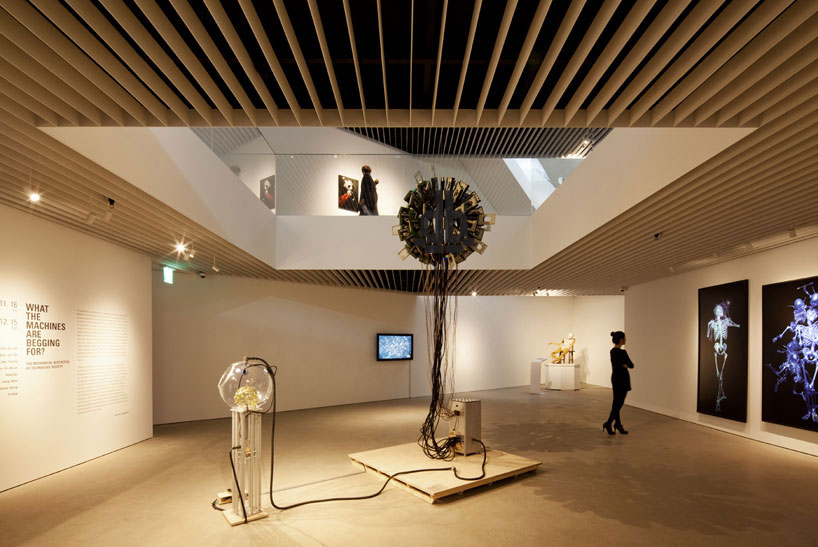

thin louvers in the ceiling make a distinct style while controlling lightingimage © kyungsub shin

image © kyungsub shin

image © kyungsub shin

image © kyungsub shin

image © kyungsub shin

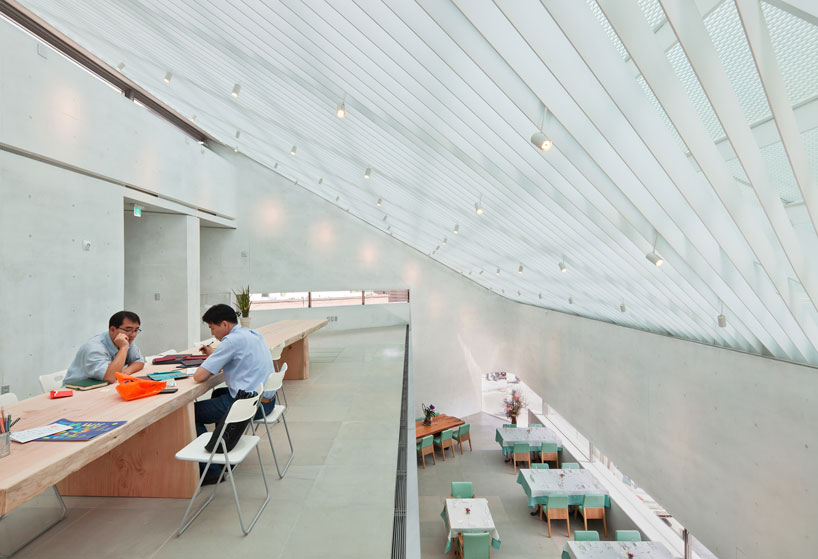

double height spaces allow natural light to seep deep into the structureimage © kyungsub shin

(left) stairs leading to the restaurant area(right) glass canopy and louver systemimage © kyungsub shin

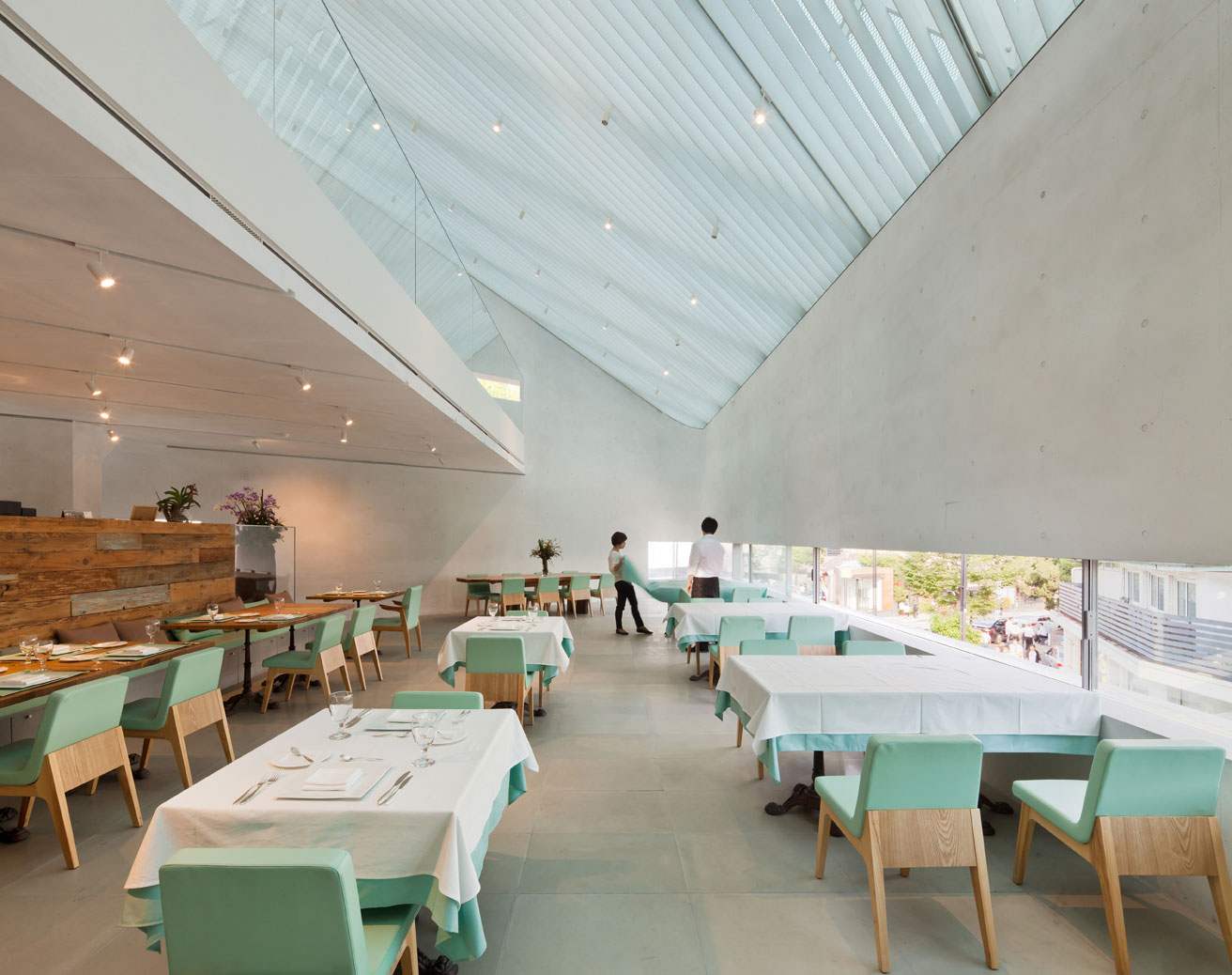

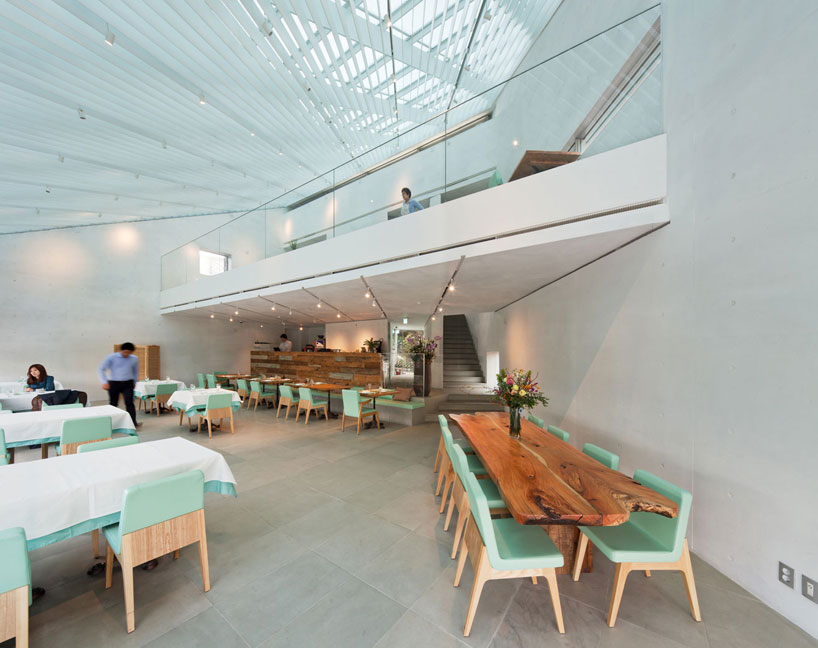

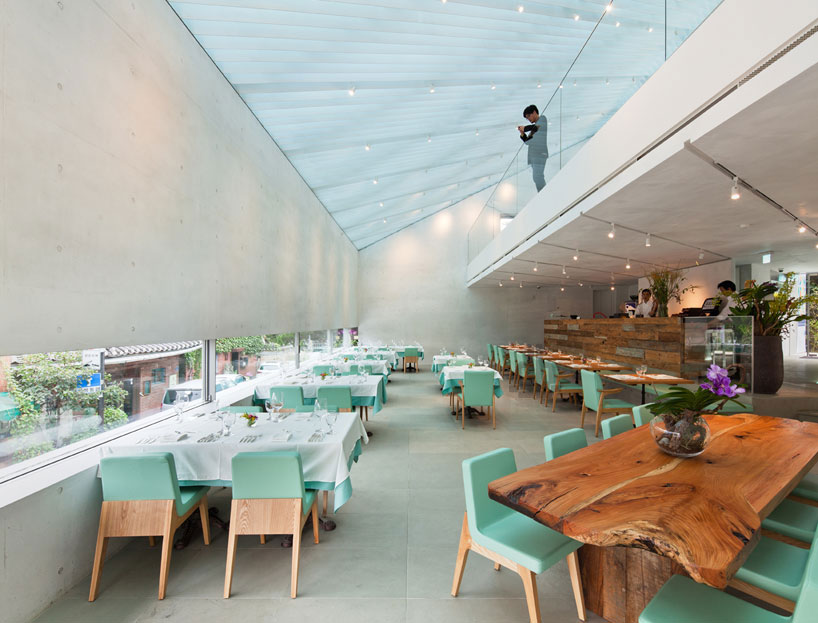

restaurantimage © kyungsub shin

image © kyungsub shin

image © kyungsub shin

image © kyungsub shin

image © kyungsub shin

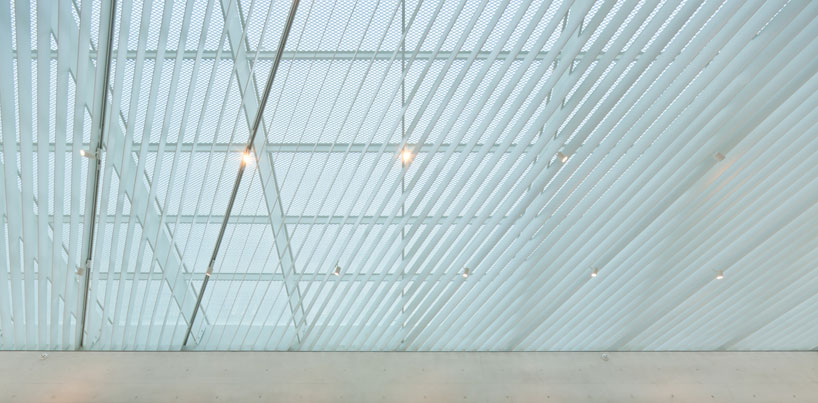

glass roofimage © kyungsub shin

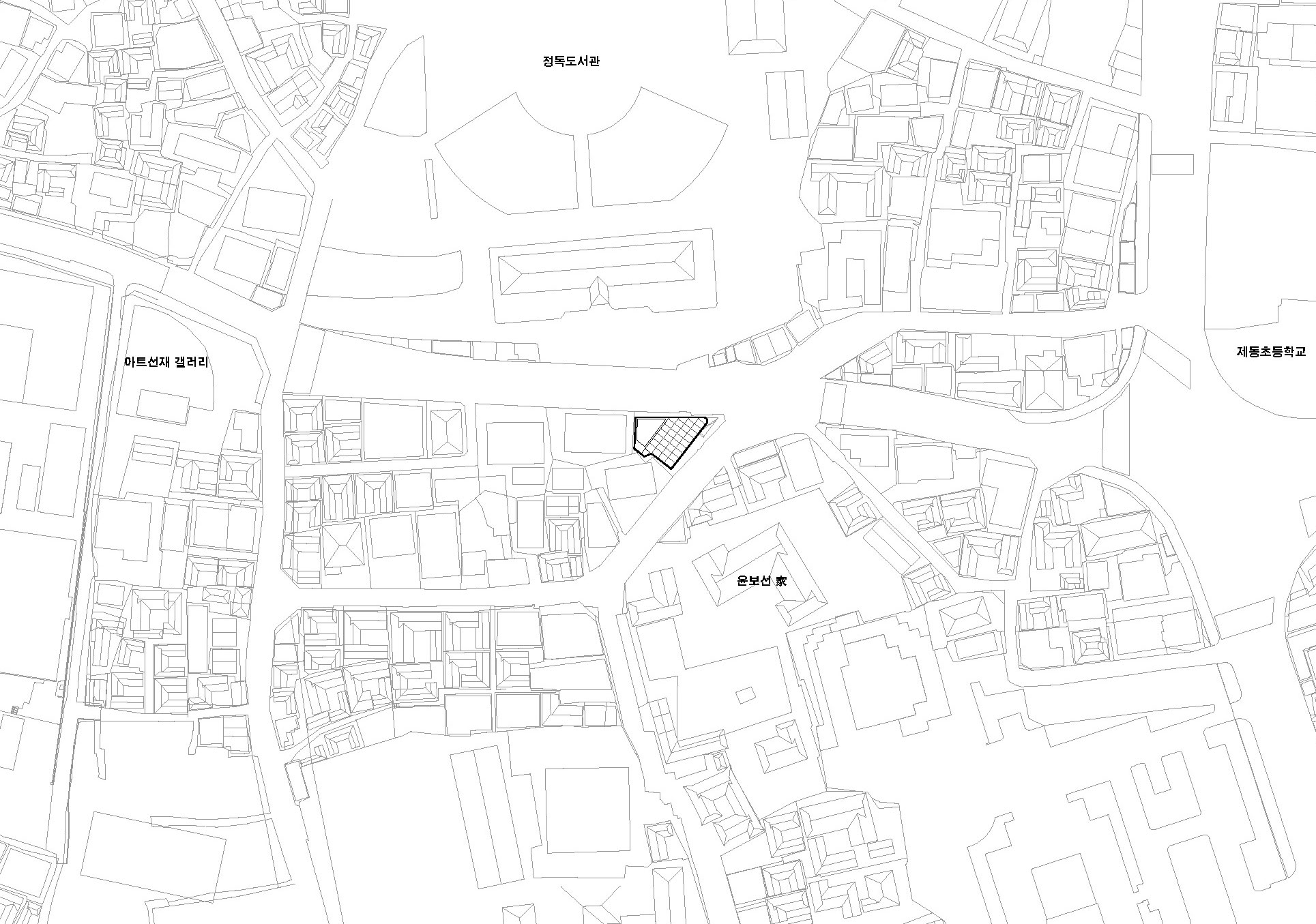

site plan

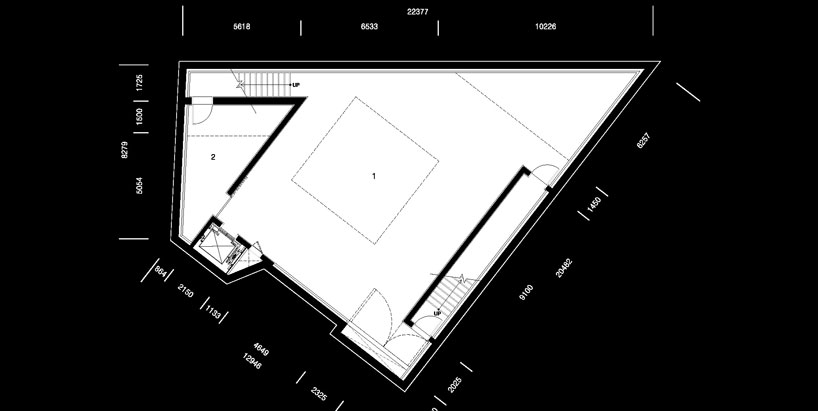

floor plan / level 0

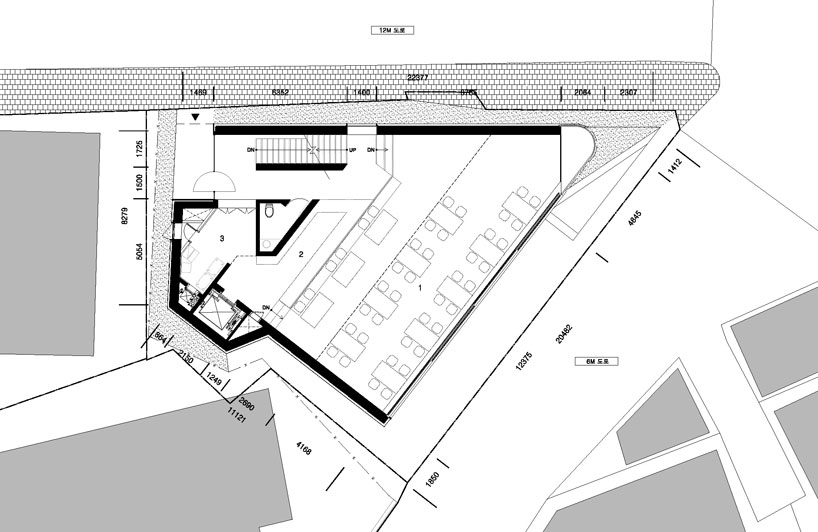

floor plan / level 1

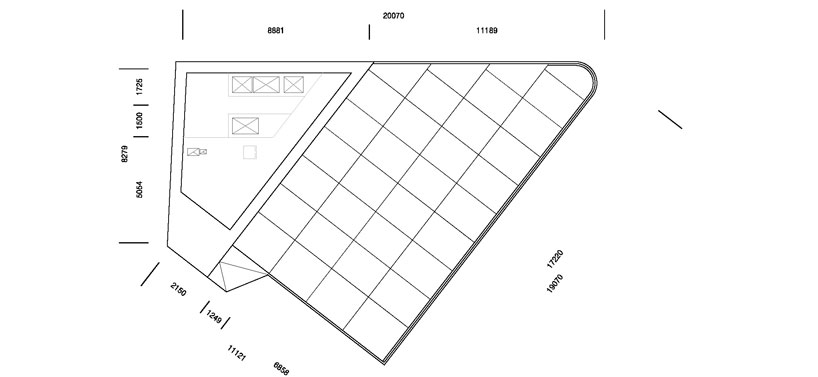

roof plan

floor plan / level -1

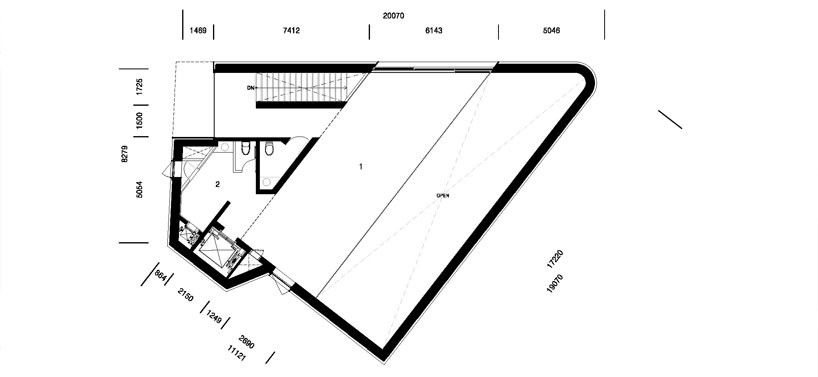

floor plan / level -2

floor plan / level -3

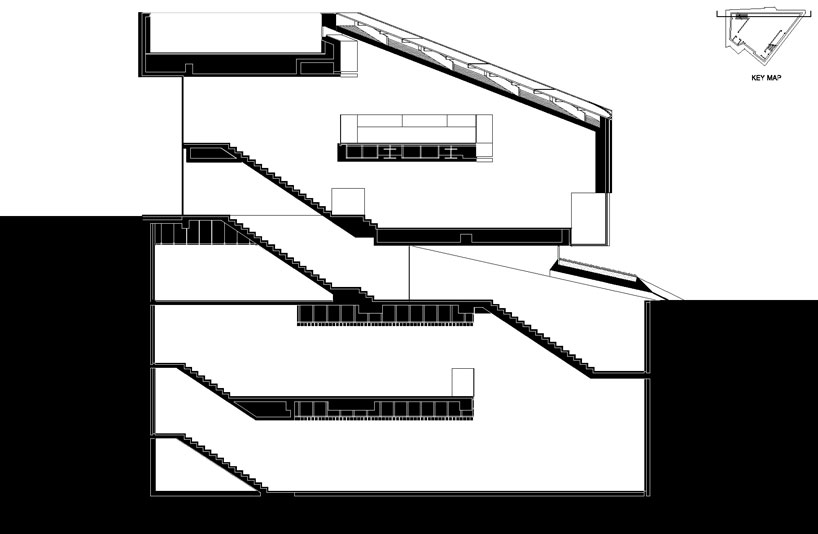

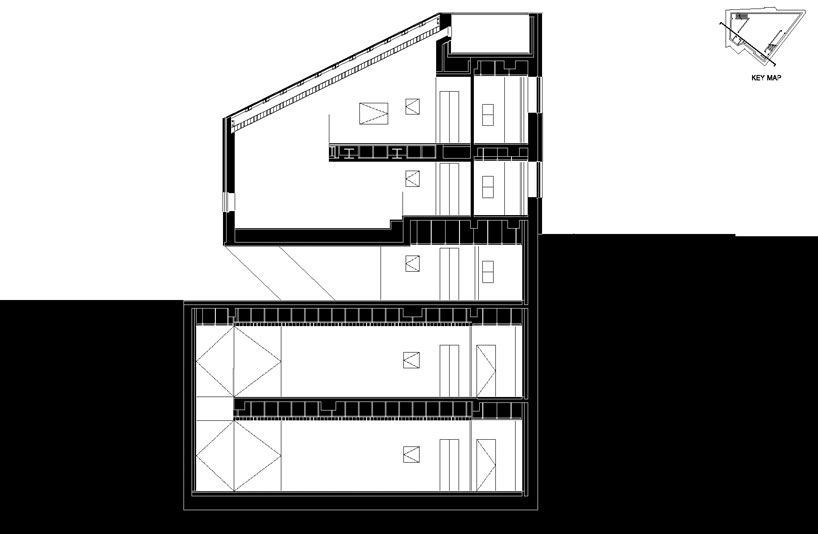

section

section

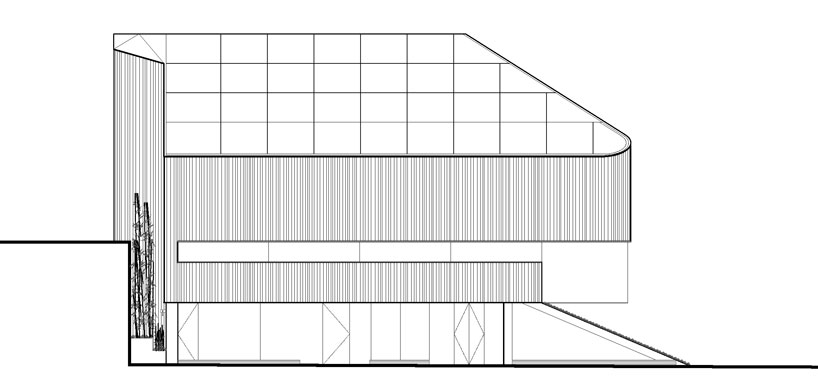

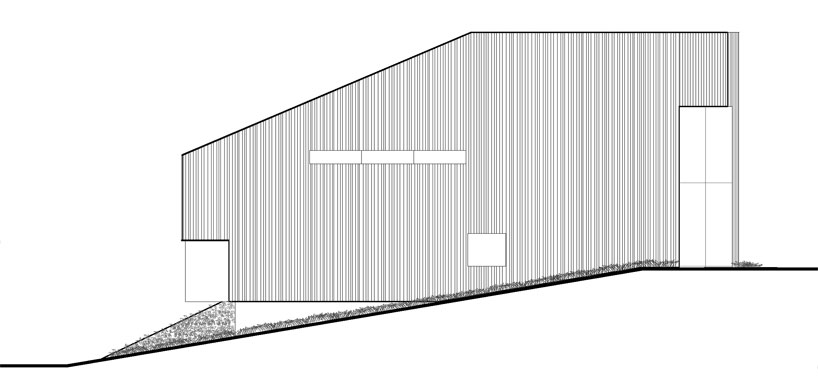

elevation

elevation

project info:
