NL architects: siemens hengelo

Jul 20, 2012

first image

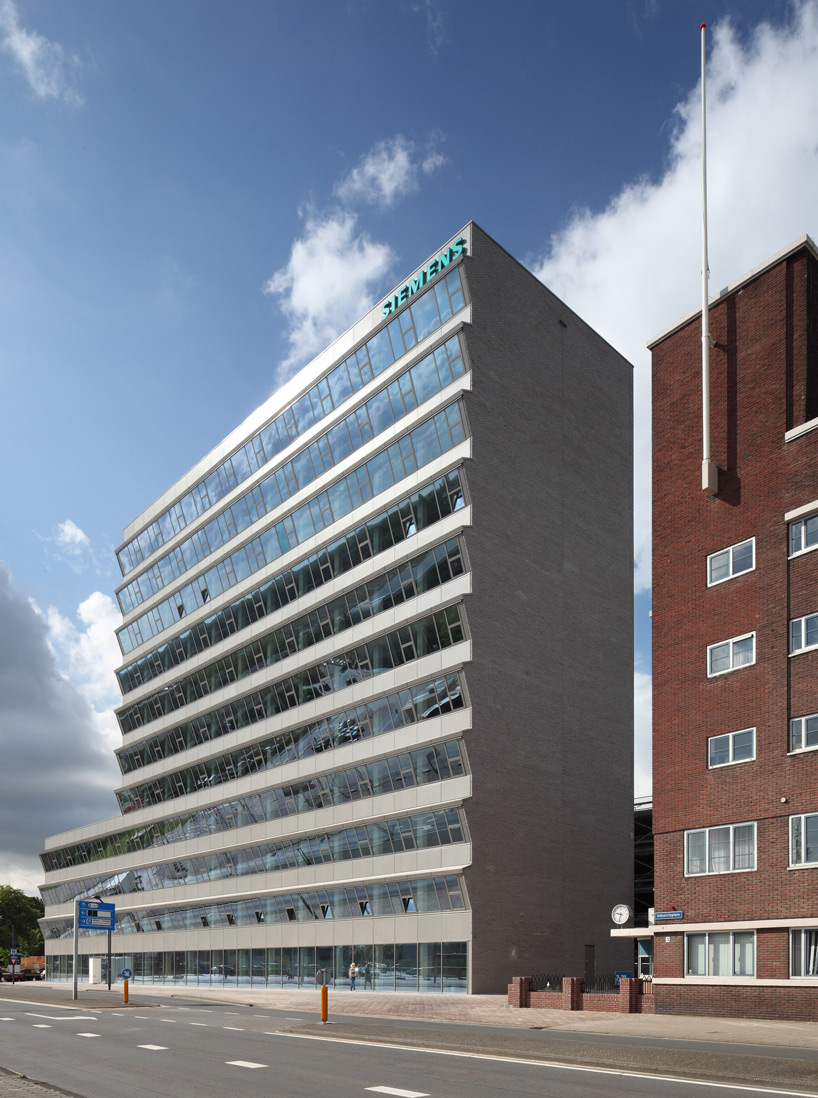

'siemens hengelo' by NL architects, hengelo, the netherlands
image © bart van hoek
all images courtesy of NL architects

'siemens hengelo' by amsterdam-based firm NL architects is now complete in the hart van zuid district of hengelo in the netherlands.
bordering a square and opposing the main train station, the office building is situated at the head of a strip of industrial structures.
contextually defined by the 20th century production, the area encompassing the site is being converted into a lively sector of mixed uses
including work and comfortable living. education and leisure will be integrated into the ongoing high-tech industry. the exterior responds
to the zoning document's prescribed aesthetic: 'the shape should be derived from the industrial heritage: unambiguous, sturdy,
stern and uncompromising. through these properties the building will acquire the character of a sign.' this statement has been interpreted
and implemented into the project by inverting the typical form of the horizontal shed and saw-tooth roof.

the zigzagged facade forms rows of inclined windows, positioned to reflect the pedestrians, cars, trains and buildings to onlookers
viewing from below. framing the glazing, protruding elements act as a visor to reduce glare and reflections to those working inside.
similar to traffic control towers, the employees will enjoy optimized outward views.

see designboom's coverage of this project during the schematic phase.

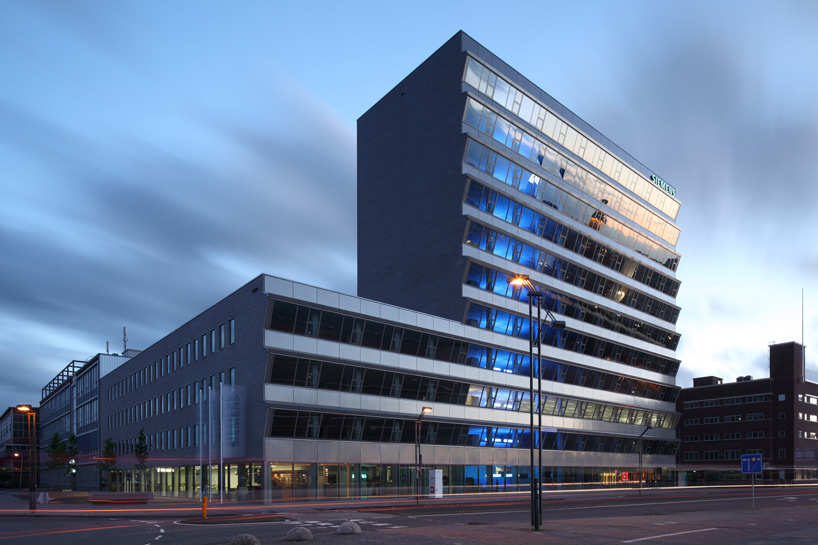

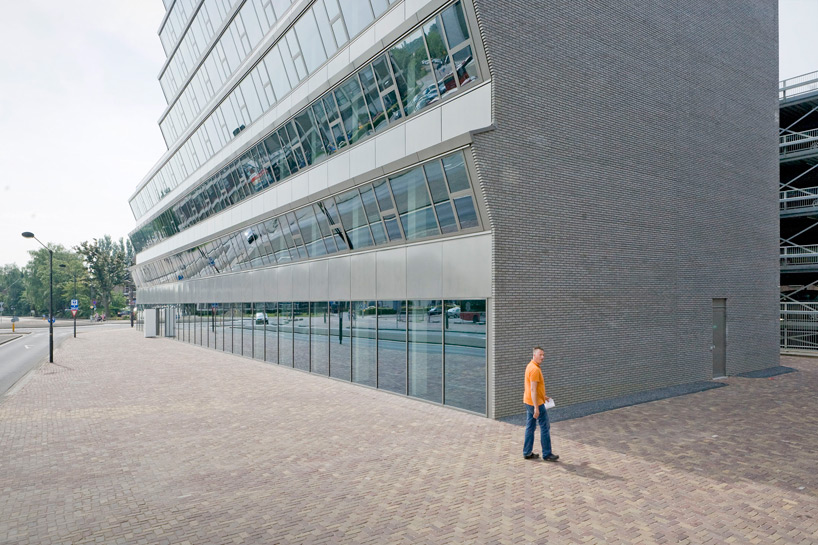

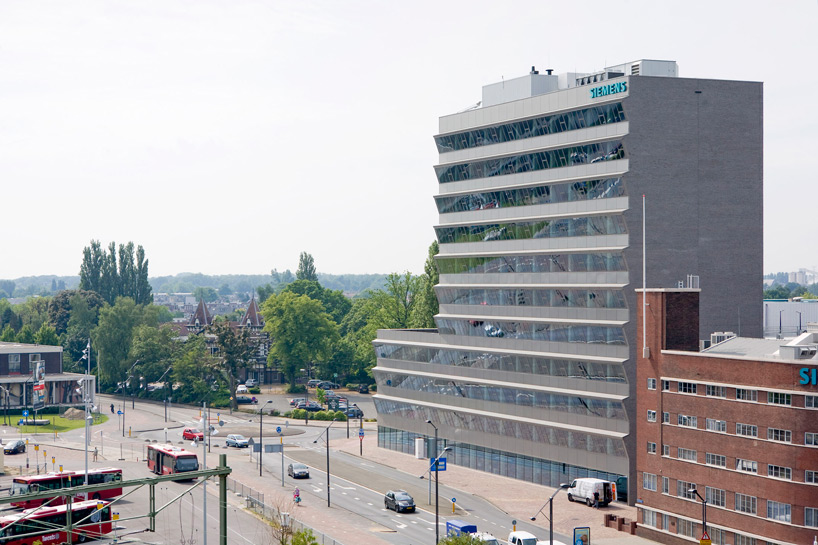

view from street
image © marcel ven der burg

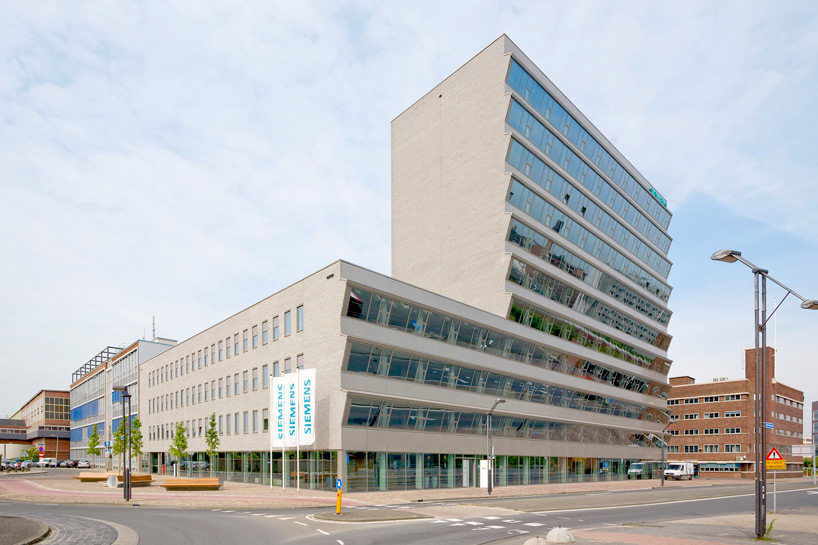

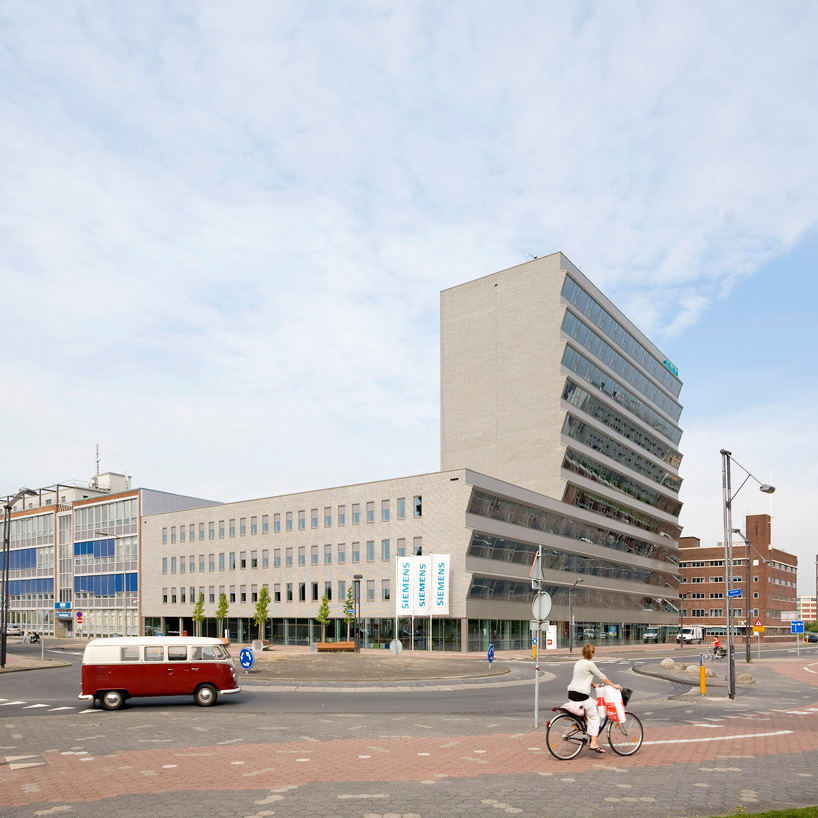

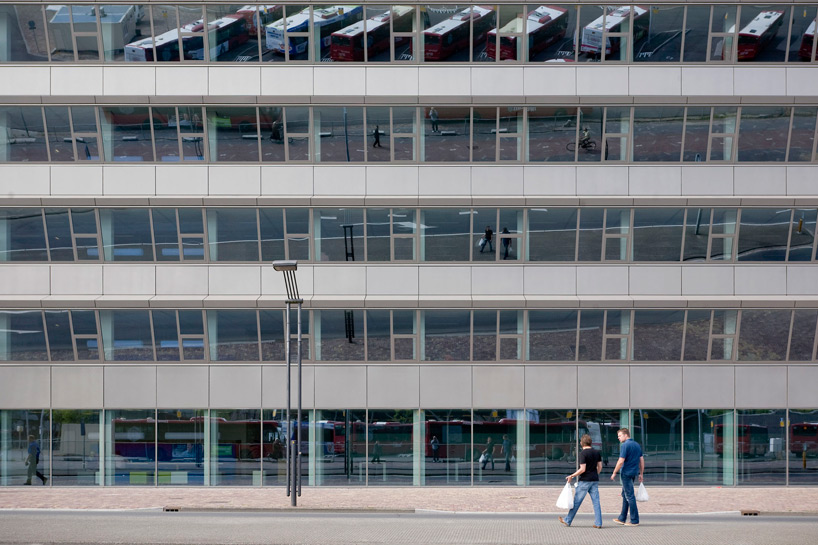

main facade
image © marcel ven der burg

image © marcel ven der burg

glazing reflects the encompassing district
image © marcel ven der burg

typical saw-toothed roofline is turned on its side into a facade of windows
image © bart van hoek

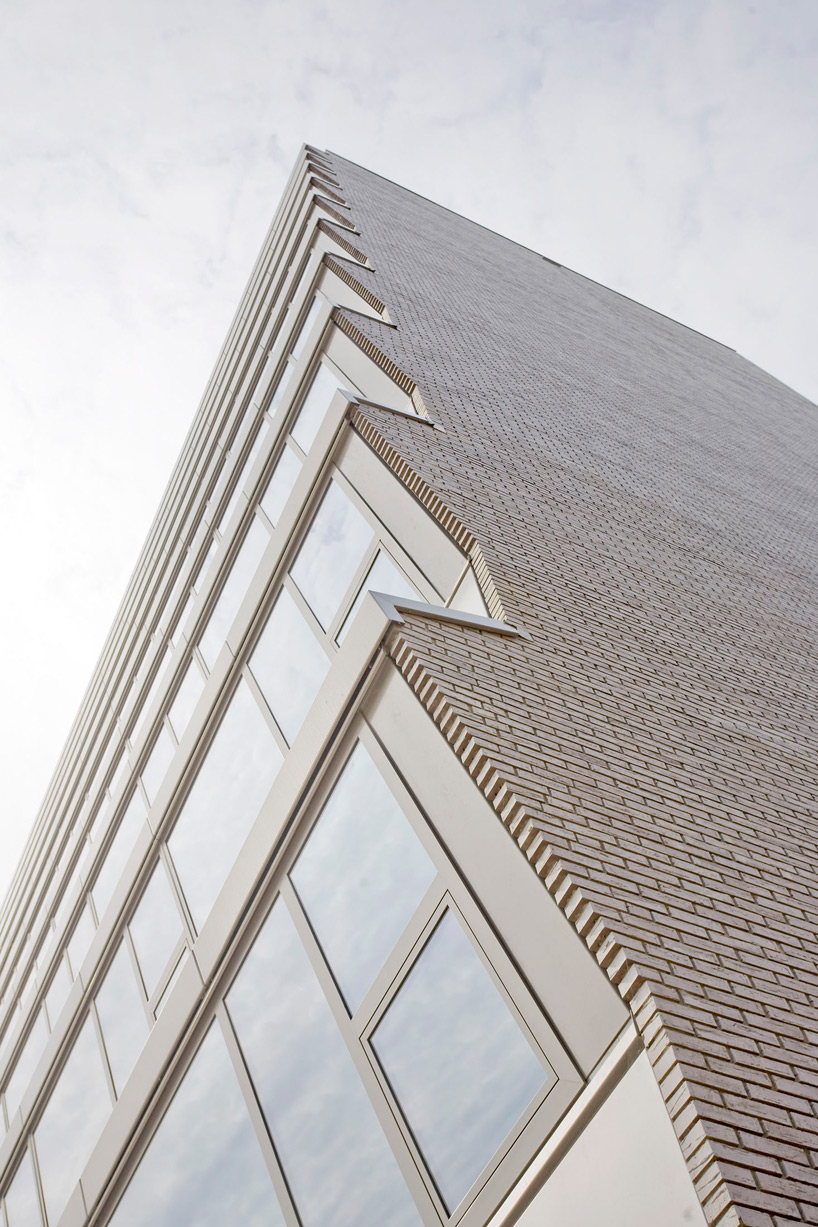

framing the glazing, protruding elements act as a visor to reduce glare inside
image © marcel ven der burg

image © marcel ven der burg

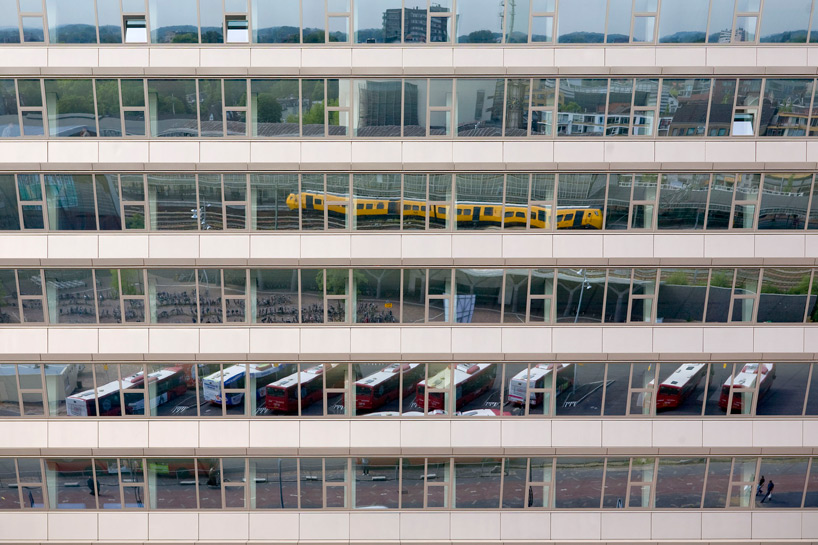

dynamic activity is reflected within the glass
image © marcel ven der burg

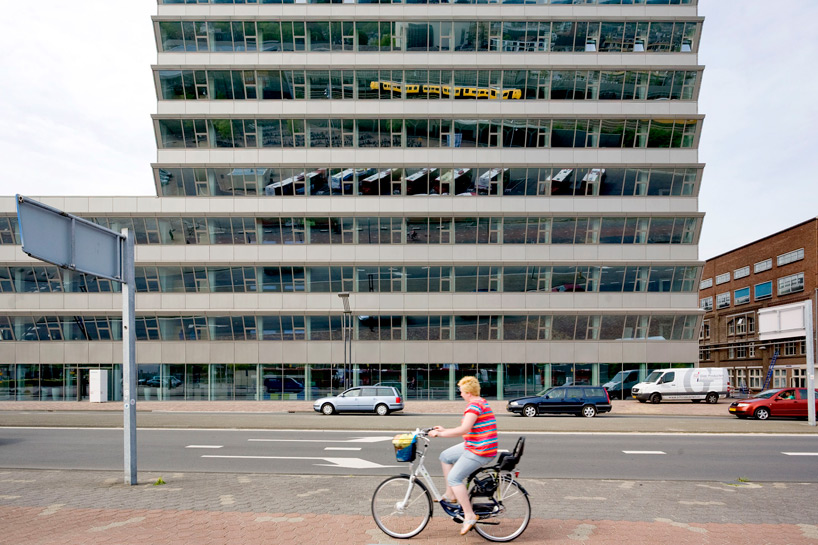

people, cars, buses, trains and buildings are visible to onlookers from below
image © marcel ven der burg

framing the glazing, protruding elements act as a visor to reduce glare inside
image © marcel ven der burg

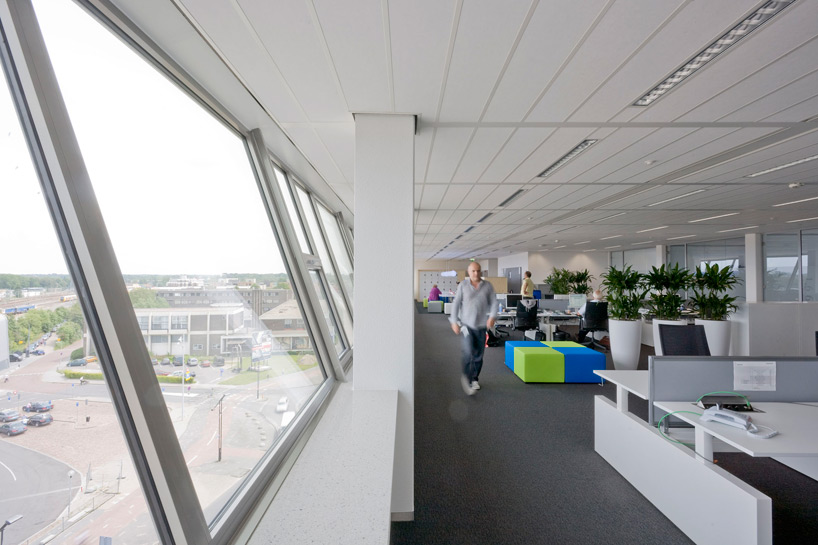

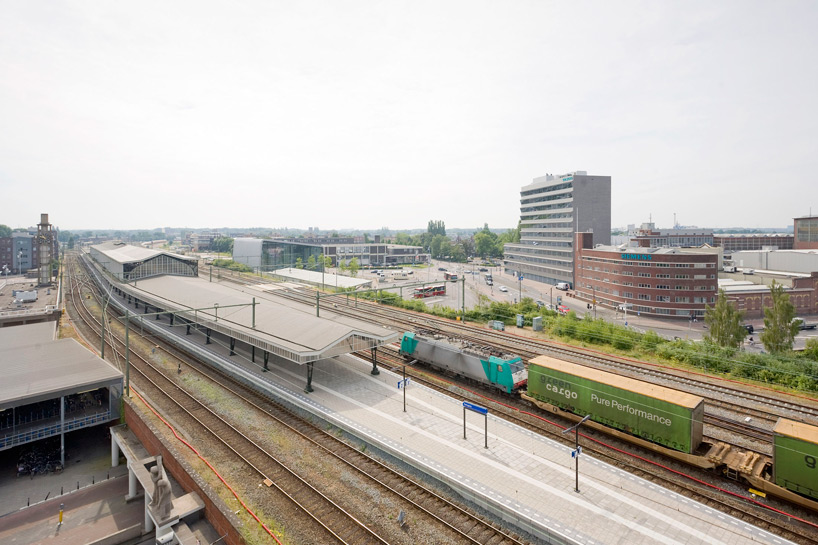

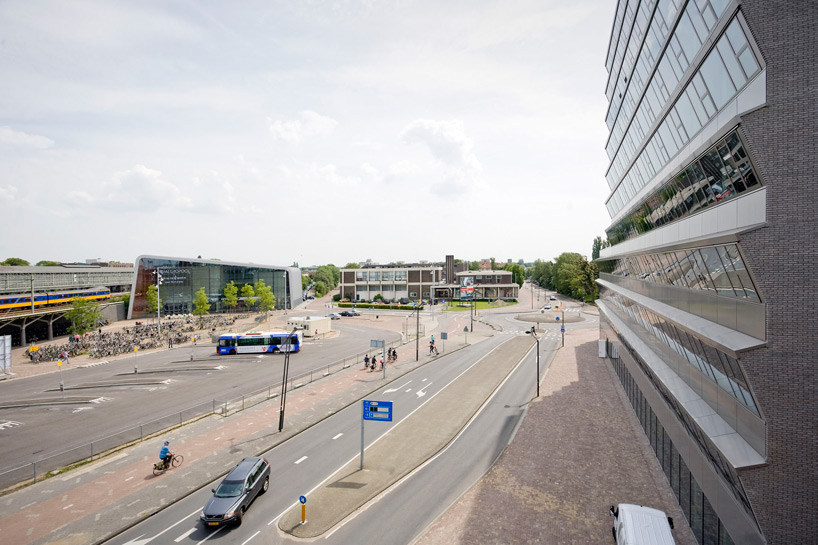

offices overlook the train station and square
image © marcel ven der burg

image © marcel ven der burg

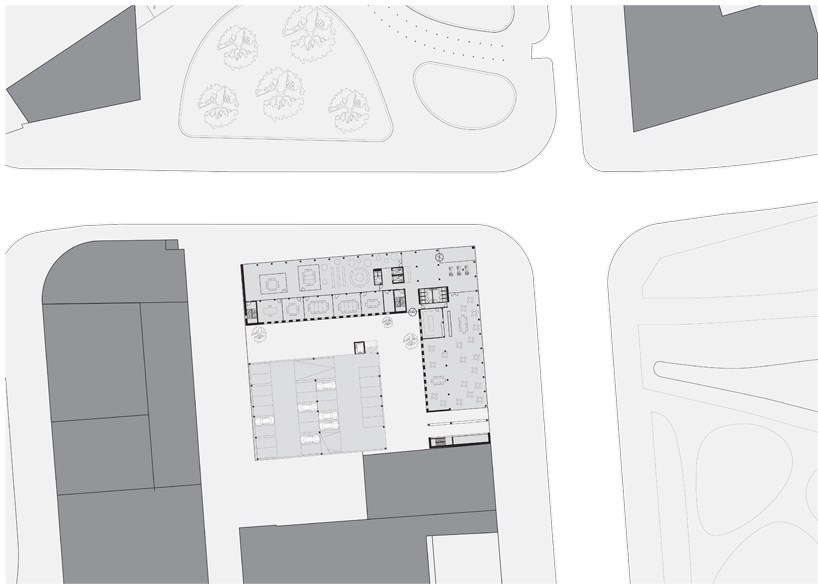

site plan

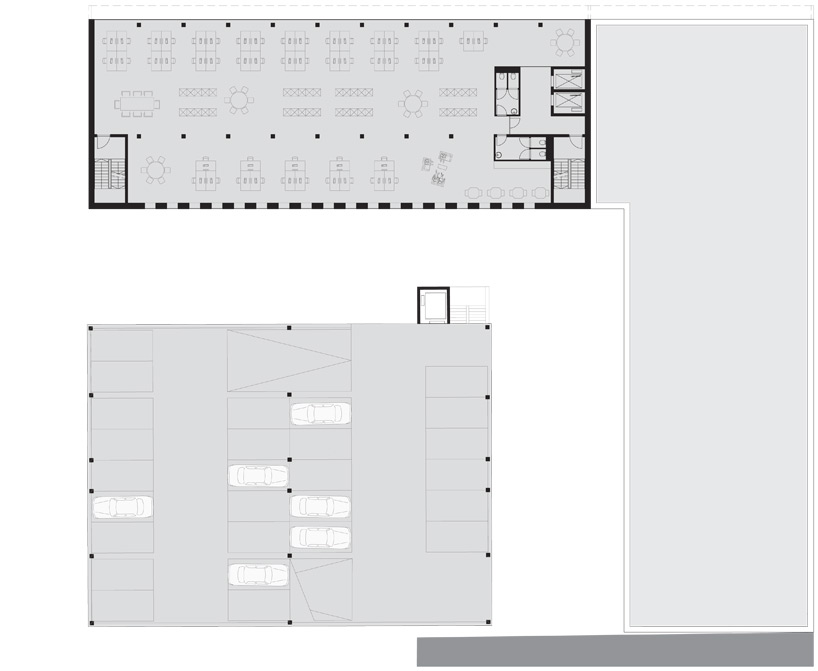

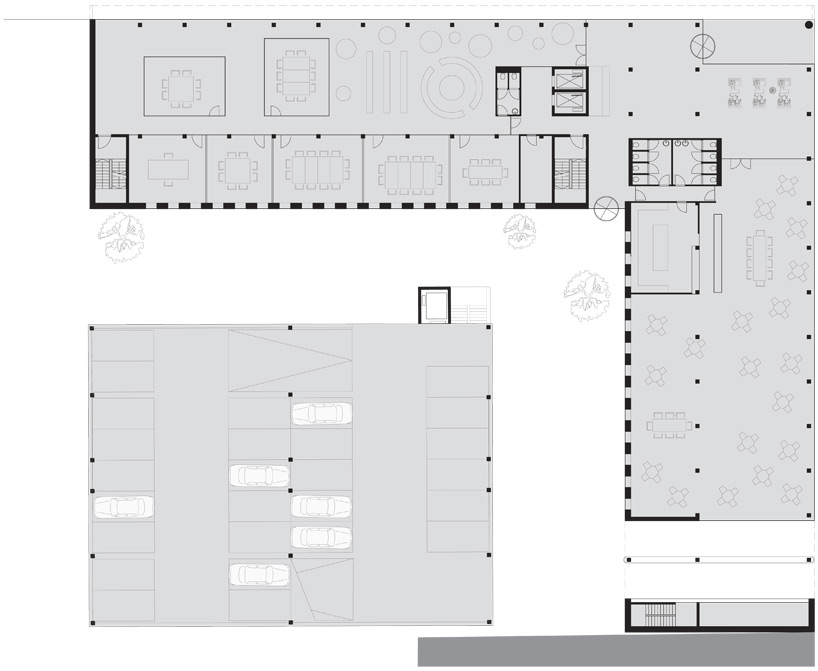

floor plan / level 0

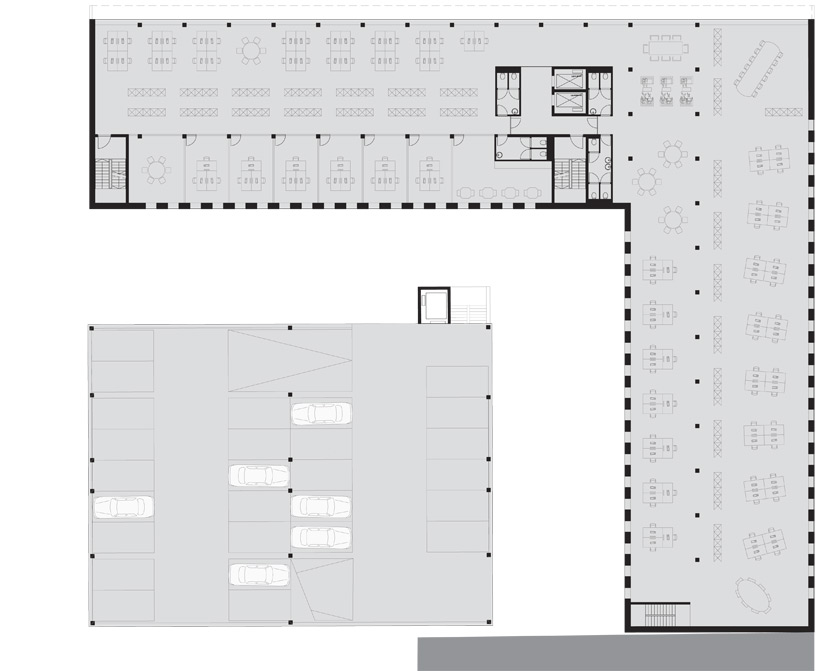

floor plan / level 1-3

floor plan / level 4-10

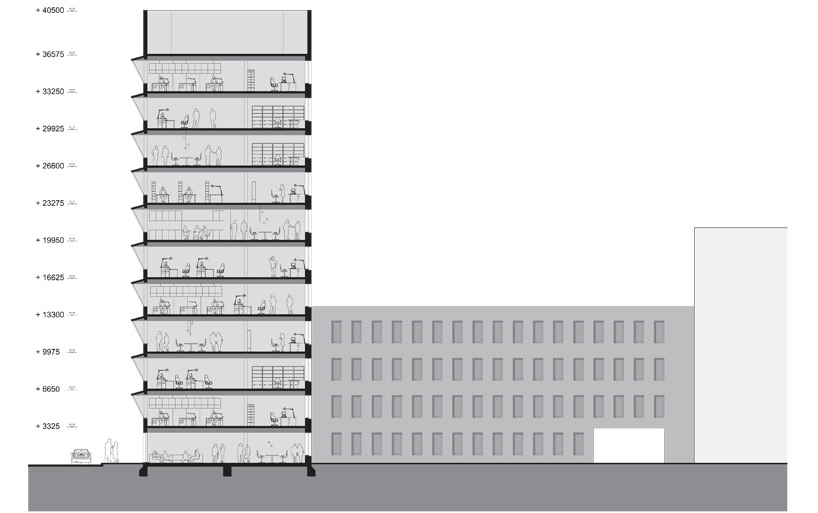

section

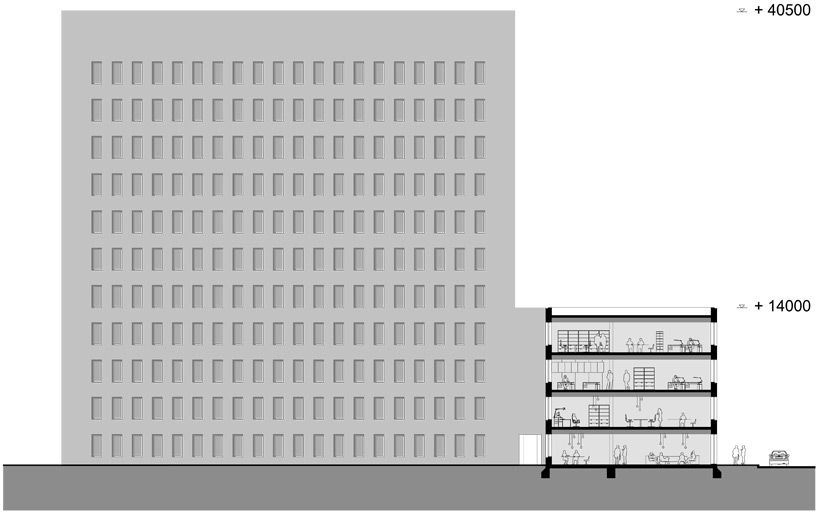

elevation

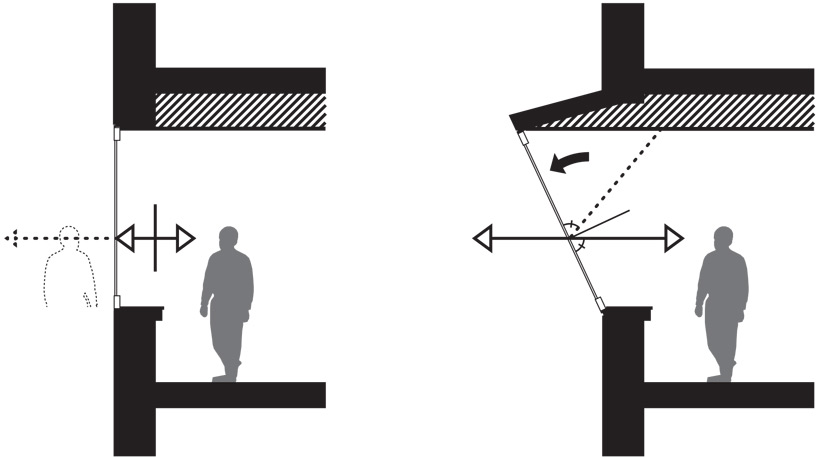

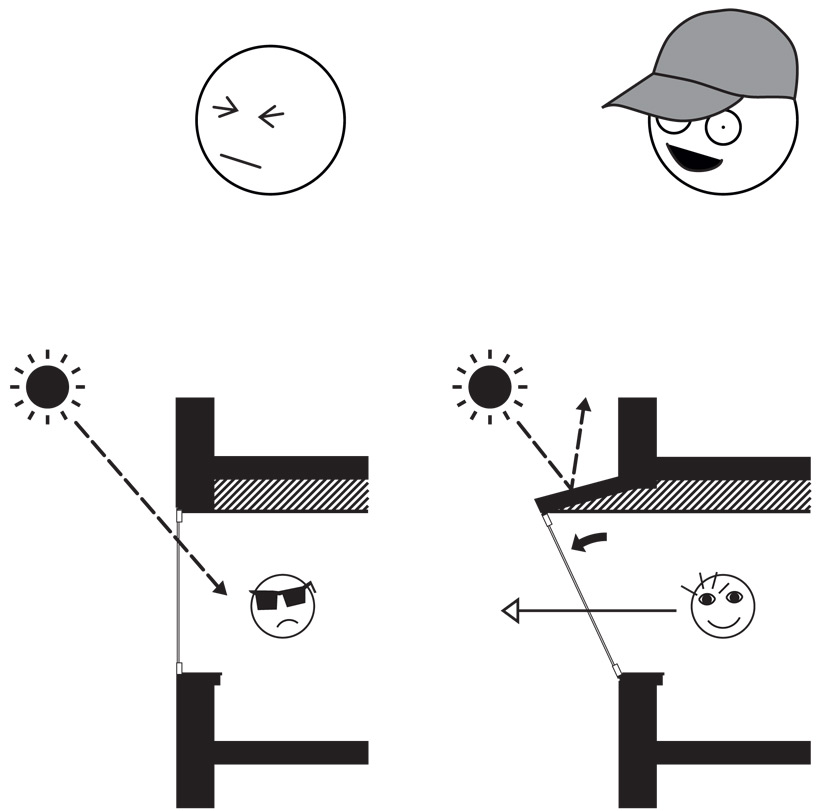

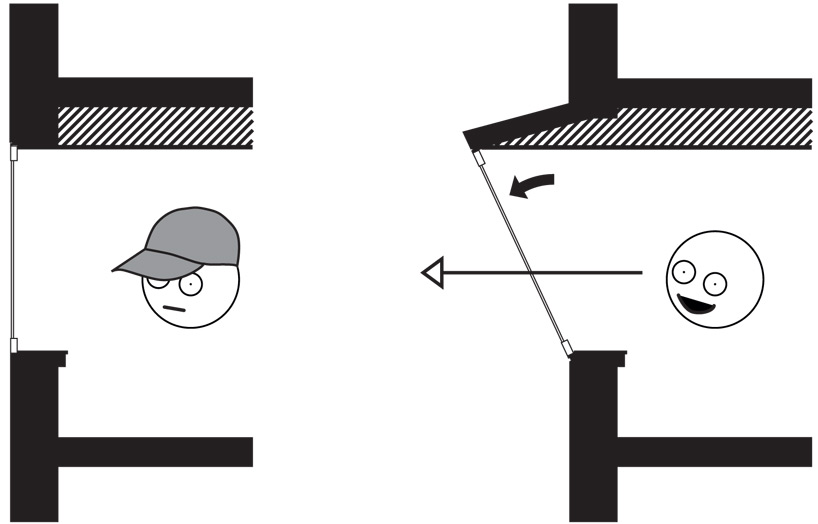

(left) flat window pane, building user needs visor
(right) angled window pane, building user does not need visor

sun diagram
(left) flat window pane, building user needs sunglasses
(right) angled window pane, building user does not need sunglasses

wall section diagram

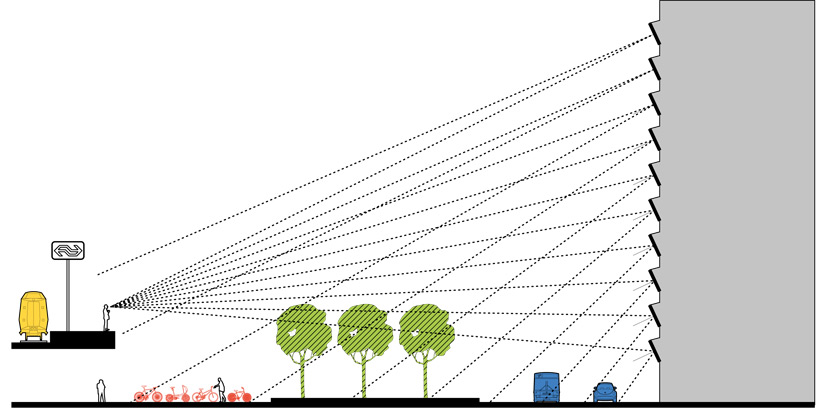

diagram of reflected views

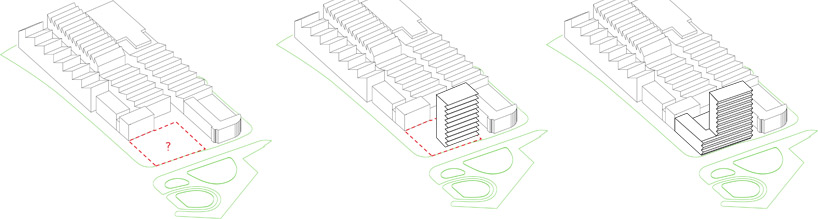

project phasing diagram

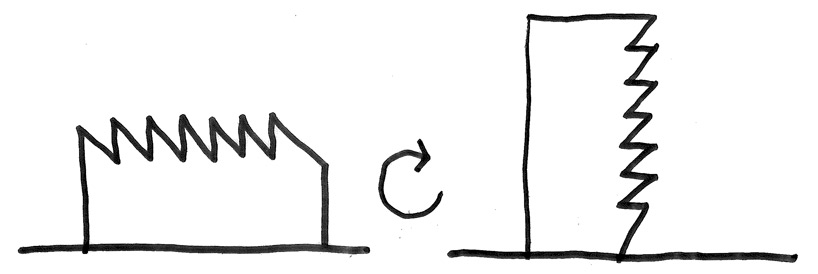

conceptual building diagram

air traffic control tower images

project info:

competition: 1st prize
NL architects: pieter bannenberg, walter van dijk, kamiel klaasse client: van wijnen projectontwikkeling oost bv, mab development
user: siemens industrial turbo machinery bv
team: bobby de graaf, gen yamamoto, gerbrand van oostveen, yusuke iwata, joanna janota
jury: ton schaap, frits van dongen, hubert-jan henket, pieter van wesemael, dirk baalman, evert-jan krouwel, sylvia karres
competitors: claus en kaan, de zwarte hond
