roberto ercilla: sancho el sabio foundation

‘sancho el sabio foundation’ by roberto ercilla, betoño, spain all images courtesy of roberto ercilla

encapsulating a neogothic-style cemetery built in the early 20th century in betoño, spain, roberto ercilla‘s ‘sancho el sabio foundation’ repurposes a regional treasure whose function deals with the documentation and investigation of basque culture. the original structure was left entirely intact and encompasses the lobby, meeting rooms and administration. being a facility that archives historical files, ample storage and related work areas were required. these volumes were placed below-grade as a peripheral ring around the elevated edifice, which not only gives a metaphorical importance to the existing building, but also invites plentiful amounts of natural light into the space.

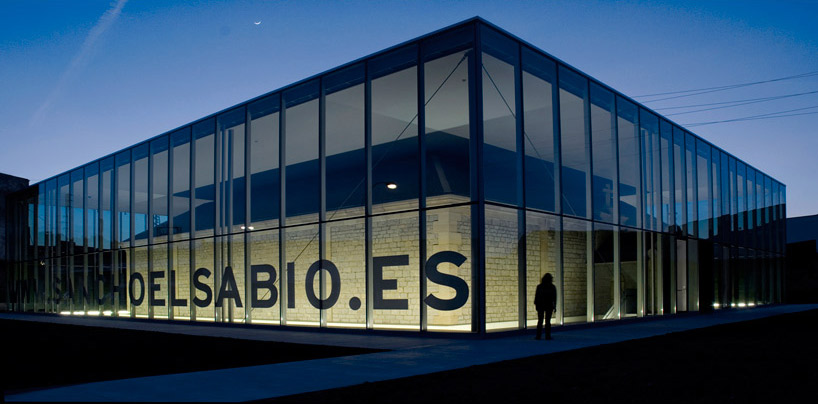

interior enclosures are separated by thin glass panels and slender bands of wood veneer that help reflect the daylight. a massive curtain wall surrounds the perimeter of the construct held in place by a light-weight steel skeleton with tension cables that completely seals off the inside and preserves it from destructive external elements. lean metal columns support the roof structure and skylight situated above the central courtyard.

geo coordinates:  42° 51′ 47” ,  2° 39′ 33”

rear facade

original interior courtyard

interior research rooms

floor plan / level 0

floor plan / level -1

section

section

section

elevation

elevation

exploded axonometric
