sandra piesik constructs a food shelter using palm leaves in the UAE sandra piesik constructs a food shelter using palm leaves in the UAE
mar 27, 2015

sandra piesik constructs a food shelter using palm leaves in the UAE

sandra piesik constructs a food shelter using palm leaves in the UAE
image © dr sandra piesik







owing to a fundamental shift both economy and culture, palm leaf buildings seem to have fallen out of fashion. in an attempt to reintroduce lost traditions, the united nations convention to combat desertification (UNCCD) is endorsing use of these long-established technologies in order to tackle climate change and alleviate poverty. according to dr sandra piesik from 3 ideas limted – who is using palm leaves to create a sustainable solution to store food at the UAE’s al ain UNESCO world heritage site – revitalizing old conventions using modern innovation could be key in helping to combat future climate change.

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © dr sandra piesik







‘with traditional renewable resources for building materials readily available in more economically challenged regions, people could continue using them also today for construction of structures to meet local needs including food shelters, schools or local clinics’, explains sandra piesik. ‘this is an issue being discussed by UNESCO and UNCCD as we speak. the difficulty is applying indigenous techniques to a culturally developed world’.

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © dr sandra piesik







developed alongside the TCA al ain historic environment department, ‘the food shelter’ (locally called ‘the sabla’) is a humanitarian project designed to contribute to social development programs in poorer countries where date palm trees are cultivated. the scheme aims is to utilize the leaves, which would normally be discarded, as a way to address the problem of food being wasted due to lack of adequate storage.

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © dr sandra piesik







the new shelter is the result of a six year research and development program set up to demonstrate that combining traditional materials with modern techniques can deliver cost effective, quick, and environmentally sustainable solutions. 3 ideas ltd and the buro happold engineering team carried out extensive research in the use of palm leaves, and constructed trial structures, prior to designing the arched gridshell frame.

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © dr sandra piesik







‘there are a number of benefits to local communities using these simple structures’, continues dr piesik. ‘they use free, readily available date palm leaves, usually a wasted agricultural by-product, the structures are simple to erect by hand without the need for mechanical plant on site, they leave no lasting residue as the tensile fabric can be reused and the leaves are of course biodegradable, and the skill set to create the shelters is locally available. in addition, the potential for adaption of the design and its uses is wide; as well as storage these gridshell forms can also be used for education, healthcare, communal and ancillary buildings wherever an abundance of the natural building material grows.’

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © dr sandra piesik

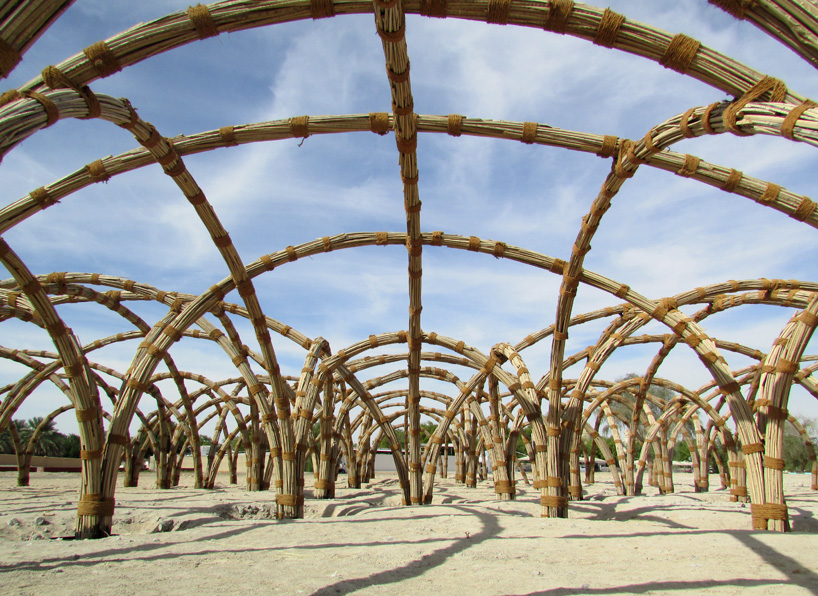

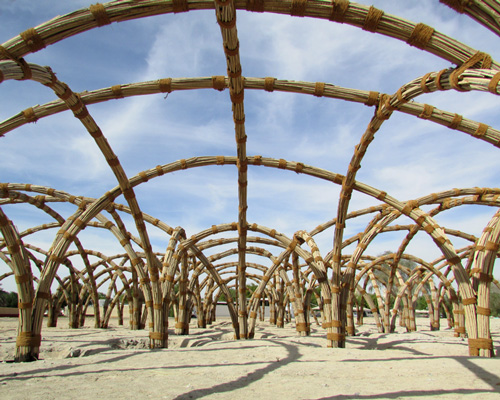

as well as using locally sourced materials, the traditional arish technique has been modified in order to bundle the palm leaves together; they are then lapped to form long circular shaped sections that can be curved into arched profiles to form structural members for the gridshell frames. the final output is a modular construction of nine 8m x 8m modules which provides a total shaded area of over 600 square meters.

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © dr sandra piesik







in order to modernize age-old aesthetics and foster the continued use of date palm leaf (known in some regions of the UAE as arish), a tensile roof fabric covering is being proposed. this will to be the first date palm leaf building with the use of tensile fabric for the roof covering. it is hoped that the new structure at al ain will be just the start of an initiative to bring back traditional methods and materials as solutions to very modern issues across the middle east and beyond.

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © peter sheehan

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © peter sheehan

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © dr sandra piesik

sandra piesik 3 ideas ltd food shelter al ain unesco world heritage site designboom
image © dr sandra piesik





project credits:



the food shelter (the sabla) project team:
host: TCA abu dhabi and TCA al ain historic environment department, represented by peter sheehan
sponsorship of consultancies and services:
architect and lead consultant: dr sandra piesik of 3 ideas ltd
structural engineering: buro happold engineering;
fabric: mehler texnologies
fabric stitching fabricator: ocma emirates industries
