shjworks: temporary fire shelter in copenhagen

29,474 articles

SHARE AND PROMOTE YOUR WORK

since 1999, home of design culture, designboom has been the world's
first online magazine. we welcome readers to submit projects. START UPLOADING

Jan 21, 2013

first image

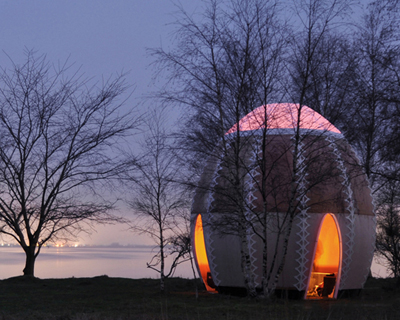

'fire shelter' by shjworks, copenhagen, denmark
image © simon hjermind jensen
all images courtesy of shjworks

'fire shelter' by danish firm shjworks, is a personal project located in sydhavnstippen, copenhagen. The starting point for the design emerged from
a fascination of the place, as such it became a temporary project and experiment that celebrates the site. it is publicly accessible by a 20-minute
bike ride from the city center and establishes experiences of a spatial and social character - it is simply thought of as a gift. the project was entirely
constructed and conceived by the firm and the independent people that helped. If bureaucracy had been taken into account, the project probably
wouldn’t have happened. The wish to act independently was the desire to create a unique and specific project without being subject to any kind of
compromises.

situated on what was once a landfill, the site has since been overtaken by vegetation and is now a habitat for many local animal species, a sort of
'post-apocalyptic nature.' The shelter is influenced by the vernacular designs of ethnic and nomadic people, consisting in a shape stretching around the sky.
one hole in the top and two openings at the bottom create a flow of ventilation. Plywood and polycarbonate are the main materials and all the different parts
are fabricated using CNC technology. in total, the construct measures 4.7 meters tall with a diameter at ground level of 3.8 meters. the structural walls
are between 2 and 9 mm thick, as thin bendable shells which are tightened together with bolts and a piece of 2 mm thick polycarbonate. The floor of
the shelter is made of plywood and inside is a fire place surrounded by a bench filled with building materials found on the site. This ballast secures
the structure to the ground without any kind of invasive foundation. The transparent polycarbonate panels at the top allow daylight during the day,
and after dusk the light from the fire will shine through to the exterior, alluding to old time lighthouses.

rests in the landscape without any permanent anchors
image © simon hjermind jensen

image © simon hjermind jensen

thin plywood panels are bent and stitched together with polycarbonate ties
image © simon hjermind jensen

translucent polycarbonate structure at the roof glows with light at night
image © simon hjermind jensen

image © simon hjermind jensen

interior
image © simon hjermind jensen

fire warms the area
image © simon hjermind jensen

glowing at night
image © christian bøcker sørensen

image © simon hjermind jensen

exploded axonometric
image © simon hjermind jensen

section
image © simon hjermind jensen

designboom has received this project from our 'DIY submissions' feature, where we welcome our readers to submit their own work for publication.
see more project submissions from our readers here.

simon hjermind jensen

01.21.13
