'house of futakoshinchi' by tato architects/yo shimada, kanagawa, japan
image © mitsutaka kitamura
all images courtesy of tato architects/yo shimada



designed by japanese architect yo shimada of tato architects, the 'house of futakoshinchi' is positioned upon a remnant lot in the
urban grid of kanagawa, japan. the dwelling arranges 92.45 square meters of internal program upon a 77.63 square meter site,
maintaining a building footprint of 4.8 by 7.4 meters. reaching 8.2 meters in height, the six storeys are interconnected with
two stairways, one which connects three levels and another which connects two floors. broiled cedar, a durable wood surfaces
the walls, serving as a structural element with fire resistant capabilities.



image © mitsutaka kitamura


a concrete entrance hall accommodates and stores the owners motorbike as well as facilitating DIY hobbies.
situated partially underground, the bedroom is surfaced with paulownia wood to control the humidity. continuing upward,

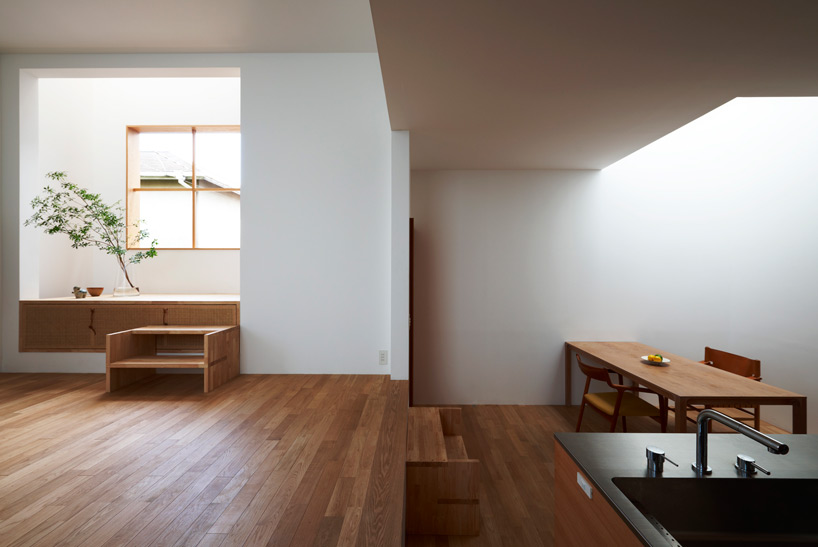

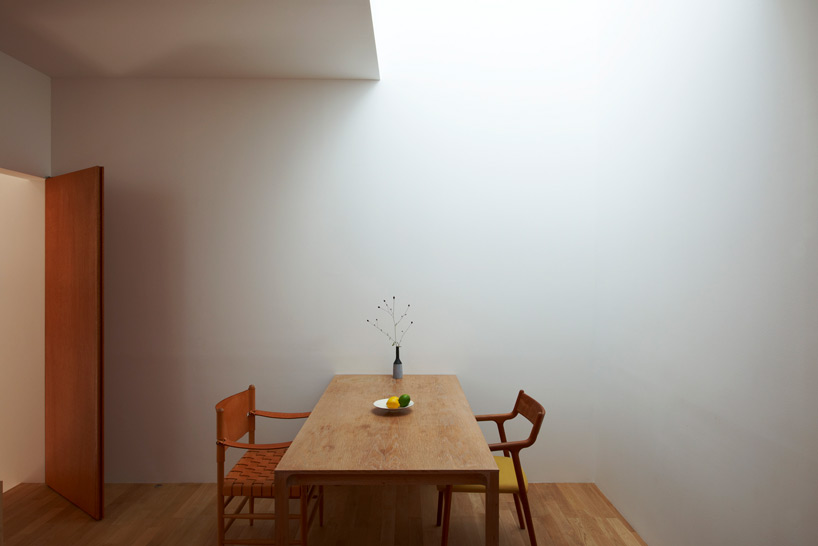

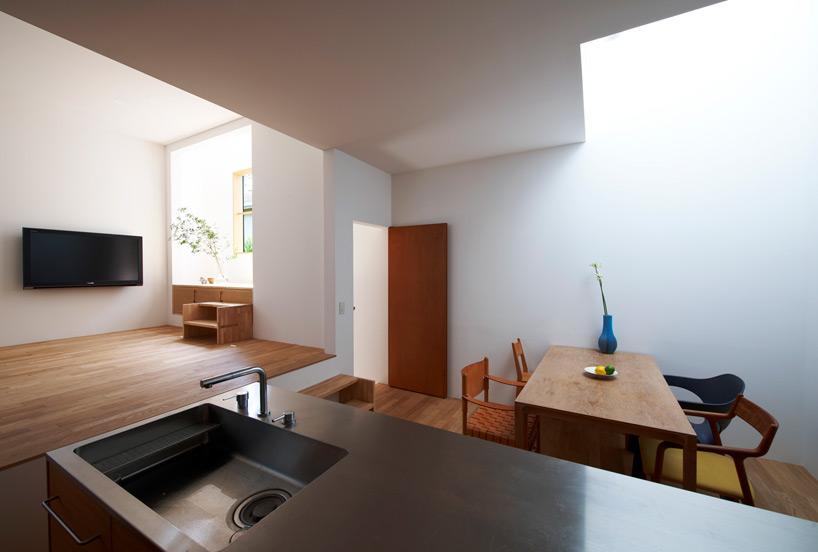

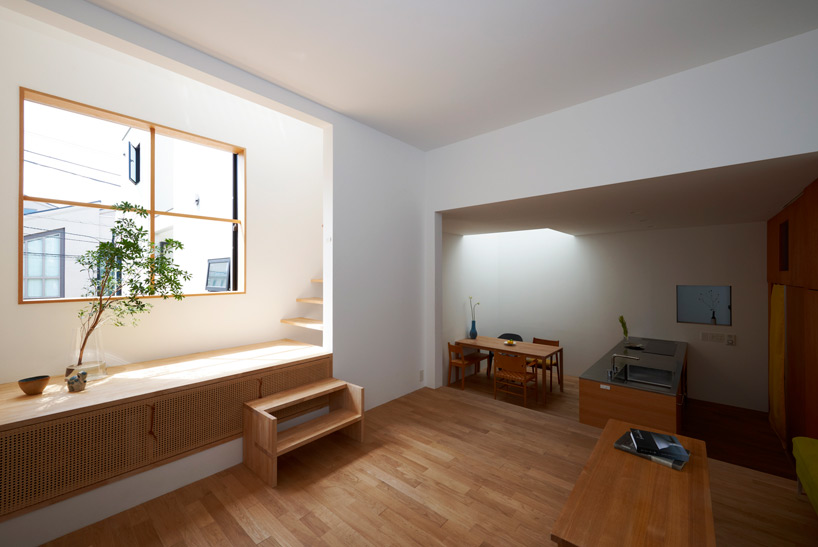

dwellers ascend towards the combined dining area and kitchen on the first level. after another turn and rising another platform,

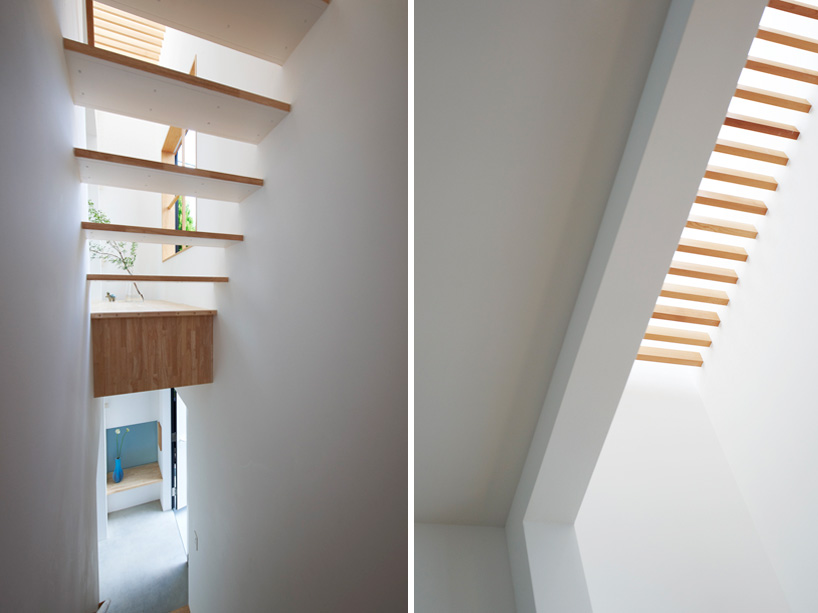

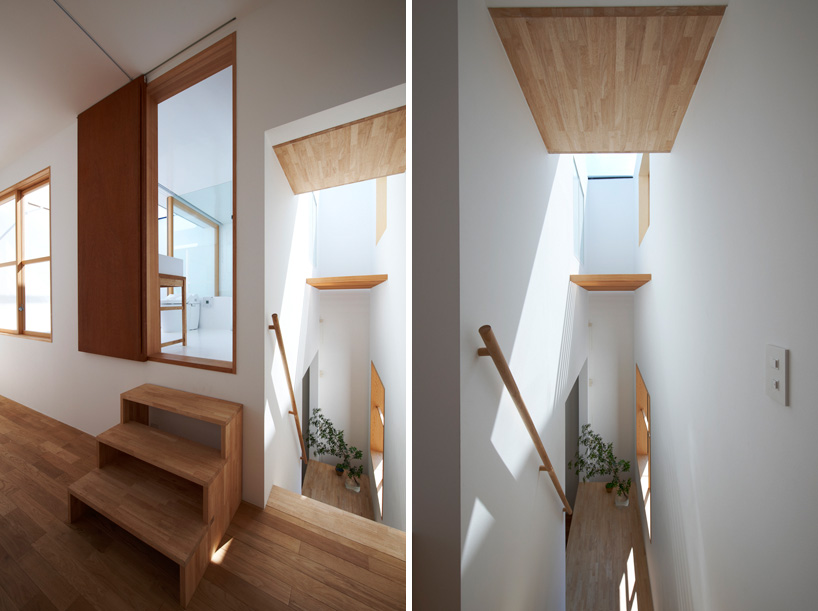

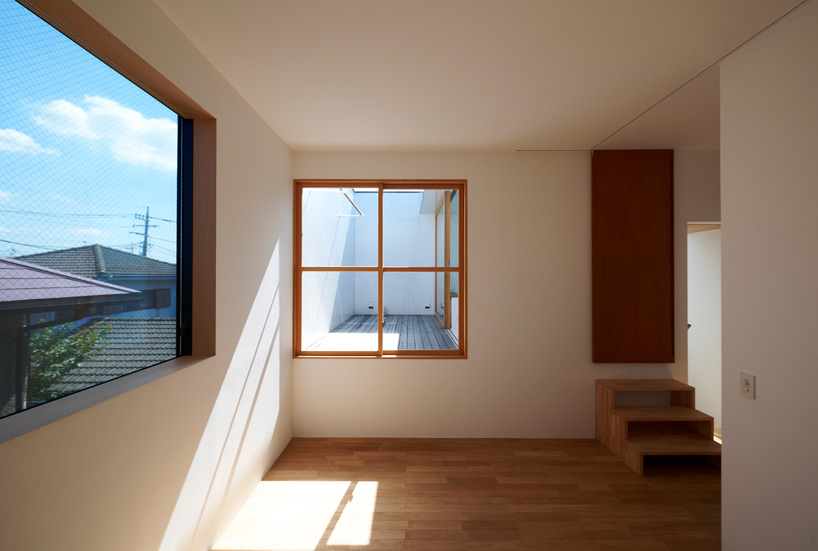

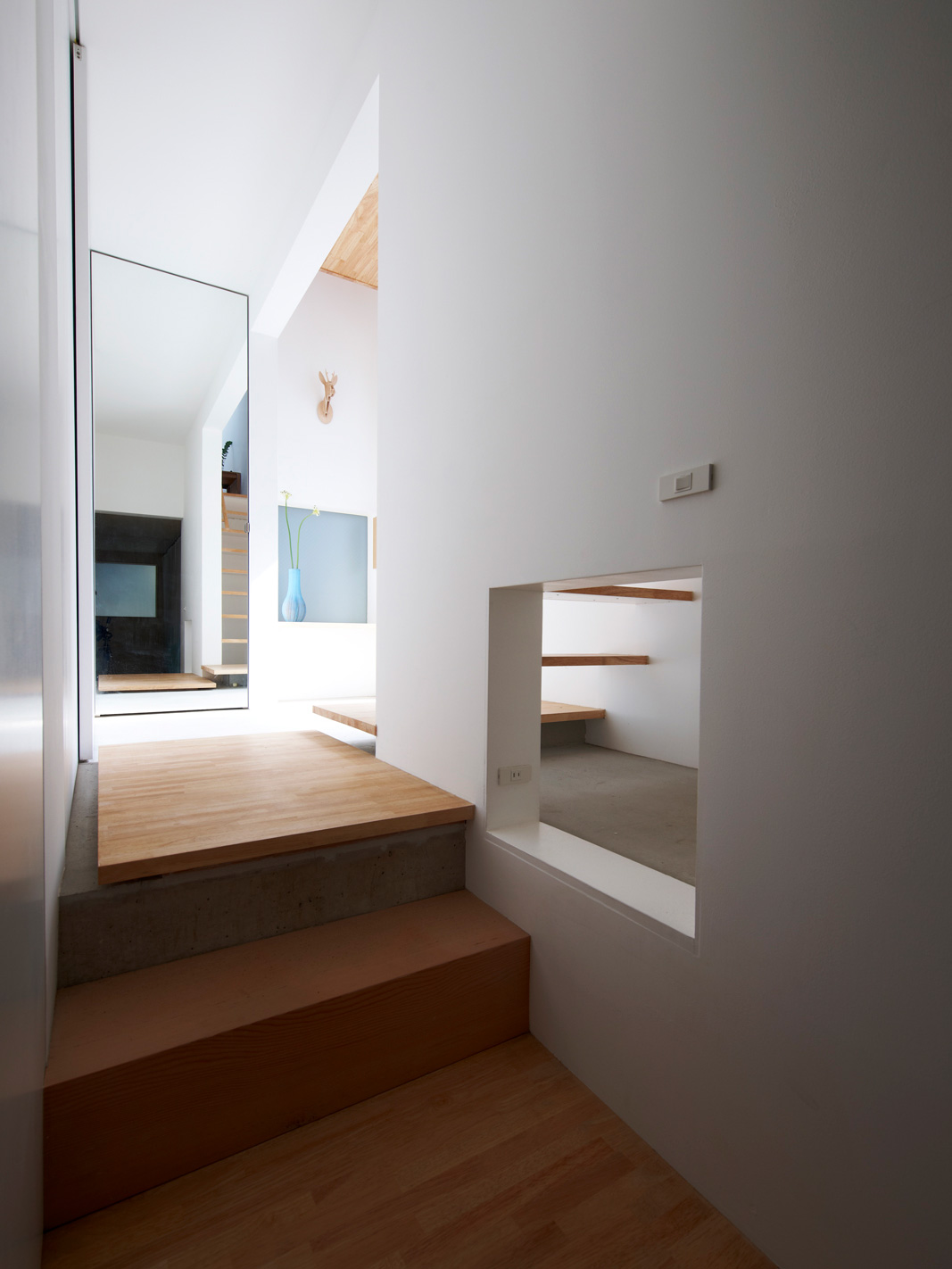

inhabitants find the living room. continuing in this spiraling manner, sunlight begins to illuminate rooms from overhead skylights
down to the bottom-most floor. a bathroom on the rooftop is enclosed with glass walls, creating an open yet visually secured atmosphere.



image © mitsutaka kitamura



image © mitsutaka kitamura



images © mitsutaka kitamura



image © mitsutaka kitamura



image © mitsutaka kitamura



image © mitsutaka kitamura



images © mitsutaka kitamura



images © mitsutaka kitamura



image © mitsutaka kitamura



images © mitsutaka kitamura



images © mitsutaka kitamura

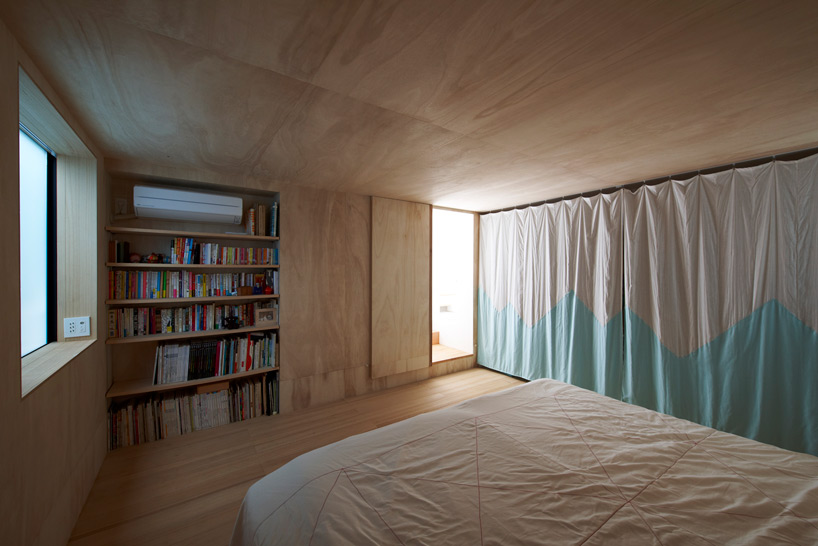

bedroom
image © mitsutaka kitamura

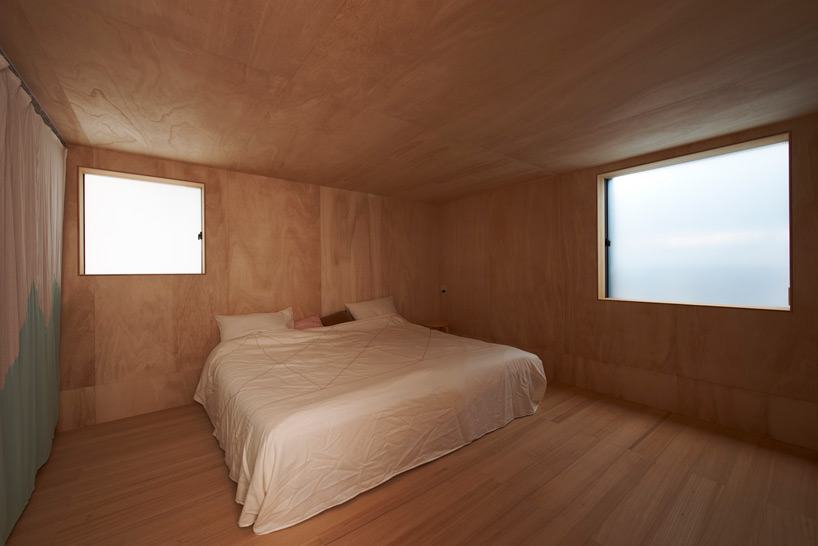

bedroom
image © mitsutaka kitamura

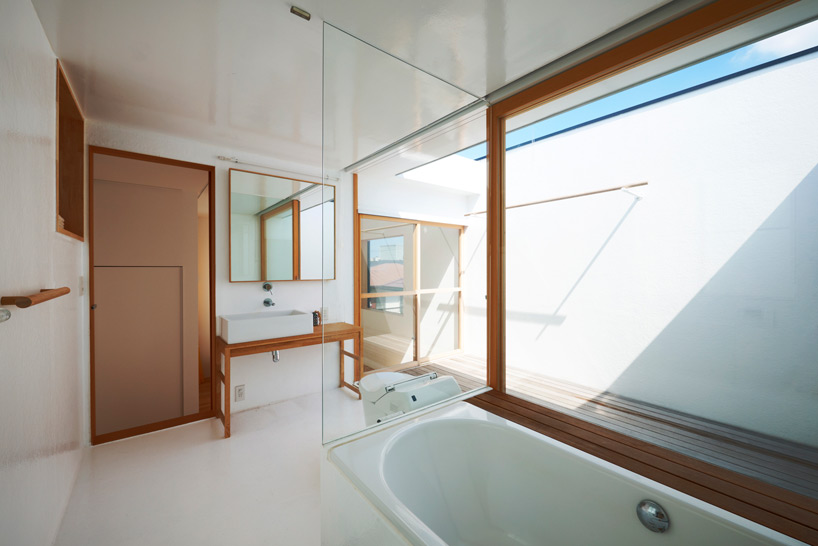

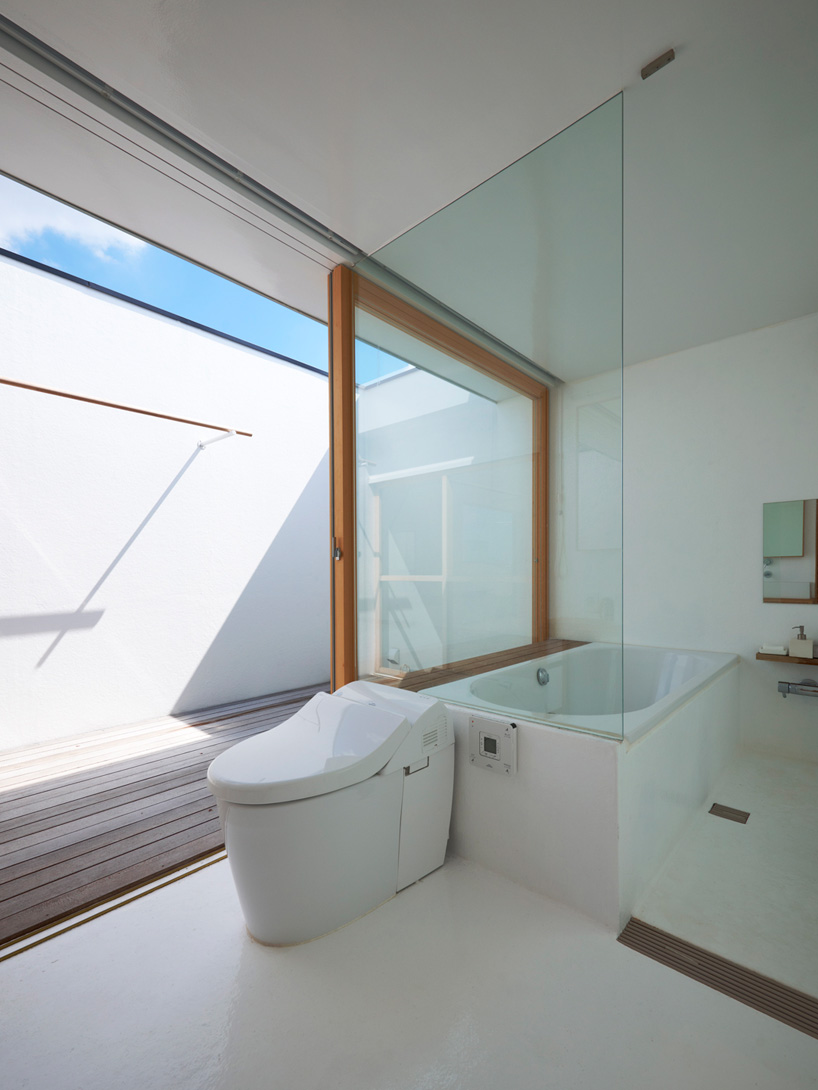

bathroom
image © mitsutaka kitamura

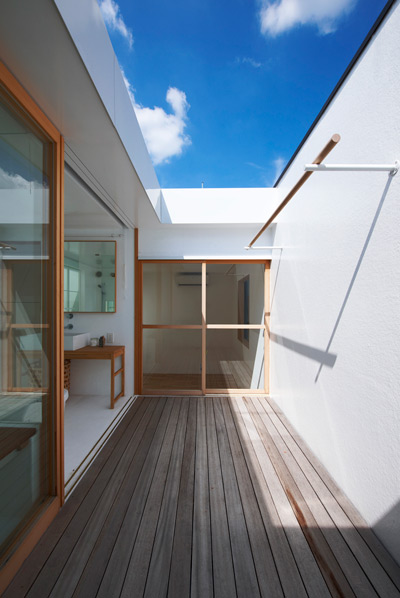

access to terrace from bathroom
image © mitsutaka kitamura

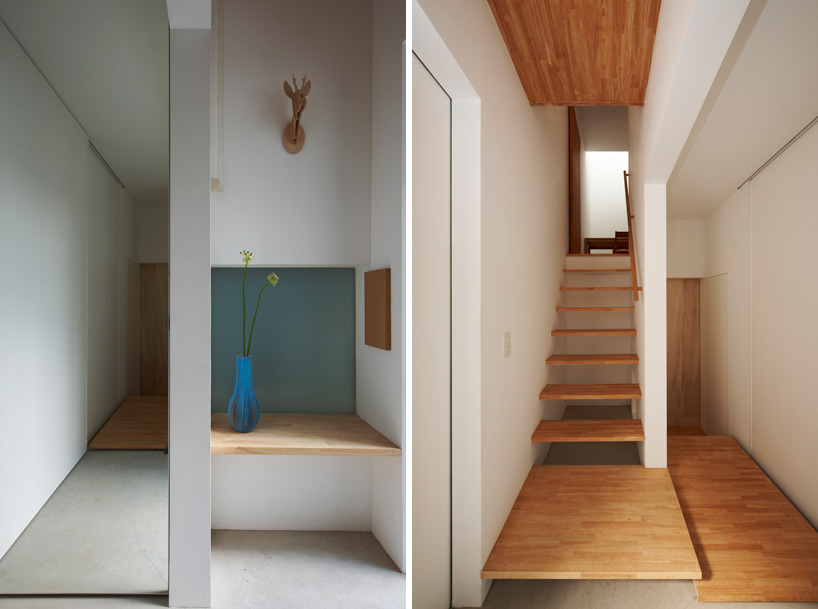

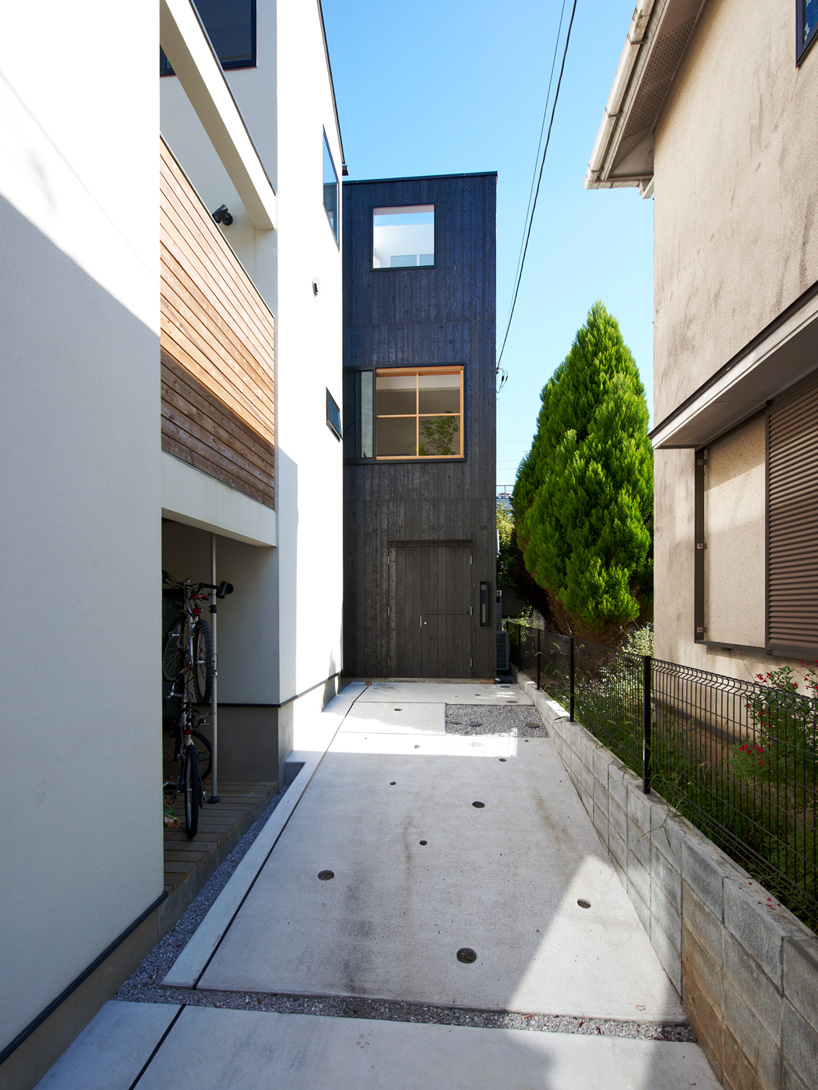

main entry
image © mitsutaka kitamura

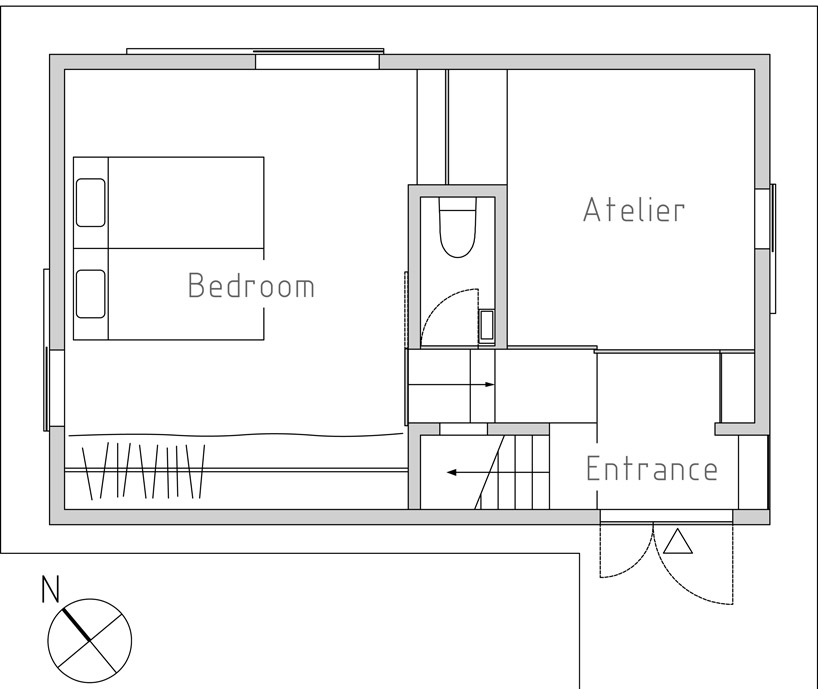

floor plan / level 0

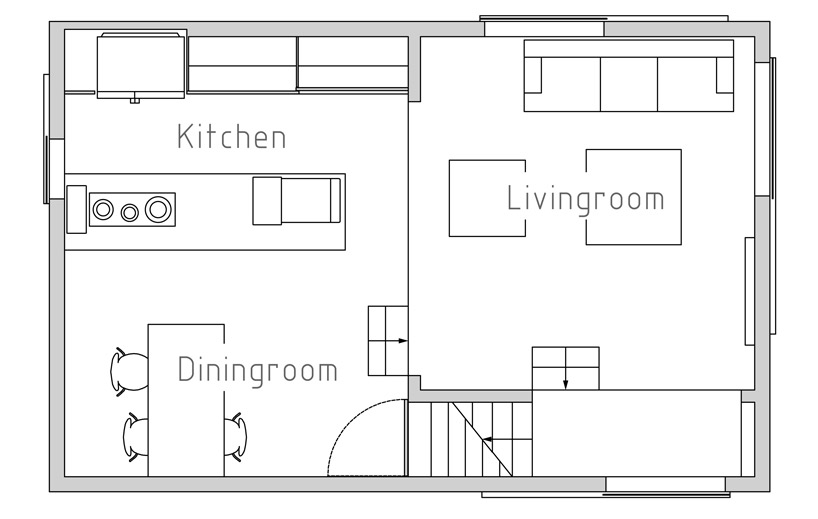

floor plan / level 1

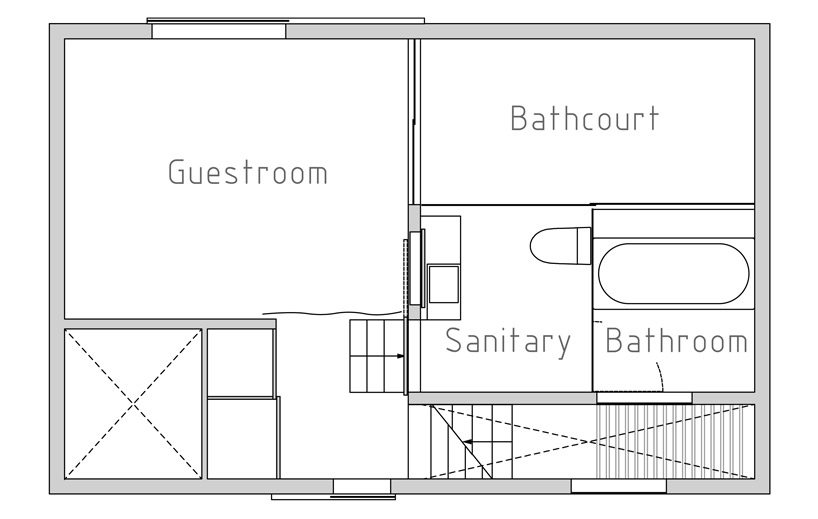

floor plan / level 2

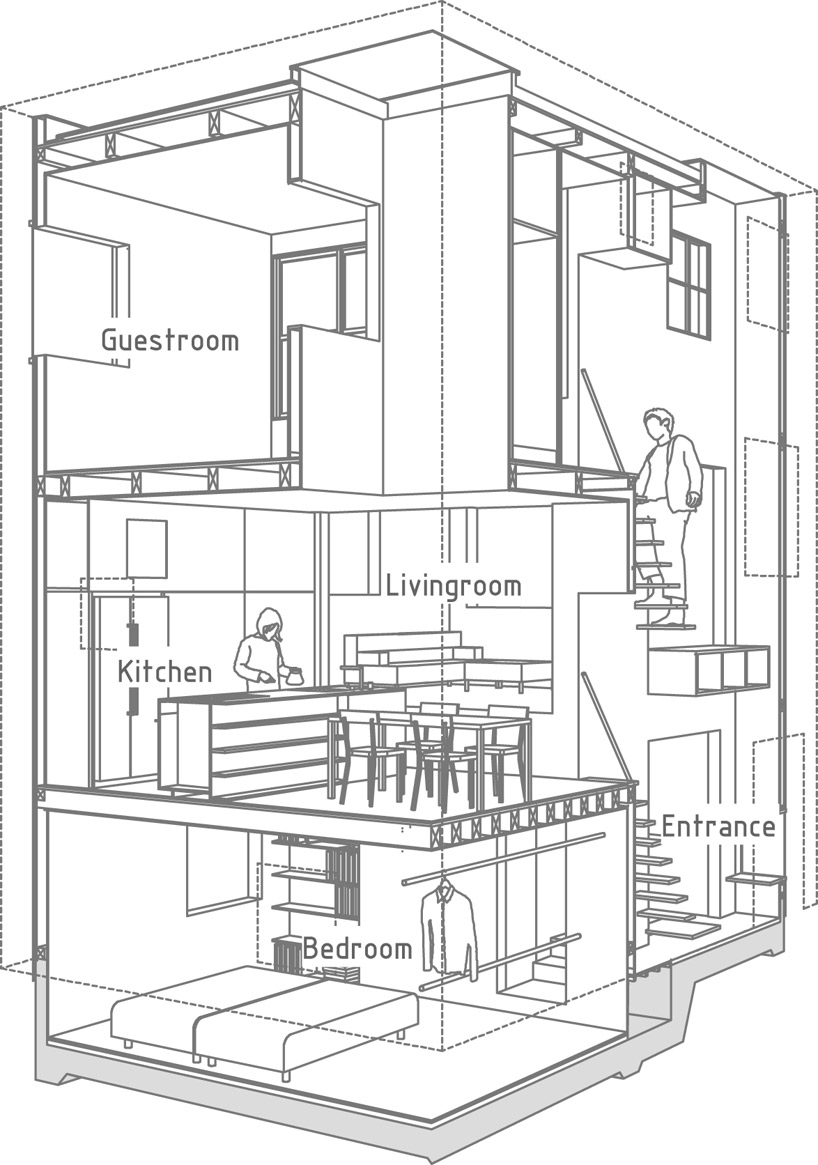

section perspective


project info:

project name: house in futakoshinchi
architects: yo shimada
project team: tato architects
construction:    masashi ouji
location: kanagawa, japan
district: residential
type: house
site area:    77.627 m2
bldg. area:   35.05 m2
gross floor area:  92.45 m2
bldg. coverage ratio:  60%
gross floor ratio:  200%
structure: wooden
max. height:   8.244m
landscape area:  0 m2
exterior finish: concrete
year of completion: 2010
design period: may.2008 - apr. 2009
completion period: sep.2009 - jan. 2010
