‘astley castle renovation’ by witherford watson mann architects, nuneaton, warwickshire, englandall images courtesy of the landmark trust







astley castle originally served as the royal family’s fortified manor for three generations before being turned into a hotel in world war 2. after years ofabandon, it became a ruined curiosity for those who knew of its location, serving as an unofficial impromptu venue for a range of activities until the landmark trust – a building preservation charity – proposed to restore the structure. they hosted a competition inviting architects to submit their ideasfor the renovation of the residence and accompanying mote, entry gateway, curtain walls, lake, church, and vestiges of elizabethan pleasure gardens.london-based witherford watson mann architects were chosen to carry out the project, breathing a new life into the ancient construction. the designtackled big questions regarding renovations, especially given a project of this scale: what will the relationship be between the old and new, and how can the new structure fortify the collapsing edifice?



the design strategy aimed to reoccupy the old residence, to re-institute the spaces as they had historically been used, retaining as much of the original feel of the space as possible. brick became the material of choice for the intervention as it matched the idea of the first construction but retained a visually evident difference. it also allowed the new construction to transition into the old masonry elements following the uneven joints created by the dilapidated walls. construction crew worked hand in hand with archaeologists to excavate the site in preparation for the insertion of new materials.large concrete lintels and other larger structural members had to be craned in from outside the mote, which also complicated the construction process.cintec ties were used to strengthen existing walls without adding any visible structure with a process that includes drilling holes into the partitions andfilling them with a steel rod and expanding cementitious grout.






history of the castle’s renovation
image © the landmark trust





entrance





entry gate

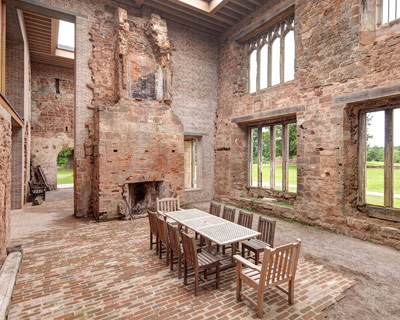

main hall exemplifying moments of the new intervention and the old construction





central stairs made from contemporary materials









kitchen









living room area





bedroom









bathroom





bricks follow the uneven wall lines of the original masonry walls





bird’s eye view of the original castle







construction process





installation of large concrete lintels





excavation of the ground plane





cintec ties installed by first drilling holes in the wall





a steel rod with a textile sock around it is inserted into the hole and filled with cementitious grout to strengthen a wall











floor plan / level 0





floor plan / level 1
