daniel hilldrup 3D prints triangulated multi-colored lampshades
all images courtesy of daniel hilldrup







the ‘trig’ lampshade has been produced by daniel hilldrup in collaboration with stratasys using their objet500 connex3 fused deposition modelling technology. influenced by the works of antonio gaudi, the work features polygonal shapes of the cyan, magenta, and yellow color palette (one of ten palettes available) and is seen as the perfect vehicle to exhibit the connex3’s multi-color and material capabilities. ‘the design embodies two key elements that I continue to explore: the capture and development of virtual forms evolving under physical forces at a key point in time and the quantization of highly contoured forms to more primitive states. trig has both of these elements at its core,’ hilldrup said.

daniel hilldrup trig 3d print lampshades

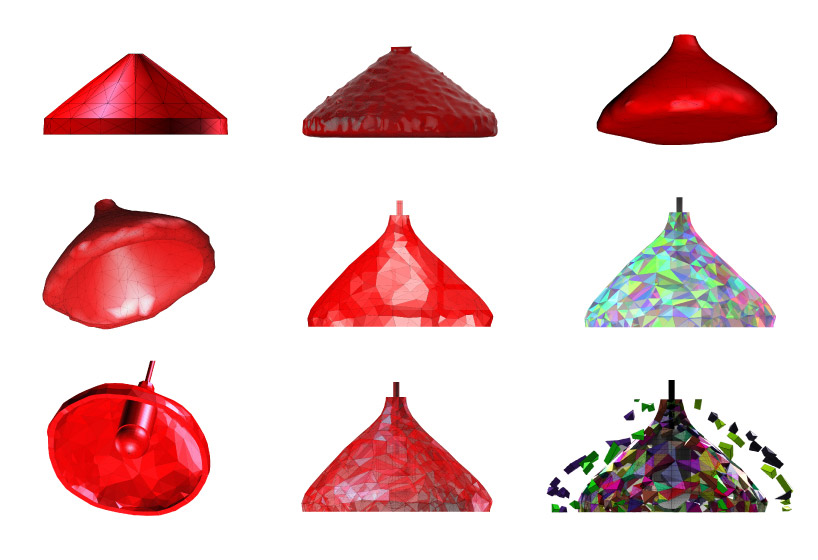

renderings of the development process







at the beginning of the process, a base form was devised ensuring that a two core flex cable, an E14 lampholder, and an E14 lamp are able to comfortably fit within the inner volume. next, liquid simulations were performed to populate the volume. at a chosen point in time, the mesh was extracted from the simulation for use upstream in the development process. the resulting form of the triangular mesh was reduced in resolution and provided the basis for the final faceted effect.

daniel hilldrup trig 3d print lampshades

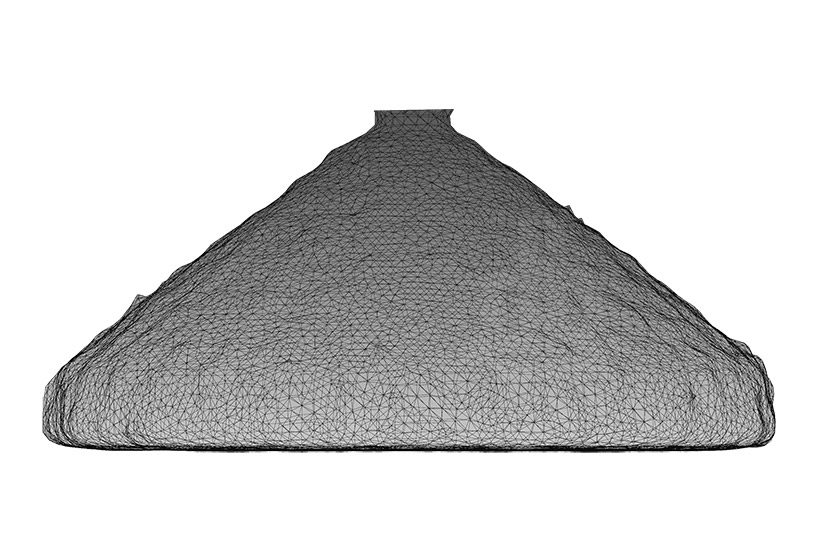

early-stage with liquid simulation wireframe mesh







afterwards, the watertight mesh was modified to ensure that only a single layer of outward facing triangles remained. for the organization of the 46 different colors and material identities, a script was developed to randomly allocate each characteristic along the surface. each face was then given a solid offset to provide adequate thickness for the fused deposition modelling on the connex3. additional scripting was necessary for the separating of the triangles into sub-groups based on their material codes.

daniel hilldrup trig 3d print lampshades

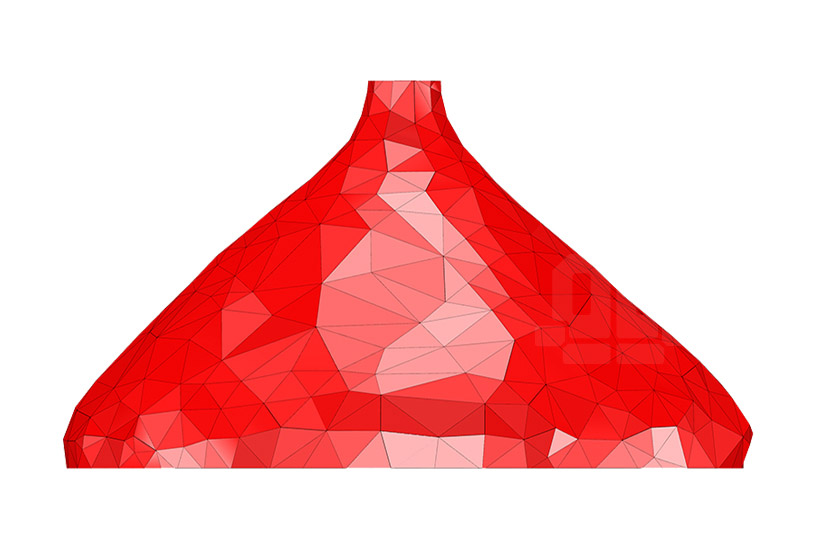

mid-stage of development with a faceted triangular form







these files were imported into STL editing software where the validity of the mesh was checked and corrected in preparation for 3D print production. in the final stage, materials from stratasys’ multi-color palettes were applied to each of the sub-groups according to a specified sequence.

daniel hilldrup trig 3d print lampshades

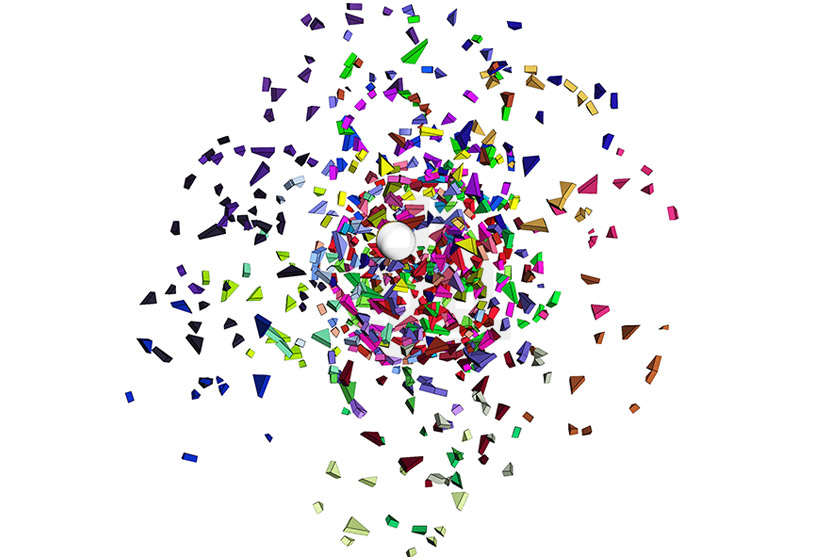

exploded view of individual triangular shells

daniel hilldrup trig 3d print lampshades
development render

daniel hilldrup trig 3d print lampshades

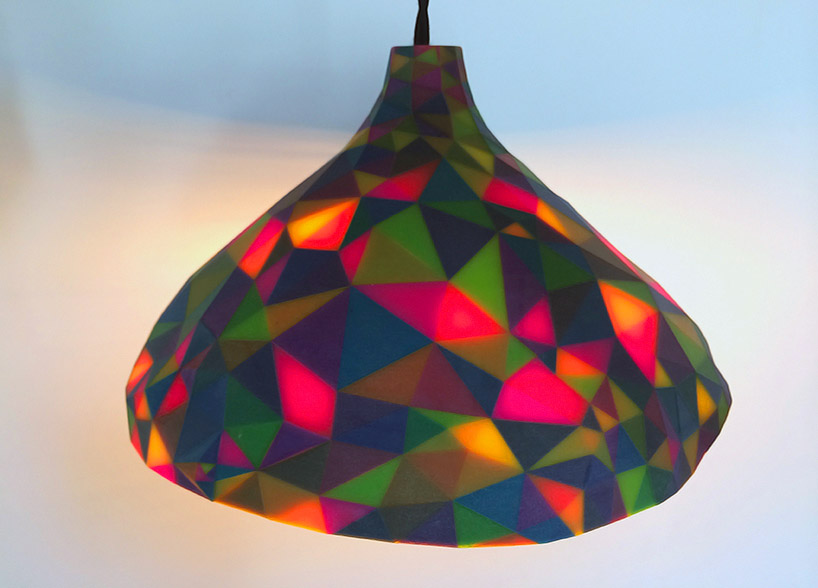

the design features 46 different colors

daniel hilldrup trig 3d print lampshades

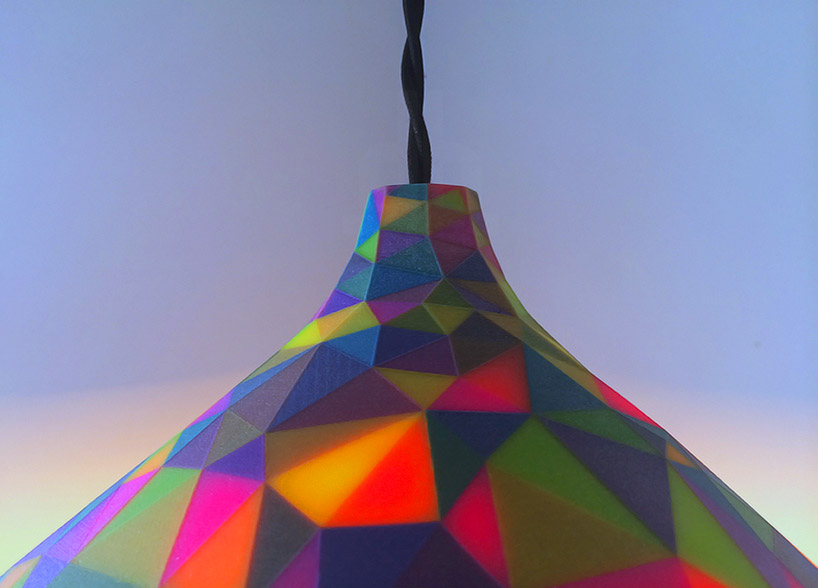

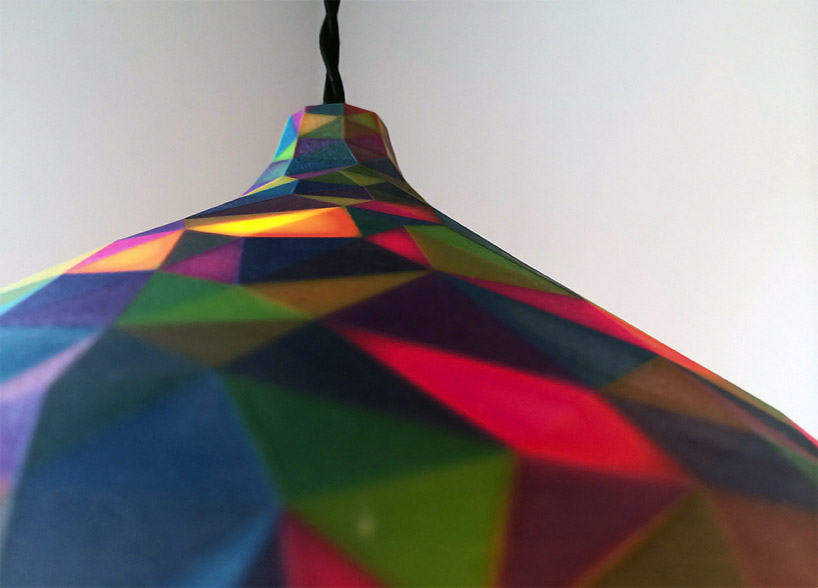

detail of the triangles

daniel hilldrup trig 3d print lampshades
the triangulated surfaces were divided into sub-groups

daniel hilldrup trig 3d print lampshades

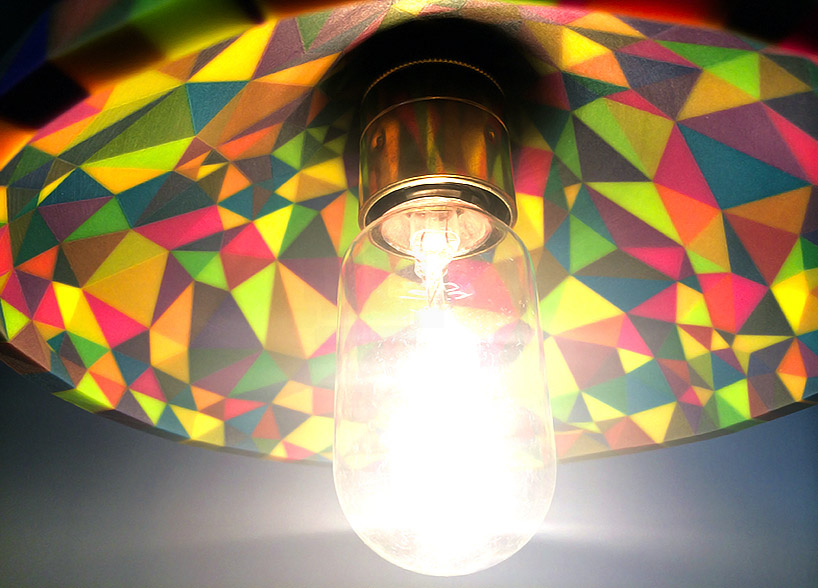

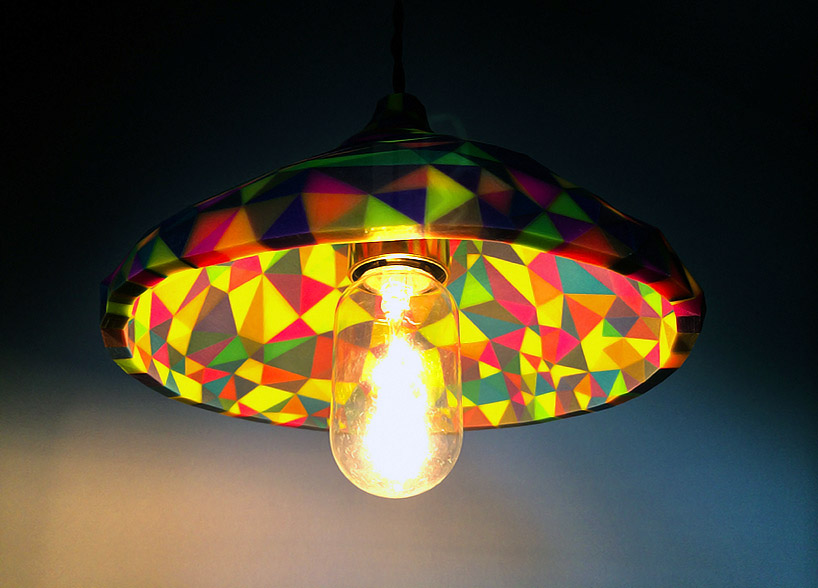

closeup of the E14 lampholder

daniel hilldrup trig 3d print lampshades

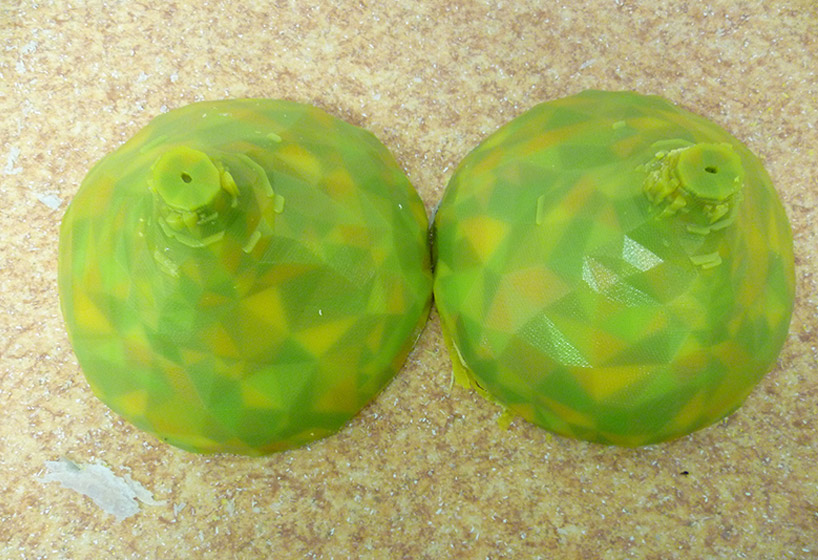

objet 500 connex3 FDM parts with support structure
