499.summit / birds-eye view

499.summit carefully challenges all preconceived notions of the word “prison”, and proposes simple yet powerful ideas that re-imagine the high-rise as an urban penitentiary. the massing consists of three towers in the shape of an arch. the inherent linear and formal qualities of the ‘arch’ allowed us to establish our key circulatory concept: up, over, down. each arch has three primary phases, incarceration (up), transformation (over), and integration (down). the arches begin isolated during the incarceration phase and merge together both physically and programmatically during the integration phase. as the inmates graduate through the facility, they are being exposed to an increasing degree of social interaction, in order to make the transition back into society as soft as possible. to catalyst this process, public program and residential housing units are introduced in the integration phase downwards.

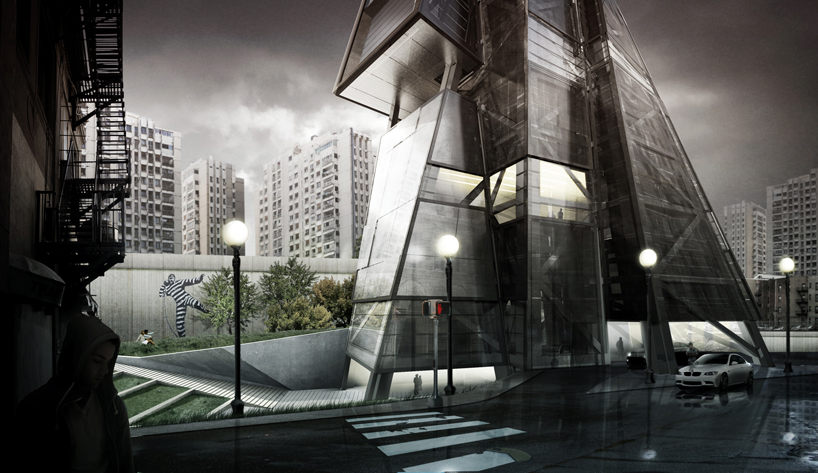

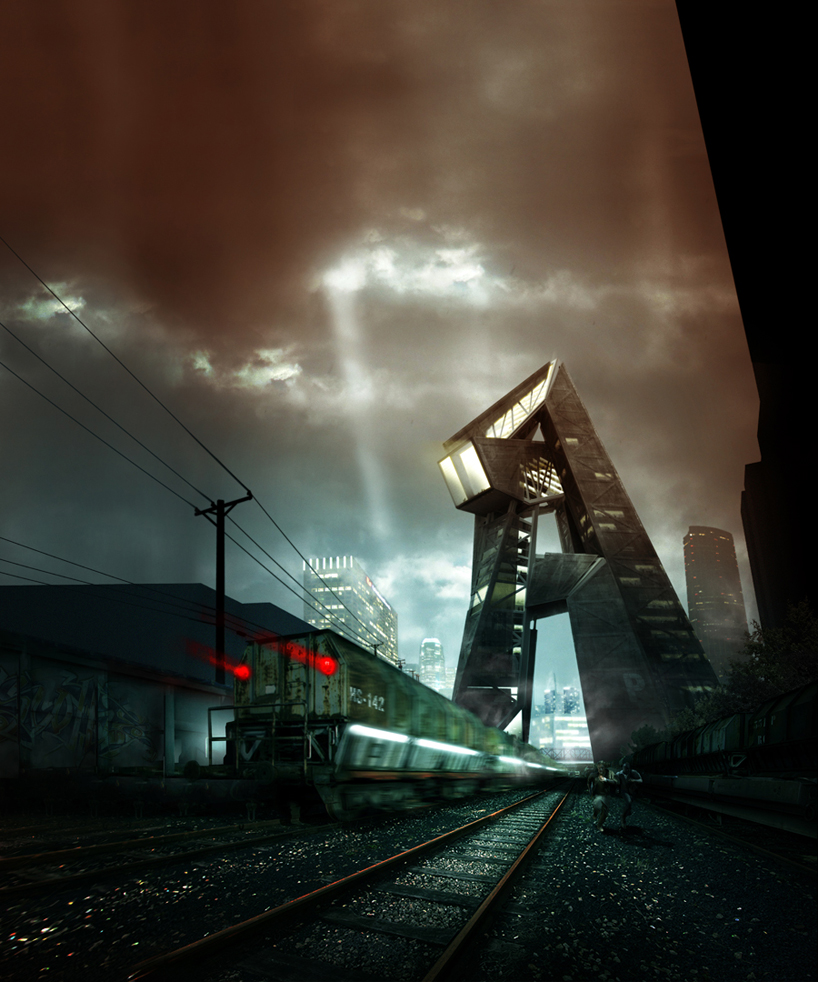

greg knobloch: 499.summit - 2 499.summit / ground condition 01

greg knobloch: 499.summit - 3 499.summit //ground condition 02

greg knobloch: 499.summit - 4 499.summit / ground condition 03

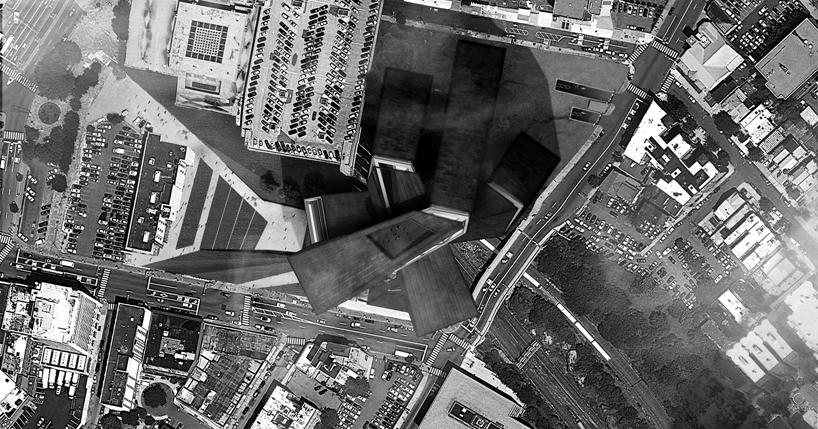

greg knobloch: 499.summit - 5 499.summit / aerial

video

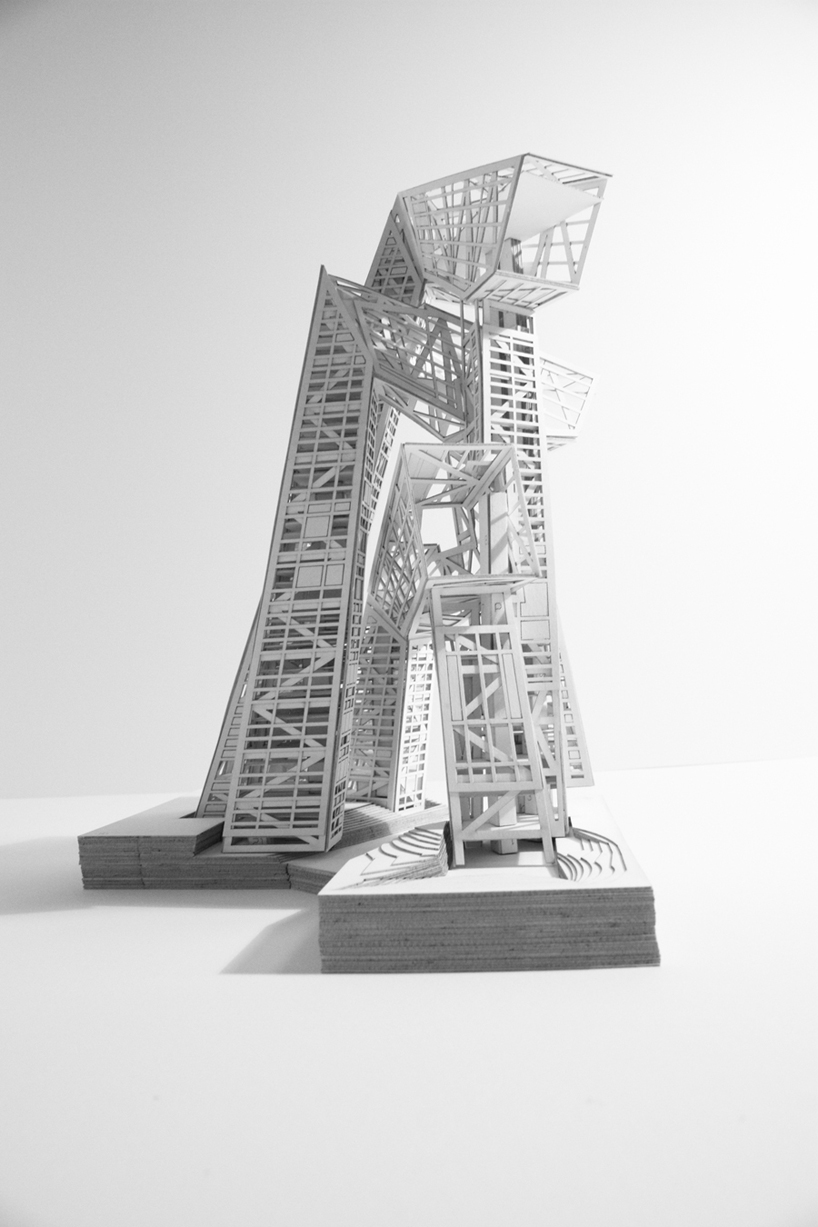

greg knobloch: 499.summit - 6 499.summit / model

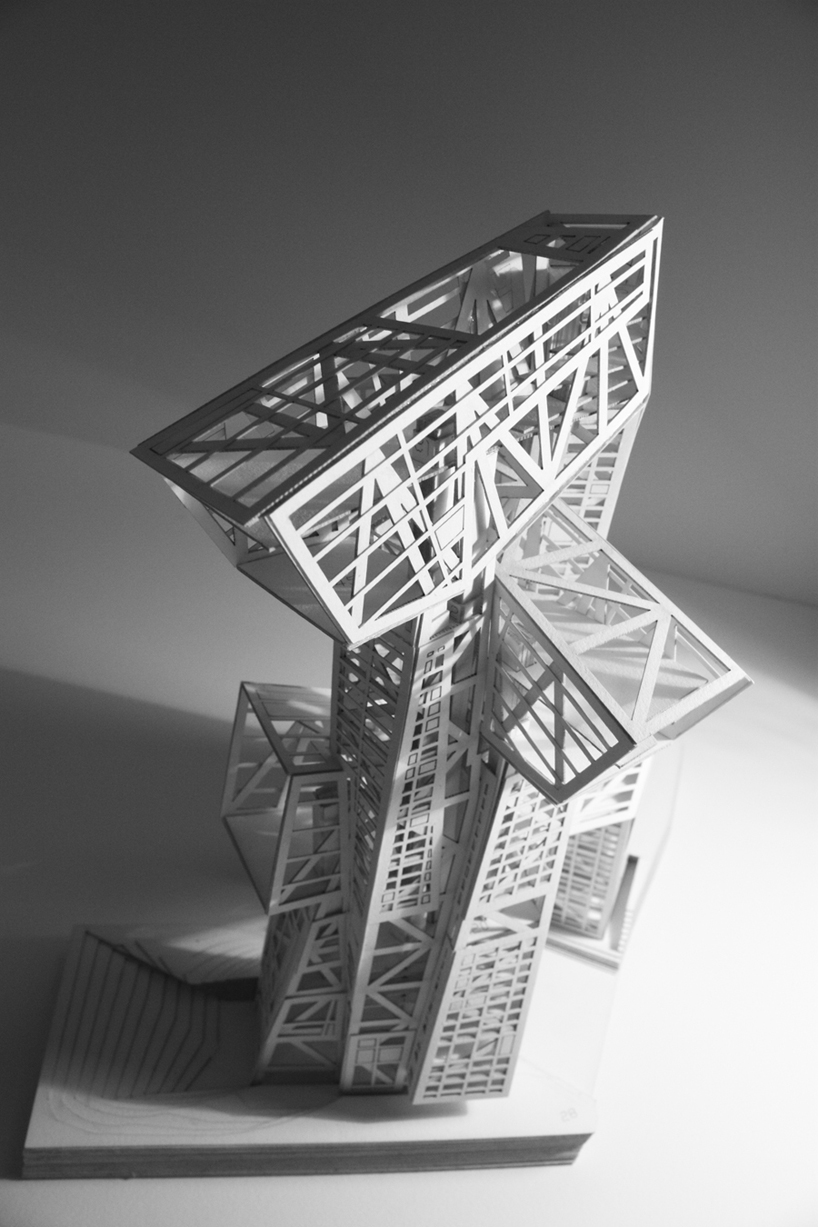

greg knobloch: 499.summit - 7 499.summit / model

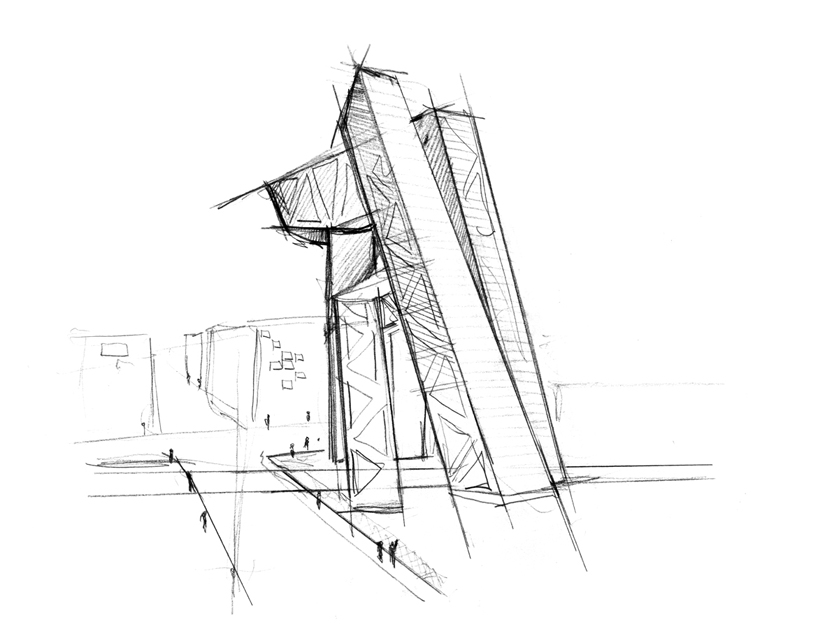

greg knobloch: 499.summit - 8 499.summit / sketch

greg knobloch: 499.summit - 9 499.summit / ground plan

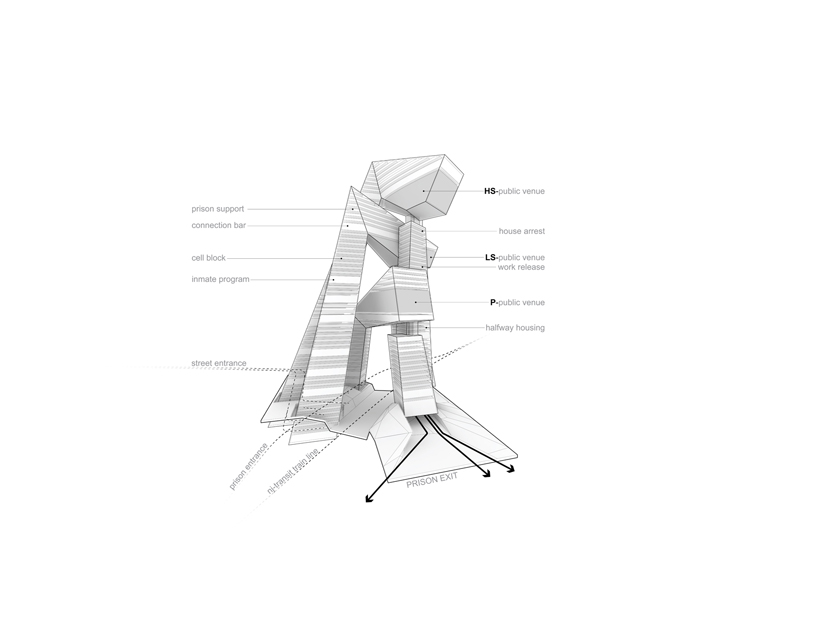

greg knobloch: 499.summit - 10 499.summit / program+circulation diagram

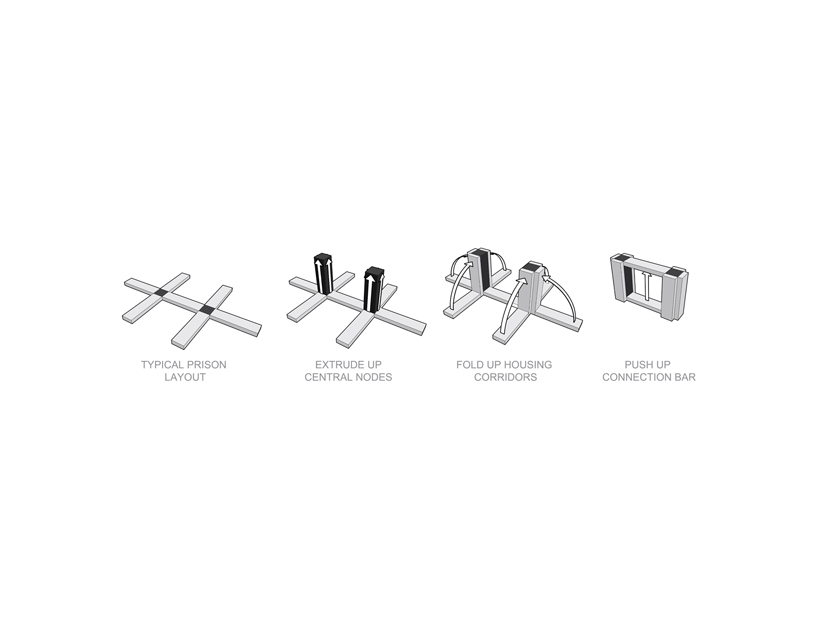

greg knobloch: 499.summit - 11 499.summit / strategy

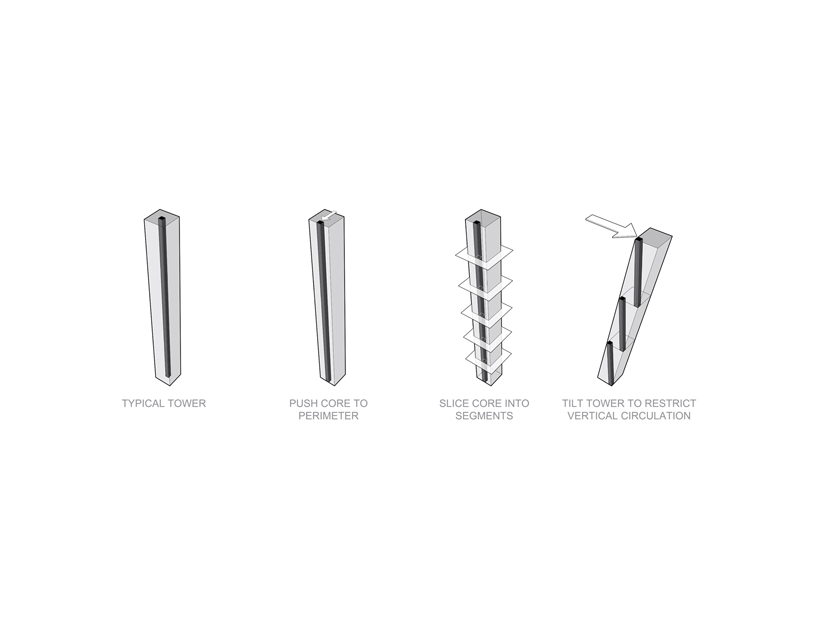

greg knobloch: 499.summit - 12 499.summit / core-segmentation
