earthquake data converted into art   quakescape 3D fabricator by james boock
original content
dec 04, 2012
earthquake data converted into art quakescape 3D fabricator by james boock


‘quakescape 3D fabricator’ by james boock





the ‘quakescape 3D fabricator’ is a device that was created in response to the christchurch earthquakes by new zealand designer james boock in
collaboration with  josh newsome-white, brooke bowers, hannah warren, george redmond, richie stewart and philippa shipley.
‘quakescape’ takes earthquake data and transfers it into art by using a scaled down landscape of christchurch as the ‘blank canvas’ and extrudes
paint onto the exact location of the earthquake – creating the transformation from data to art.



the device works by taking earthquake data from the site geonet and transfers it into the medium of art by
using paint and arduino technology. the surface that the paint is applied to is a CNC-routed landscape of christchurch, new zealand –
this acts as the blank canvas and allows the paint to move around the landscape creating amazing colourful visuals.
the colours represent the magnitude of the tremors, and is run on two horizontal axis by stepper motors powered by g-code generated through arduino.
this allows the nozzle head to be moved to the precise location of the earthquake, once the location is determined the pigment is then
pumped from the containers through the tubes and extruded out the nozzle. this is the moment where precise magnitudinal data gets
converted into an artform.

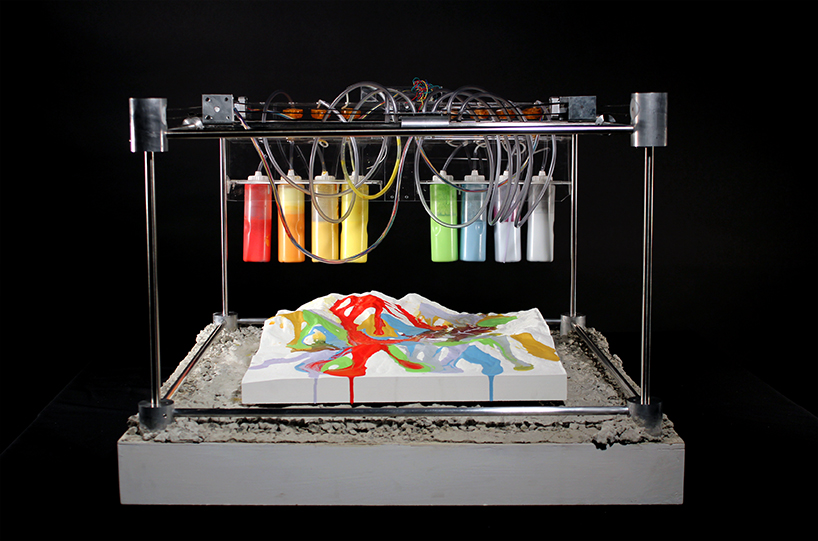

the device was created in response to the christchurch earthquakes in new zealand






the artform landscape close up






the printer nozzle






the device’s stepper motor






the colours represent the magnitude of the tremors, and is run on two horizontal axis by stepper motors powered by g-code generated through arduino






isometric view of the finished  piece






the blank canvas






CNC-routing the canvas




colour code




a video showing the quakescape in operation
video courtesy oliver ellmers



design team:



josh newsome-white, ames boock, brooke bowers, hannah warren, george redmond, richie stewart and philippa shipley



designboom has received this project from our ‘DIY submissions’  feature, where we welcome our readers to submit their own work for publication.
see more project submissions from our readers here.
