nike shift have created two electric motorcycles; ‘rebel’ – a modified 1987 honda ‘rebel 250’ which is powered by the guts of a golf cart drivetrain – as well as the ‘leafy savage’ which holds a battery pack from a nissan leaf and frame donated from a 2003 suzuki ‘savage’, as well as the enertrac motor which provides a maximum power output of 40 hp.

View More: http://harlinmillerphoto.pass.us/proofs-11







the black enertrac motor can be found in the rear hub of the night shift bike . it doesn’t need a transmission. the wires that connect to the controller are located under the right side of the swing arm. when riders let off the throttle, the motor switches polarity and recharges the battery through regenerative braking. where the motor used to be is where a battery pack of cells from the ‘leaf’ electric car can be found, wired in series for a total of 116 volts.  there are four flat-pack lithium manganese oxide (limn2o4) batteries in each of the 14 cells on the bike.

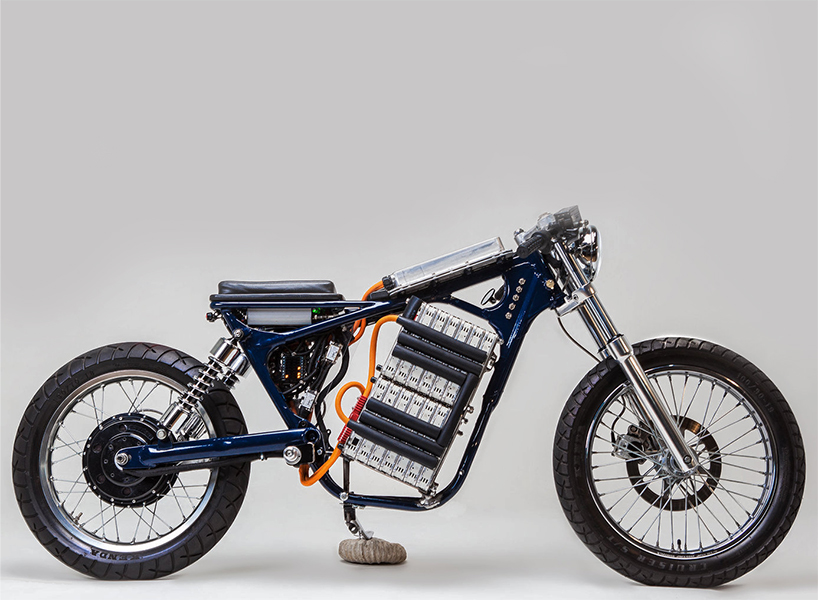

nightshift bikes leafy savage







under the seat is a silver kelly controller rated for 250 amps which manages the electricity flowing between the motor and the battery. when riders twist the throttle, the controller adjusts the duration and spacing of pulses being sent to the motor. the harder the twist, the longer the pulses, and the smaller the gaps between them. this keeps the bike from ripping out from beneath you and creates a silky smooth power delivery. users can connect a laptop to the controller through the blue data port above the license plate and adjust the power curve for better acceleration or more range. its currently setup for quick but balanced city riding and a range of 100 miles approximately. sitting where the gas tank used to be is an eltek charger that can provide up to 3000 watts at 220 volts. it is currently wired for 110 v and can connect to any household outlet via an extension cord through a charge port located below and behind the seat. it will charge in under three hours.

View More: http://harlinmillerphoto.pass.us/proofs-11







component upgrades include motogadget‘s M-unit, M-lock wireless key and m-button to keep things clean; LED lighting; rear disc; custom charge and data ports; and toggle switches from radio shack. rearsets, shocks, front fork drop hardware and triple tree hardware are from RYCA.

nightshift bikes leafy savage

nightshift bikes leafy savage

View More: http://harlinmillerphoto.pass.us/proofs-11

View More: http://harlinmillerphoto.pass.us/proofs-11

View More: http://harlinmillerphoto.pass.us/proofs-11

  • We can argue about aesthetic minimalism, but this is a bike I would like to ride – no flipping chain! (the rear brake must not be pretty.. no pic of the left side)

    Jim

    jimCan says:
  • If ever, my next motobike will definetely be electric. This one here looks like a first proto reduced to the basic functions. I woud not ride it longer than around the garage where it was built, because the batteries are not protected (and Li-batteries can be very dangerous), foot rest do not fold back, seat gives no structural hold, wheels without cover, electric components uncovered or sitting directly in the spray of wheels.
    Let’s assume this is solved: I want more of these developments, and fortunately electric drives make it possible even for small companies to manufacture them: do it. But don’t try to solve any detail different to standard bikes just for the attention. Give us a usable emotobike.
