india’s first recyclable sustainable toilet



Using the power of construction to reshape and provide sustainable solutions to global challenges, Shikha Doogar, Shridhar Rao, Rana Sarkar, Manavi Dixit have designed India’s first 100% recyclable toilet in Amritsar to improve public living standards. The city, like many others across India, has long struggled with inadequate amenities like public toilets and widespread misuse of these spaces.



To combat this issue, an initiative funded by Ruhani Verma was launched to construct a sustainable toilet module. Comprised of a series of sustainable building blocks, the arched toilet takes shape from wholly recyclable materials, including Silica Plastic Blocks (SPB) which gives new life to two major wastes — foundry dust and single use plastic — for a wider social initiative.

100% recyclable building blocks made from waste shape this sustainable toilet module in india
all images courtesy of the author





a colorful sustainable solution to global problems



Many cities across India struggle with inadequate access to public amenities. Moreover, measures taken by the government to install facilities have been in vain due to misuse and abuse of the already scarce public toilets. Seeking to create equal access and improve living standards in the public sphere through construction, the sustainable toilet module in Amritsar has been designed to ensure longevity, and embed a spark of color in the community, transforming what is typically a mundane amenity.



The design of the toilet was conceived by making use of 100% recyclable materials including SPB, PVC pipes, MS angles, and HDHMR Boards. SPBs were used for their sustainable and recyclable building qualities, as they are made from plastic waste and harmful foundry dust. Due to their unique properties the block scan be brought down and then sent back to a unit to be shredded, re-extruded, and repurposed. ‘The mechanism of the product justifies all the requirements to become a stronger and quicker aid to facilitate this initiative,’ explains Shridhar Rao

100% recyclable building blocks made from waste shape this sustainable toilet module in india
India’s first recyclable sustainable toilet





Each toilet module is constructed using two products made of SPB, namely 1000 flat planks and 150 lego bricks. These blocks are completely customizable and reusable, thus increasing the efficiency of this sustainable toilet as a conscious solution. The unit is made on a framework of MS T-channel and MS flat plates in the walls and ceiling. All sides are then aesthetically covered with 15mm thick SPB planks and the inside partitions are further made with Lego styled bricks. On the front, the planks are painted with a corrugated metal sheet door. The module’s construction system is simple yet elegant, and can be quickly assembled or dismantled as required.

100% recyclable building blocks made from waste shape this sustainable toilet module in india
women’s module

recycled-toilet-india-designboom-1

100% recyclable building blocks made from waste shape this sustainable toilet module in india
planks painted with a corrugated metal sheet door

100% recyclable building blocks made from waste shape this sustainable toilet module in india
the arched toilet takes shape from wholly recyclable materials, including Silica Plastic Blocks





100% recyclable building blocks made from waste shape this sustainable toilet module in india
SPB cladding detail





1/5

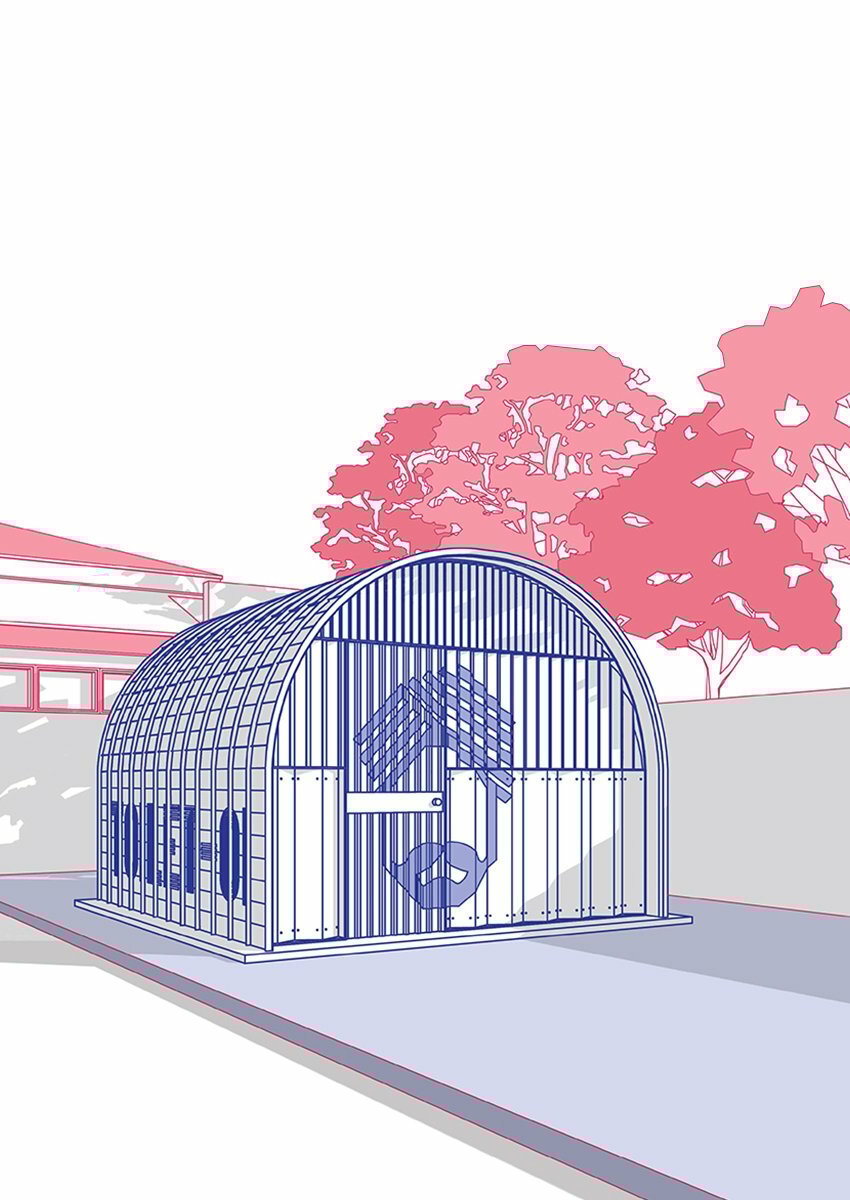

3D view
3D view

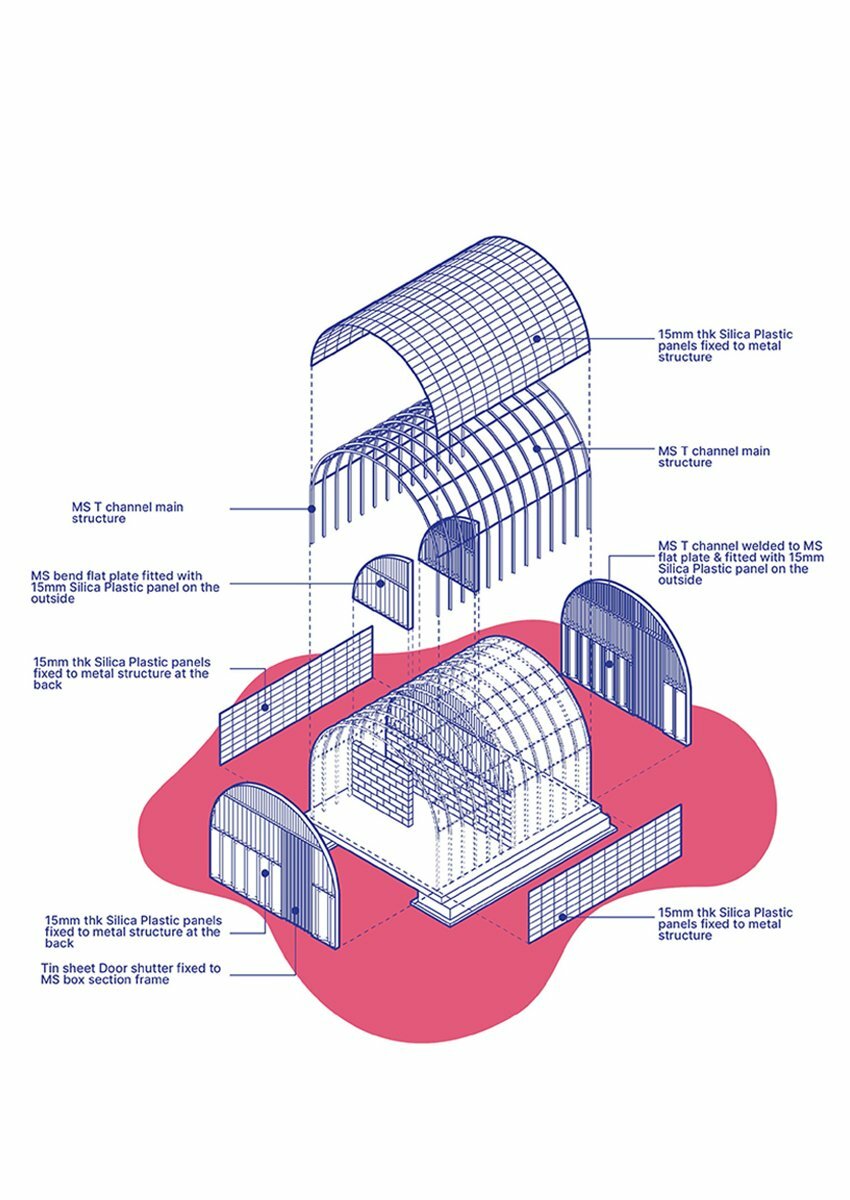

exploded isometric view
exploded isometric view

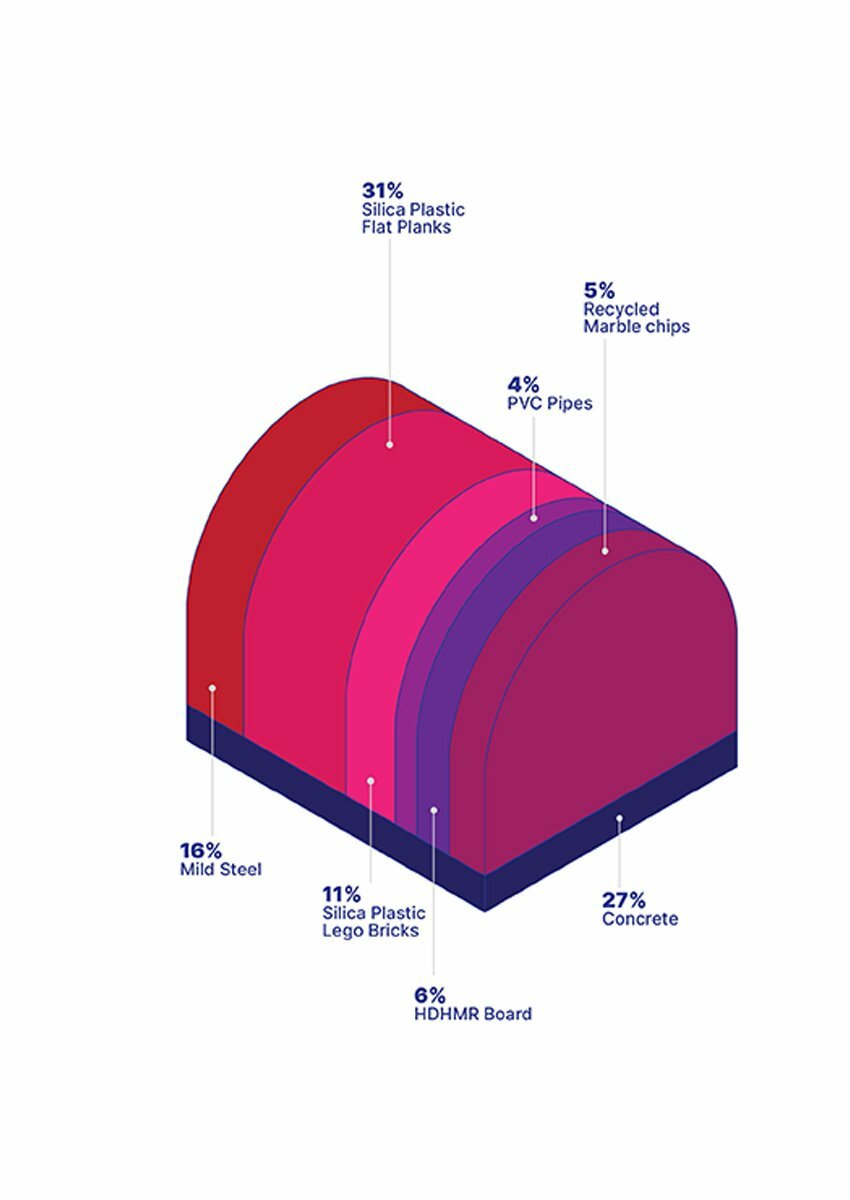

material proportion diagram
material proportion diagram

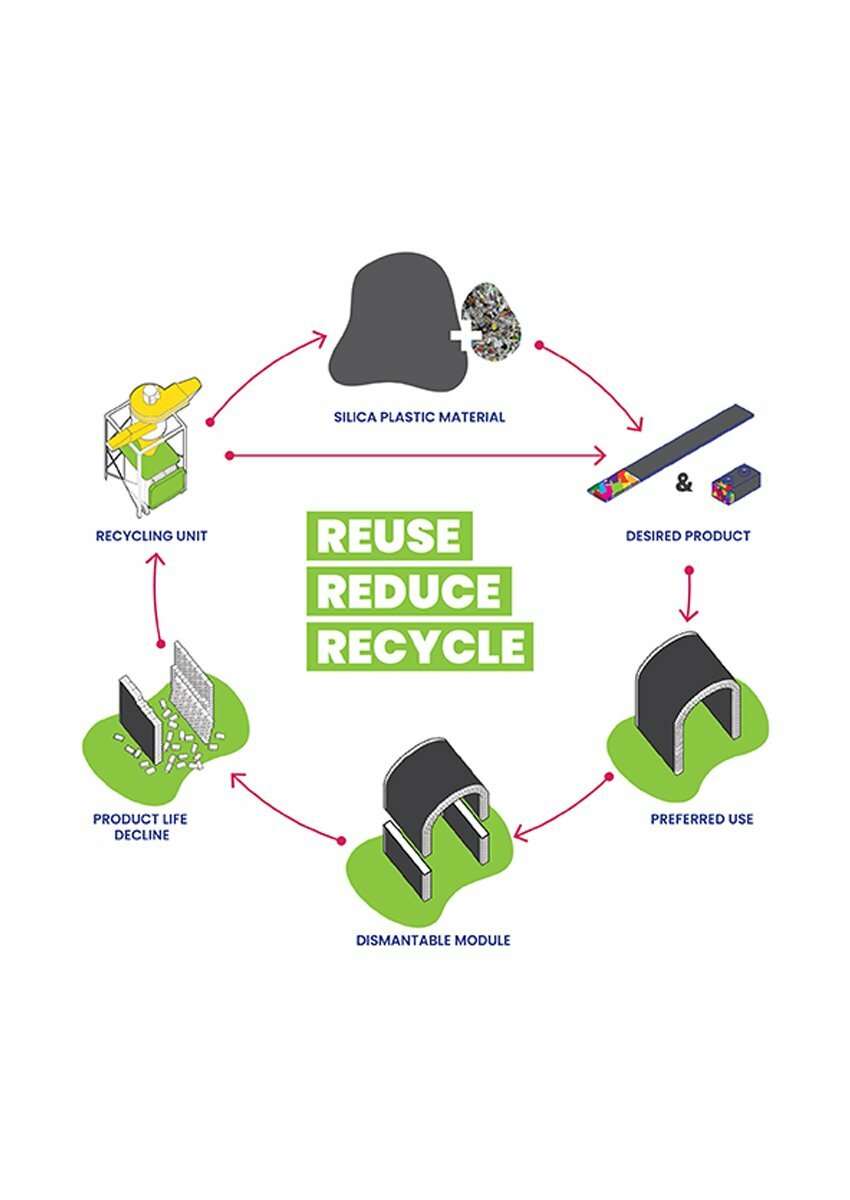

circular economy diagram
circular economy diagram

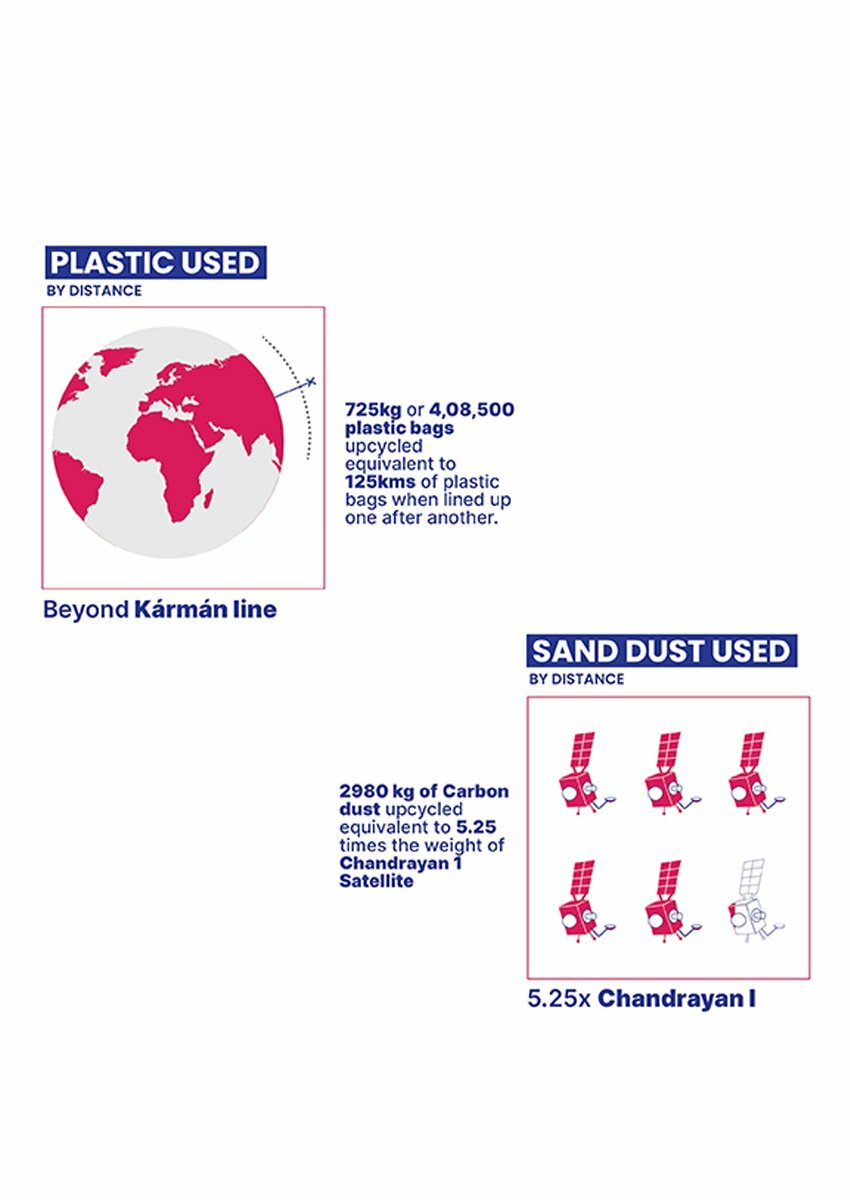

plastic recycled & silica dust used
plastic recycled & silica dust used

project info:



name: Toilet 01
designer: Shikha Doogar, Shridhar Rao, Rana Sarkar, Manavi Dixit
