5G studio folds angular roof over ‘legacy ER’ in allen, texas
photo © michael moran
all images courtesy of 5G studio

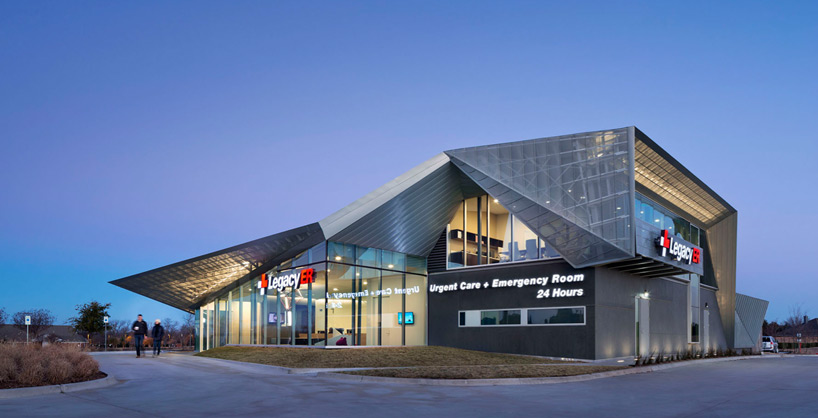

designed by architecture office 5G studio, the ‘legacy ER’ in allen, texas unites an emergency room and urgent care facility under a distinguishing angular roof. the visually dynamic qualities of the folded-form structure serve to create an identity for the building, which merges two vital and typically separated program elements. the project houses a 7,632 square-foot area in a singular rectangular volume enclosed by concrete and glass walls. the sculptural roof sits atop, and is composed of perforated metal panels.

5G studio legacy ER allen designboom

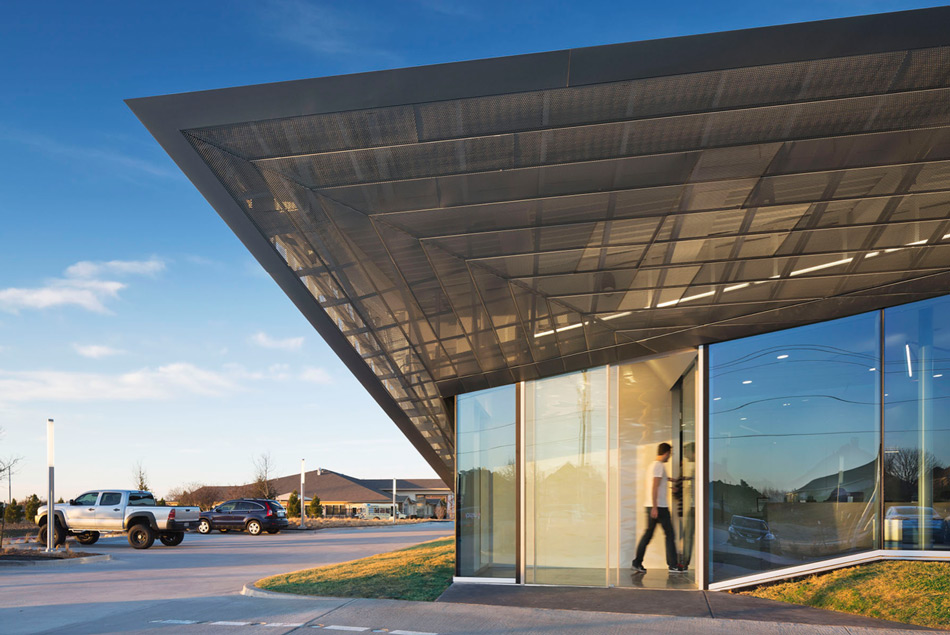

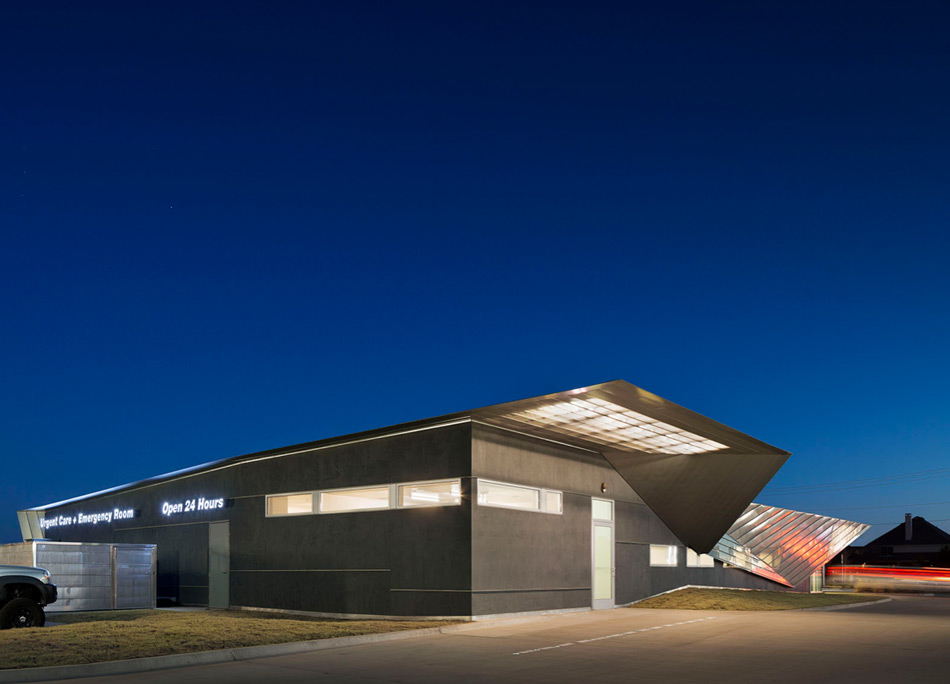

the folded-form roof sits on top of a rectangular building volume
photo © michael moran

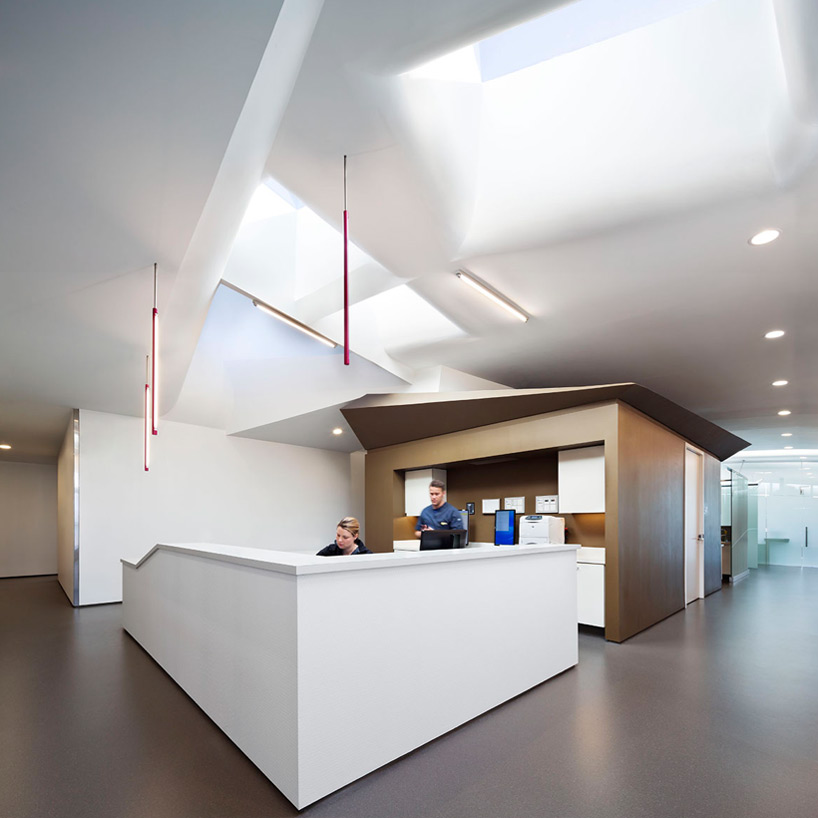

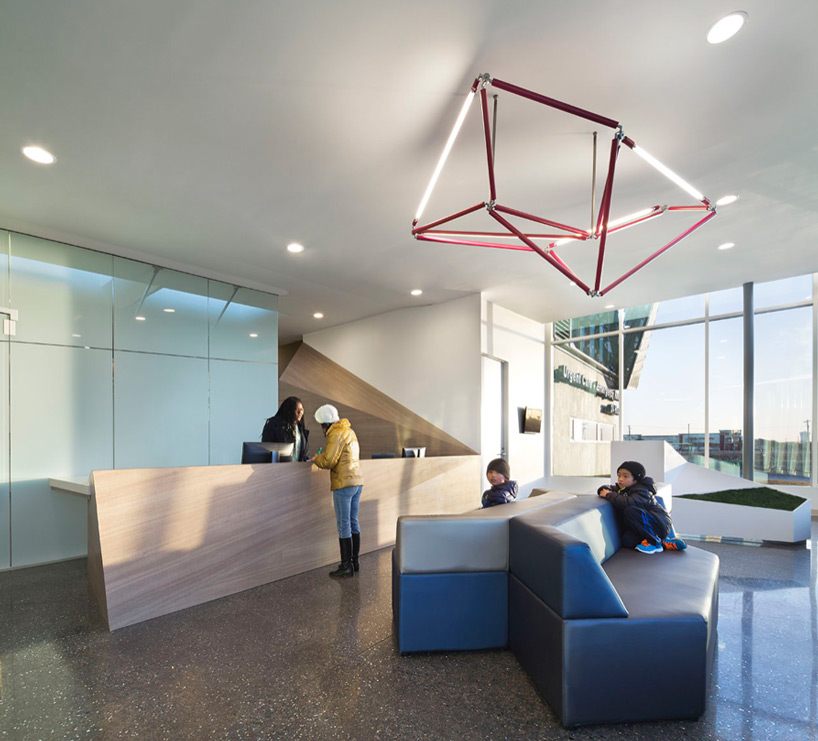

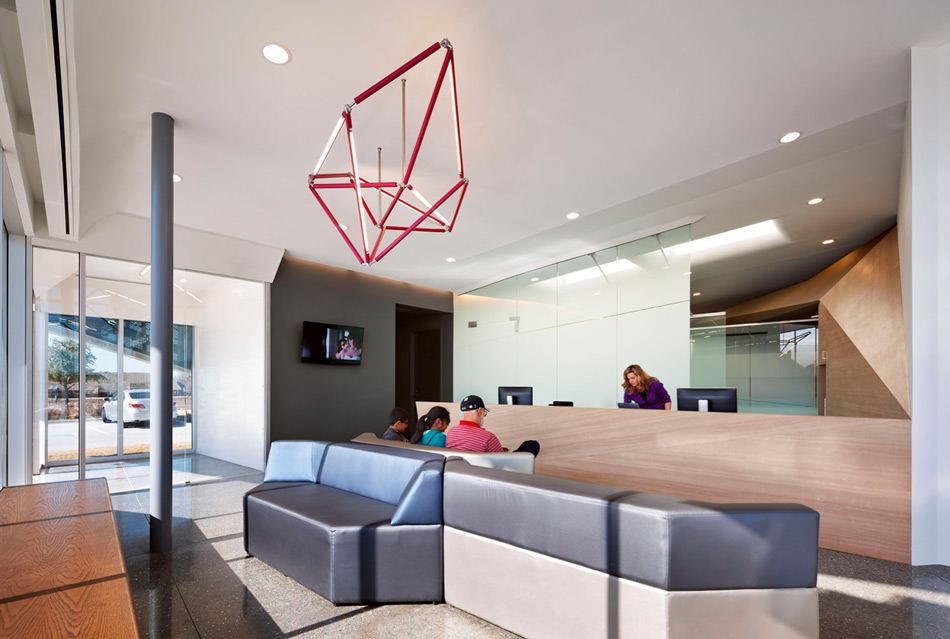

the expressive nature of the building’s exterior is complemented by soothing interior environments, which serve patients whom are often in distressed situations. skylights above the hallway and nurse station provide ample daylight, while a subtle material palette is utilized, with white walls and ceilings, wood accents, and frosted glass partitions.

5G studio legacy ER allen designboom

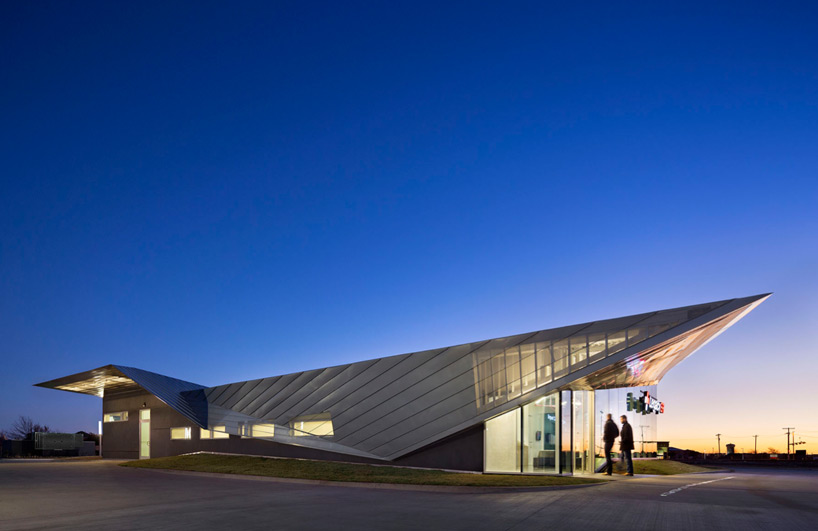

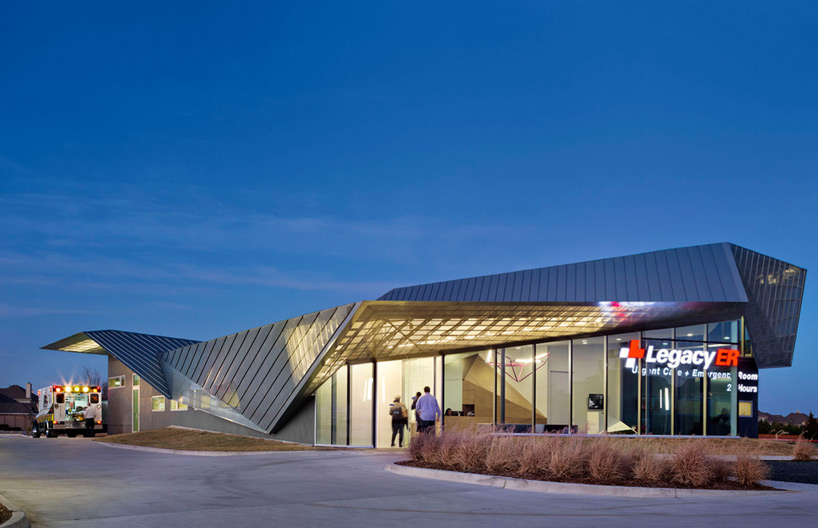

the facility is surrounded by driveways for easy vehicle access
photo © michael moran

5G studio legacy ER allen designboom

photo © michael moran

5G studio legacy ER allen designboom

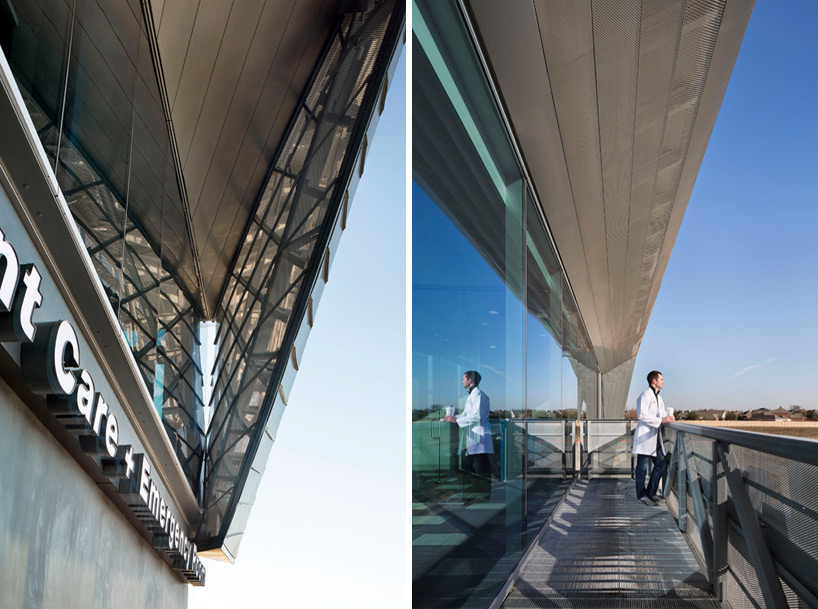

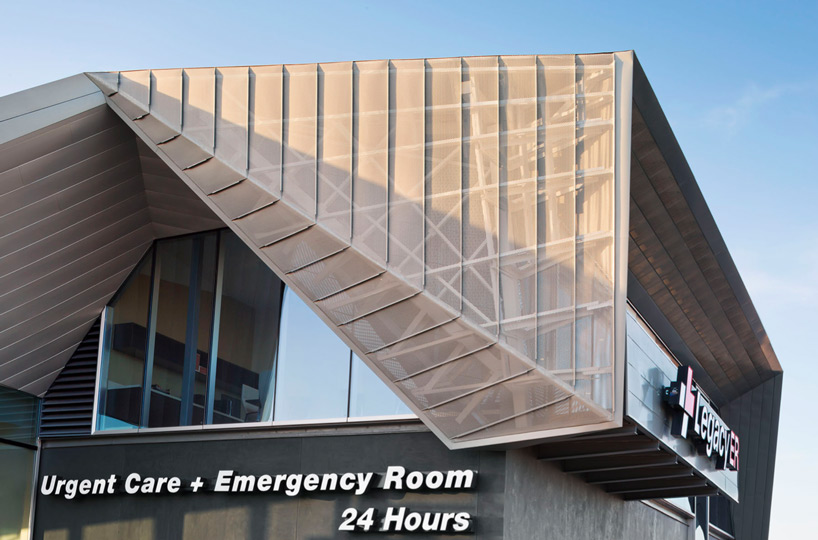

the roof’s truss-structure is revealed through the perforated metal skin
photo © michael moran

5G studio legacy ER allen designboom

photo © michael moran

5G studio legacy ER allen designboom

photo © michael moran

5G studio legacy ER allen designboom

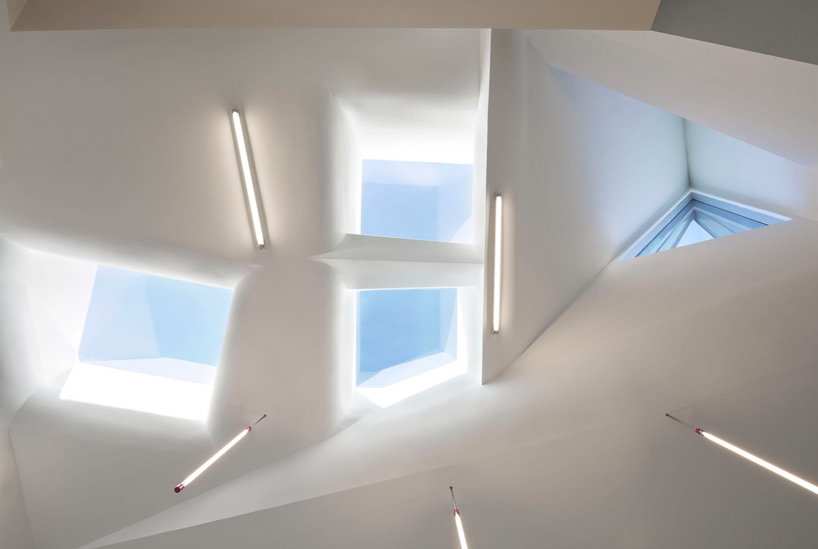

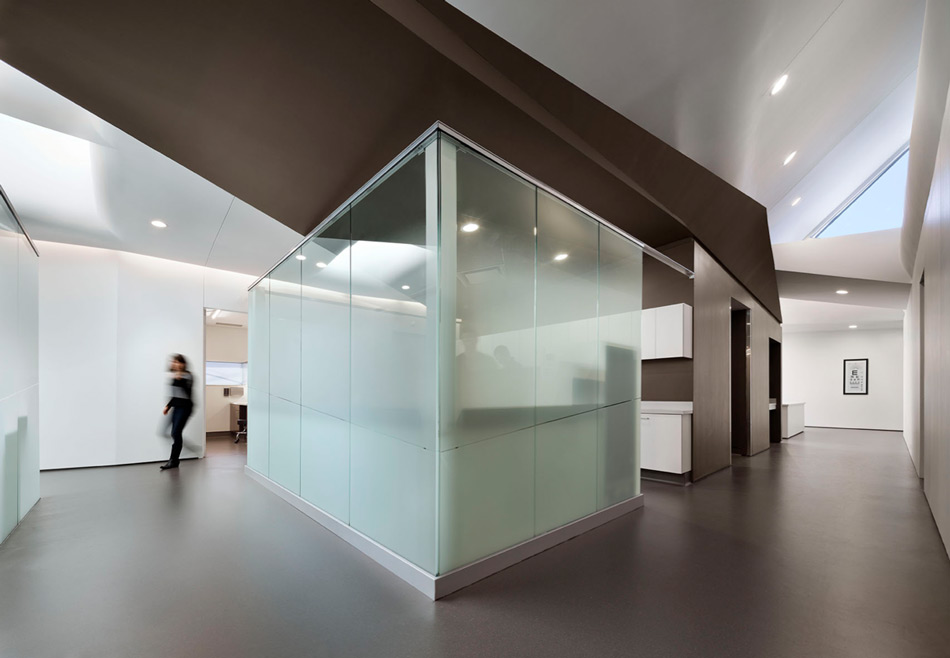

skylights illuminate the interior hallways and administrative areas
photo © michael moran

5G studio legacy ER allen designboom

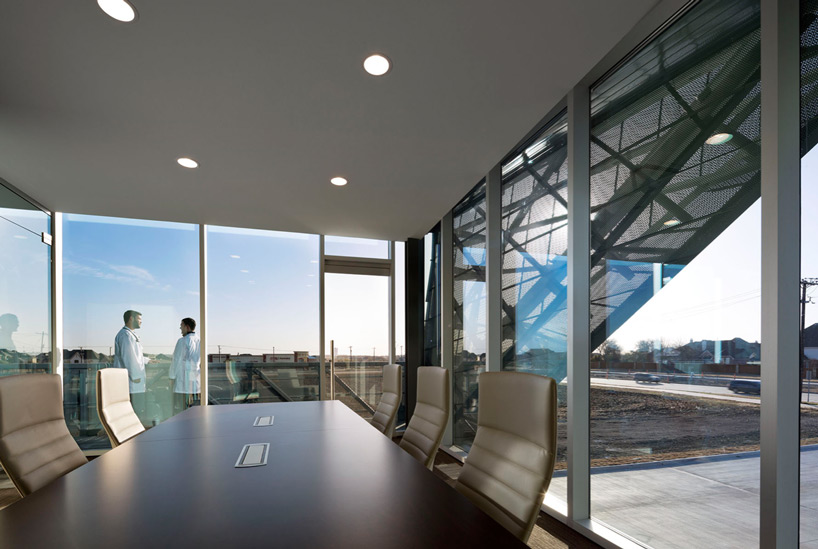

a conference rooms features large glass curtain walls and a small balcony
photo © michael moran

5G studio legacy ER allen designboom

photos © michael moran
