nov 02, 2012

akihisa hirata architecture office: coil

‘coil’ by akihisa hirata architecture office, japan image © koichi torimura all images courtesy of akihisa hirata architecture office

tucked within in a dense residential district of tokyo, the ‘coil’ residence by japanese practice akihisa hirata architecture office recedes into the context with a neutral, white exterior. following a continuous experiential sequence as some may consider life to be, the inhabitant’s experience a blurring of city and home, with a continuous spatial experience unveiled upon pulling into the garage. rooms are integrated into a singular corridor which gradually steps and rises throughout the interior.

three structural columns are evenly spaced within the footprint and span from the ground floor to the roof. the stairway then winds from the entry to the second floor. inhabitants move softly and organically between the interconnected spaces. derived from the complex order of a coil, the logical arrangement of the interior demonstrates the inherent order found even amongst living things.

the architect’s tangling exhibition is still on show through november 17th at the architectural association in london.

street entry elevation images © koichi torimura

rear of residence blends into its context image © koichi torimura

rear of residence image © koichi torimura

(left) ground level entry (right) stairway spirals towards a library lining the residence’s exterior wall images © koichi torimura

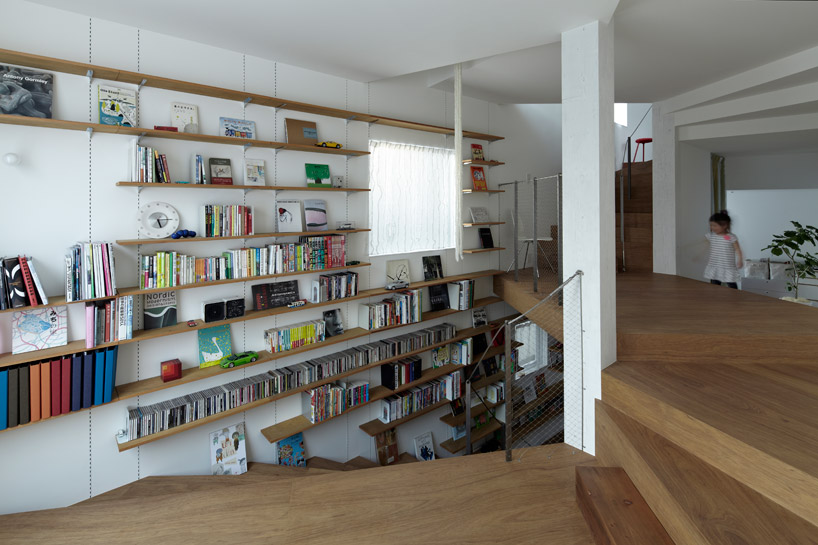

stairs leading past the library to the reading area images © koichi torimura

library images © koichi torimura

stairs lead from the reading area to the childrens play area image © koichi torimura

aerial view of library from stairway images © koichi torimura

kitchen + dining area images © koichi torimura

illuminated at night image © koichi torimura

at dusk image © koichi torimura

main structure

staggered floor plates

living spaces amidst the staggered levels


site plan

floor plan / level 0

floor plan / level 1

floor plan / level 2

roof plan
