andrea maffei: proposal for the new national stadium in tokyo

‘new japan national stadium’ by andrea maffei architects, tokyo, japanall images courtesy of andrea maffei architects

milan-based firm andrea maffei architects have produced a proposal for the ‘new japan national stadium’ in tokyo, japan, a facility with the ability to accommodate a range of activities while bringing athletes and spectators close together during games. a forest of columns supporting a large roofgenerate a wooden facade of ancient japanese architecture. focusing on movement, the fluid circulation begins with a public plaza in front of the structure that isprotected by the canopy to shelter from rain and offer shade. the flexible area may be used for concerts, parties, fairs and other types of events. the canopy features a 120 meter wide circular aperture that may remain open or be closed with a sliding dome. the size of the hole corresponds to the dimensions of a football field, allowing daylightto illuminate the playing area and encompassing track. moved into place on binaries, the steel and fabric element remains on an adjacent portion of the roof when not in use.

the main arena holds 80,000 seats with the ability to add 10,000 more for a total of 90,000. the additional seats are acquired by moving 5 meters down the football field. a ramp circles the stadium and culminates at the roof. for the first time, this area may be used as a practice space as well as additional spectator space from the dome’s edge.this merges the functions of multiple facilities, maximizing the plot of land and minimizing the need for additional locations to support the same needs.

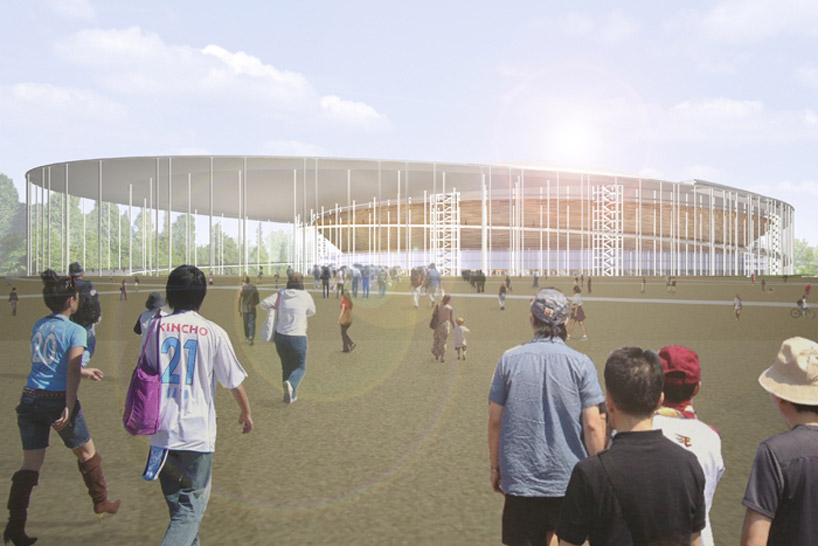

perimeter plaza

perimeter plaza

soccer game

aerial view

dome in the open position

concert

inside the closed dome area

during olympics

(left) floor plan / level -2(right) floor plan / level -1

floor plans / level 0

(left) floor plan / level 1(right) floor plan / level 2

(left) floor plan / level 3 (right) roof plan

stadium access

football seating

covered olympic scheme

public slopes to roof

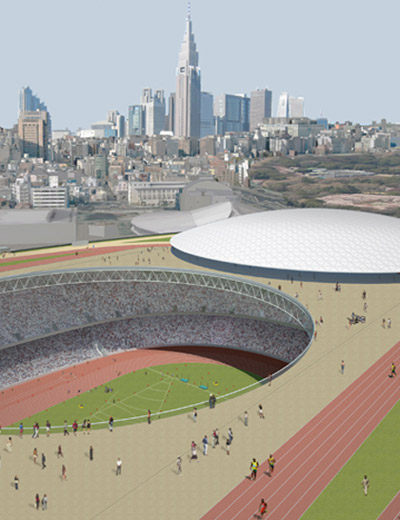

rooftop training events space

project info:

location: tokyo, japanprogram:olympic stadium – 2020 olympic gamesclient:japan sports councilprogram:olympic stadium – 2020 olympic gamescompetition dates:july – september 2012architecture project:andrea maffeidesign team:takeshi miura, alessandra de stefani, takatoshi oki, roberto balduzzi, paolo evolvi, stefano bergagna, pietro bertozzi, chiara zandri / andrea maffei architectsassociate architect: hiroshi yoshino, mitsuyoshi miyazaki / yoshino hiroshi architect officestructures:prof. massimo majowiecki / studio tecnico majowieckimechanical systems:kankyo-engineering co., ltd.total area:301.215 sqmcapacity:90.000 seatscost estimation:1,300,000.00 USD
