anta ingenieria civil curves footbridge over urumea river

crossing a span of over 73 without intermediate supports, the curving bridge appears to emerge from the side of the river banks, connecting a new urban area with a historic city park.

haritz iriondo edited by celia mahon heap December 27, 2013 2 min

anta ingenieria civil curves footbridge over urumea river
all images courtesy of anta ingeniería civil

the ‘riberas de loyola footbridge’ designed by spanish firm anta ingenieria civil crosses a span of over 73 meters without intermediate supports. gently curving over the river urumea in san sebastian in spain, the bridge connects a new urban area with a historic city park. the attachments to these two distinct banks are distinguished through the shape of the structure – the side of cristina enea park features a flat vertical surface, while the side of riberas de loyola consists of a more curved, warped platform, with the intersection of the two generating a parabolic shape. the crossing was designed to be simple in its assembly and no temporary supports were placed in the river. the curved elevation and the morphology of the abutments help to reinforce its appearance of emerging from the ground.

anta ingenieria civil curves footbridge over urumea river - 1

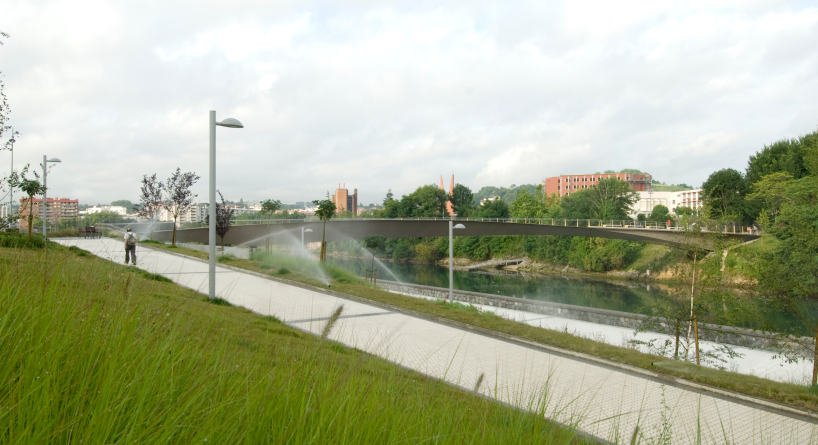

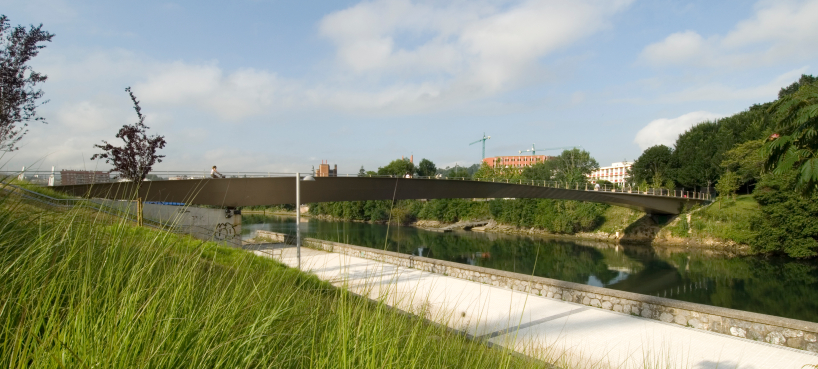

view of the curved bridge from riberas de loyola

anta ingenieria civil curves footbridge over urumea river - 2

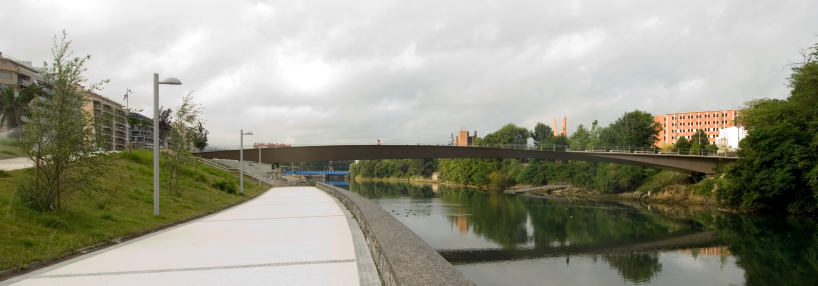

elevation view showing the variation in the bridge’s shape from the two sides of the river

anta ingenieria civil curves footbridge over urumea river - 3

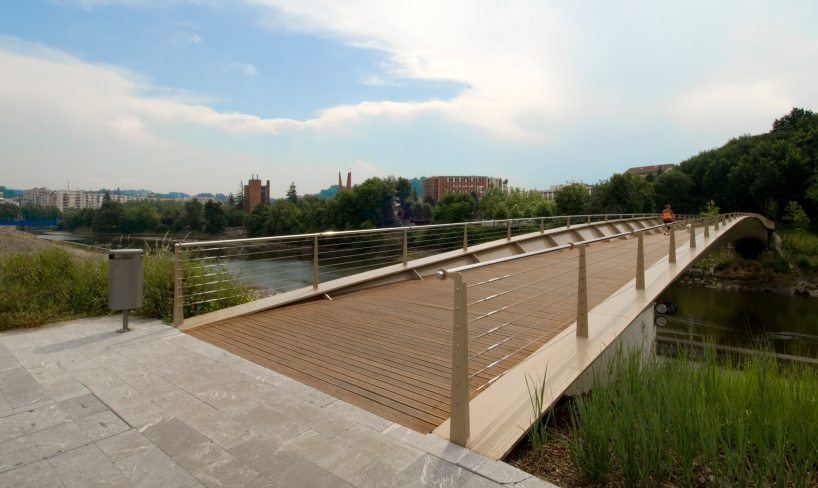

connection point from riberas de loyola

anta ingenieria civil curves footbridge over urumea river - 4

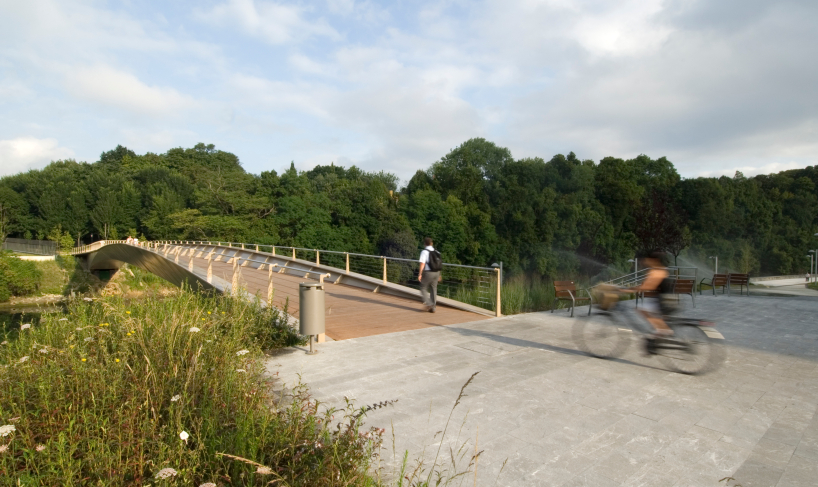

view from riberas de loyola

anta ingenieria civil curves footbridge over urumea river - 5

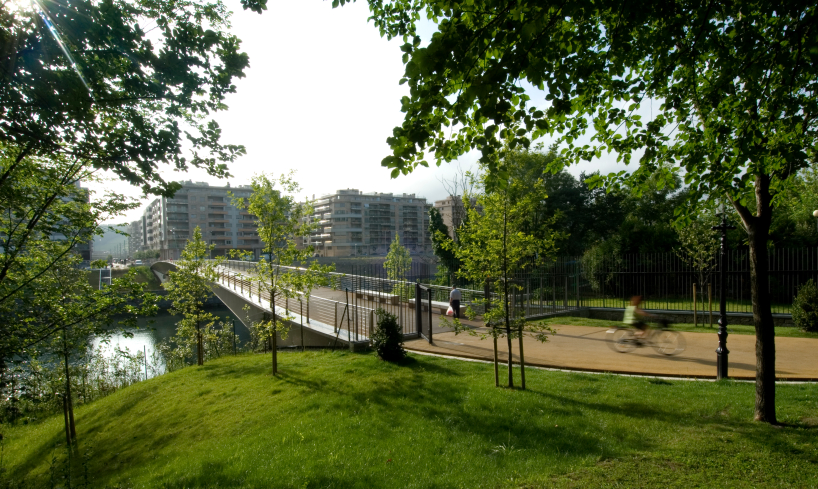

view from cristina enea

anta ingenieria civil curves footbridge over urumea river - 6
detail of the railing

anta ingenieria civil curves footbridge over urumea river - 7
detail view of cristina enea from the water

anta ingenieria civil curves footbridge over urumea river - 8

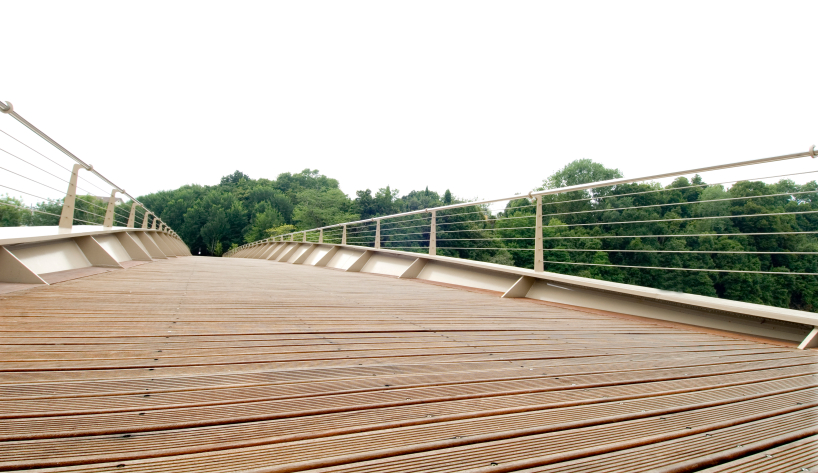

detail view of the wooden deck

anta ingenieria civil curves footbridge over urumea river - 9

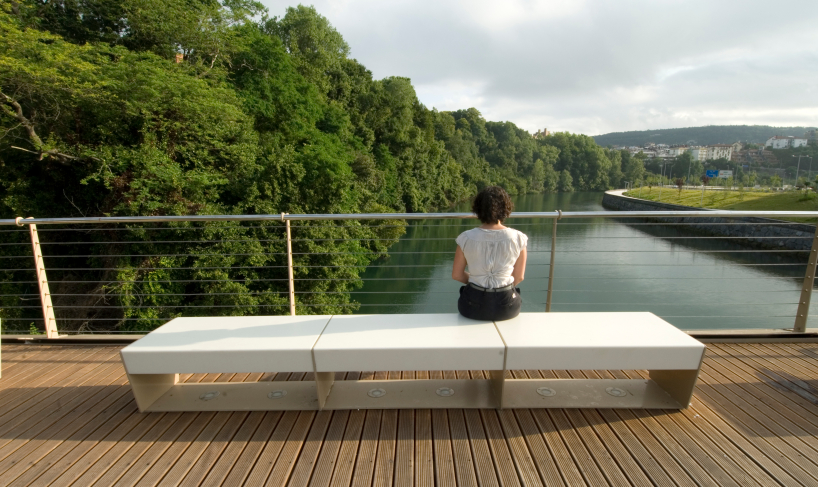

detail view of integrated furniture

anta ingenieria civil curves footbridge over urumea river - 10

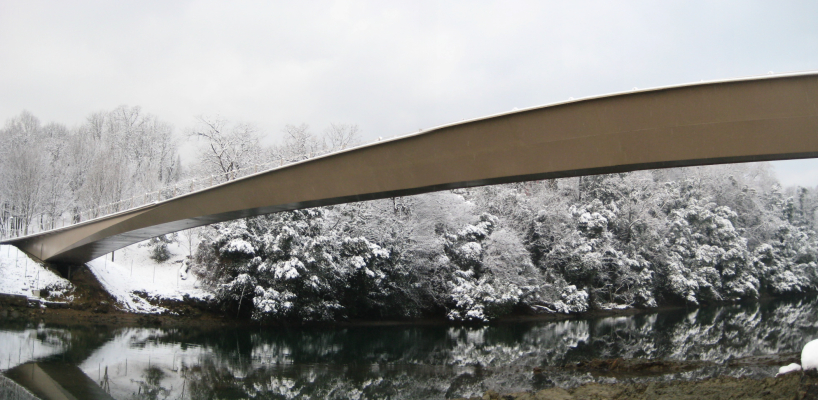

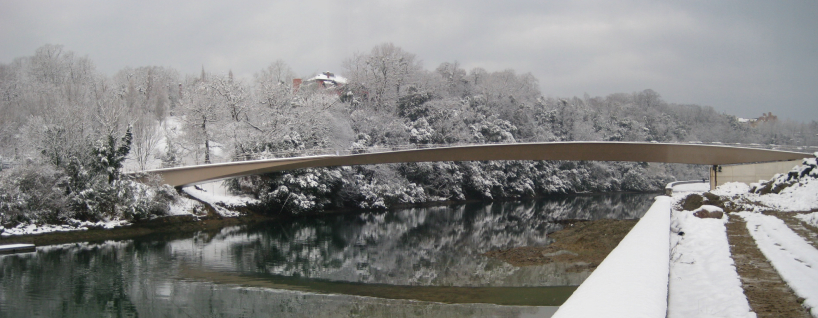

elevation from riberas de loyola in the snow

anta ingenieria civil curves footbridge over urumea river - 11
underside view from riberas de loyola in the snow
