asali bali engineers bamboo structure capable of covering 545m2 asali bali engineers bamboo structure capable of covering 545m2
feb 03, 2016

asali bali engineers bamboo structure capable of covering 545m2

asali bali engineers bamboo structure capable of covering 545m2

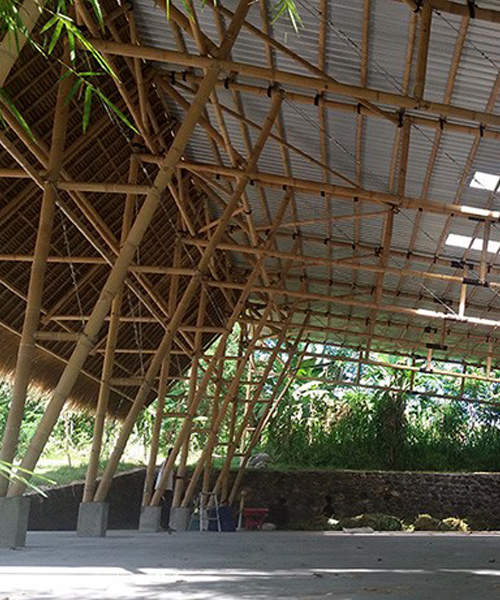

(above) the 545 square-meter aerated space is ready to receive production operations
all images courtesy of asali bali




bali-based asali bali has created a bamboo construction concept that covers big spaces, developed for pt. tripper nature and conceived in association with D.G.S engineers in singapore. every detail of the construction and particularly its connections have been carefully designed by a senior engineer, to provide a strong and durable structure. seven load tests were conducted to validate the structure. the bamboos used are 14-centimeters in diameters and were all carefully selected: sane, straight, aged, properly dried, and prepared following the traditional balinese knowledge. the construction time took two months, and it was carried out by a team of eight senior craftsmen who were trained to put together each part, especially the delicate structural ones that need steel systems of products like epoxy.

asali bali engineered bamboo structure designboom
trusses prepared in workshops, assembled on construction site, ready to be implemented on foundations plots




the specifications of the project included the optimization of materials and workforce, to create something organic and environmentally friendly, to treat the bamboo with freemite, to create a modular system that would be constructed at the workshop and assembled on site, and the possibility of the structure to be flexible to new additions. price-wise, the structure compares very favorably to similar constructions in wood or steel in the indonesian market.

asali bali engineered bamboo structure designboom
delicate leverage operations are performed with a 22-meter crane mast

asali bali engineered bamboo structure designboom
nine trusses up and ready to receive bracings, rafters and other secondary structural elements

asali bali engineered bamboo structure designboom
a steel-clad roof has been set up with 6000 screws directly on bamboos through a special system

asali bali engineered bamboo structure designboom
the 16-meter span system was designed for constructions up to 20-meters

asali bali engineered bamboo structure designboom
covered with local thatch, the structure gives a natural impression from the entry side

asali bali engineered bamboo structure designboom
the foundations were calculated using the standards on the singapore code of construction
