‘wbe house’ by AUAU in kasugai, japan all images courtesy AUAU photographer: suzuki ken’ichi

nagoya-based architecture practice AUAU (akitoshi ukai) has sent us images of ‘wbe house’, a two-storey dwelling in kasugai, japan. located in a densely populated residential neighbourhood, the small house utilizes partial wall elements as an optical illusion to visually lengthen the sense of space.

street facade

while the house technically has two storeys, the interior is broken up in to a number of levels in order to define separate programs without the aid of a full partition: the children’s room, located on the ground floor, is set off from the kitchen and dining space by a small step; the living space is divided in a similar manner, resulting in a series of terraced steps which ultimately leads up to the bedroom. this staging method enables the residence to remain open to visual connection while intuitively defining the internal circulation.

interior view

the simple palette – wood and a shade of white – is used rhythmically to create cross-sectional slices throughout the residence. by seemingly revealing the space in layers, the small area is extended while a dynamic visual effect is created. the design also focuses on providing maximum flexibility by utilizing a system of moveable walls on the upper level. the level of privacy can also be manipulated through this function.

view from the family room

(left) upper floor bedroom (right) children’s room below the family room level

view of the kitchen/dining from the children’s room

from the upper level

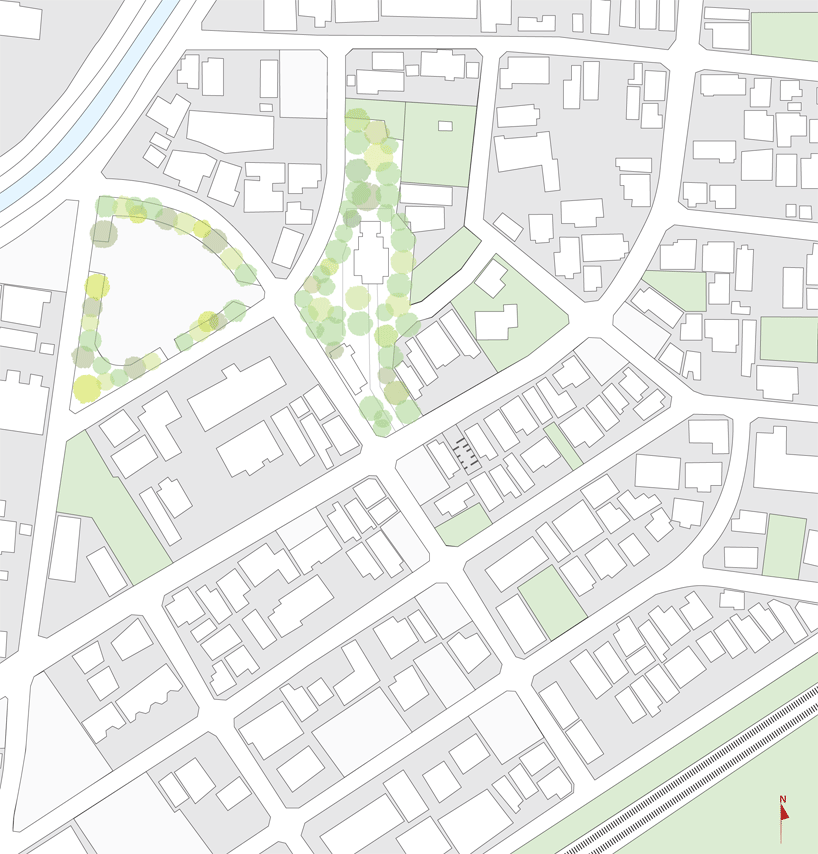

site plan

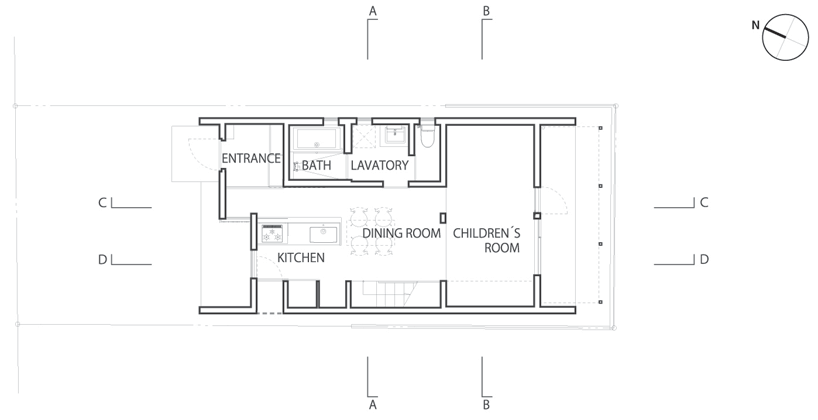

floor plan / level 0

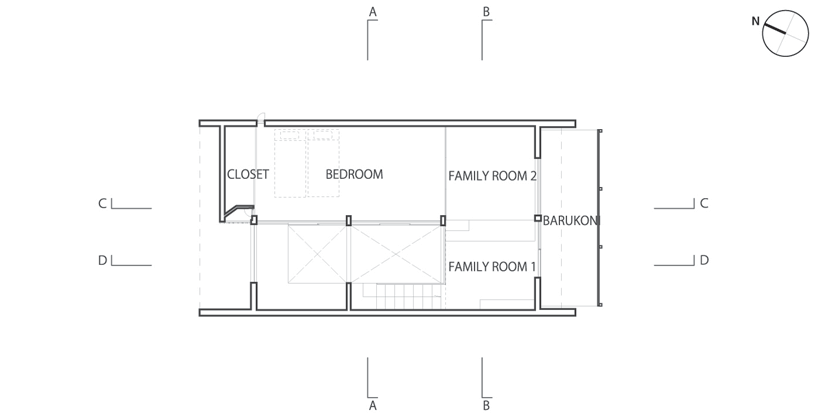

floor plan / level +1

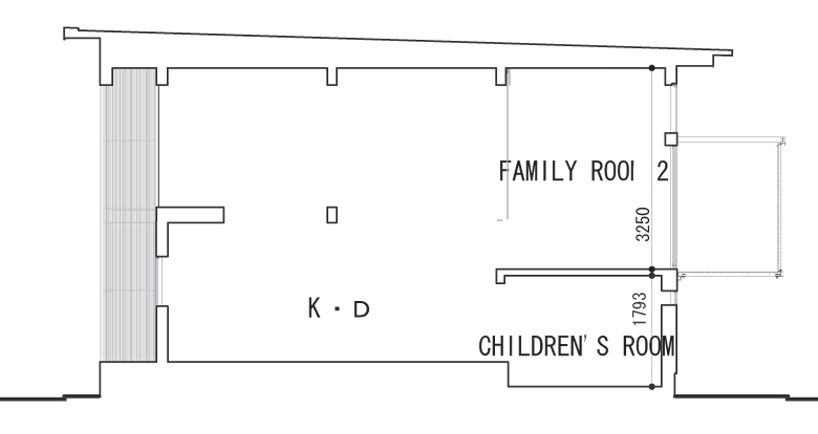

longitudinal section d-d

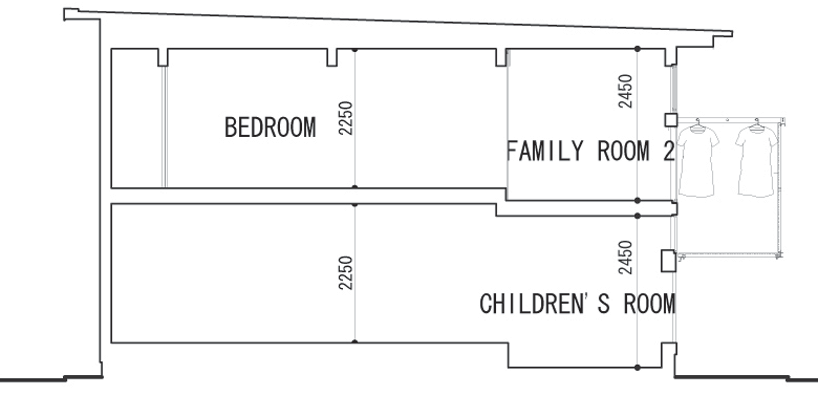

longitudinal section c-c

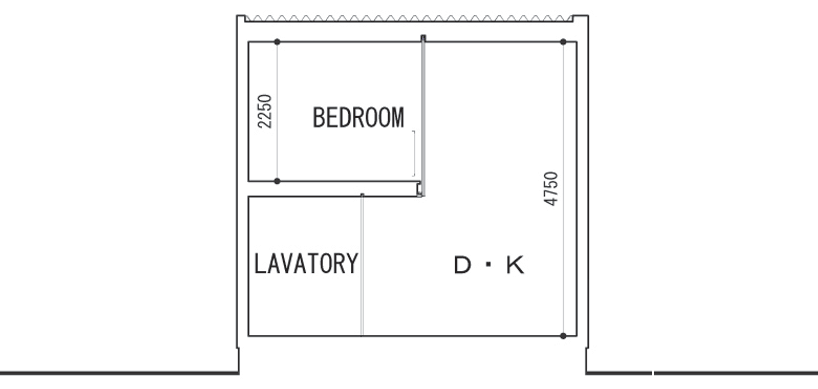

cross section a-a

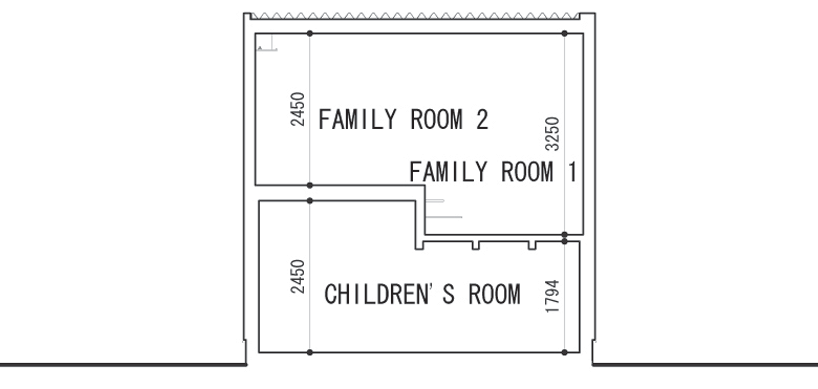

cross section b-b

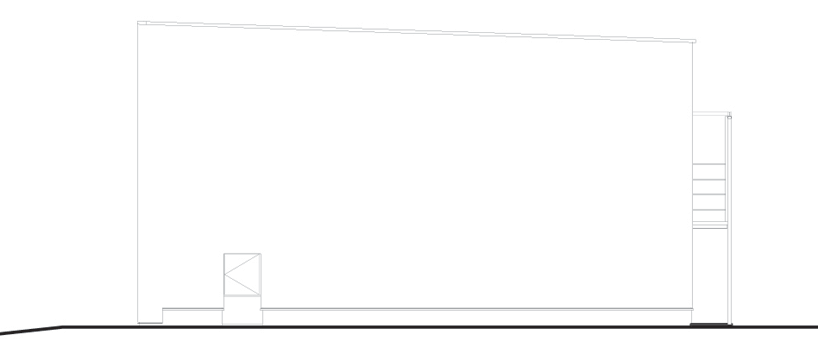

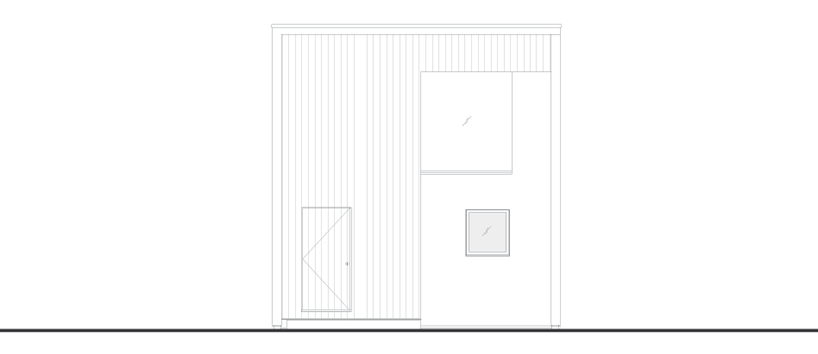

west elevation

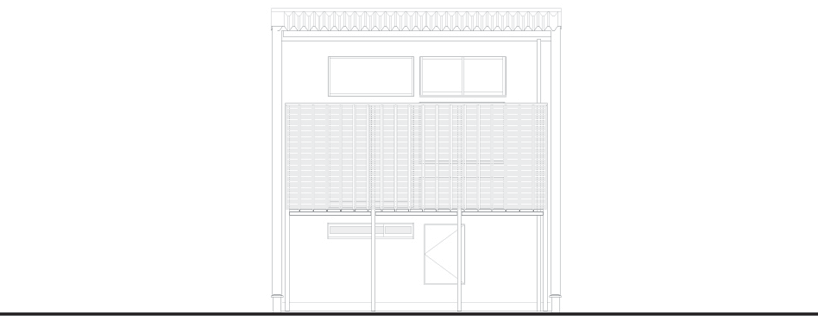

east elevation

south elevation

north elevation

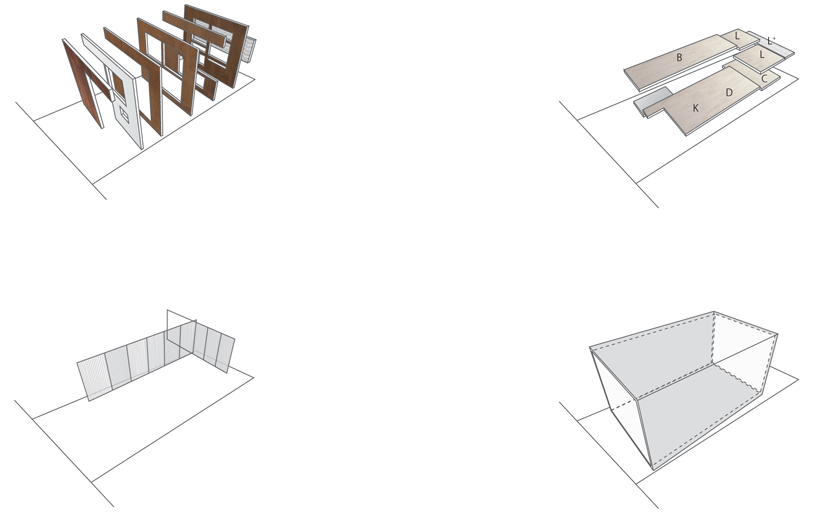

architectural elements of the house (upper left) continuous wall (upper right) floor slab (bottom left) movable wall (bottom right) box form

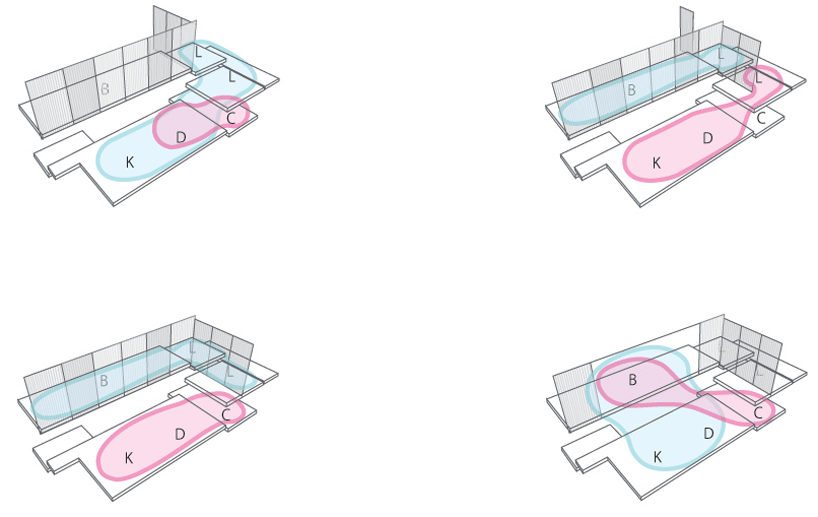

schematic diagram – flexibility with movable wall

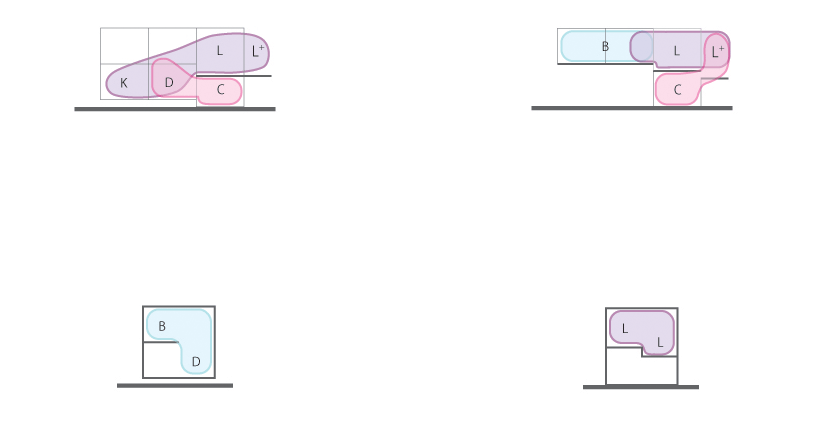

schematic diagram – connection of area
