american/german architectural practice barkow leibinger has completed the ‘smart factory’ near chicago. the presentation and sales, center for the german machine tool and laser manufacturer TRUMPF, turns high-tech machines and production processes into exhibition-like showpieces. while the concepts of factory and exhibition space are ordinarily separated, the architects combine these for the new smart factory as both design and efficiency are equally important.

barkow leibinger smart factory
all images by steve hall © hall + merrick photographers

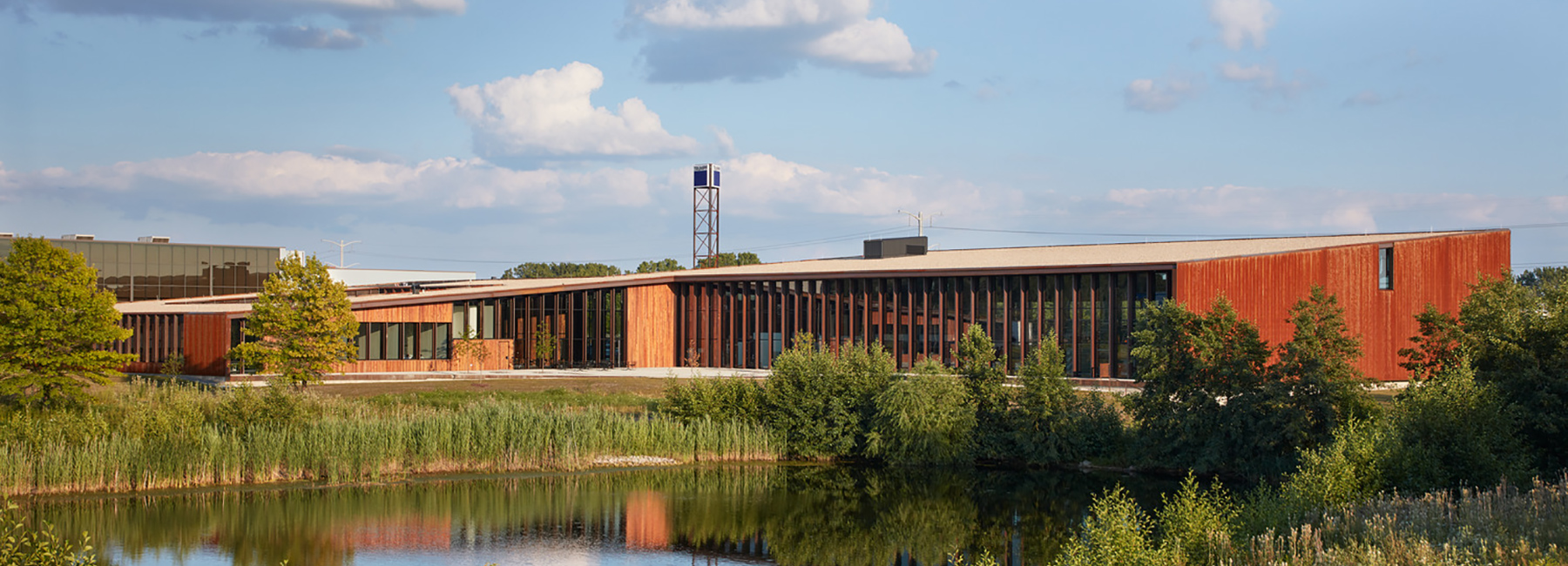

located on interstate 90, near chicago’s airport, the factory is easily accessible internationally and regionally. located in a key industrial zone of the ‘rust belt’,  the factory creates a new industrial typology. barkow leibinger created a campus-like factory which embraces the surrounding grasslands and reservoir with cycling and footpaths surround the grounds.

barkow leibinger smart factory

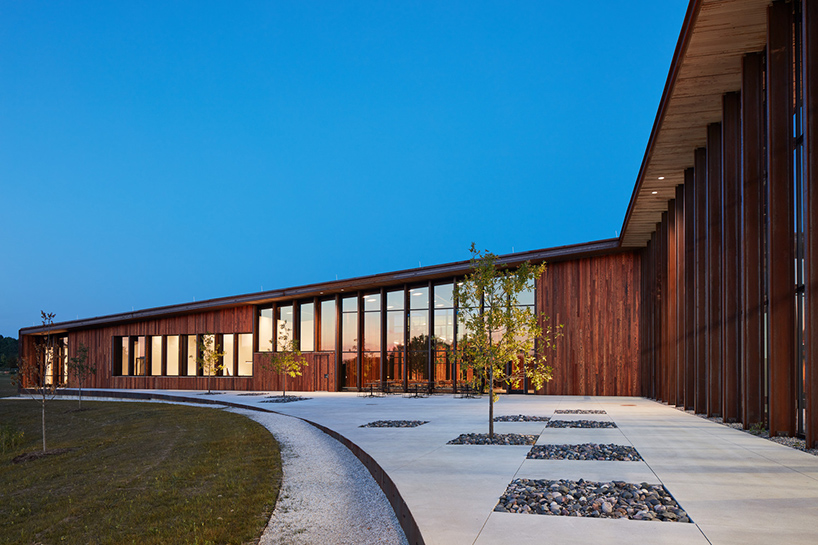

a spacious driveway with parking approaches the main entrance

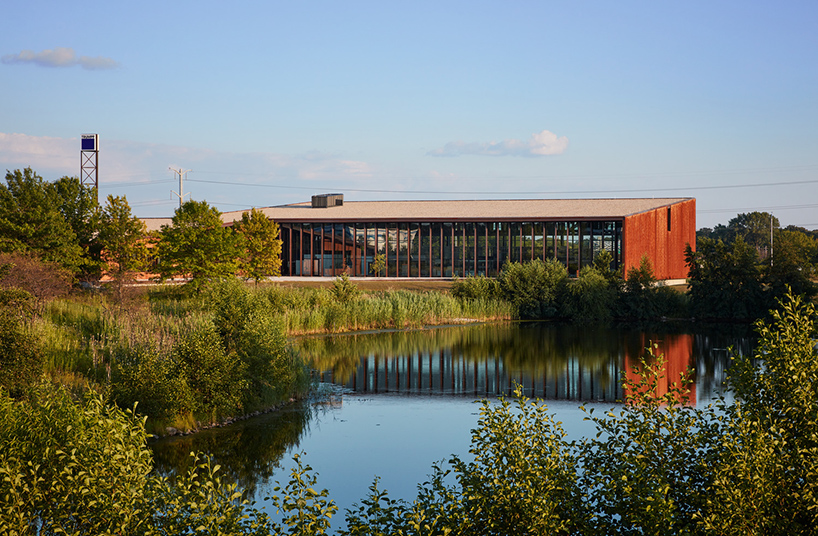

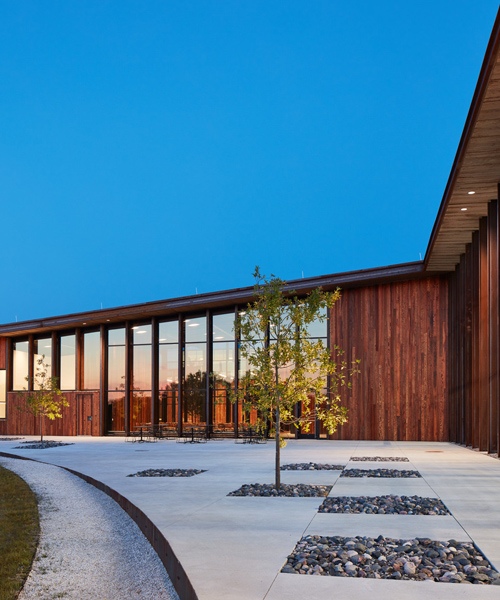

the building is comprised of two volumes — the showroom to the south, and the office and auditorium space to the north. the volumes are connected at their corners to create two rectangular exterior zone. on the southeast, a spacious driveway with parking approaches the main entrance. towards the northwest, the large, curved terrace of the cafe overlooks the adjacent retention pond.

barkow leibinger smart factory

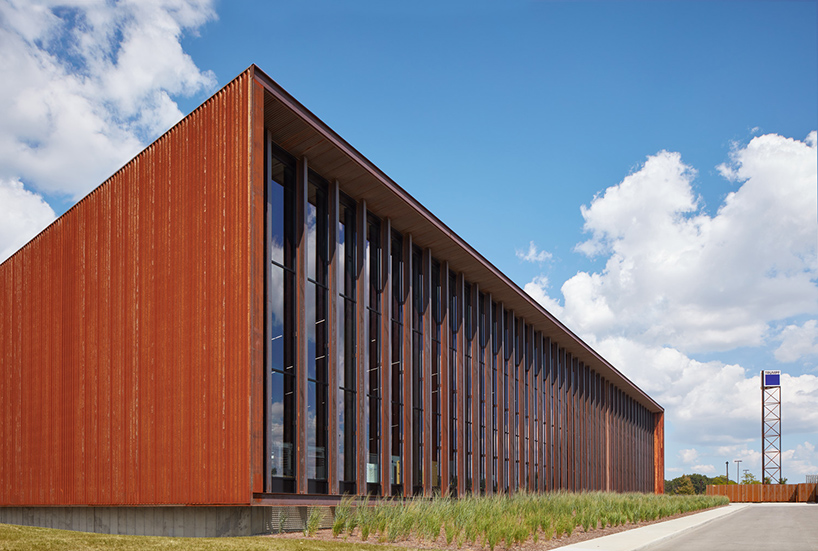

via its continuous pitched roof, it rises like a wedge towards the highway





the building’s pitched roof rises like a wedge towards the highway, where the factory’s showroom presents a glass front. eleven steel vierendeel trusses span the showroom, showcasing TRUMPF’s manufacturing machinery and its know-how.

barkow leibinger smart factory
the campus-like factory contains cycling and walking paths





visitors to the factory are also given a special overview of the facilities via an open ‘skywalk’, a bridge that runs through the trusses of the ceiling structure. the open plan configuration allows for a collaborative working environment. rooms are arranged around a central courtyard planted with maple and gingko trees and are flexibly designed to adapt to changing requirements.

barkow leibinger smart factory
the volumes are connected at their corners to create two rectangular exterior zone

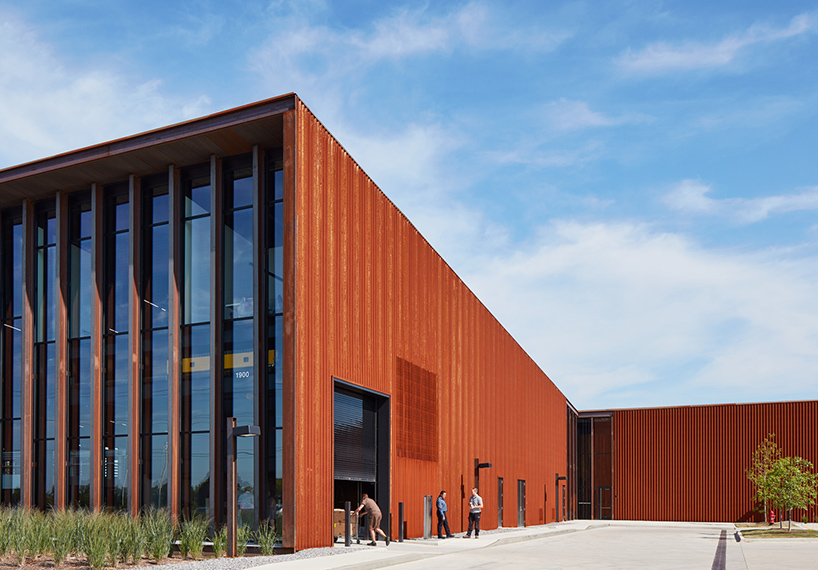

the building’s exterior is clad in a deep rust-colored corrugated corten steel sheeting. the elegant, floor-to-ceiling glazing emphasizes both its industrial context and its representative function. the glass facades are built from black anodized aluminum and vertically divided by slim, recessed corten steel columns.

barkow leibinger smart factory

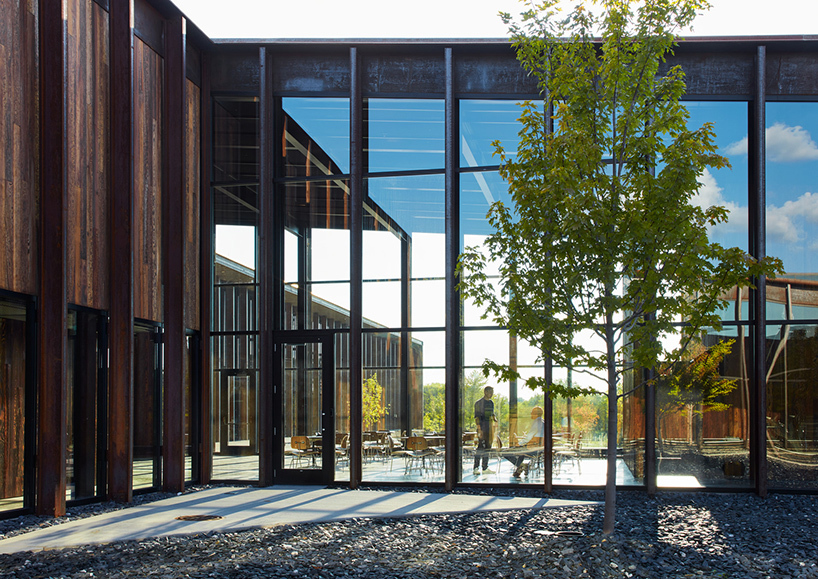

glass facades are built from black anodized aluminum





from the architects: at this new center for computer-controlled high-tech production, functionality meets representation, and pragmatism meets refinement. in the process, the building focuses on maintaining a high degree of quality down to the last detail of construction.

barkow leibinger smart factory

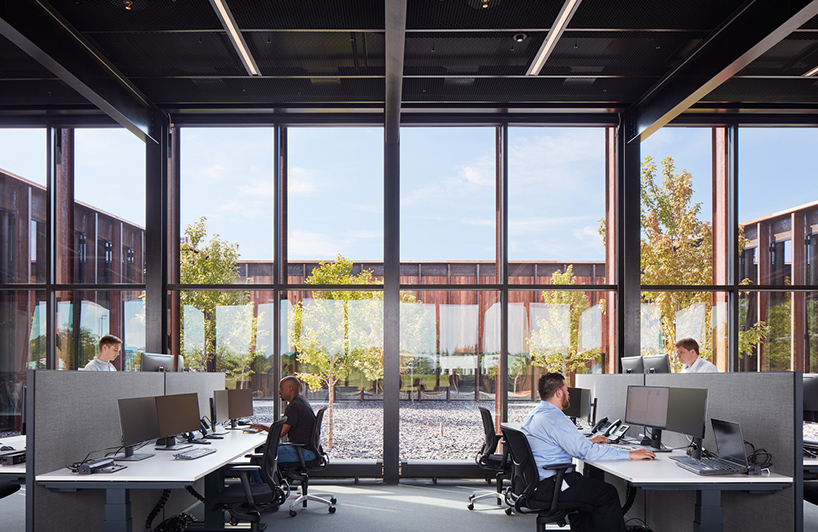

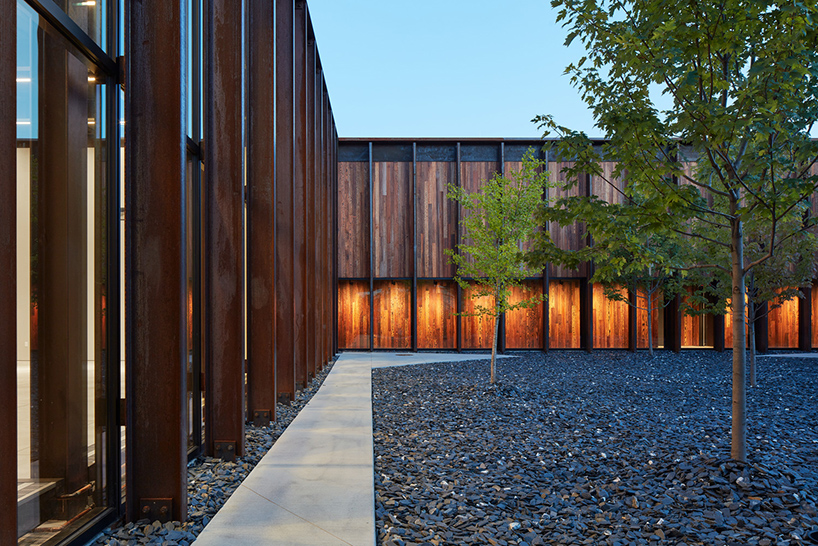

the rooms face a central courtyard

barkow leibinger smart factory
the architecture is designed to showcase the production process of the the factory

barkow leibinger smart factory

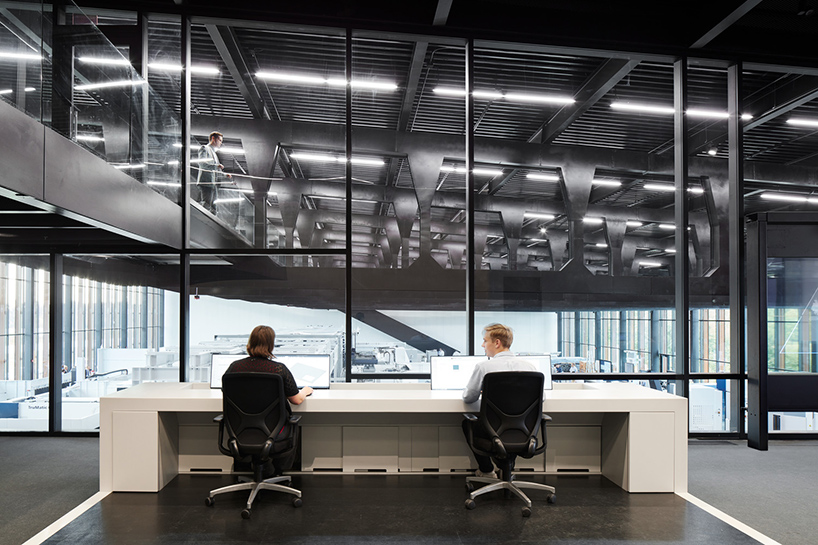

an open ‘skywalk’ bridge runs through the trusses of the ceiling structure.

barkow leibinger smart factory

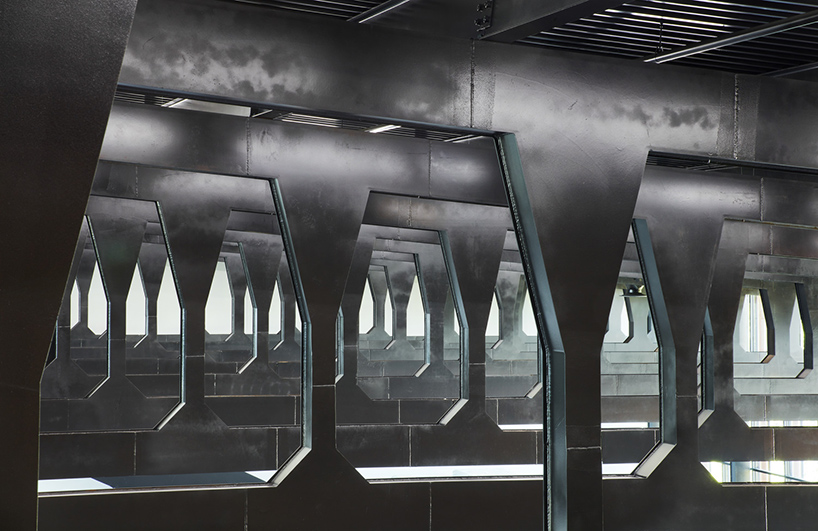

steel vierendeel trusses span the showroom

barkow leibinger smart factory
with a height ranging from 4.5 to about 13 meters, the building integrates itself into its environment

barkow leibinger smart factory

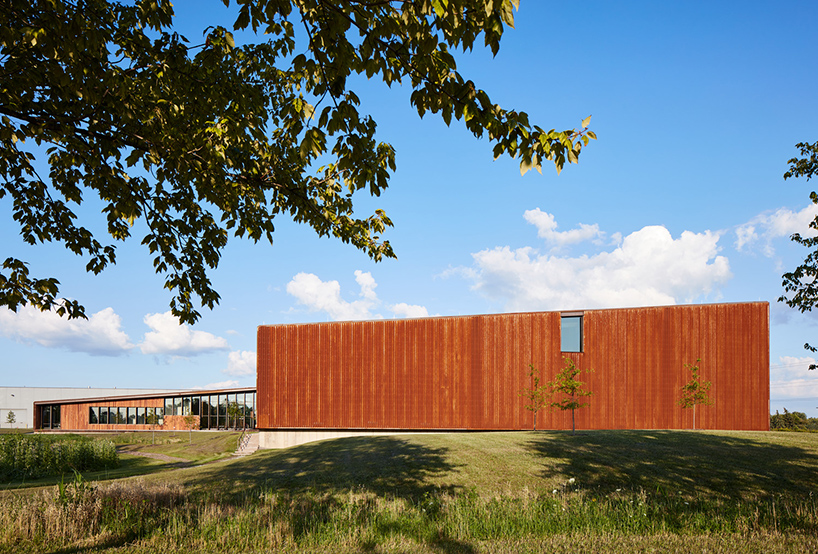

the exterior is clad in deep rust-colored corrugated corten steel sheeting
