‘twin trees’ by BCHO architects in seoul, korea all images courtesy BCHO architects above image by kyungsub shin
seoul-based practice BCHO architects (byoung soo cho) has sent us images of their newest project, ‘twin trees’, a 17-storey office building in seoul, korea. located adjacent to the historical gyeoungbuk palace, samchong dong and the insadong area, the design seeks to reference and respect the pre-existing nature of the site by maintaing the flow of the circulation on both the street and basement level.
exterior view image by wooseop hwang
the plot, which was the former site of the demolished hankook ilbo building, features numerous small passages and alleyways which is an integral part of the location’s urban fabric. in order to minimize disruption of this circulatory pattern, the design is read as two autonomous structures that share 7 basement levels below grade. the chasm in between the two volumes maintain pedestrian movement by providing exterior sitting area as well as a linear bar underground.
street views images by kyungsub shin
the overall forms of the towers were influenced by the shape of an old korean birch tree trunk, organic and sculpted as if moulded by flowing water. the reference allows for the structures to efficiently utilize the irregular site conditions which is composed of vaguely acute angles. horizontally running structural lines exaggerate the dips and bulges of the undulating facade.
undulating surface image by wooseop hwang
glazed facade image by wooseop hwang
image by kyungsub shin
adjacent to gyeoungbuk palace image by kyungsub shin
image by kyungsub shin
images by kyungsub shin
from plaza image by kyungsub shin

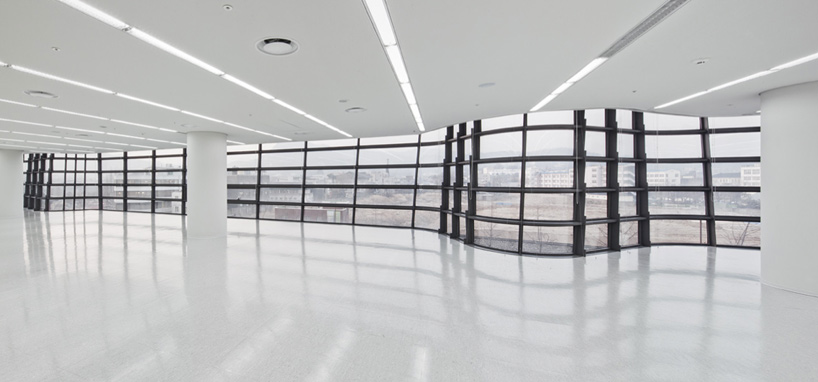

interior view image by kyungsub shin

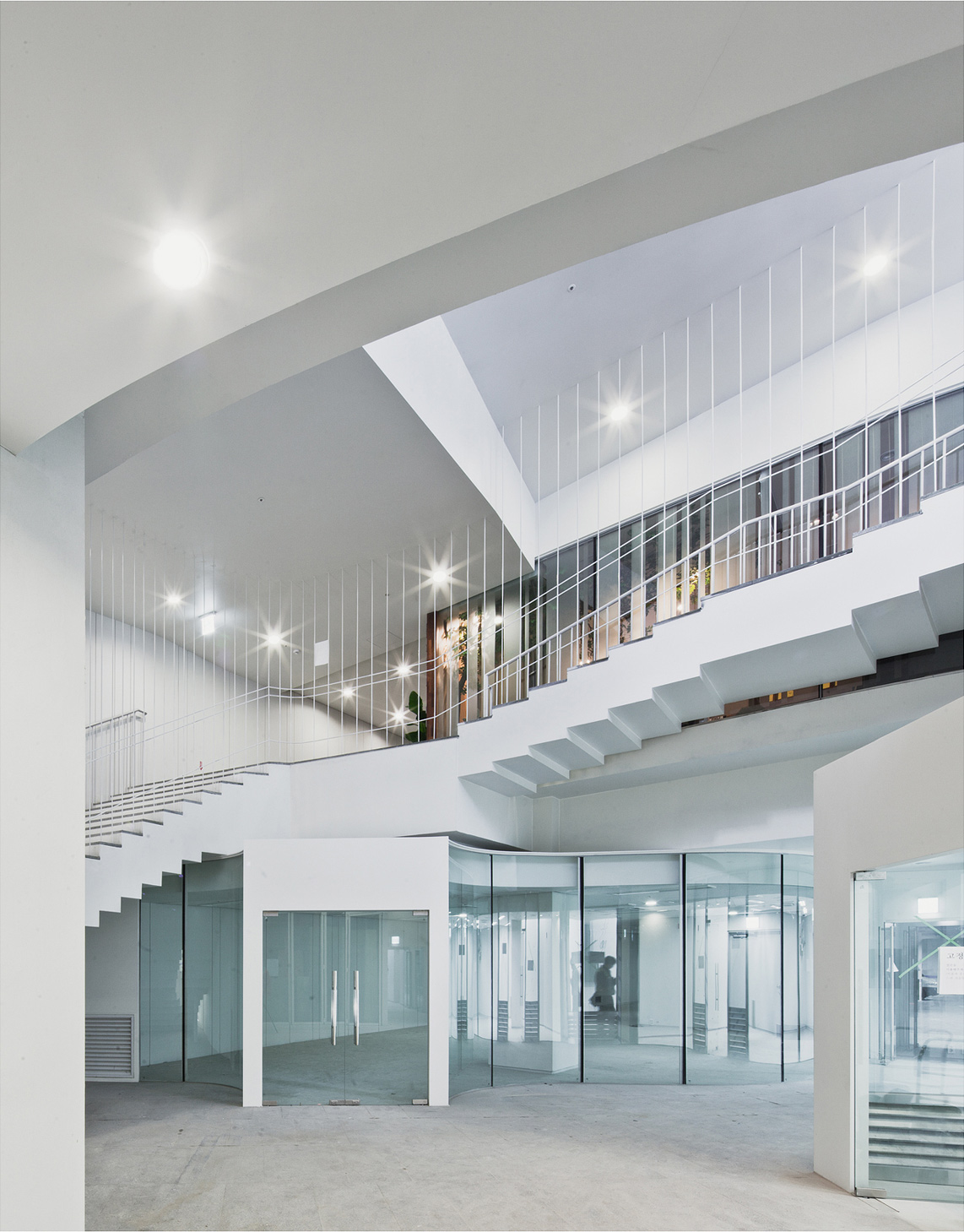

atrium image by kyungsub shin
image by kyungsub shin

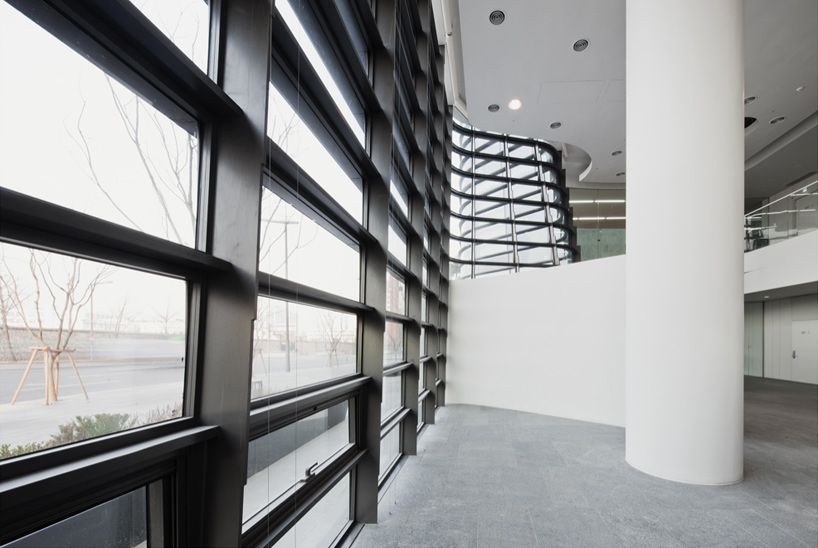

glazing image by kyungsub shin
image by kyungsub shin
entrance image by kyungsub shin
general view
night view image by wooseop hwang
physical model
facade study – old tree trunk
architect’s sketch
site map
site context
schematic diagram

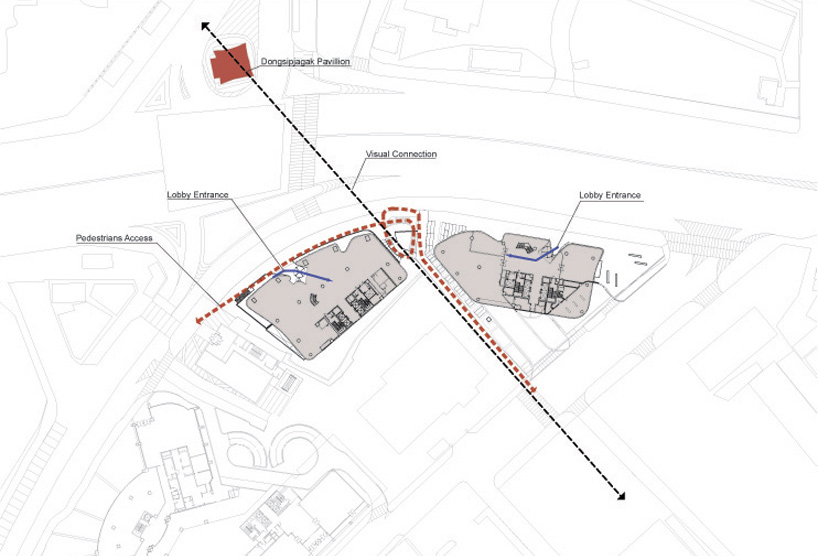

site plan
floor plan / level -2
floor plan / level 0
floor plan / level +3 (typical)
longitudinal section
elevations
post-tension structure
project info:
principal use: office total area: 65, 918.85 m2 storeys: 8 below grade, 17 above grade structure: post tension slab, SRC
project team: woohyun kang, erik horn, yongeun bae, sungwha kwon, jiyoung seu, kihyun park, nicholas locke, eric druse, joohyun park, juno ahn structural engineer: dongyang structural engineers group general contractor: hanil engineering & construction company services engineer: han kook engineering co. facade contractor: lucky ability curtain wall (seoul, korea) facade consulting: simpson gumpertz & heger (new york, USA)
