using innovative robotic technology developed over the past year, gramazio kohler research, ETH zurich, and the self-assembly lab at MIT have built an architectural installation from low-grade granular material constructed by robotic machines. presented at the chicago architecture biennial 2015, ‘rock print’ employs a specifically designed algorithm to guide a robotic arm in a three-dimensional, additive process.



the device has positioned a textile filament layer-by layer around a loose granular material, forming a large-scale architectural artefact in a column-like shape that requires no additional supporting elements. the installation presents a radically new approach to the ‘state of the art of architecture’ – the official title of the inaugural chicago architecture biennial – and brings forth a new class of potentially fully reusable structures that can be automatically fabricated in non-standard shapes.






rock print, architectural installation at the inaugural chicago architecture biennial 2015
video courtesy of







the distinct features of the finished ‘rock print’ structure include full material reversibility and the reusability of the aggregated materials; structurally active interlocking, differentiated structural performance, and high geometric flexibility. the finalized structure offers a unique union of state-of-the-art digital fabrication technology and building material science, introducing a sustainable, economical, and structurally sound construction method that fundamentally challenges conventional architectural practices.

3d-rock-print-chicago-architecture-biennial-cab-gramazio-kohler-eth-zurich-mit-designboom-05

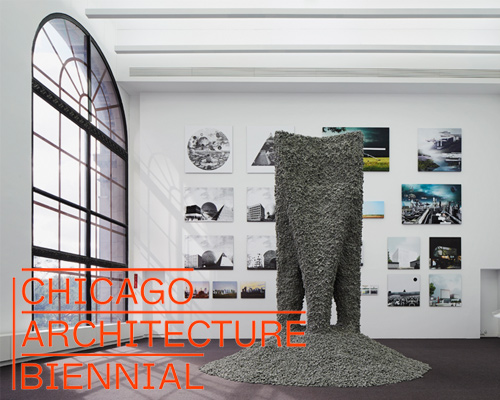

the robotically-printed rocks form a column-like shape
image © designboom

3D-printed-rock-installation-built-by-robots-at-the-chicago-architecture-biennial-designboom-04
layer by layer, rocks are robotically added to the architectural structure

3d-rock-print-chicago-architecture-biennial-cab-gramazio-kohler-eth-zurich-mit-designboom-01
detail of the 3D printed surface

3d-rock-print-chicago-architecture-biennial-cab-gramazio-kohler-eth-zurich-mit-designboom-03
the construction method challenges conventional architectural practices

3d-rock-print-chicago-architecture-biennial-cab-gramazio-kohler-eth-zurich-mit-designboom-06
the structure offers a unique union of digital fabrication technology and building material science
image © designboom

3D-printed-rock-installation-built-by-robots-at-the-chicago-architecture-biennial-designboom-03
(foreground) house is a house is a house is a house, 2015 / johnston marklee
photo by tom harris / © hedrich blessing
image courtesy of the chicago architecture biennial

3d-rock-print-chicago-architecture-biennial-cab-gramazio-kohler-eth-zurich-mit-designboom-07
the ‘printing’ process on site at the chicago architecture biennial 2015

3d-rock-print-chicago-architecture-biennial-cab-gramazio-kohler-eth-zurich-mit-designboom-02
robotic arm laying a textile filament using a specialized algorithm

3d-rock-print-chicago-architecture-biennial-cab-gramazio-kohler-eth-zurich-mit-designboom-04
the column is built within a supporting structural frame





project info:



project title: rock print
credits: gramazio kohler research, eth zurich, and self-assembly lab, MIT
team: prof. fabio gramazio, prof. matthias kohler, skylar tibbits, andreas thoma (project lead installation), petrus aejmelaeus-lindström (project research lead), dr. volker helm, sara falcone, lina kara’in, michael lyrenmann, george varnavides, stephane de weck, dr. jan willmann
selected experts: prof. dr. hans j. herrmann and dr. falk k. wittel, eth zurich; prof. dr. heinrich jaeger and kieran murphy, university of chicago
selected consultants: walt + galmarini ag
sponsors: pro helvetia swiss arts council, swissnex, misapor, and beton ag
support: the project is supported by eth zurich and the department of architecture as well as by an eth zurich research grant. it is co-supported by mit’s department of architecture, the mit international design center, and an mit international science and technology initiative (misti) grant.
