crossrail unveils images of new train line for central london

crossrail unveils images of new train line for central london crossrail unveils images of new train line for central london
may 11, 2016

crossrail unveils images of new train line for central london

crossrail unveils images of new train line for central london
image © AVR london
all images courtesy of crossrail







a first look at the major rail project in the UK show crossrail design’s new line for london and the south east, through a network of 42km of new tunnels and the construction of ten new stations, with improvements to existing infrastructure.





estimated to cost £14.8 billion, construction began in 2009 at canary wharf, and is now almost 75% complete. the new railway, which will be known as the elizabeth line when services begin in 2018, will be fully integrated with london’s existing transport network and will be operated by transport for london. new state-of-the-art trains will carry an estimated 200 million passengers per year. the new service will speed up journey times, increase central london’s rail capacity by 10% and bring an extra 1.5 million people to within 45 minutes of central london.

crossrail-design-london-railway-designboom-02

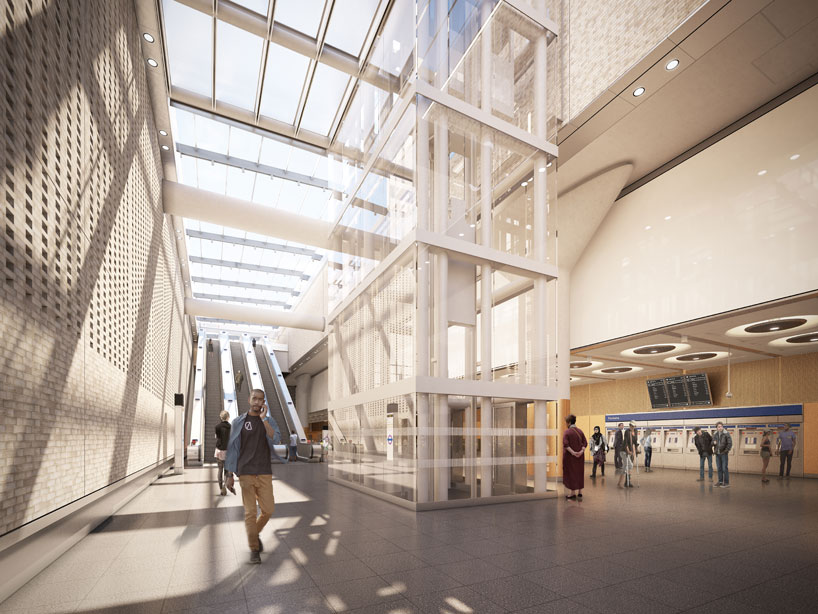

the new railway, which will be known as the elizabeth line when services begin in 2018
image © AVR london







each of the new stations will have its own, distinct character, conceived by different architects and will each reflect the environment and heritage of the local area. for example, the new elizabeth line station at paddington will echo the design legacy of brunel’s existing terminus building, while the new farringdon station will reference the historic local trades of blacksmiths and goldsmiths, as well as the distinctive architecture of the barbican.

crossrail-design-london-railway-designboom-02

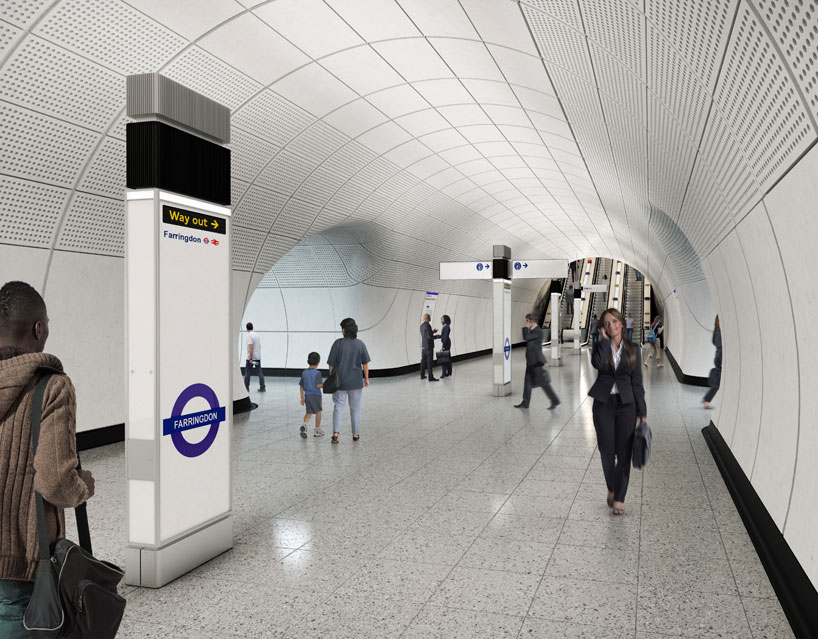

architecture firms such as Aedas, john mcaslan + partners and wilkinson eyre have participated in the designs







furthermore, at platform level, common design components such as seating, signage and full-height platform screen doors will create a consistent and familiar feel to the rest of the tfl network. this common architecture will accentuate the curved, sweeping passageways created during the construction of the tunnels.

crossrail-design-london-railway-designboom-02

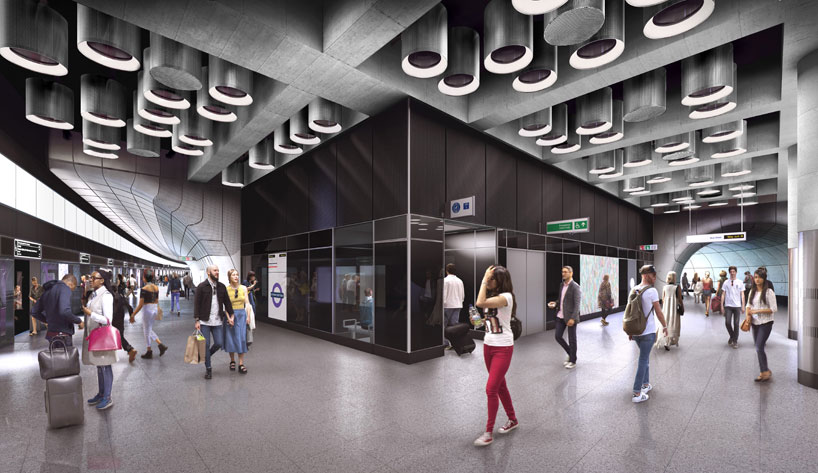

construction began in 2009 at canary wharf, and is now almost 75% complete
image © AVR london





the new designs are on display in a new free exhibition at the royal institute of british architects (RIBA) alongside architectural components destined for the stations. the ‘platform for design’ exhibition will give an insight into the design of the new railway, its stations and public spaces.

crossrail-design-london-railway-designboom-02

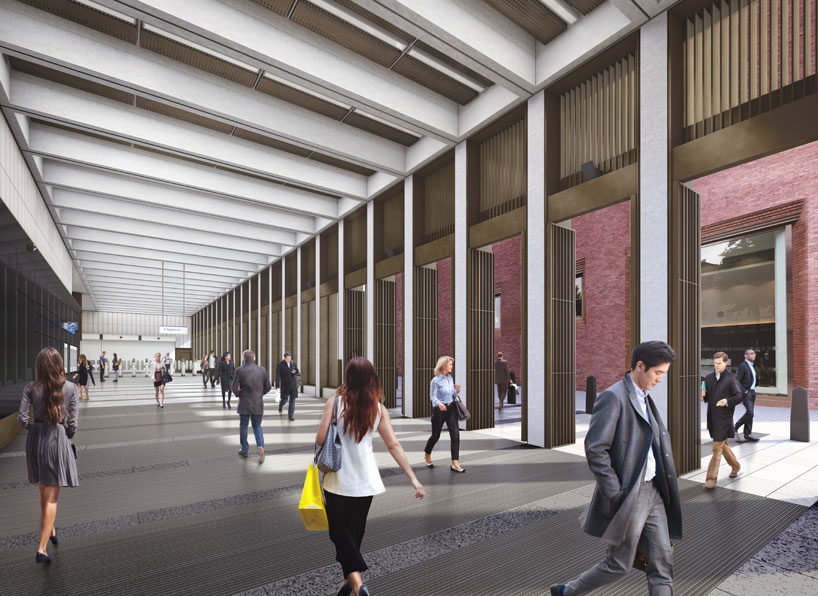

the new service will speed up journey times, increase central london’s rail capacity by 10%

crossrail-design-london-railway-designboom-02

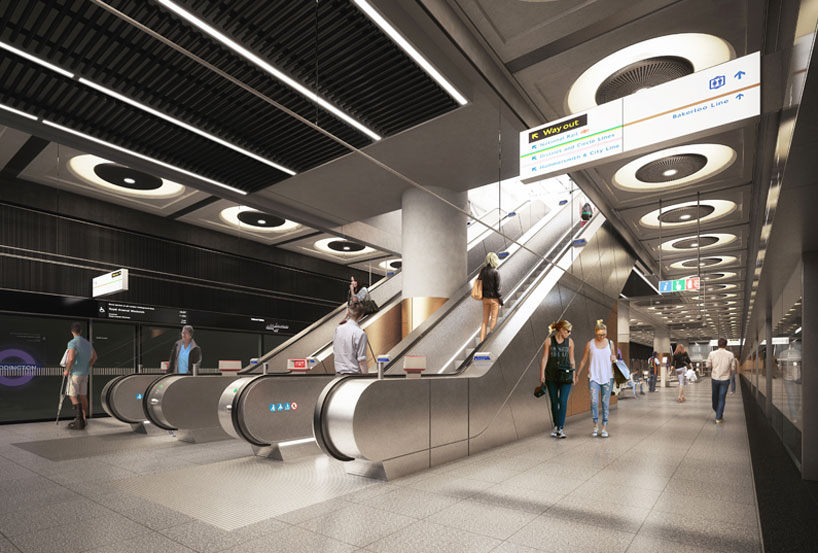

material from excavations has been beneficially reused; low-energy lighting will feature in stations and tunnels

crossrail-design-london-railway-designboom-02

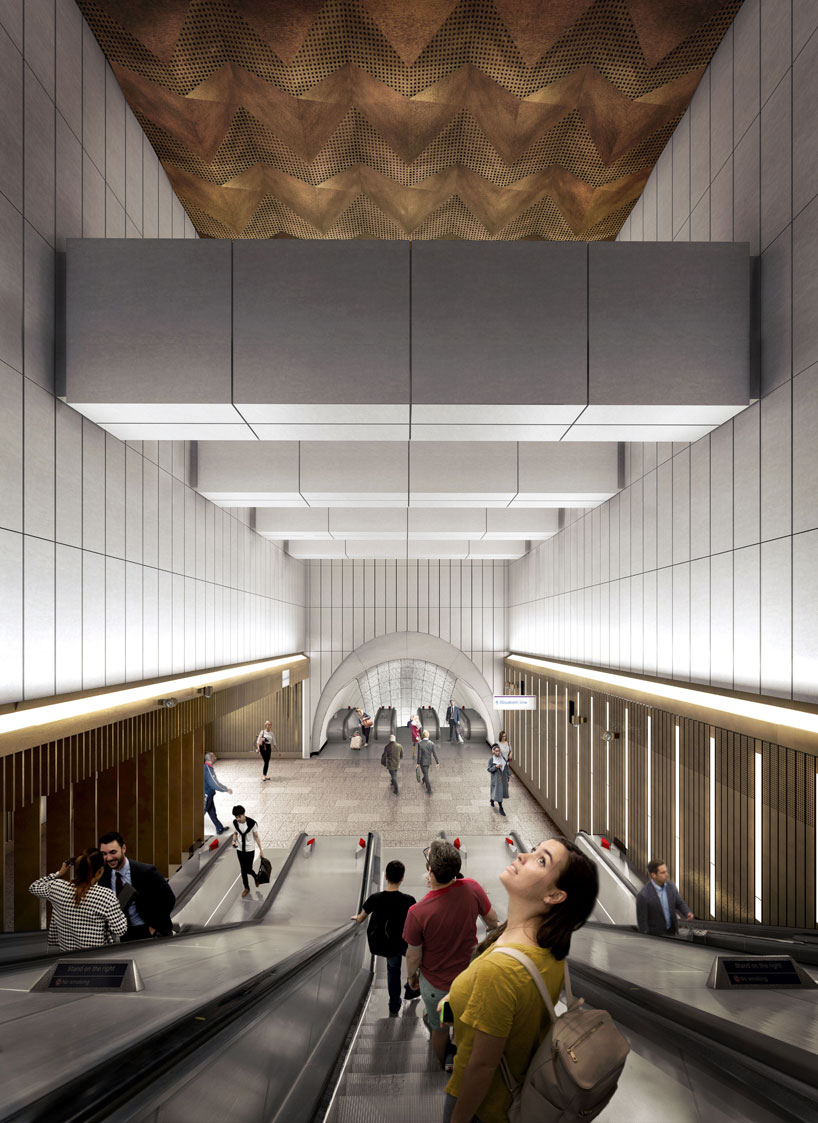

the local character and context will be woven into the architecture to give each site a distinct presence

crossrail-design-london-railway-designboom-02

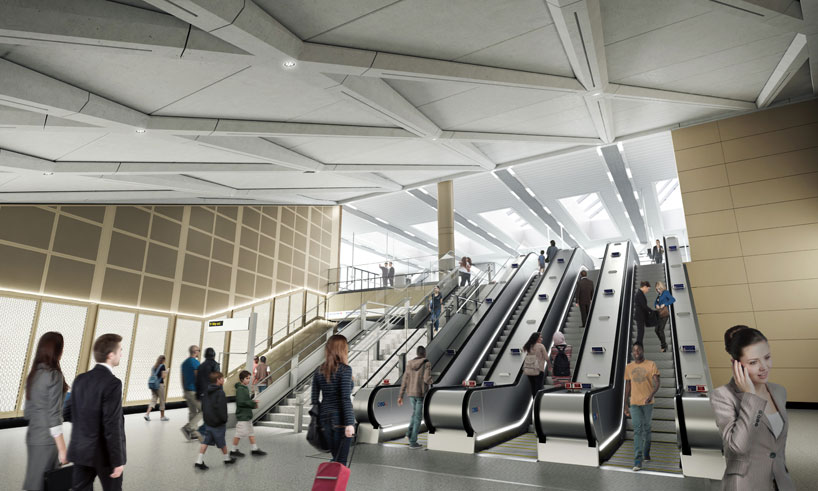

the design includes darker floors and natural finish materials that will ensure they retain their quality

crossrail-design-london-railway-designboom-02
the new accessible trains, designed by transport for london, barber and osgerby and bombardier
image © AVR london

crossrail-design-london-railway-designboom-02
permanent works of art will be installed into many of the new central london stations

crossrail-design-london-railway-designboom-02
on the outer sections of the route, 30 existing stations are being upgraded for elizabeth line services
