yatsutaka yoshimura's EDV-01 elevates emergency shelter design


daiwa lease ‘EDV-01’ advances emergency shelter design
all images courtesy of daiwa lease

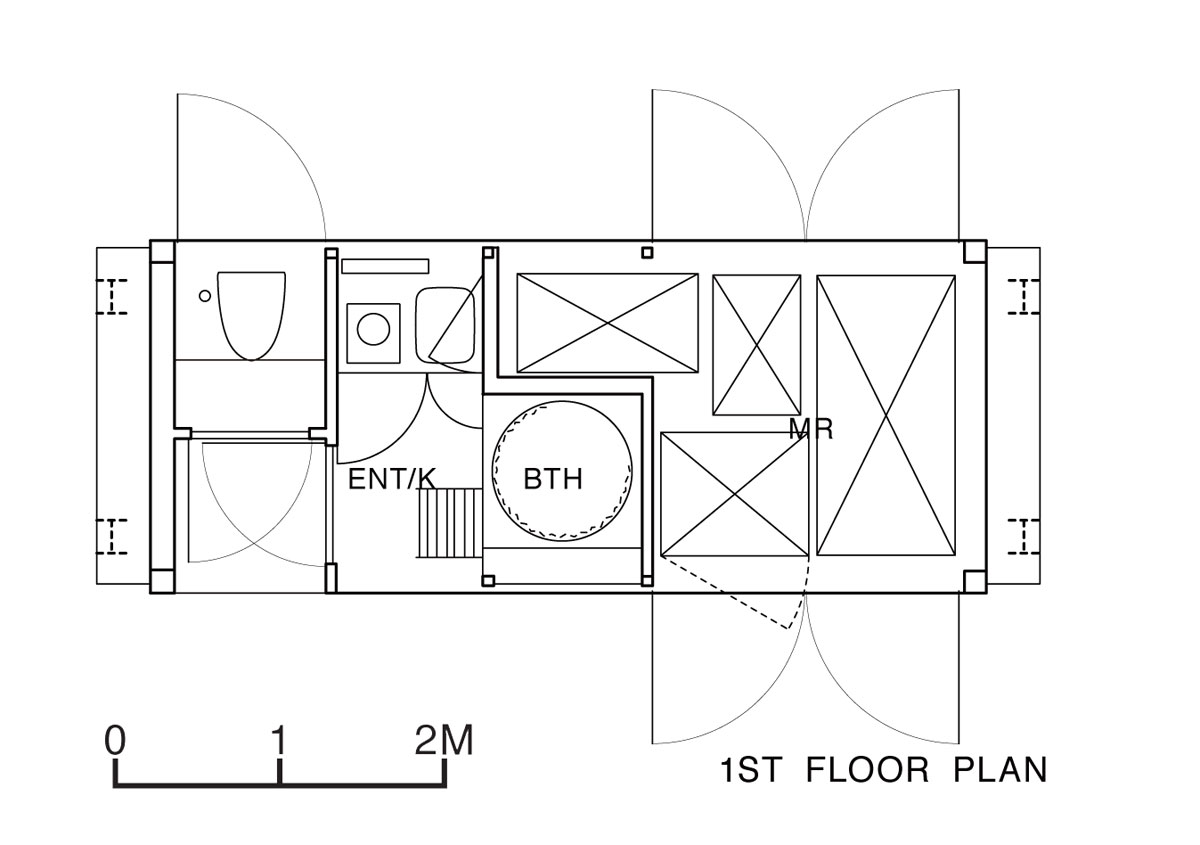

specializing in temporary construction, japanese industrial company, dawia lease with yatsutaka yoshimura has developed ’emergency disaster vehicle’ (‘EDV-01’) as self-contained shelter for easy transport and autonomous use around the world in case of any situation. conforming to the specifications of shipping containers, it can travel by land, air or sea. once delivered, the self-contained assembly takes less than five minutes to be fully working. a hydraulic lift raises the outer shell, creating a two-story edifice ready for use without additional construction. the dwelling consists of a kitchen and bathroom on the first floor, and living or sleeping area above. equipped with solar panels, hydrogren fuel cells, a lithium battery for energy storage, the self-sufficient construct needs no supplementary electricity. an 800 liter water tank, composting toilet, and drinking water station are sufficient for a month of inhabitation by two adults. upon removal, these self-contained systems and composting toilets leave no trace. satellite communication devices allow refugees to be completely autonomous in the average month it takes for reconstruction to be implemented. currently, daiwa lease is working to make the footprint more compact.

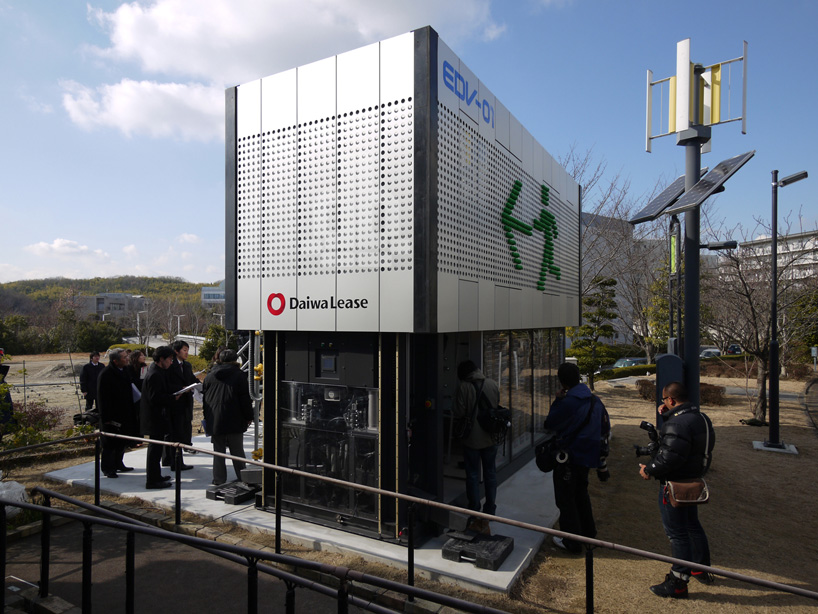

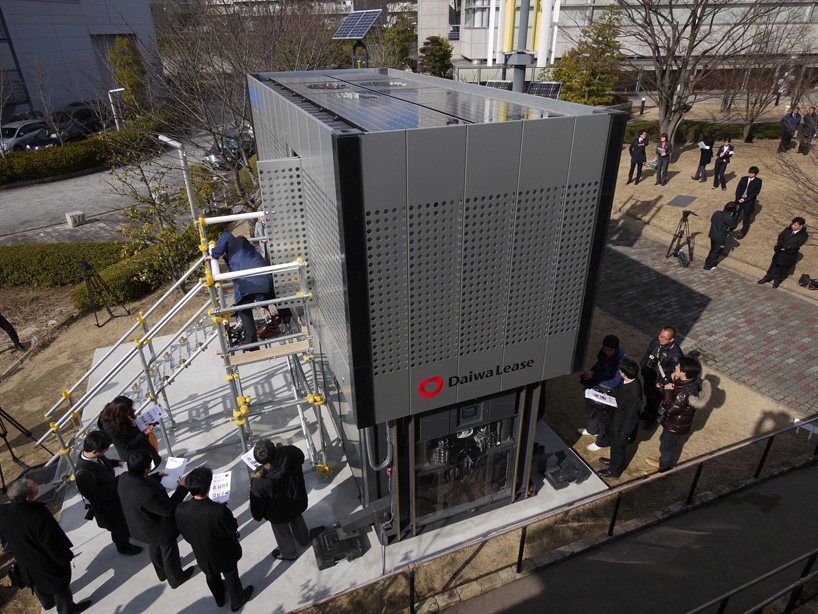

hydraulic lift raises the outer shell in under five minutes
image courtesy of daiwa lease

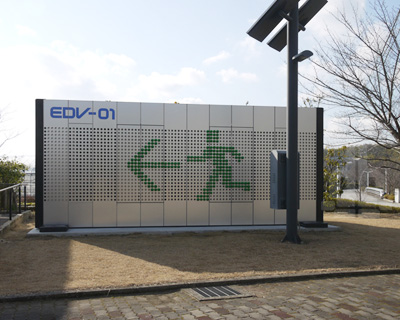

conforming to the dimensional specifications of shipping containers, ‘EDV-01’ can be transported by land, air or sea
image courtesy of daiwa lease






an 800 liter water tank, composting toilet, and drinking water station are sufficient for a month of inhabitation by two adults
image courtesy of daiwa lease

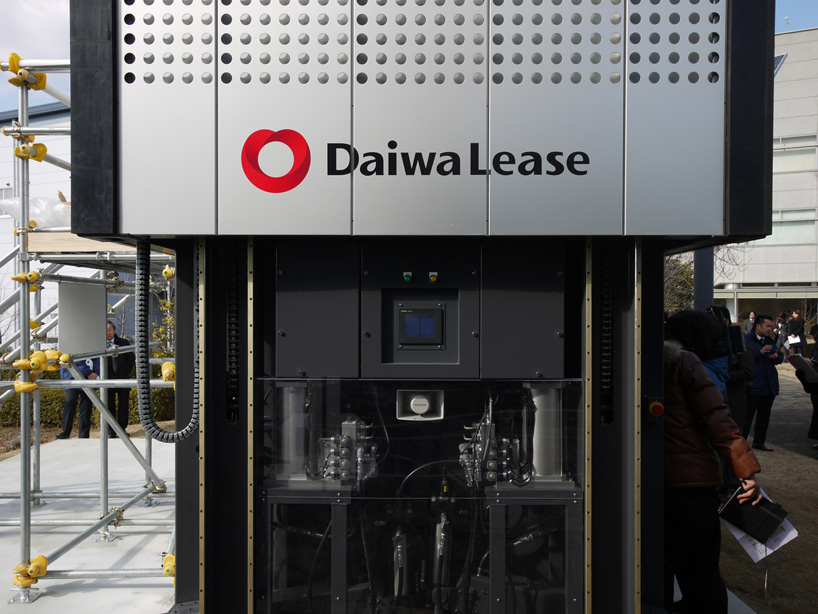

hydrogen fuel cells and a lithium battery supplement and store energy produced by solar panels
image courtesy of daiwa lease

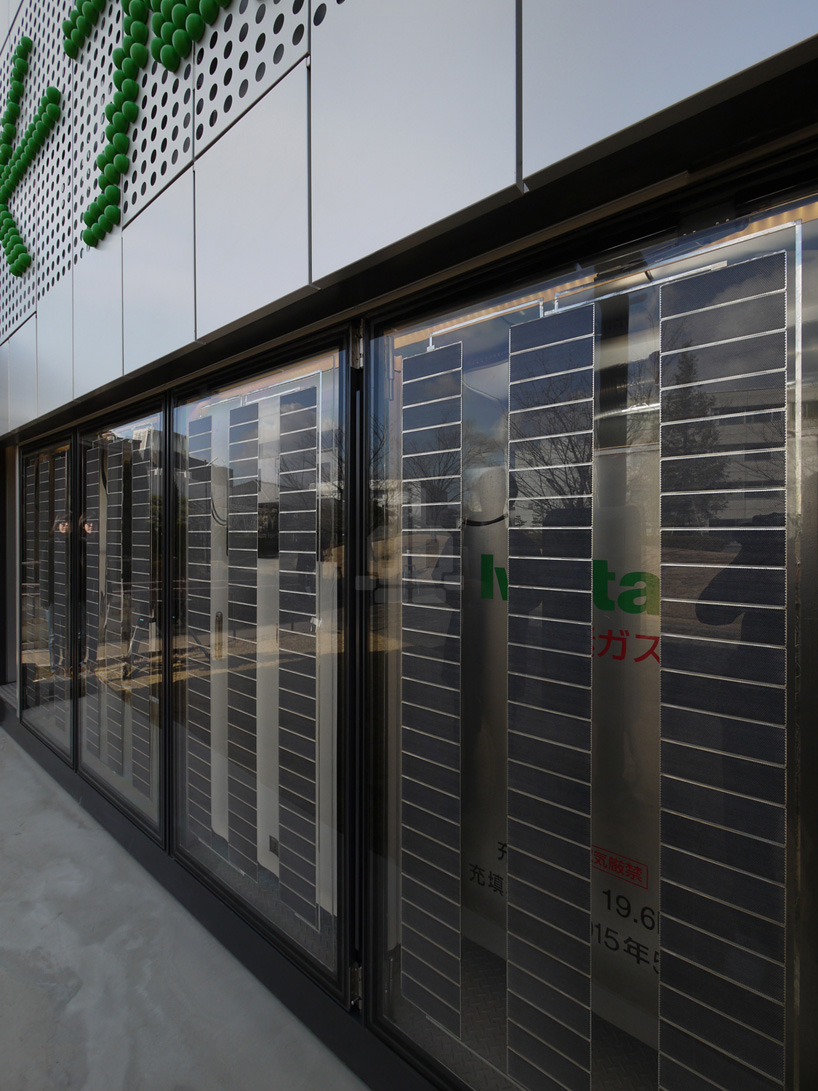

photovoltaic skin increases autonomy of the system
image courtesy of daiwa lease

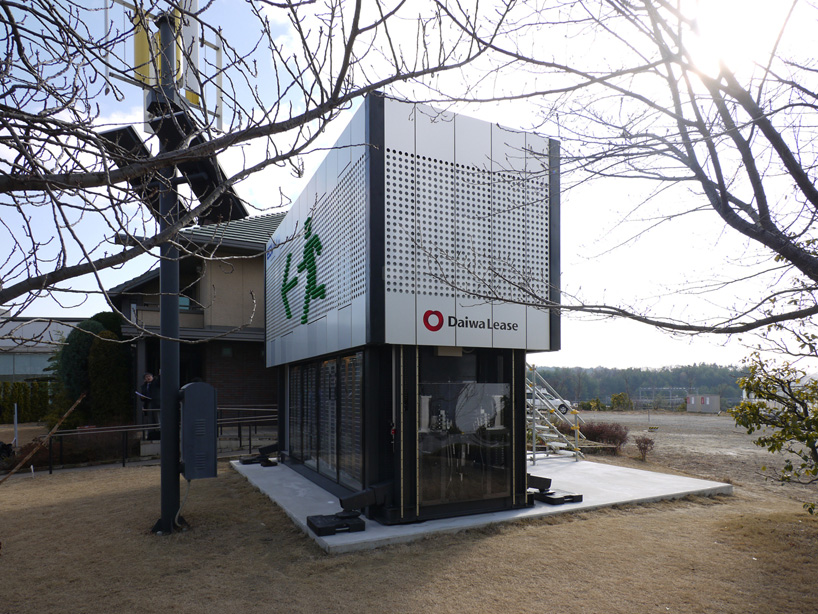

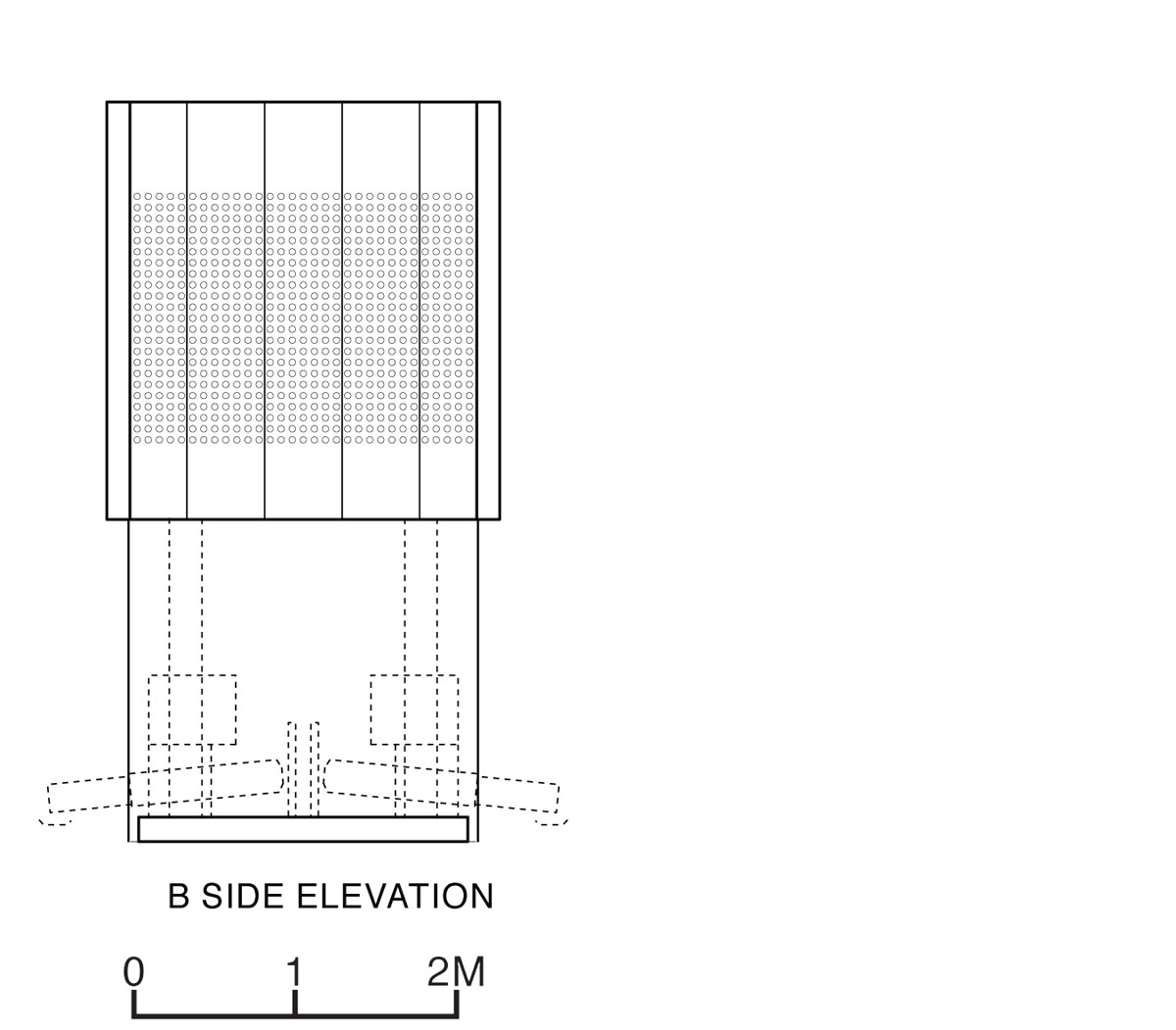

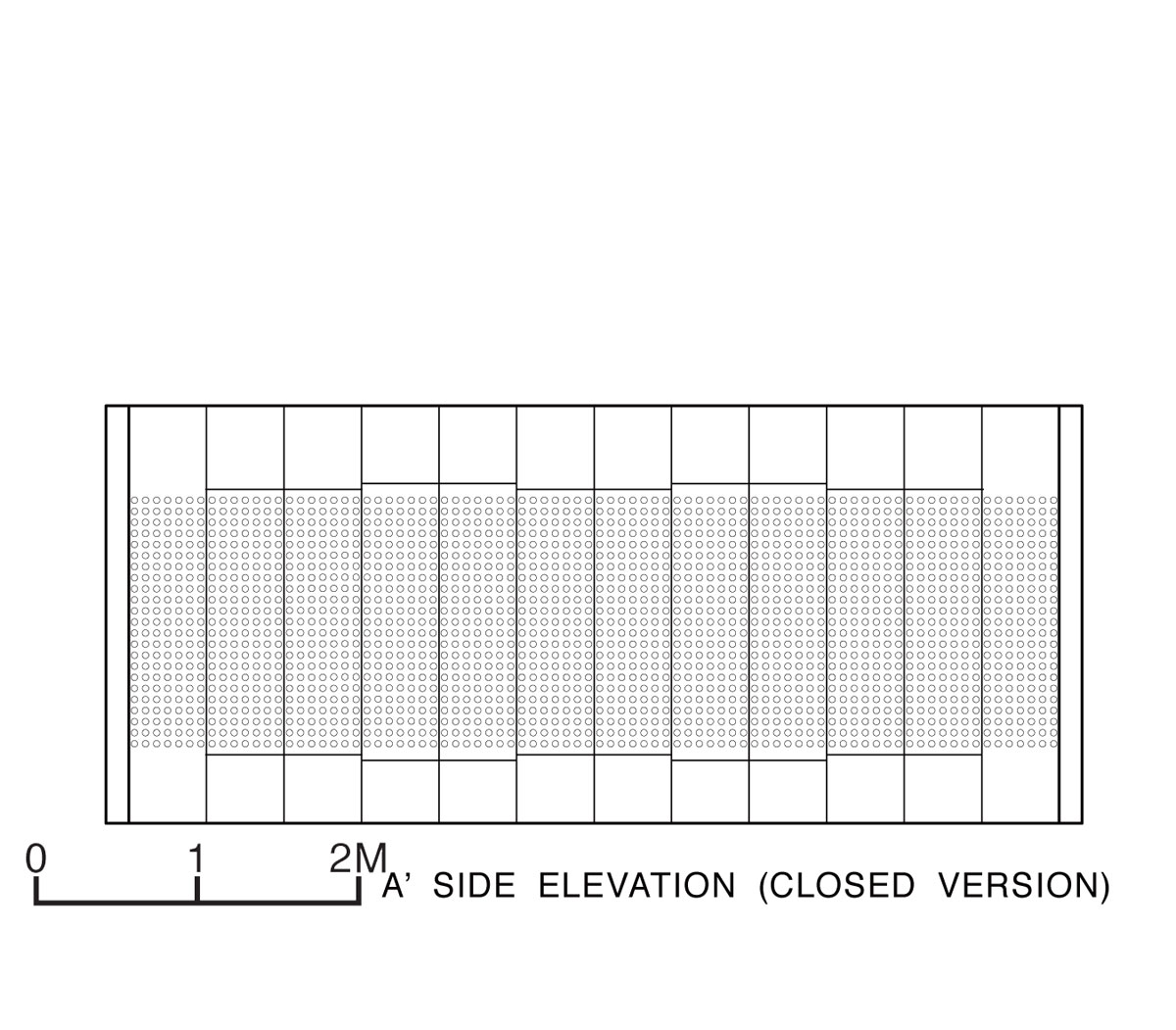

the perforated skin provides protection during transport, and light to enter the space when occupied
image courtesy of daiwa lease

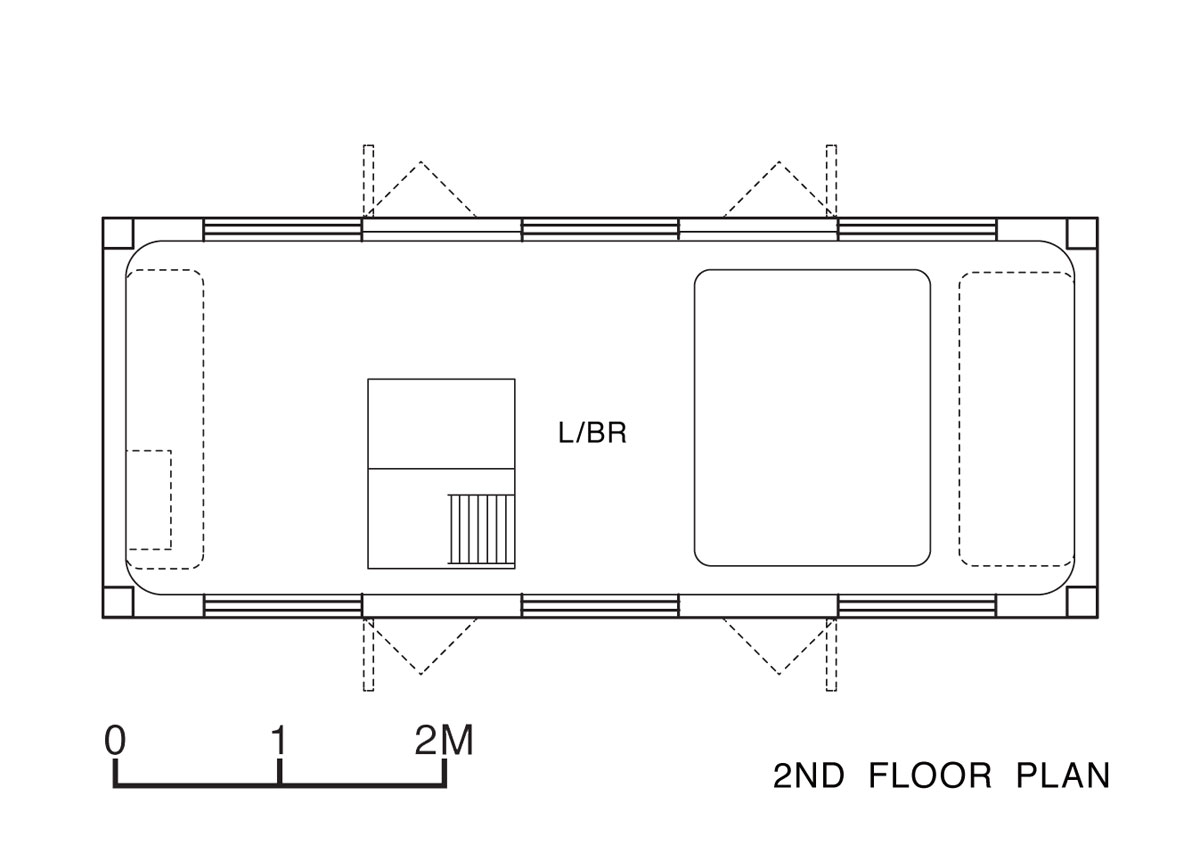

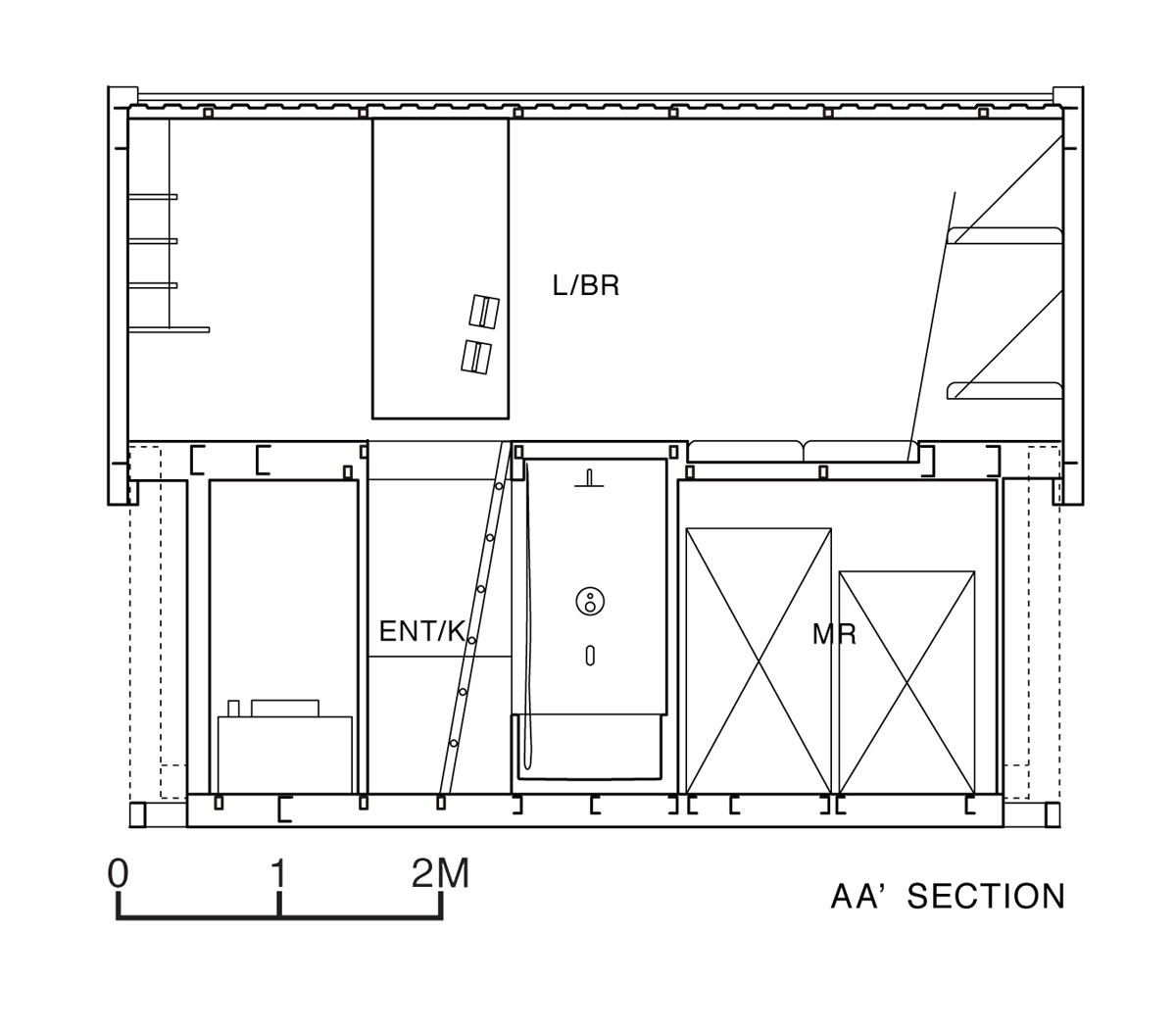

the second floor consists of living and sleeping space for two adults
image courtesy of daiwa lease
