‘j-house’ by design collective architecture in subang jaya, selangor, malaysia all images courtesy design collective architecture

malaysian practice design collective architecture (david chan weng cheong, chan mun inn) has sent us images of ‘j-house’, a renovation project to a double-storey terrace house in a suburb of subang jaya, selangor, malaysia. slipped between two neighbouring buildings on a slim and narrow site, the design integrates a private vertical garden into the layout to promote an illuminated interior atmosphere.

design collective architecture: j house street view

focusing on seamlessly blending into the aesthetic of the suburban fabric, the street elevation continues the strong angular faces of the flanking buildings with an asymmetrical roofline. the house is stepped back from the street line to accommodate a private parking space for two cars. the front facade adopts a lower window-to-wall ratio to shield the westward elevation from overheating. predominantly finished in a light shade of white and grey, the exterior exhibits a clean and modern identity within the area.

design collective architecture: j house front elevation

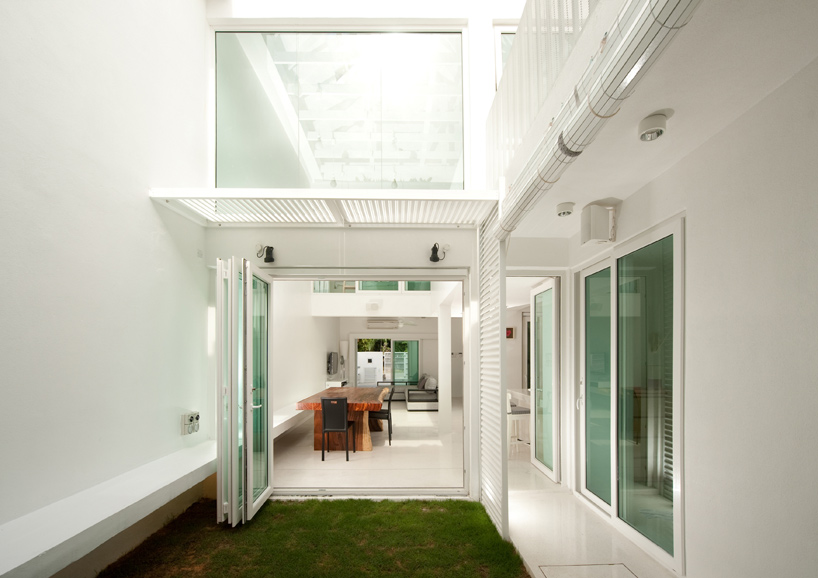

design collective architecture: j house view from vertical garden

conceived for a young family of three, the interior features high-ceilings and levels that overlook different areas, resulting in a loft-like organization of space. the ground floor combines the dry kitchen, dining, and living room in a free-flowing open concept. the vertical garden placed at the rear of the 6.6m by 22.5m plot serves as a green volume of open-air space that extends the layout into the outdoors. a guest bedroom and washroom is accessed through the garden, creating a distinct separation from the rest of the house.

design collective architecture: j house guest bedroom from garden

accommodating a master bedroom, washroom, and an intermediate zone that can be converted to a temporary room when needed, the upper level is punctuated with void space that overlooks the garden and living area below. an outdoor terrace elevated by the vertical garden serves as a private outdoor space for a variety of activities. given the limited exposed surface area of the exterior, the design maximizes on natural daylighting opportunities by utilizing acrylic roof tiles with matching profiles to subtly integrate translucency into the roof. a careful study of solar conditions was conducted to prevent excessive heat penetration.

design collective architecture: j house interior view of living space

design collective architecture: j house dining and kitchen

design collective architecture: j house view of vertical garden from upper level

design collective architecture: j house (left) exposed beams (right) view of dining table from above

design collective architecture: j house bathroom overlooking garden and level below

design collective architecture: j house bedroom

design collective architecture: j house (left) entrance (right) washroom

design collective architecture: j house stairs

design collective architecture: j house floor plan / level 0 (1) car porch (2) foyer (3) study (4) living (5) new dining (6) new dry kitchen (7) store (8) new guestroom (9) new guest bath (10) new wet kitchen (11) garden

design collective architecture: j house floor plan / level +1 (12) master bedroom (13) master bath (14) new laundry (15) new open toilet (16) new open terrace

design collective architecture: j house longitudinal section

design collective architecture: j house cross section

design collective architecture: j house front elevation

design collective architecture: j house cross ventilation diagram
