studio RAP designs a sustainable floating home from timber and solid cork

‘the float’ in leiden

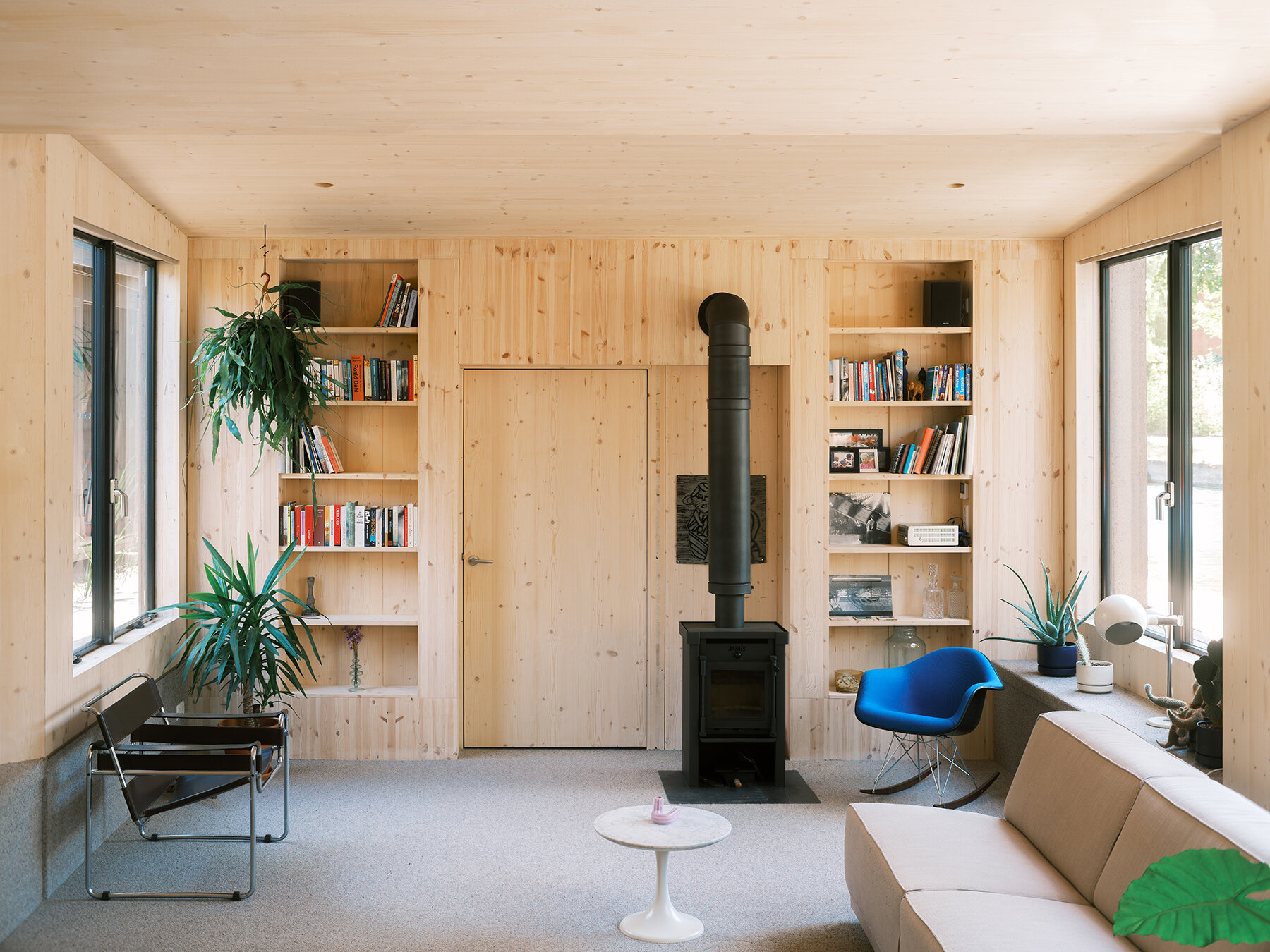

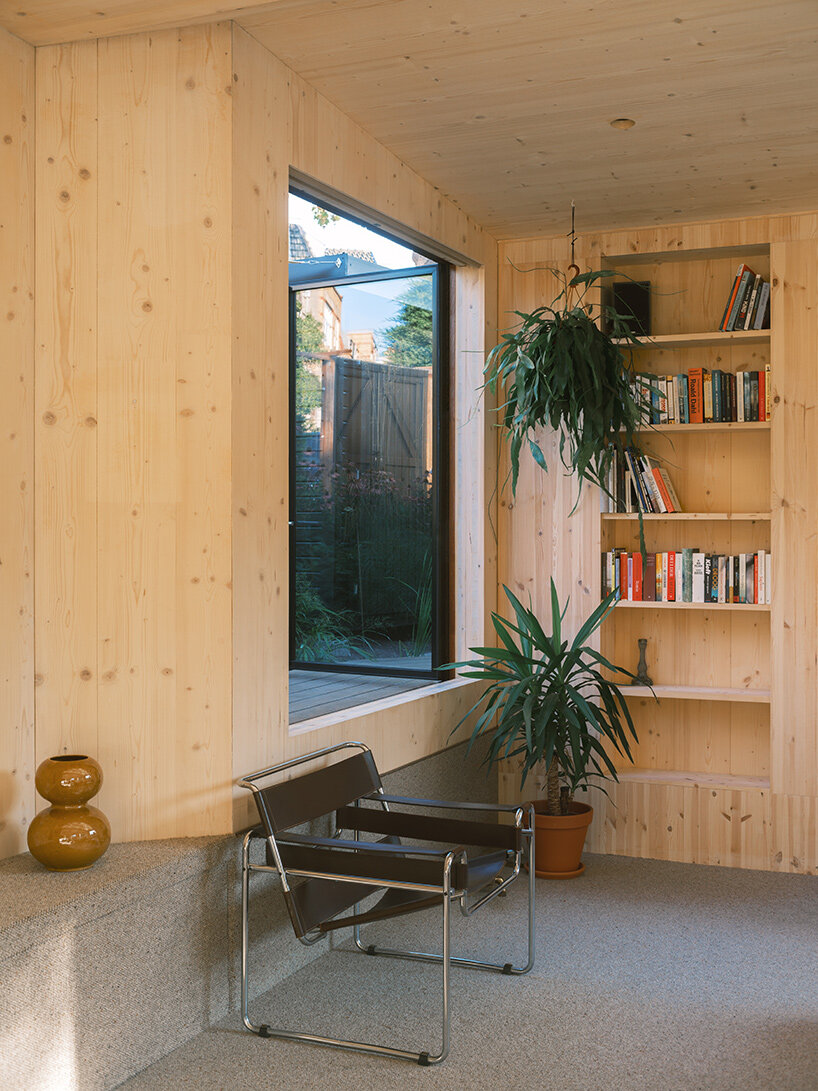

Rotterdam-based architecture firm Studio RAP completes ‘The Float,’ a sustainable floating home built of timber and cork. The exposed timber interior captures light and creates a tranquil interior experience, while the solid cork exterior envelope subtly blends in with the atmosphere of the historic city of Leiden. The use of mainly two materials, timber and cork, radically simplifies the dwelling‘s construction while creating details that are at once simple and elegant.

studio rap float
images © Riccardo De Vecchi@riccardodevecchi.photo





the concept by studio rap



Our client asked us to design an innovative and sustainable floating home along the picturesque canals in the historical city of Leiden (NL),’ note the architects at Studio RAP, ‘Our design for the main mass is based on the idea that the house could be a series of atmospheres representing functions of living that at the same time avoid a single floating container appearance.



With this starting point, a series of smaller modules were designed and rotated towards the lush nature on the opposite side of the canal. Afterwards, extra panels were added in between the modules and then folded to create intricate 3D corrugated walls.

studio rap float





the folding structure

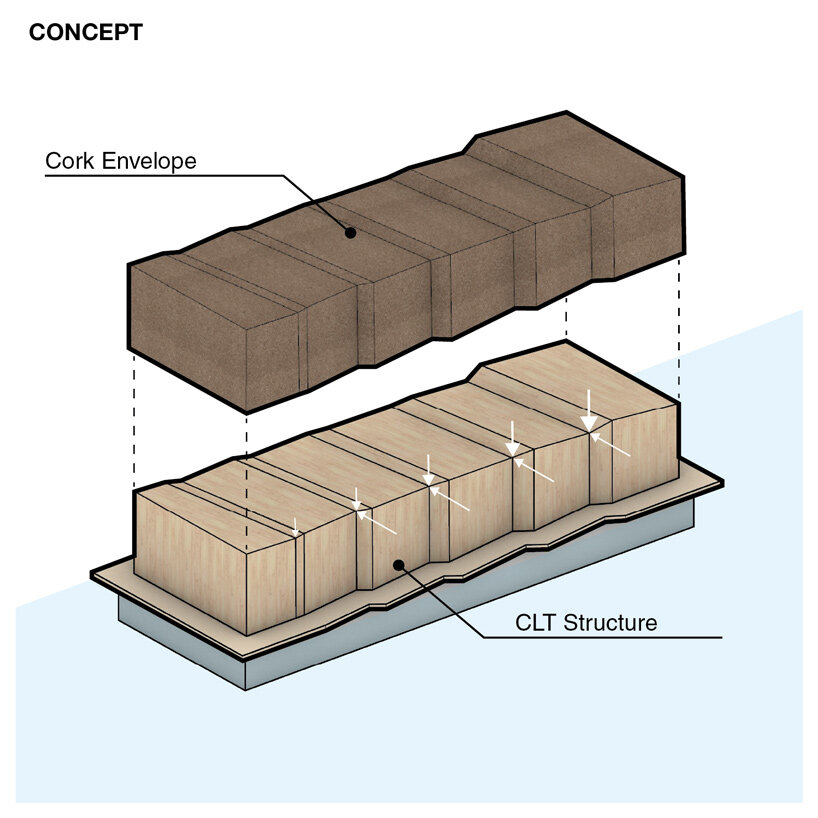

The atypical structure of the floating home takes inspiration from origami-principles and folded structures. This results in greater spans with less material than more conventional forms of structure. This load bearing structure was completely realized in Cross-Laminated-Timber (CLT), a solid, timber and bio-based material that was left exposed as the interior finish. In close collaboration with the structural engineer, folds were designed and parametrically optimized for the walls and roof that resulted in a reduction over two thousand kilograms (4,400 pounds) of timber.

studio rap float





a house wrapped in cork

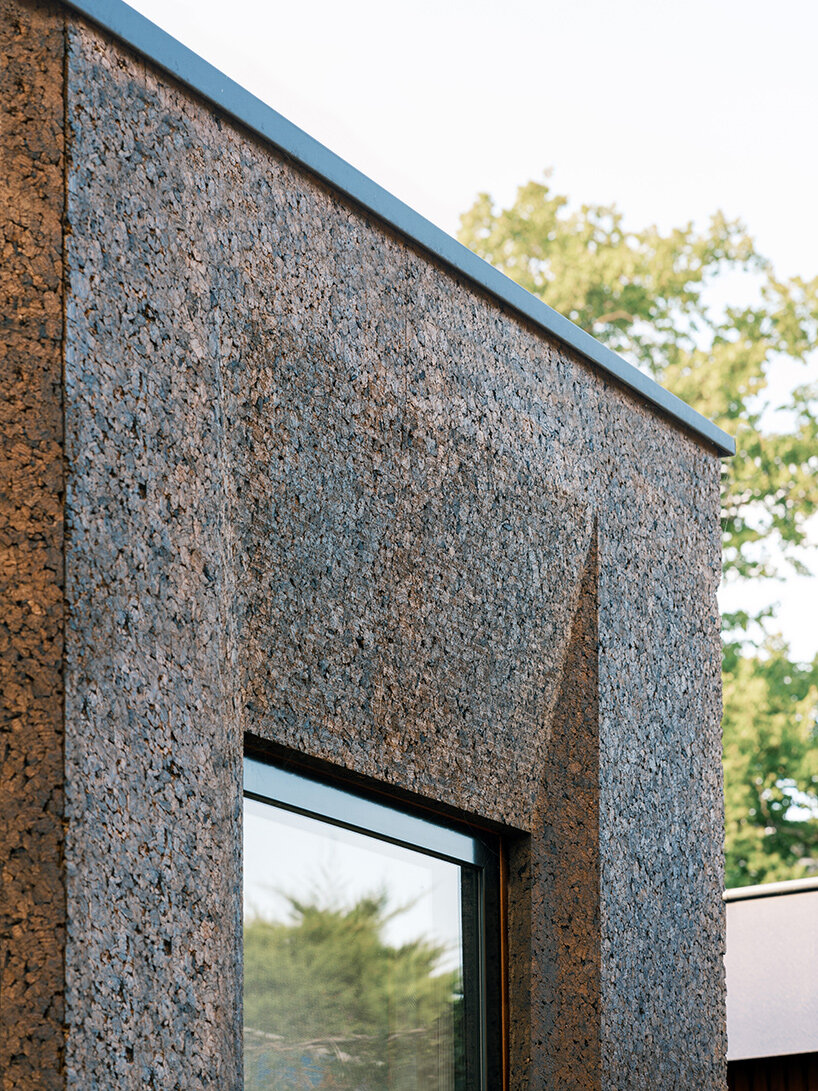

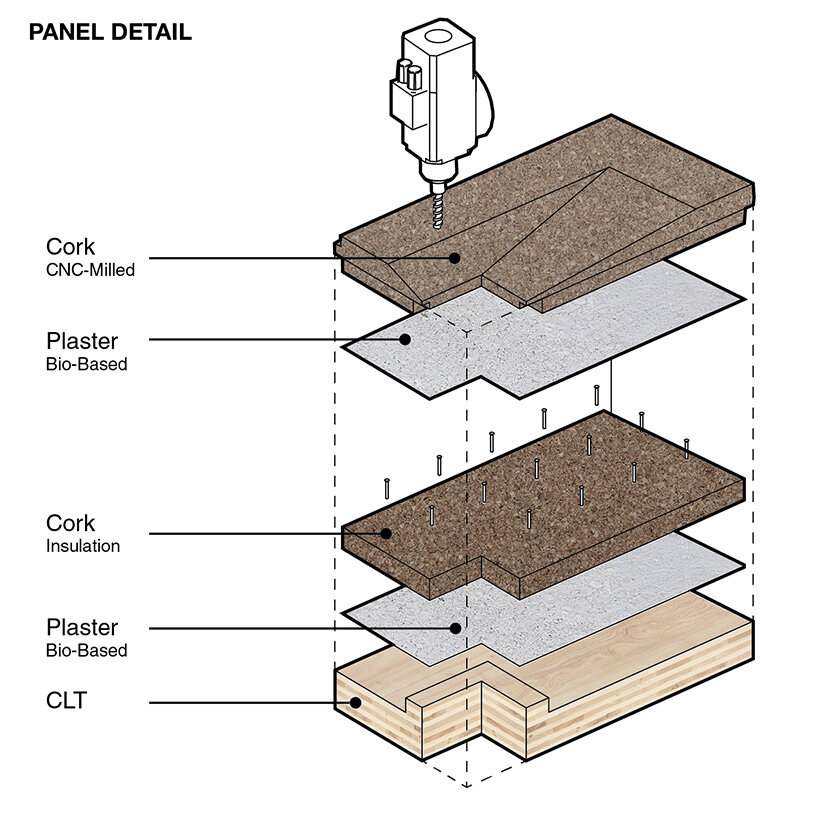

The timber structure is clad solely in cork, with a low-density cork insulation layer and a high-density cork outer layer bonded by a cork mortar layer. This assembly lends walls which breathe, and a healthy and comfortable interior climate. The expanded cork used is a pure plant-based material with a unique ecological origin giving the building an exceptionally low carbon footprint. The architects note that cork is a great material to manufacture digitally, as all cork modules were CNC-cut to ensure neat seams and bespoke window details.

studio rap float





a digital workflow



From its early design stages to its construction, Studio RAP realized The Float entirely with digital techniques. Directly from its digital design all digital production data for the CLT and cork was made and structural calculations were done. The advantage of a solely digital workflow is that everything remains digital and therefore variable, making it possible to do changes without any problems until late in the realization process.



Thus, different design scenarios were easily be tested for planning, technical, and financial feasibility while sustainability was central in this digital workflow and guided most design decisions. In this way the project aspires to push the industry further with sustainable architecture and look beyond the use of conventional construction materials and methods.

studio rap float

float-studio-rap-leiden-netherlands-designboom-06a

studio rap float

float-studio-rap-leiden-netherlands-designboom-08a



1/5
1

1

visualization
visualization
diagram
diagram
diagram
diagram

project info:



project title: The Float

architecture: Studio RAP @studio.rap

location: Leiden, The Netherlands

CLT contractor: JM Concepten
CLT supplier: KLH Austria
window frames: Metaglas
cork supplier: Prosuber, Amorim
structural design: Summum Engineering

floating body: Hercules

completion: 2022
video, photography: © Riccardo De Vecchi@riccardodevecchi.photo
