raz melamed completes three-generation z3 house in israel



Next to an avocado plantation in Israel, architect Raz Melamed built a unique multi-generational dwelling from the ground up, dubbed Z3 House. Overlooking a scenic view and hugged by a floating concrete beam, the structure is home to a couple with three children and their eldest daughter with three children of her own. Responding to a need for privacy for each family, the design plan by Melamed reveals two separate houses — one for the parents and children and a second for the daughter and grandchildren. Both buildings share a yard and pool but are kept separate thanks to the site’s intricate topography; the fronts face the street, while two other sides overlook the pool area.

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
all images © Amit Geron





pairing floating concrete with a lush patio and bridge

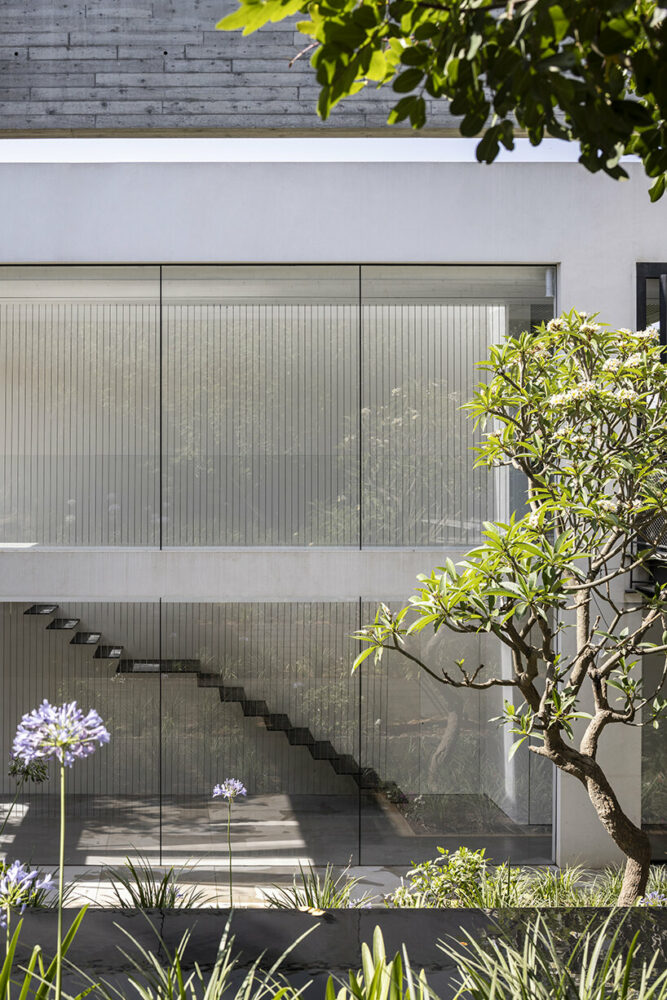

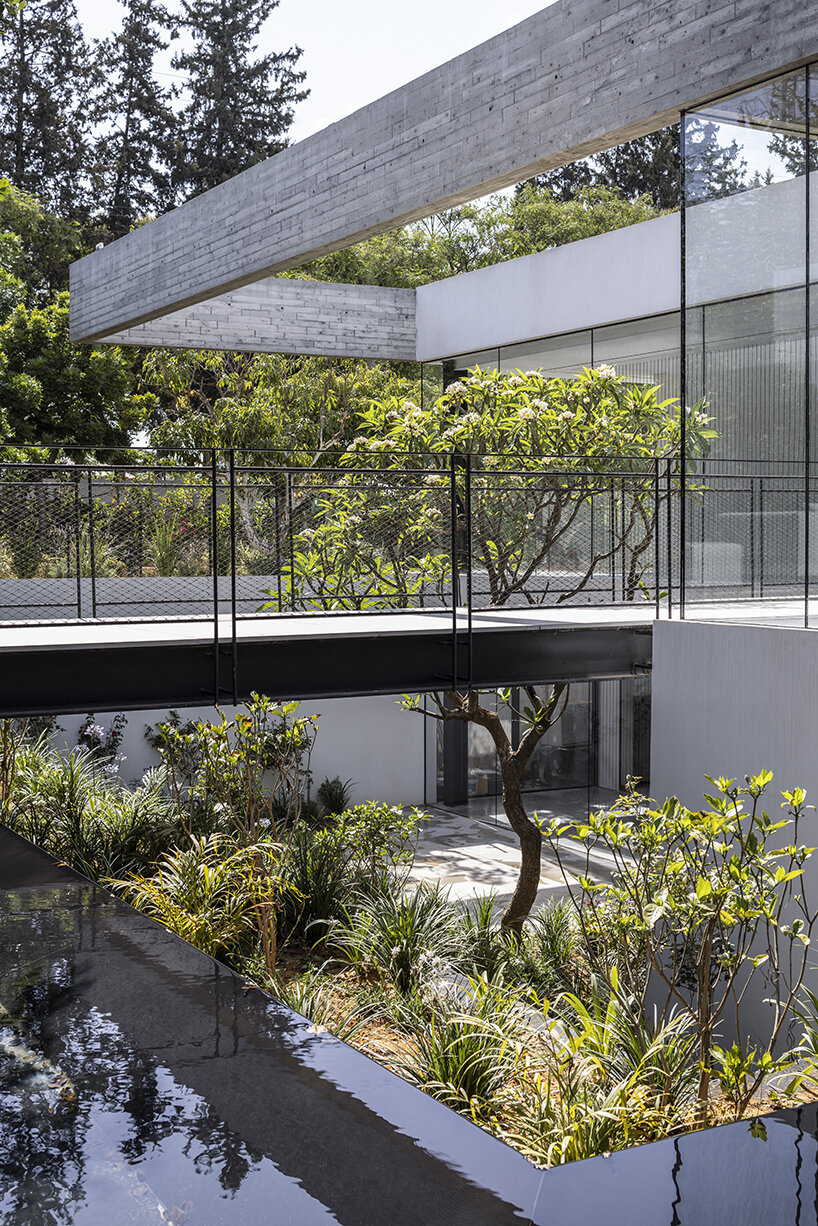

Wrapping dramatically around the main spaces of Z3 House by Raz Melamed (see more here) is a floating concrete beam that ‘protects’ it from passersby while creating a uniform facade in the form of an airy and partially sealed-off membrane. Meanwhile, a patio sits between the wings in the corner, overlooking the street and separating a yard to the basement, above which hovers a bridge from the main entrance. The beam is reflected in the pool below, which the architect sculpted in the shape of black terraces that descend toward the basement. ‘These create an encounter with the vegetation patio that creates privacy, as well as curtains that are spread over the huge openings,’ notes Melamed. Above the patio, the entrance bridge leads to the main door, paved with stone that also extends to the interiors, signaling a prominent connection with the outdoors. This connection is strengthened through large windows that project the view inward, with the entrance in sight.

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
Z3 – A Centrally Located Estate by Raz Melamed





openness & continuity across the two-building property

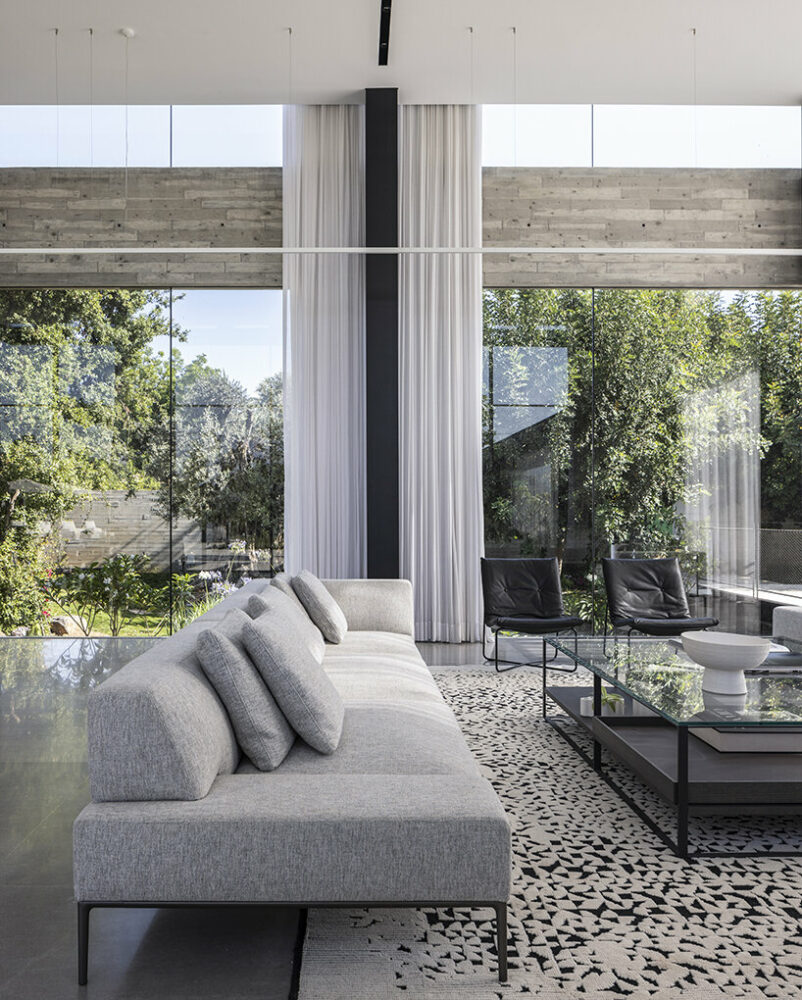

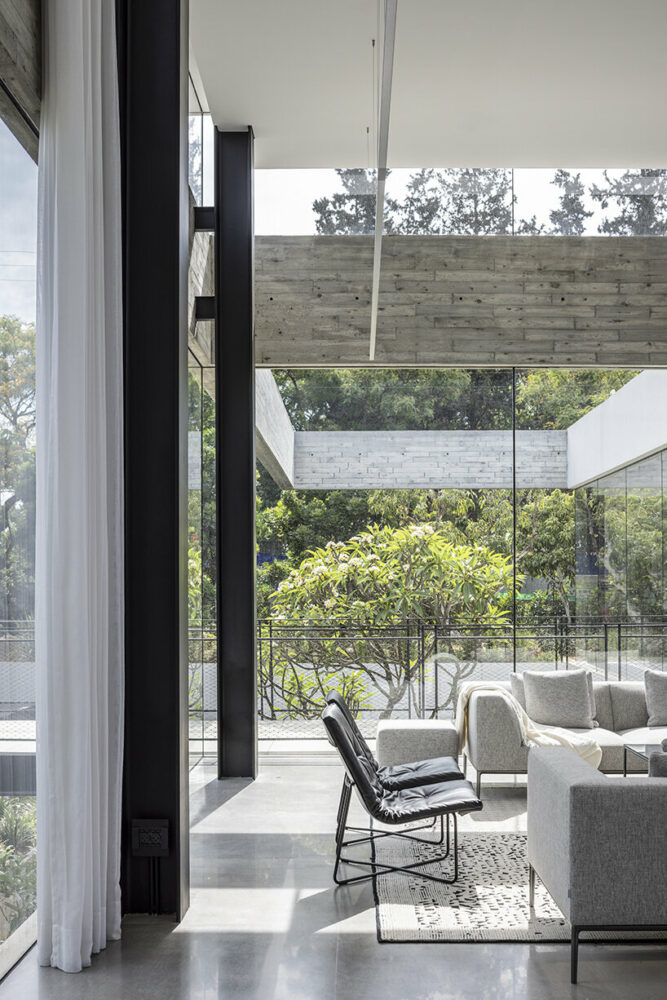

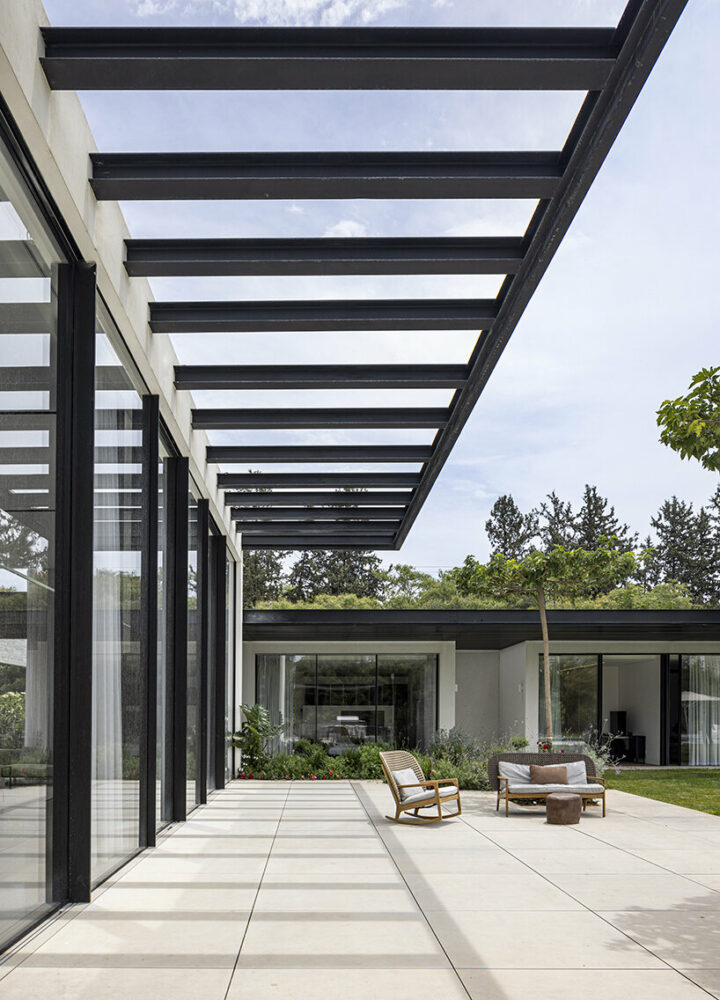

Another element that reinforces continuity is the pergola stretching along the second house, creating an axis that links both buildings despite their height differences visible across the property. This structure reflects Raz Melamed’s view of ‘opening up’ to create more beauty. The architect initially injected a few walls and used constructive columns for an open and clean look without divisions and sections. Moreover, the columns unfold along a grid that does not line up with the front, allowing a sequence of windows to materialize without interruptions. To the right of the main Z3 House entrance is a living space demonstrating a harmonious play of white, black, and gray repeating throughout in different ‘doses’.

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
the multi-generational dwelling is enriched with lush vegetation

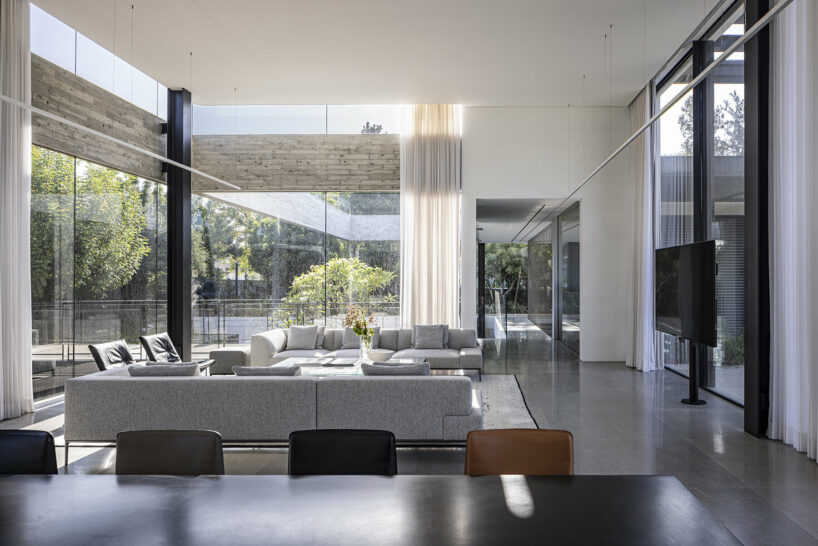

As for the kitchen, standing tall at 4.8 meters, Melamed introduced a striking display case on one side and a curtain that accentuates its height. On the other side, a display case is divided by a concrete membrane. The kitchen’s front cleverly conceals technical systems while providing access to guest services and the pantry and parking area —  prioritizing daily functions for the owners. Material-wise, the family’s love for entertaining and cooking encouraged the use of marble for the kitchen island, gently complementing the floor color. Adjacent to the corner island is a dining area with vibrant chairs that ‘flows’ seamlessly into the living room, defined by a black and white carpet and adorned with exclusive furniture, namely soft upper cushioning and light legs that create a sense of levitation and maintain continuity from the entrance to the kitchen.



Throughout the public space, a careful interplay of colors is evident. Metal elements like columns, rails, stairs, cables, and bridges are accented in black, while the walls and carpentry remain pristine in white. The flooring and furniture sport a tasteful gray hue, completing the harmonious aesthetic of the entire project.

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
wrapping the property in a floating concrete beam





The lighting in the space is thoughtfully designed to complement its height, with recessed fixtures in the lowered corridors and a recessed strip on the ceiling, creating an elegant play of heights and seamless continuity. The white hanging strip, in combination with the black recessed lighting strips, adds a touch of sophistication to the ceiling design. To the left is a private area where all bedrooms offer a meditative pool view. Access to this area is provided by a bridge with cable railings on one side, connecting the floors. The cable railings extend from the floor to the basement and the son’s suite, reaching the ground floor ceiling. On the other side, a double space overlooks the patio, further emphasizing the yard’s openness without confining walls.

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel

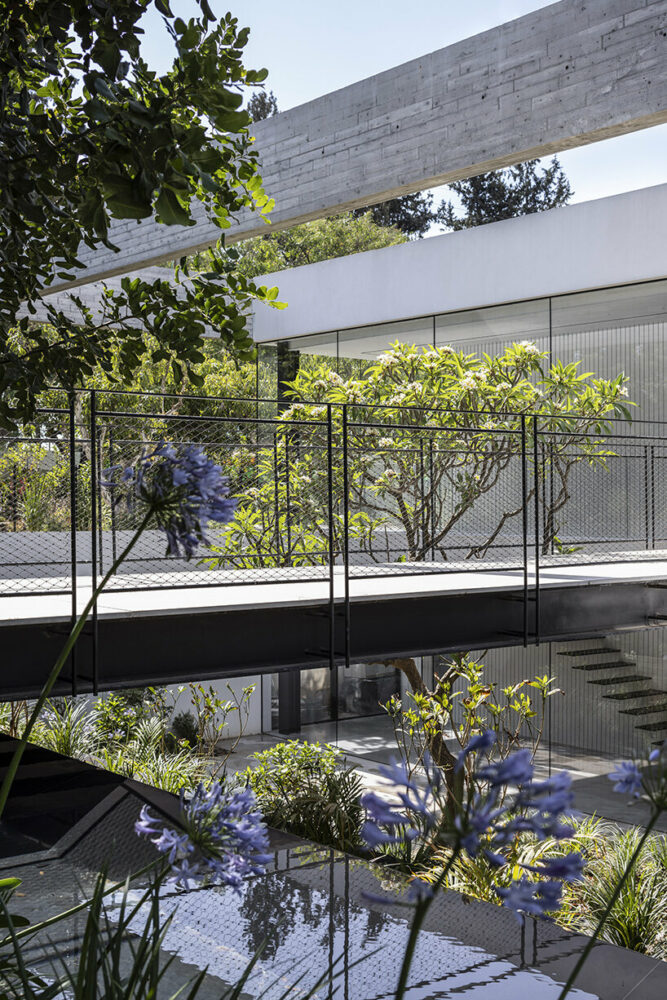

a bridge leading to the main spaces





The second house boasts a long and graceful architecture, sitting lower than the first building on the lot’s surface. The pool accentuates the height difference, with the first house at ground level and the pool culminating in front of the second, forming a striking cube emerging from the ground. The design theme is shared between both structures, but the second house interior stands out with its serene palette, while elements like the front door and kitchen showcase a touch of boldness in black. Alongside meticulous landscape planning, various functional features were thoughtfully placed, including an outdoor kitchen, a pool, a fireplace, a pergola for shading, and custom-designed furniture and wardrobes.



z3-house-raz-melamed-israel-designboom-full-9

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
creating openness while maintaining privacy

z3-house-raz-melamed-israel-designboom-full-5

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
exclusive furniture paired with light colors

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
living room area

z3-house-raz-melamed-israel-designboom-full-6

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
second house for the daughter and grandchildren

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
pool area

z3-house-raz-melamed-israel-designboom-full-8

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
entrance to Z3 House

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel

a floating concrete beam wraps around raz melamed's multi-generational Z3 house in israel
a continous design – night time view

z3-house-raz-melamed-israel-designboom-full



1/27
1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1


project info:



name: Z3 – A Centrally Located Estate

location: Israel

architect: Raz Melamed Architecture | @razmel.architect

supervisor: Reut Nachmias Saban

project management: Pini Abitbul

structural design: Yaron Shahrabani

photographer: Amit Geron@amitgeronphotographer

assistant photographer: Michael Shevdron

styling for photography: om studio by Omer Danan

completion year: 2023
