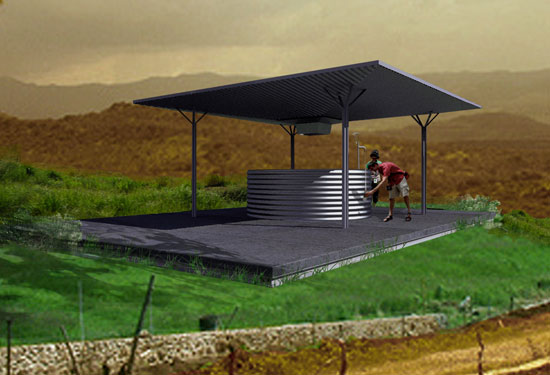

large water pavillion, part of ruta peregrino pilgrim route by godoylab image courtesy godoylab

design firm godoylab has created service areas for the ruta peregrino pilgrim route in jalisco, mexico. the issues they prioritized were: water, waste, shade, restrooms and wayfinding.

due to the length of the route, the varying climates from one point to the next and the variations within the terrain they proposed to design a series of independent elements that may be modified and adapted to different contexts and needs throughout the route.

the pre fabricated structures that when erected involve a lower impact on the local environment. the on-site activities would only include module assembly, digging pits for the restrooms and anchoring the structures to the site.

the projects specifies sanitation and water management technologies that are independent from municipal grids (electrical, water, sewerage, etc.), due to the infrastructural inaccessibility of some ot the service area intervention points.

godoylab: service areas for ruta peregrino large water pavillion, image courtesy godoylab

godoylab: service areas for ruta peregrino large water pavillion, image courtesy godoylab

godoylab: service areas for ruta peregrino resting area image courtesy godoylab

godoylab: service areas for ruta peregrino various rest areas image courtesy godoylab

godoylab: service areas for ruta peregrino

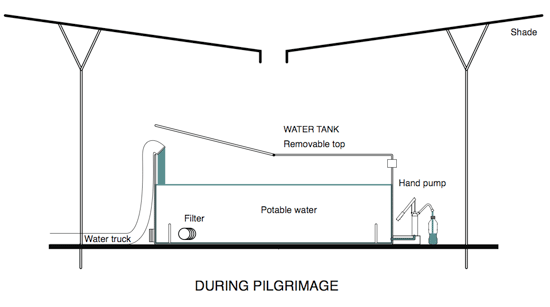

how the water tank works during pilgrimage

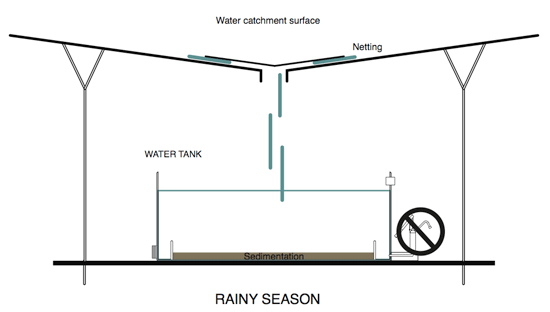

godoylab: service areas for ruta peregrino how the water tank works during rainy season

godoylab: service areas for ruta peregrino

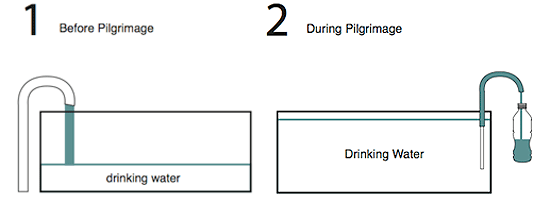

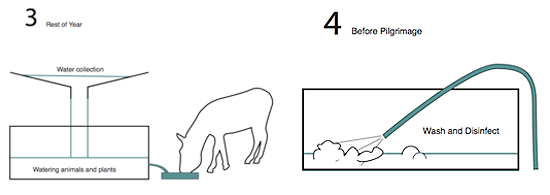

godoylab: service areas for ruta peregrino various functions of water tank

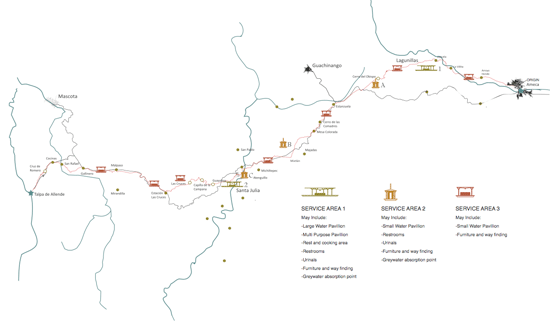

godoylab: service areas for ruta peregrino pilgrim path service areas
