HHD_FUN: pedestrian bridge in rizhao, china
a parametrically-designed, curving fluid bridge of slender steel members spans 45 meters over a river.
prefer designboom on google‘pedestrian bridge’ by HHD_FUN, rizhao, china image © zhenfei wang all images courtesy of HHD_FUN
located near the lanqiao clubhouse, covered earlier by designboom here, local studio HHD_FUN‘s ‘pedestrian’ bridge spans 45 meters over a river in rizhao. steel tubes grow out of the bank converging at their highest point in the middle of the walkway, inclined towards the center axis. smaller members branch off connecting the two sides while slender string-like cords stretch to the deck. the underside is parametrically designed to efficiently take all the loads, covered in metal panels that create a minimalist feel facing the water, being anchored in the concrete embankments.
approach to the bridge image © zhenfei wang
low profile in the landscape image © zhenfei wang
tendril-like steel members anchor itself to the site image © zhenfei wang
image © zhenfei wang
image © zhenfei wang
image © zhenfei wang
a network of varying-sized white steel tubes image © zhenfei wang
metal panel underside image © zhenfei wang
image © zhenfei wang
image © zhenfei wang
image © zhenfei wang

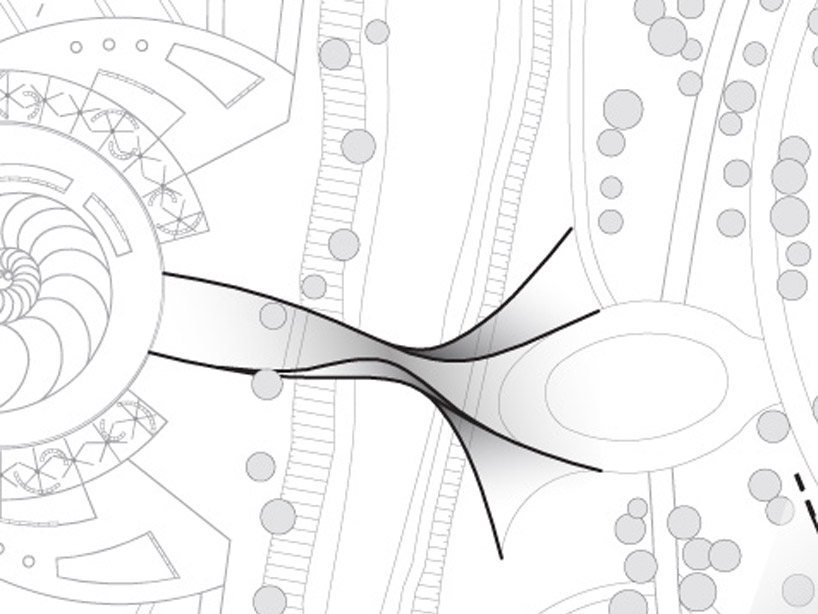

site plan
elevation
axonometric
