hydroelectric waterfall prison by margot krasojevic
‘hydroelectic waterfall prison’ by margot krasojevic, pacific oceanall images courtesy of dr. margot krasojevic
dr. margot krasojevic uses the parameters of digital technology to analyze and create spaces deep-seated with the psychology of its inhabitants. the intangible mental exchanges that occur in architecture create a basis for her designs and often serve multiple purposes. in ‘hydroelectric waterfall prison’ a penitentiary becomes a power station, using the off-shore site of the pacific ocean to generate energy using a ring of wave converters along the main concrete structure.

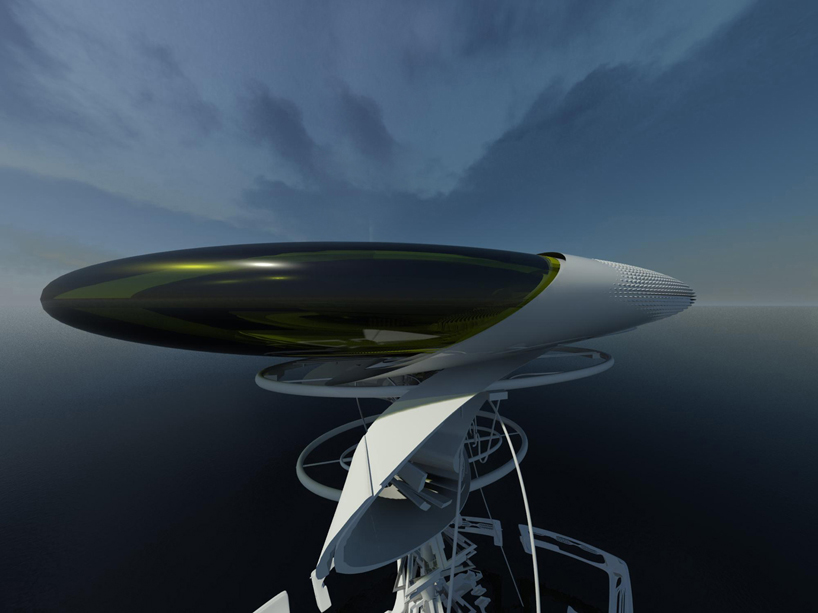

the jail in the context of the pacific ocean images © margot krasojevic
the steel reinforced material allows the vertical form to accommodate a floating, tension leg platform tethered to the seabed. tyson turbines further stabilize four semi-submersible columns and bolster a series of cantilevered loops that distribute the weigh of the building. ocean water pumped up to the main concrete structure is distributed to a fiber-clad surface that regulates the pressure of the water as it falls on the turbines. a shaft in the building powers an electrical generator that runs energy to the mainland. in this way, the jail contributes to the harnessing of electricity. holographic filtered glass panels are embedded in a web of reinforced steel creating a layered effect of interior prison life and the surreal ocean surroundings. additionally, inmate’s cells are lined with semi-transparent optical mirror which provides superimposed views into and through the cells, creating a faux-open plan space. these architectonic gestures make the foucauldian idea of the panopticon more complex by fracturing the boundaries of the building and rendering it a kaleidoscopic observatory.
view of the recreational chamber image © margot krasojevic
a view of the overall form
image © margot krasojevic
the waterfall generates energy for the building
image © margot krasojevic
the tethered structure is in the middle of the pacific ocean
image © margot krasojevic
holographic glass views
image © margot krasojevic
detail of the fibrous nozzling surface
image © margot krasojevic
exterior detail
image © margot krasojevic
a helipad and viewing station are attached
image © margot krasojevic
glass pattern facade
image © margot krasojevic
water wall
image © margot krasojevic
image © margot krasojevic
image © margot krasojevic
image © margot krasojevic
recreation cell interior
image © margot krasojevic
exploded sequence
image © margot krasojevic
section circulation
image © margot krasojevic
section through circulation
image © margot krasojevic
a view of the overall pattern
image © margot krasojevic
axonometric sequence
image © margot krasojevic
section of turbines
image © margot krasojevic
section of turbines
image © margot krasojevic
section of turbines
image © margot krasojevic
a view of the overall pattern
image © margot krasojevic
water circulation plan
image © margot krasojevic
image © margot krasojevic
structural glass framework
image © margot krasojevic
mirrored cell plan
image © margot krasojevic
section 1
image © margot krasojevic
section 2
image © margot krasojevic
board
image © margot krasojevic
