aug 08, 2012

isay weinfeld: paracicaba house

‘piracicaba house’ by isay weinfeld, sao paulo, brazil all images courtesy of isay weinfeld image © luiza sigulem




in the city of piracicaba, 250 kilometers from sao paulo, brazilian practice isay weinfeld has designed the ‘piracicaba house’ in which a dispersed family can reunite. located on a sloping site, the residence utilizes the topography to create moments of privacy and access over three storeys, which face north to benefit from ample daylight. storage and mechanical areas on the ground level, are partially buried into the landscape and supported by a regular grid of columns and a natural stone wall that create a deep carport.


an L-shaped middle level, accessible through a winding concrete ramp, houses the public services. a natural wood veneer wraps the outside and extends to the decking running alongside the pool. a perpendicularly jutting volume contains the living room with contrasting walls; the first, a deep glass wall linking to the outer patio – the other, a screen of vertical angled concrete planes spaced as lines on a bar code, filtering views from off-site and blocking the sun.


the ceiling slab doubles as an outdoor terrace connecting to the upstairs den, situated at the cantilevering block of private bedrooms, aesthetically differentiated by a an array of white timber and textured plaster.

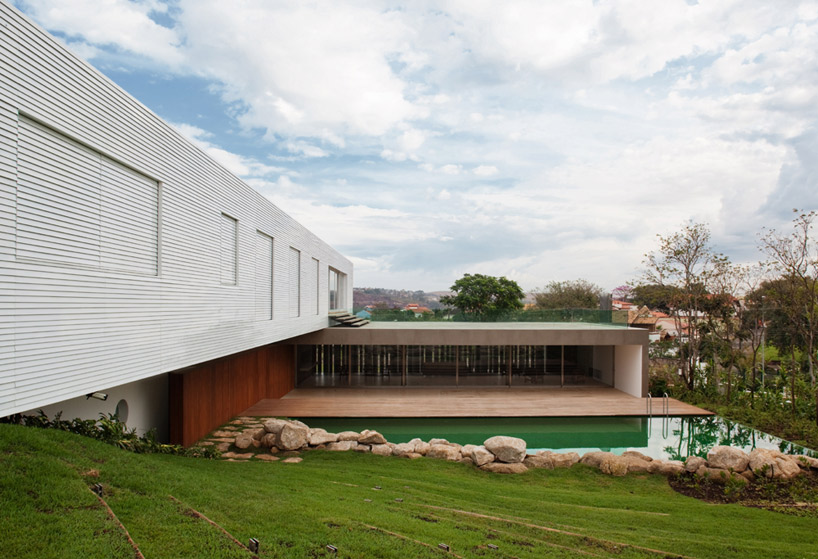

isay weinfeld: paracicaba house central poolimage © luiza sigulem

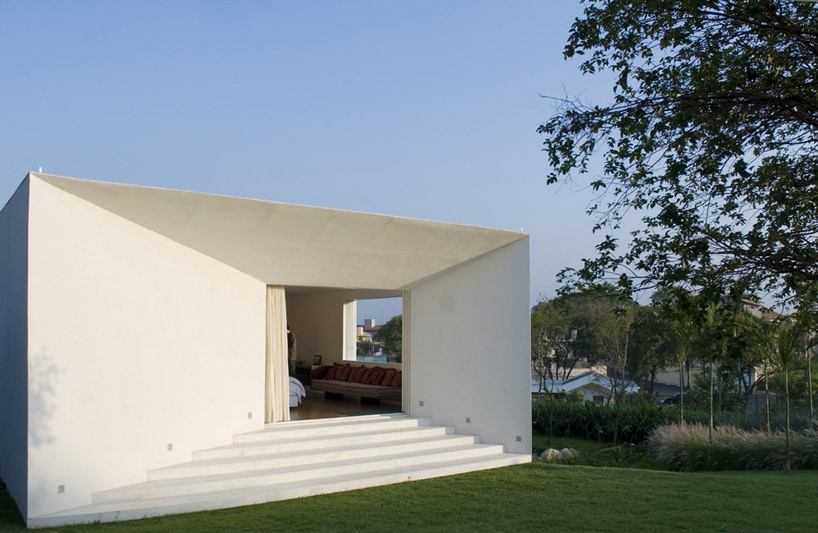

isay weinfeld: paracicaba house open entry to bedroomsimage © luiza sigulem

isay weinfeld: paracicaba house sloping contours under north facade image © nelson kon

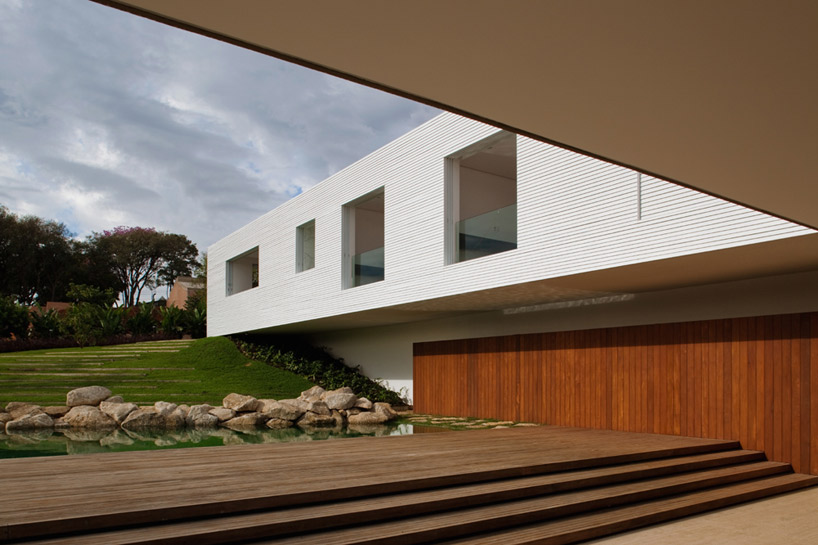

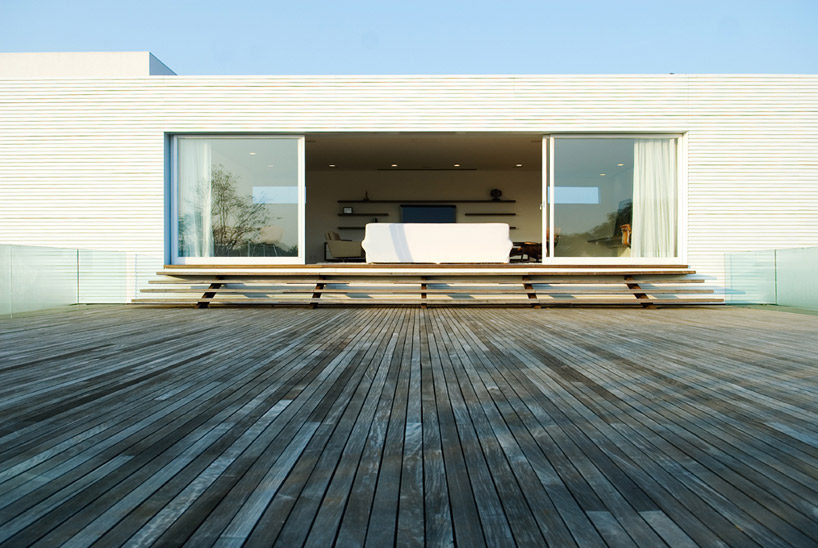

isay weinfeld: paracicaba house deck from private deckimage © luiza sigulem

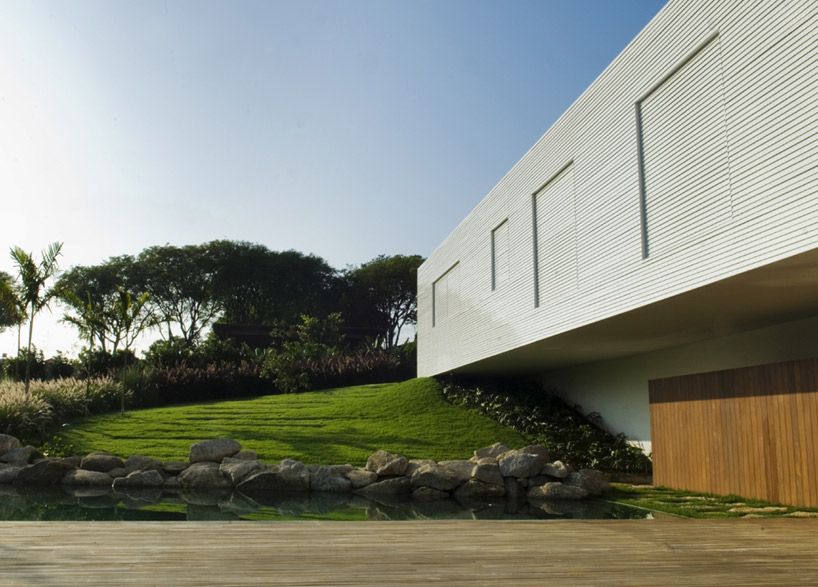

isay weinfeld: paracicaba house view from pool deck image © luiza sigulem

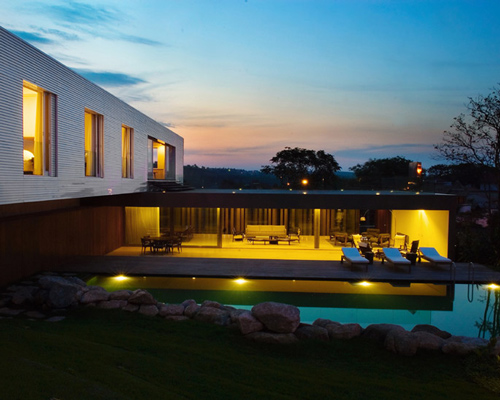

isay weinfeld: paracicaba house central pool image © nelson kon

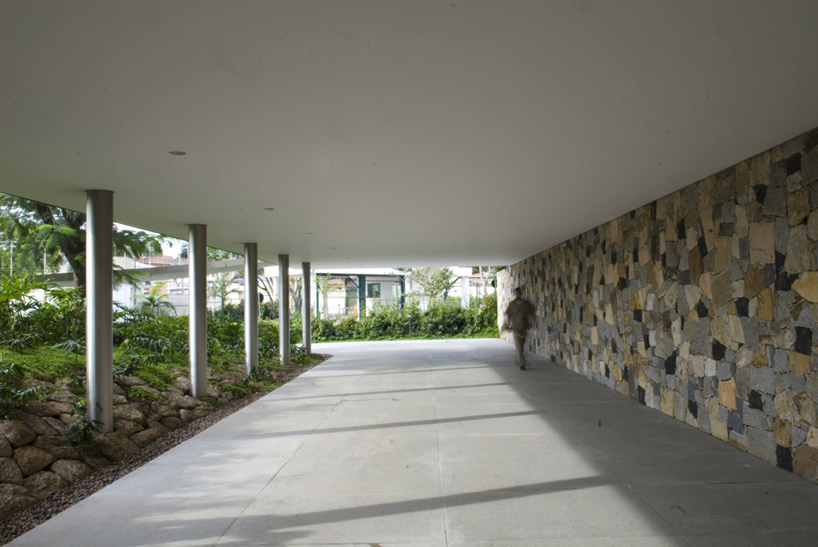

isay weinfeld: paracicaba house carportimage © luiza sigulem

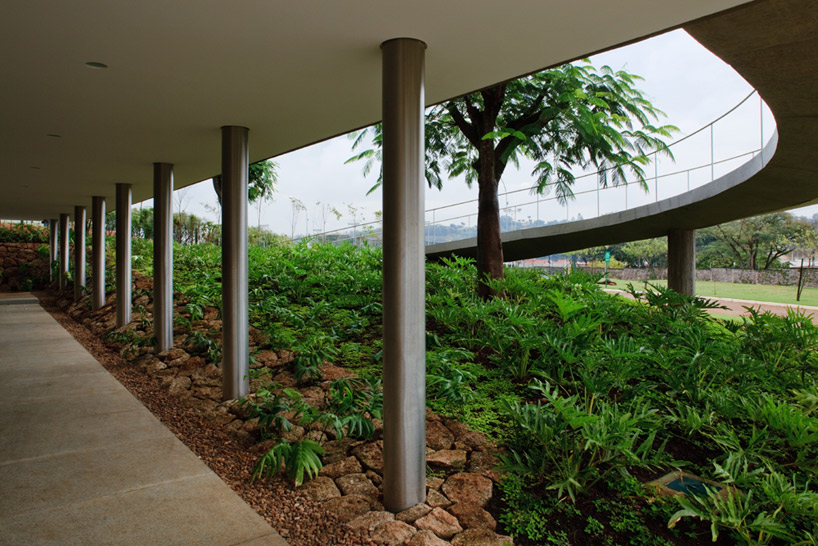

isay weinfeld: paracicaba house carport and walkway with columns image © nelson kon

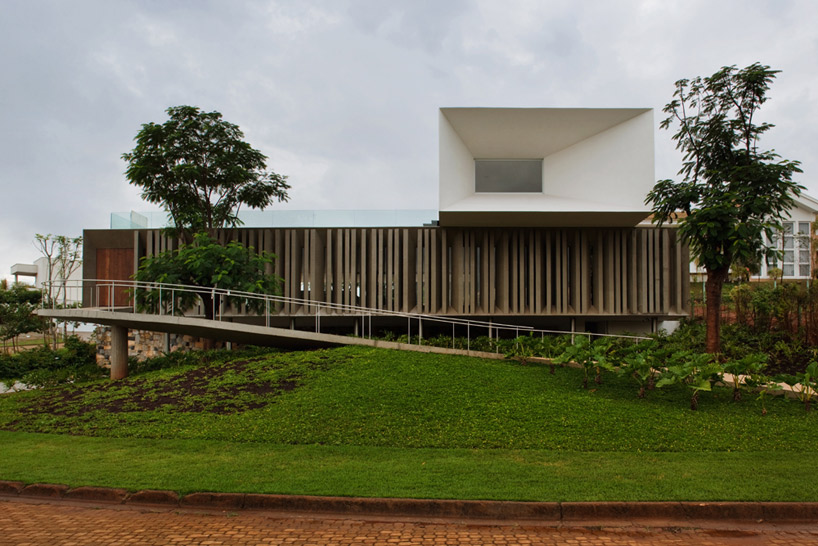

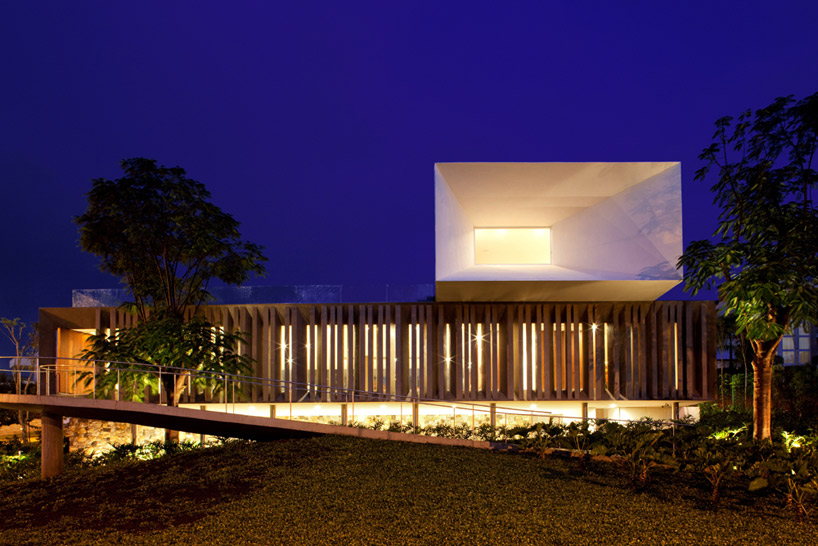

isay weinfeld: paracicaba house street-side view image © nelson kon

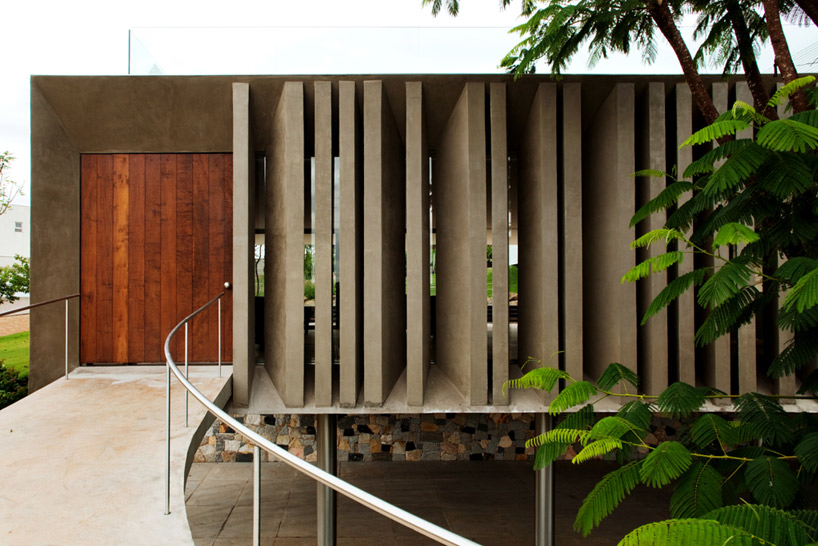

isay weinfeld: paracicaba house vertical concrete slabs control views image © nelson kon

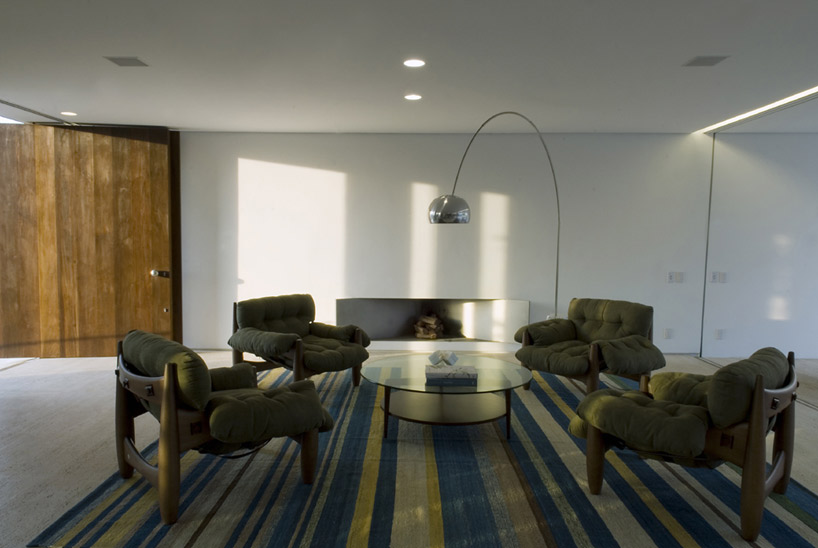

isay weinfeld: paracicaba house public space image © luiza sigulem

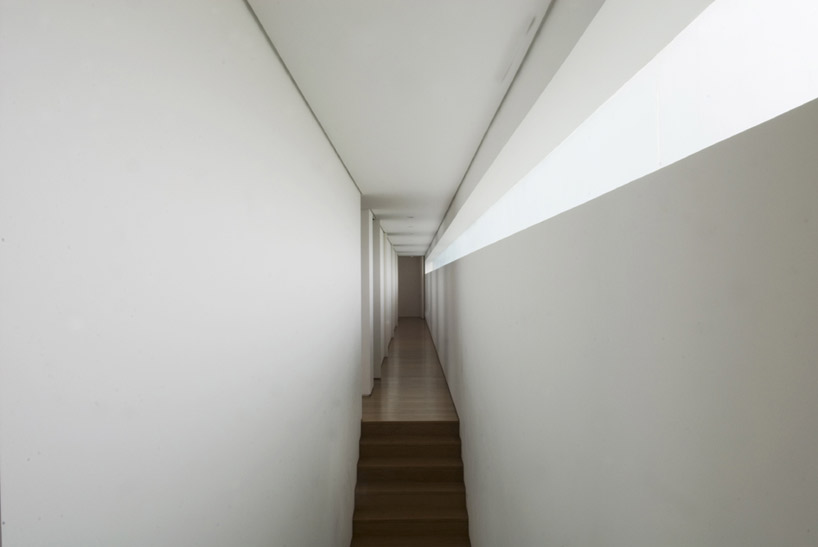

isay weinfeld: paracicaba house hallwayimage © luiza sigulem

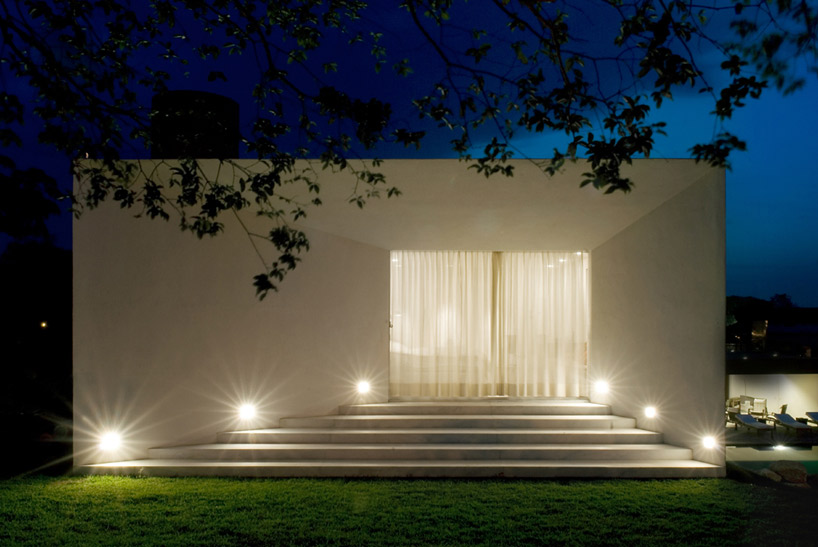

isay weinfeld: paracicaba house entry to bedroom massimage © luiza sigulem

isay weinfeld: paracicaba house walkway winding to the west entrance image © nelson kon

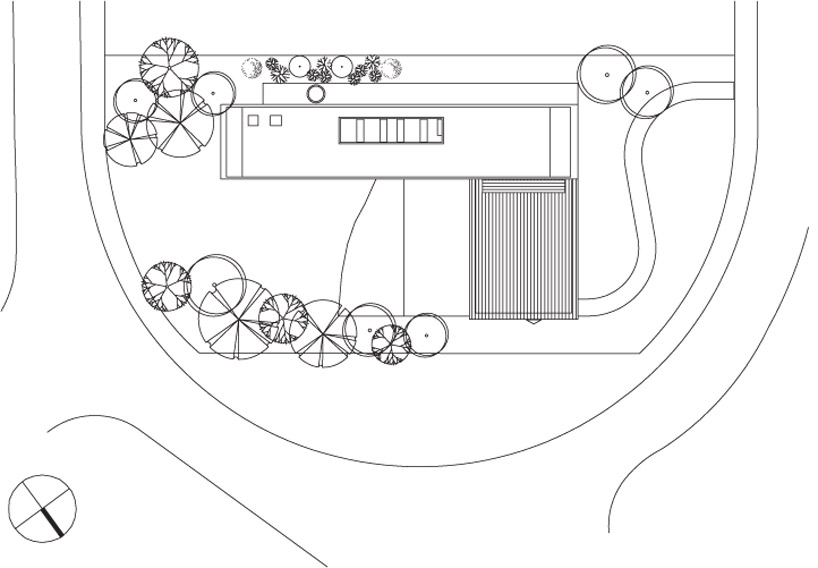

isay weinfeld: paracicaba house site plan

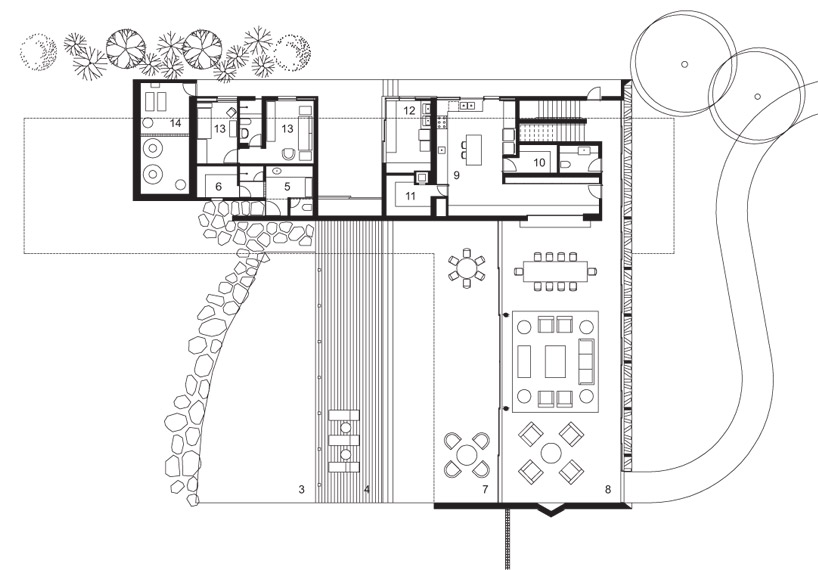

isay weinfeld: paracicaba house floor plan / level 0

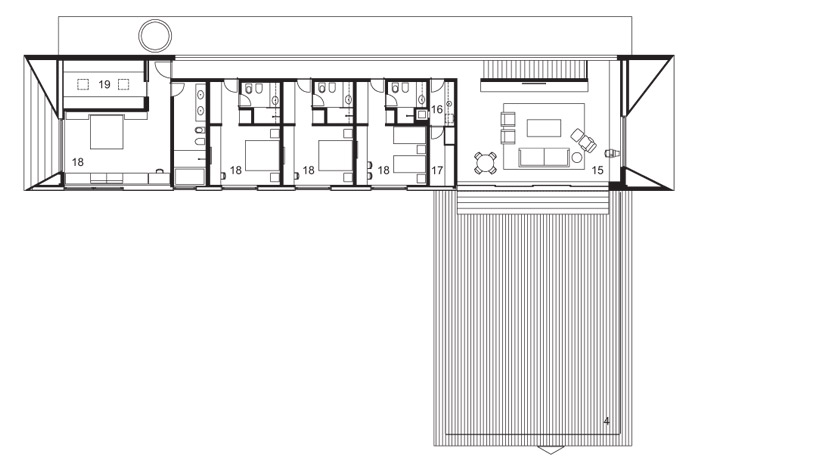

isay weinfeld: paracicaba house floor plan / level 1

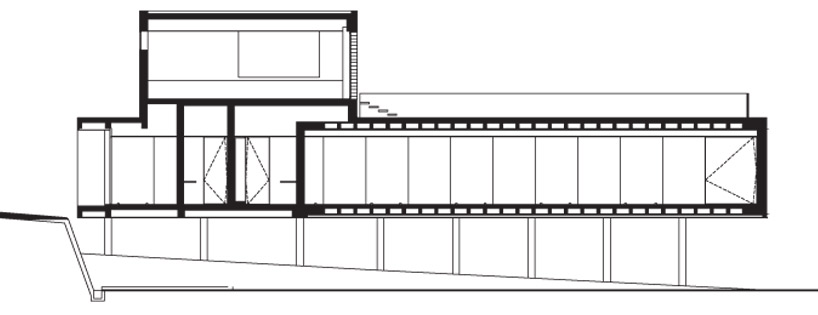

isay weinfeld: paracicaba house section

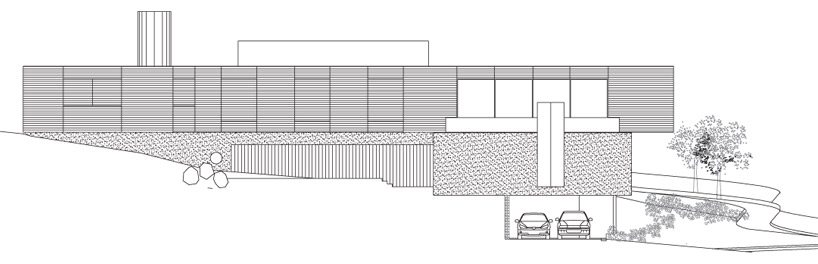

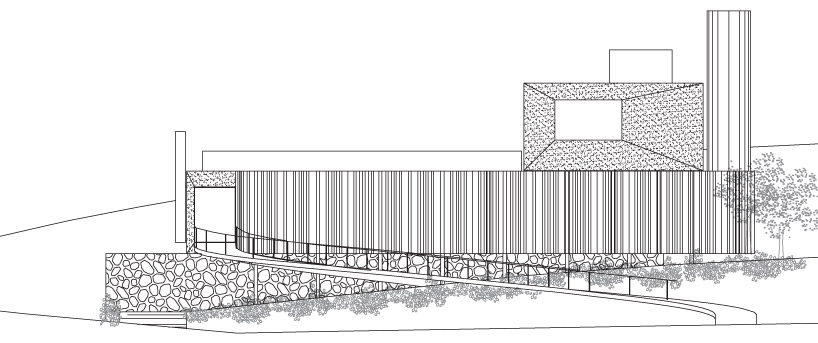

isay weinfeld: paracicaba house elevation

isay weinfeld: paracicaba house elevation



project info:


beginning of project: january 2006 opening: january 2009 construction area: 1000 m2 land area: 1980 m2
