marmol radziner erects prefabricated las vegas house in desert landscape





LA-based studio marmol radziner has shared images of their prefabricated las vegas house completed in 2009, overlooking the city of lights from a nearby hillside. the house is comprised of 36 prefabricated steel frame modules – 24 for the interior construction and 12 for exterior structures – and were assembled off-site concurrently with the complex foundation work being poured on site, making the entire construction a speedy 12-week endeavor. partially buried into the ground, the home takes advantage of the earths naturally cool thermal mass to help insulate the home, along with deep patios that help control the amount of direct sunlight that hits the interior. overall, 18,000 square feet includes four bedrooms and five bathrooms, a spa, pool, a series of partially covered and uncovered patios and courtyards, and a pyramidal ‘skyspace’ designed by light artist james turrell.

lasvegashouse_marmolradziner
muted finishes blend the house into the landscape
image © joe fletcher (also first image)

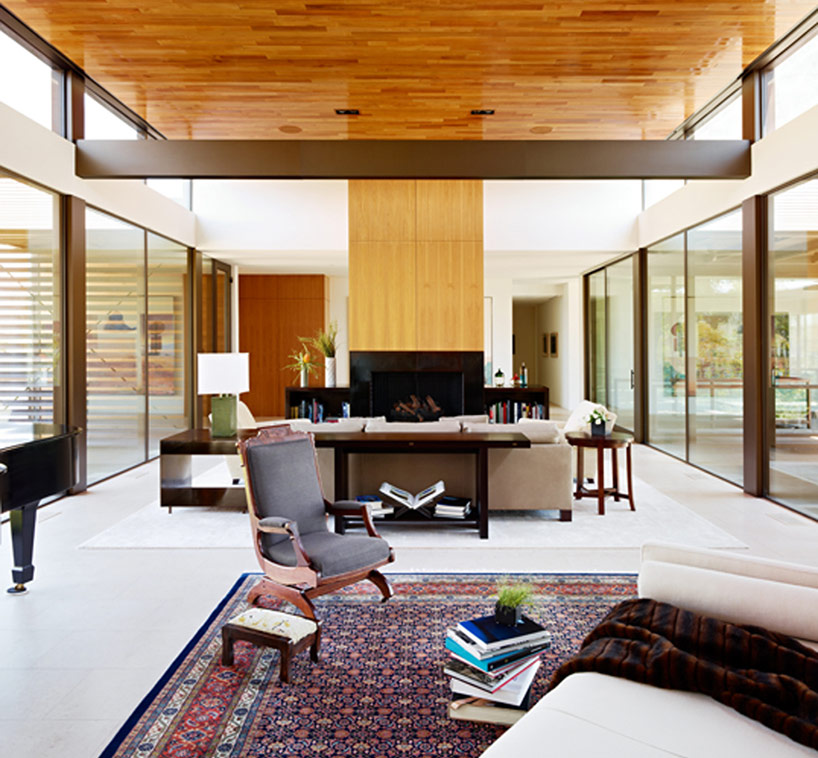

the use of 12′ by 12′ modules was not only a cost effective solution for the construction but also provided marmol radziner to play with indoor and outdoor spaces, consistently blending both throughout the house. the U-shaped floor plan with two parallel wings bridged by a glass-clad entry hall. a tiled deck spans out onto the site defining a large central courtyard that ensures natural light and ventilation to every room in the house. the exterior metal modules extend from the thermal envelope of the structure, with louvered roofs that cover the outdoor terraces and function as expansive shading devices for the glass walls. the living area combines a standard 12′ module with another partial module making 15′ tall ceilings that embrace the desert environment’s expansive views. earth-tone finishes including stucco and metal root the structure into the land accentuated by the desert flora.

lasvegashouse_marmolradziner

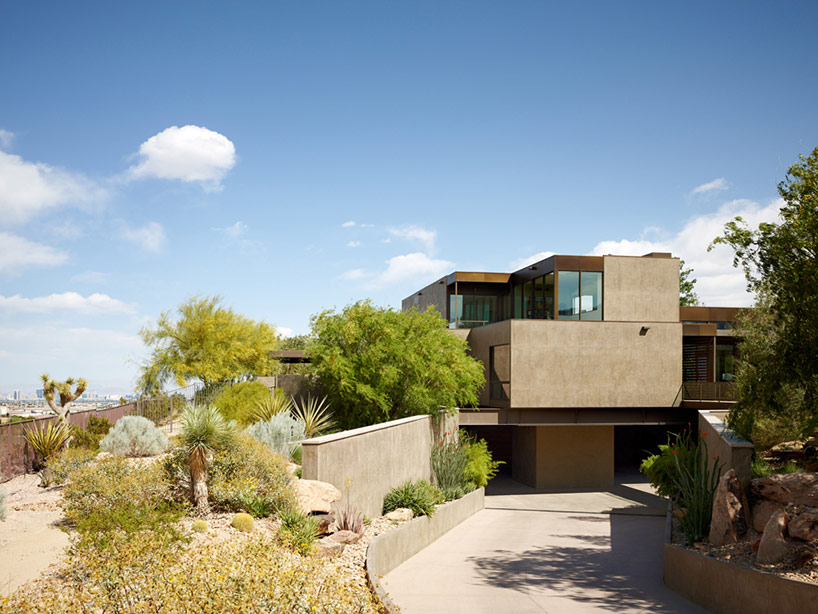

the driveway gradually submerges below grade into the basement parking garage
image © joe fletcher

lasvegashouse_marmolradziner

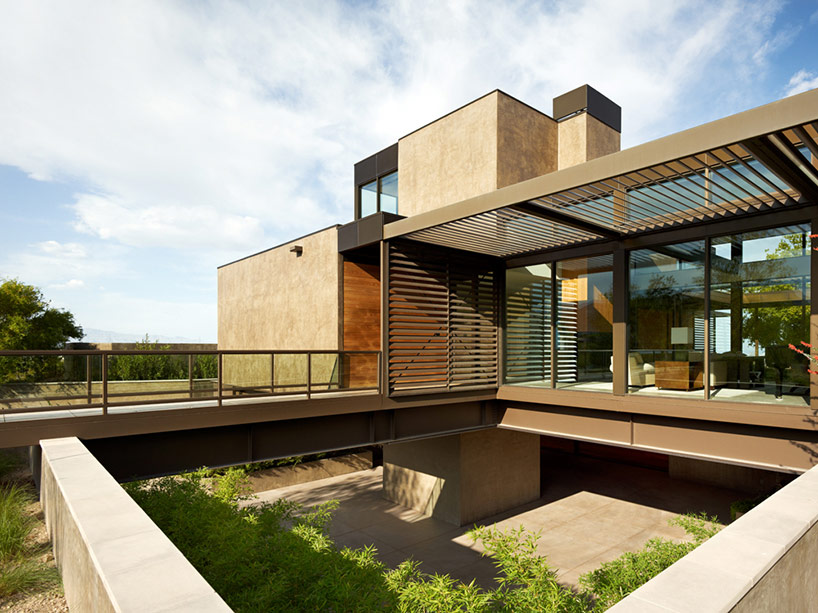

entry area frames the lower parking space, bridging to a glass-enveloped foyer
image © joe fletcher

lasvegashouse_marmolradziner
image © joe fletcher

lasvegashouse_marmolradziner
careful landscaping helps integrate the home into the site also helping to naturally shade the indoor/outdoor spaces
image © joe fletcher

lasvegashouse_marmolradziner

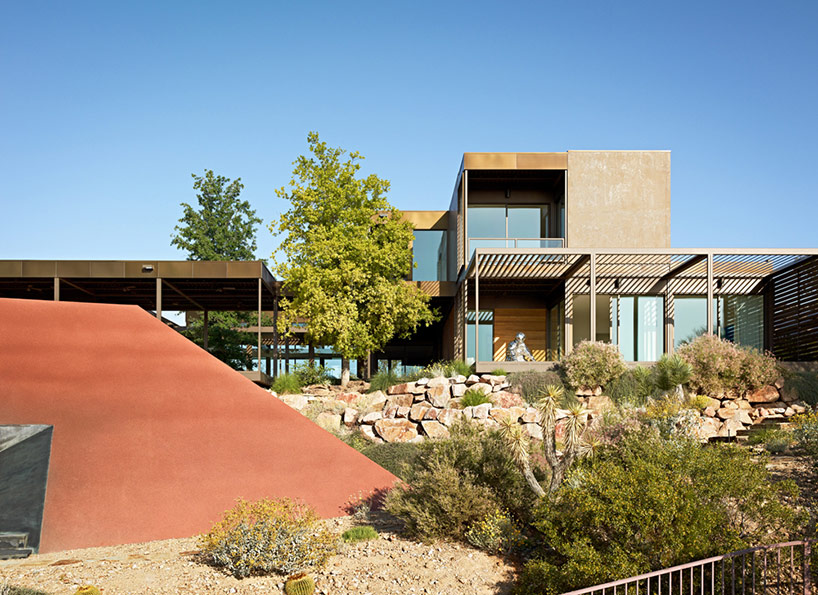

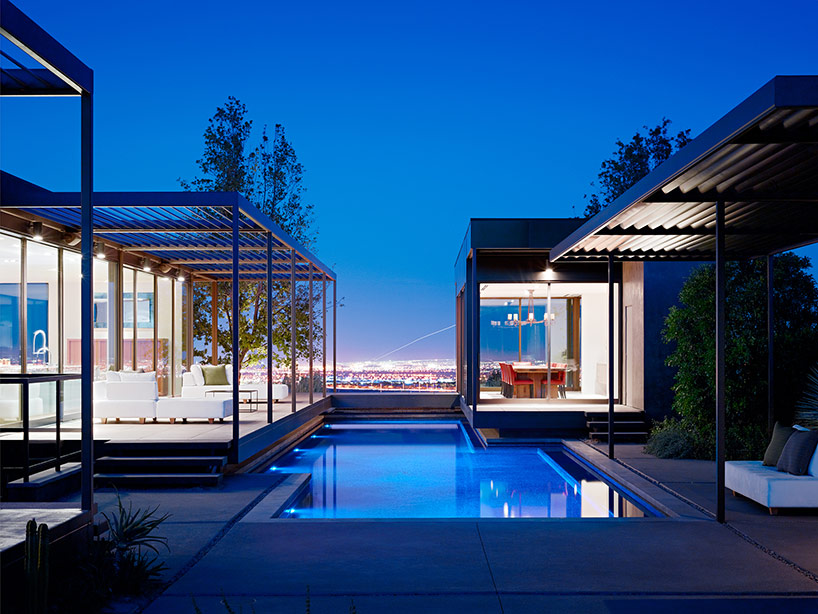

a james turrell lightspace sits at the back of the home, facing las vegas
image © joe fletcher

lasvegashouse_marmolradziner

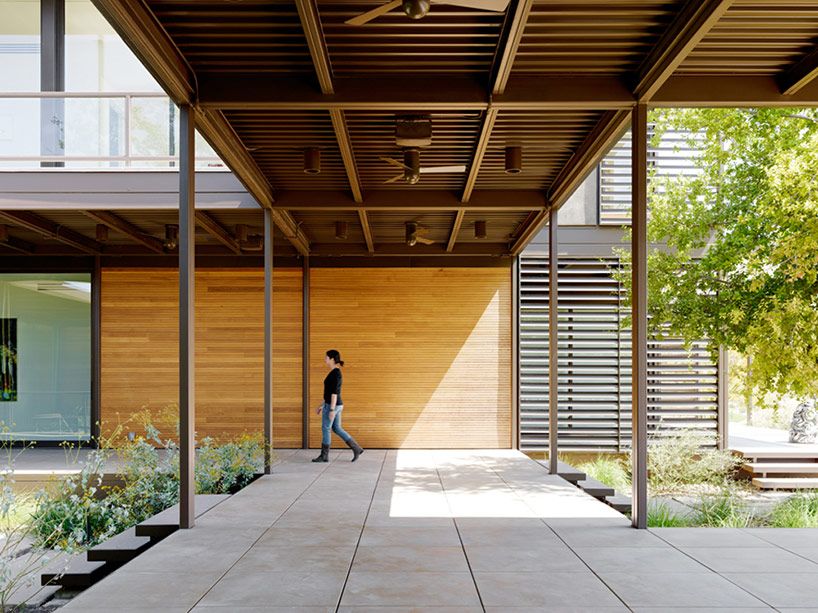

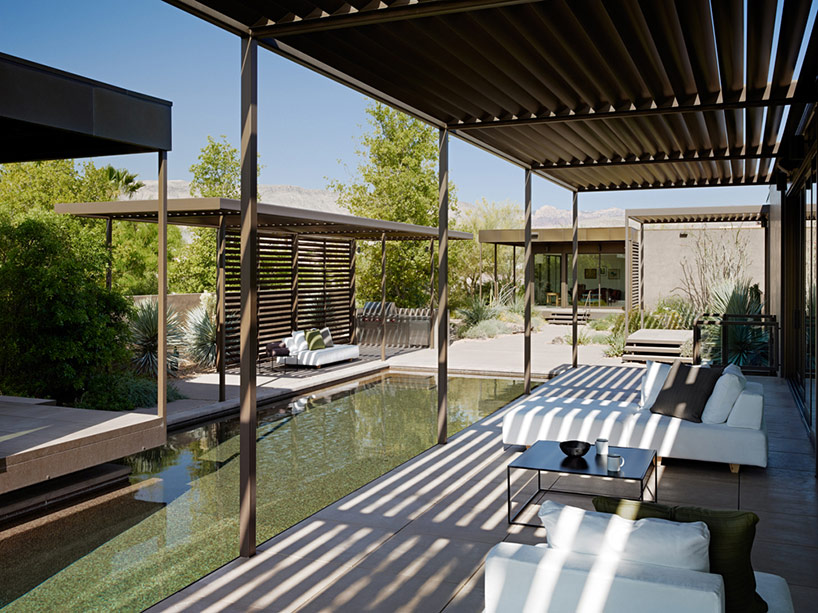

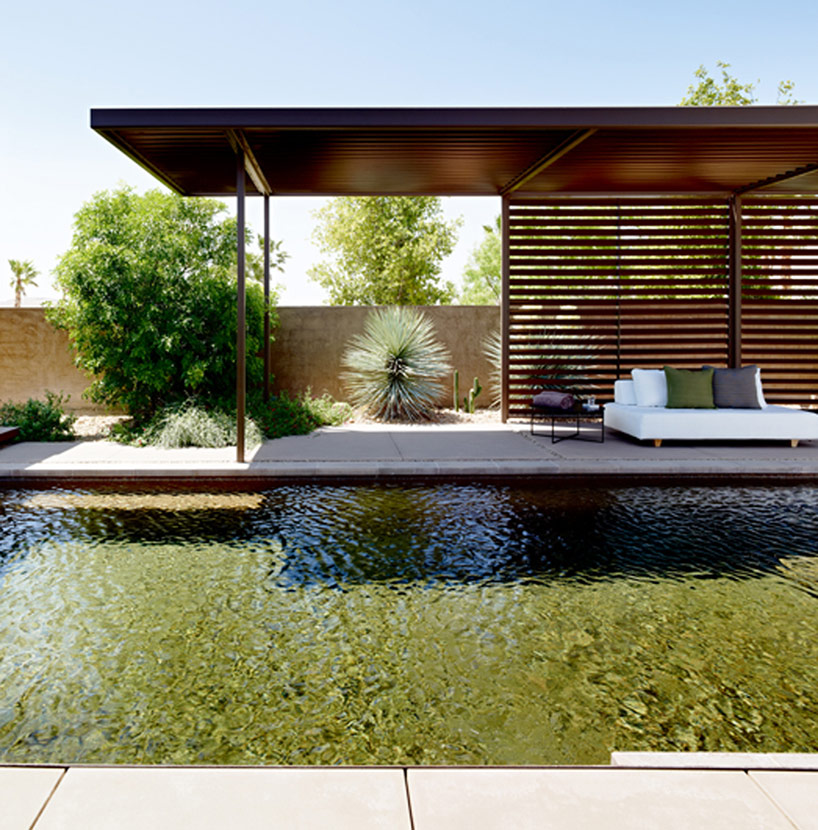

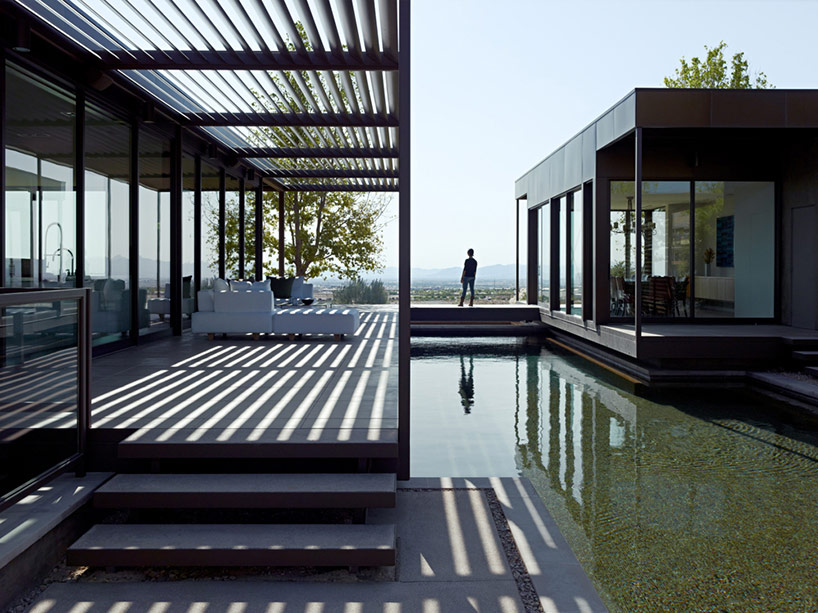

steel modules form partially covered shading structures to help combat the summer heat and provide habitable outdoor areas
image © joe fletcher

lasvegashouse_marmolradziner
image © joe fletcher

lasvegashouse_marmolradziner

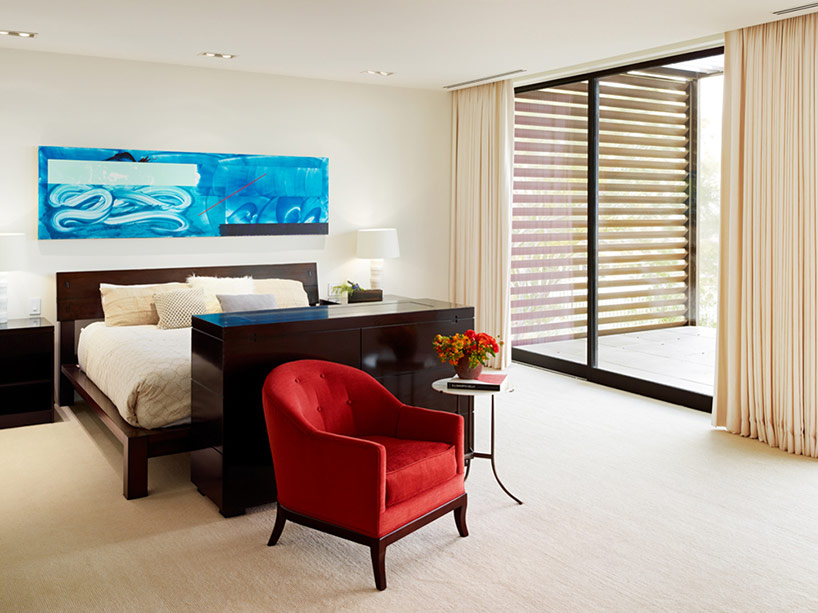

each room in the home enjoys views over the valley
image © joe fletcher

lasvegashouse_marmolradziner
image © joe fletcher

lasvegashouse_marmolradziner

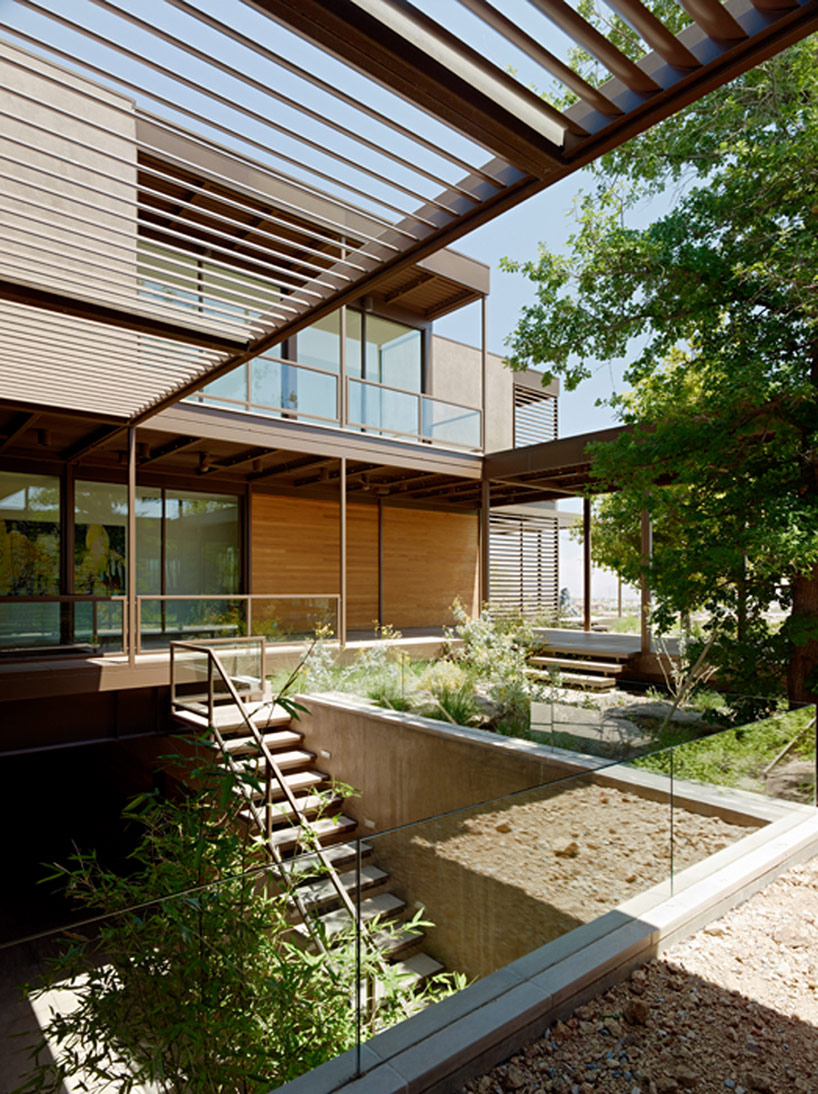

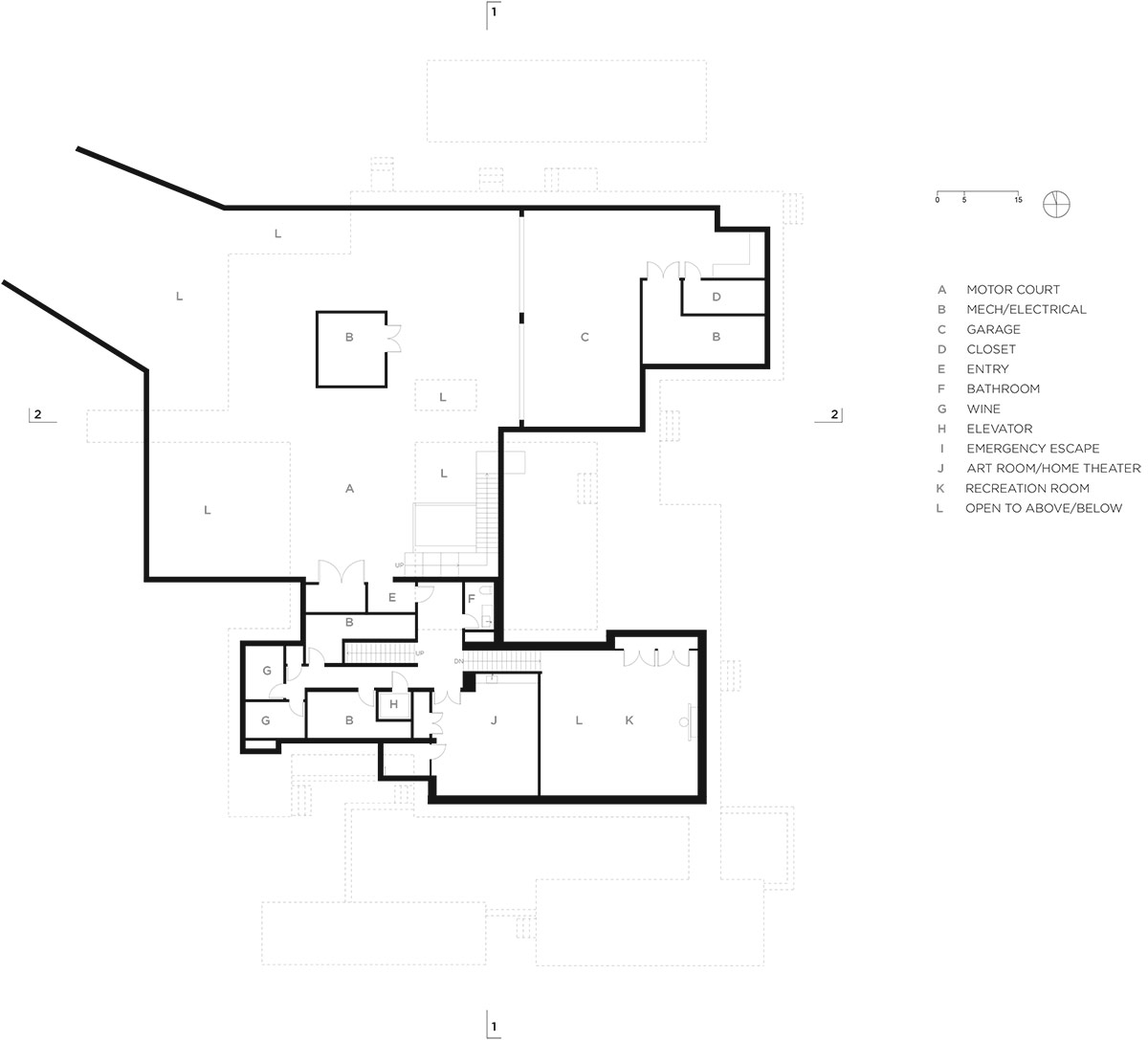

two levels above ground are complemented by a multi-functional space below ground ideal for hotter days
image © joe fletcher

lasvegashouse_marmolradziner

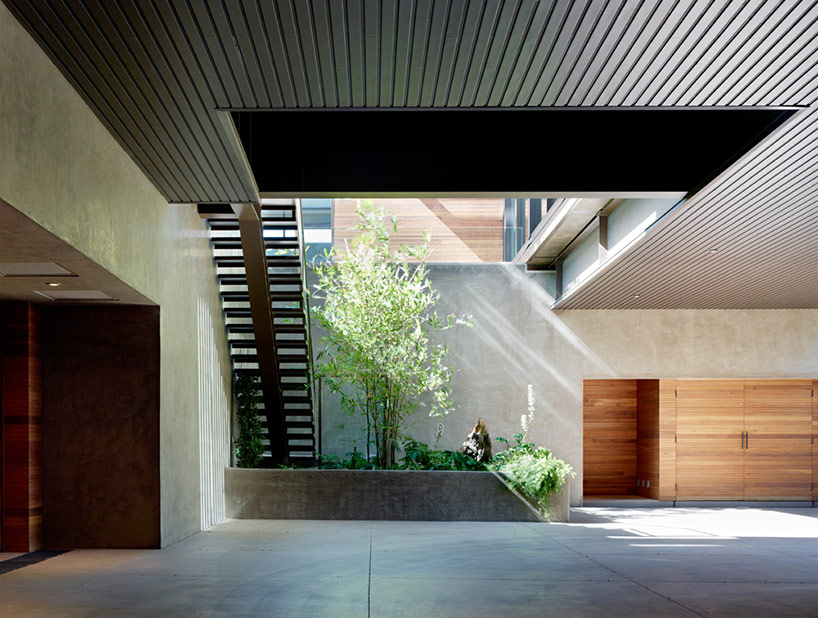

underground parking area
image © joe fletcher

lasvegashouse_marmolradziner

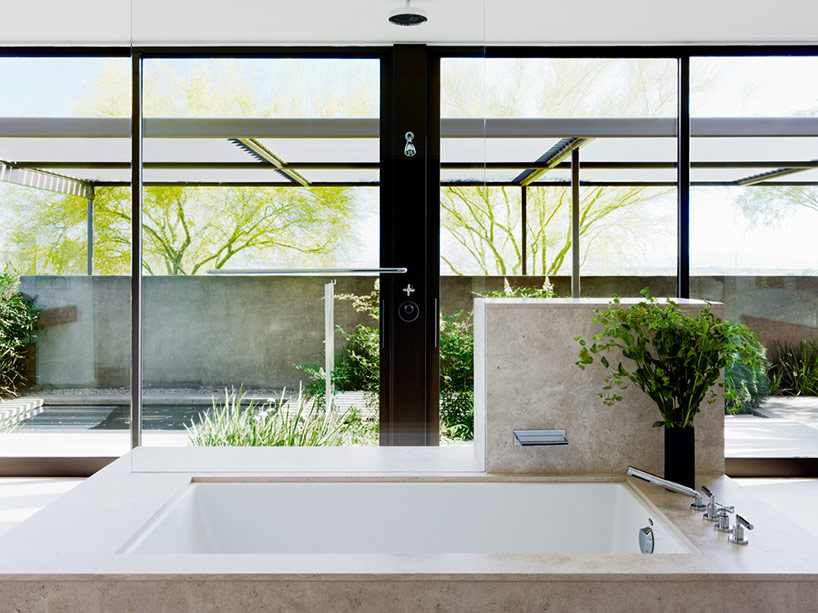

master bathroom
image © joe fletcher

lasvegashouse_marmolradziner
image © joe fletcher

lasvegashouse_marmolradziner
intersecting opaque and transparent planes allow views and block sunlight, forming dynamic spaces
image © joe fletcher

lasvegashouse_marmolradziner
image © joe fletcher

lasvegashouse_marmolradziner
image © joe fletcher

lasvegashouse_marmolradziner
image © joe fletcher

lasvegashouse_marmolradziner

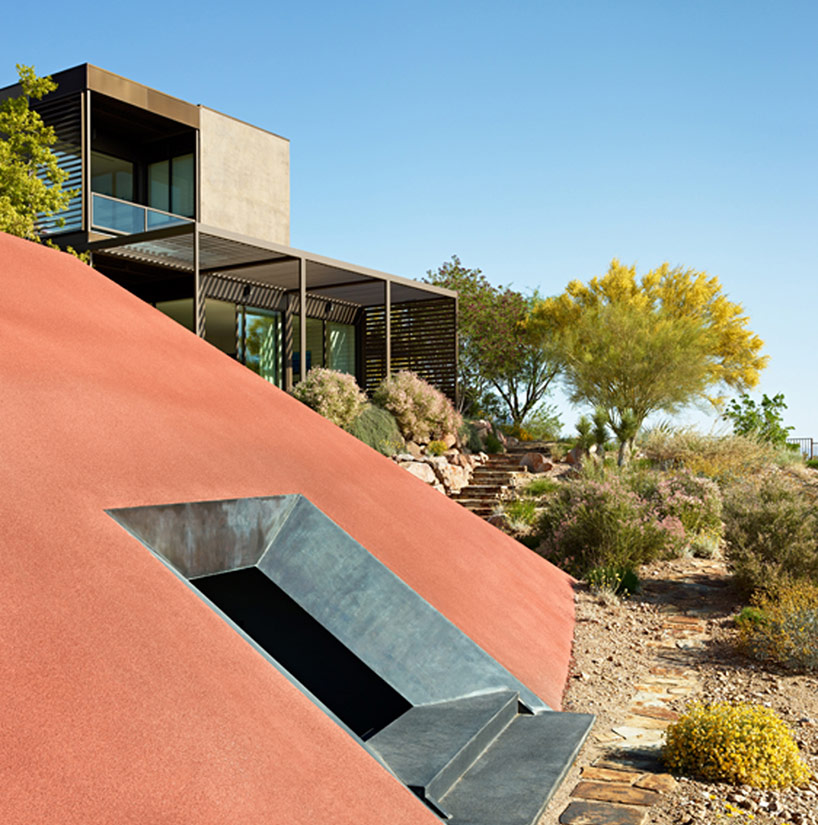

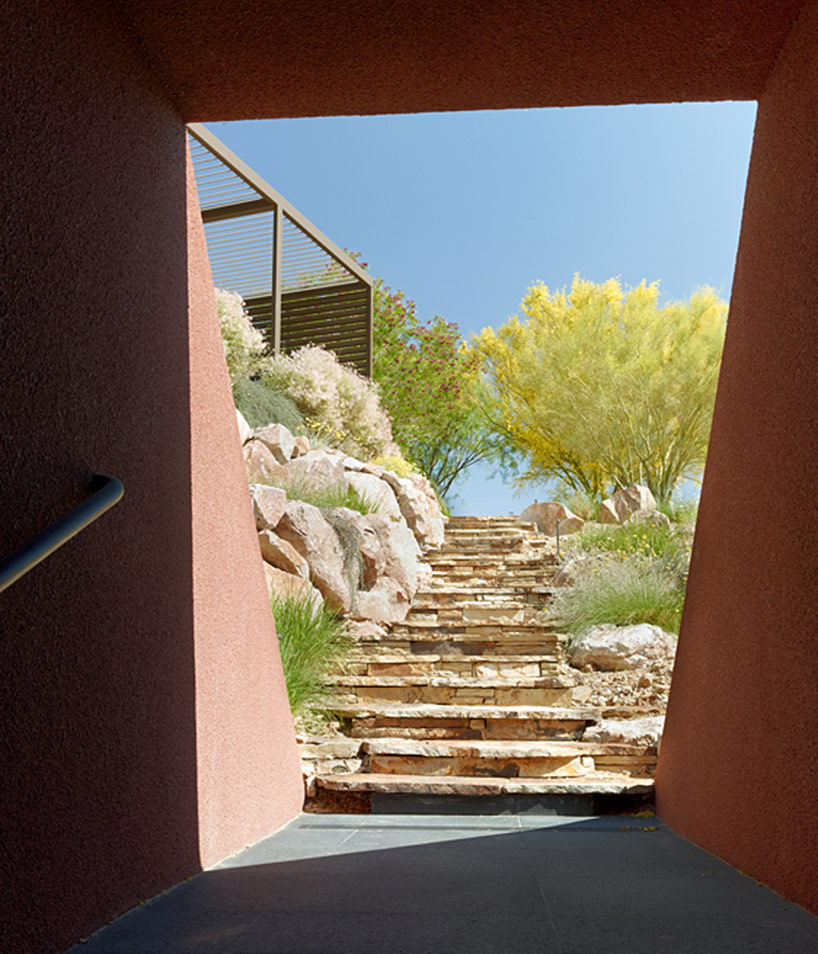

entry into the lightspace
image © joe fletcher

lasvegashouse_marmolradziner

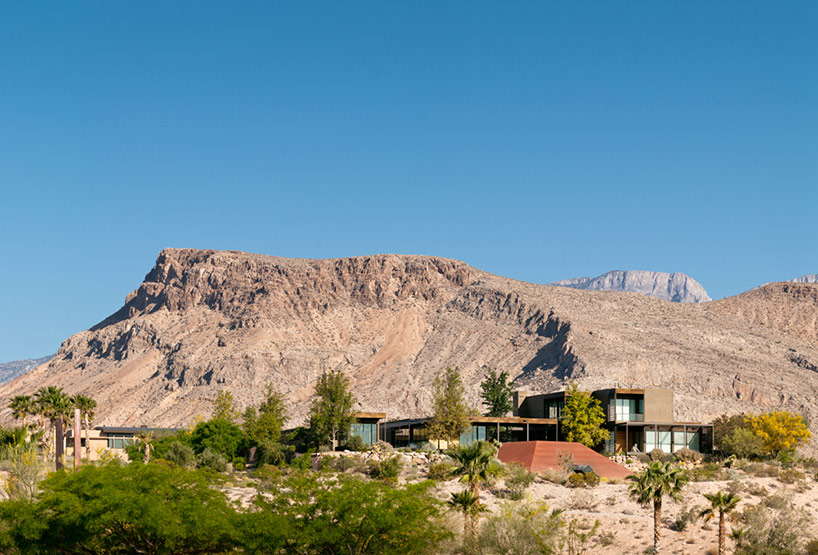

the two-story home maintains a lower profile in the landscape
image © joe fletcher

lasvegashouse_marmolradziner
image © joe fletcher
