jan 06, 2016

michael jantzen designs eco-friendly segmented building system

michael jantzen designs eco-friendly segmented building system

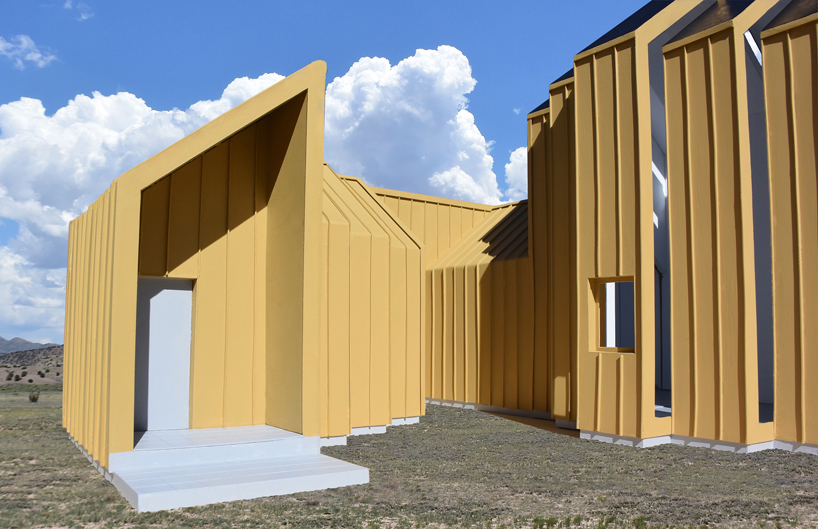

(above) the building system has an extreme design flexibility
all images courtesy of michael jantzen







michael jantzen has designed a segmented building system that is an eco-friendly, energy efficient, prefabricated, and modular. its components consist of four-foot wide segments that vary in height, and can be delivered to the construction site in pieces, or as assembled profiles. each of the segments are made of structural insulated foam panels that are connected together to form a floor, walls, and a roof. the configurations of these panels can make full floor, walls, and roof profiles, and/or half floor, wall, and roof profiles. they can be prefabricated with various kinds of exterior cladding such as metal or cement composite boards, and/or they can be clad at the construction site, after the structural panels have been assembled. any number of segments can be joined together to form any size structure.

michael jantzen designboom
some of the building segments delivered to the site







all of the segments are attached to a prefabricated perimeter concrete foundation shaped to receive the final configuration of the building. the variations of possible layouts with the segmented housing system are extreme, due to the ways in which the full profiles and half profiles can be nested together to grow the structures in any horizontal direction. this approach to construction can also allow for the profile segments to be taken apart and reconfigured again in a different way, at a different site. in this way, the buildings can be recycled without having to destroy it.

michael jantzen designboom
one of many configurations







doors and windows can be placed anywhere and full or half segmented profiles can be shifted side by side with the open space closed off with large glass panels. this segment shifting can be used to form interior spaces that are accented by beautiful daylight pattern penetration and/or to form an unexpected architectural aesthetic. solar panels of various kinds can also be attached to the segments in order to power the structures off of the utility grid. the segmented building system explores ways in which a high degree of sustainable design flexibility can be introduced into the building industry at a potentially low cost.

michael jantzen designboom
moving around the structure

michael jantzen designboom
solar panels are placed on the roofs, generating its own electricity

michael jantzen designboom
some of the segments can be shifted with glass infills

michael jantzen designboom
doors and windows can be placed anywhere and full or half segmented profiles can be shifted side by side

michael jantzen designboom
the variations of possible layouts with the segmented housing system are extreme

michael jantzen designboom
the profile segments can be taken apart and reconfigured again in a different way, at a different site

michael jantzen designboom
detail view of a door built into the half segment profiles

michael jantzen designboom
interior view

michael jantzen designboom
detail view from the inside of the shifted segments with glass infills





designboom has received this project from our ‘DIY submissions‘ feature, where we welcome our readers to submit their own work for publication. see more project submissions from our readers here.



edited by: juliana neira | designboom
