manuel bouzas and santiago del aguila install ‘lucerna’ in spain



‘lucerna’ is a temporary urban installation inserted in the main patio of the purissima concepció monastery in

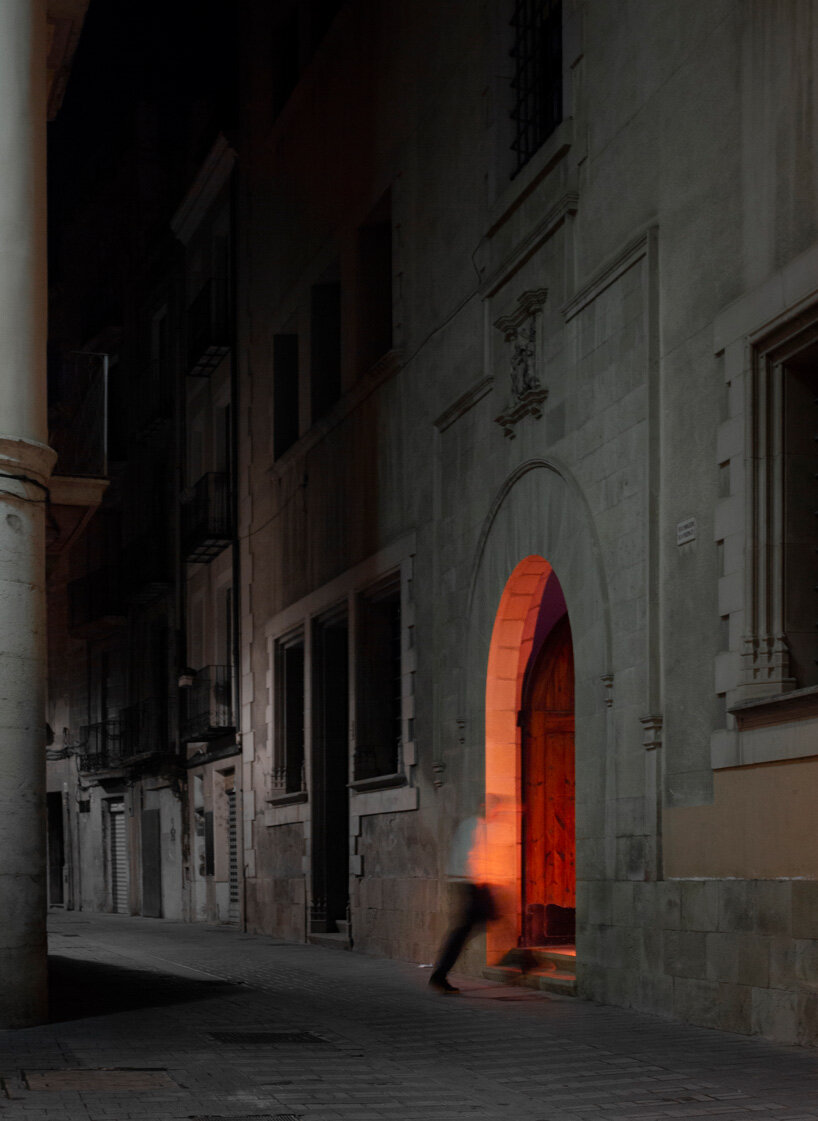

tortosa, spain. designed by bouzas. del aguila, a madrid-based experimental architecture practice led by manuel bouzas and santiago del aguila, the project takes shape as a monumental lamp that radically transforms the 17th-century building through light and color. with a height of more than six meters and a surface area of 55 sqm, the translucent installation becomes a vibrant vessel of light at nighttime, emitting hues that overflow the boundaries of the monastery and reache the street.



‘the conceptual origin of the project stems from the double interpretation of the word lucerna,’ manuel bouzas and santiago del aguila explain. ‘nowadays, this term defines the upper openings which serve to introduce natural light into a space. however, it was also used by the romans to name the ancient ceramic oil lamps that produced light in the dark. in other words, the first lamps in history.’ as such, the installation explores the intersection between both notions to present a contemporary reinterpretation of the classic lamps that used to illuminate the most iconic sacred spaces in history.

monumental lamp installation lights up the main patio of a 17th century monastery in spainall images by antonio bouzas





MONUMENTAL LAMP WRAPPED IN translucent fiberglass



bouzas. del aguila developed ‘lucerna’ for the ‘a cel obert’ architecture festival 2021, which took place last fall in tortosa, spain. seeking to promote the heritage value of the city’s historic center, the festival opens numerous patios and cloisters to the city through a series of temporary installations. the spaces where communities used to meet in the past, are reactivated through architecture and art.



in collaboration with lighting designer ana barbier, the architects built the monumental lamp with six wooden rings, which are covered by a led light strip on their inner edges. the project hangs down from the cornice of the monastery’s main patio through a light structure made up of wires and turnbuckles. a corrugated translucent fiberglass membrane covers the rings to guide both natural and artificial light to the ground. a small staircase right below the installation lifts visitors up to the interior of the lamp, allowing them to discover the ‘cel obert’ (open sky), framed by the organic shape of the piece.

monumental lamp installation lights up the main patio of a 17th century monastery in spain bouzas. del aguila
visitors are invited to discover and reactivate the forgotten and hidden spaces of the city

monumental lamp installation lights up the main patio of a 17th century monastery in spain

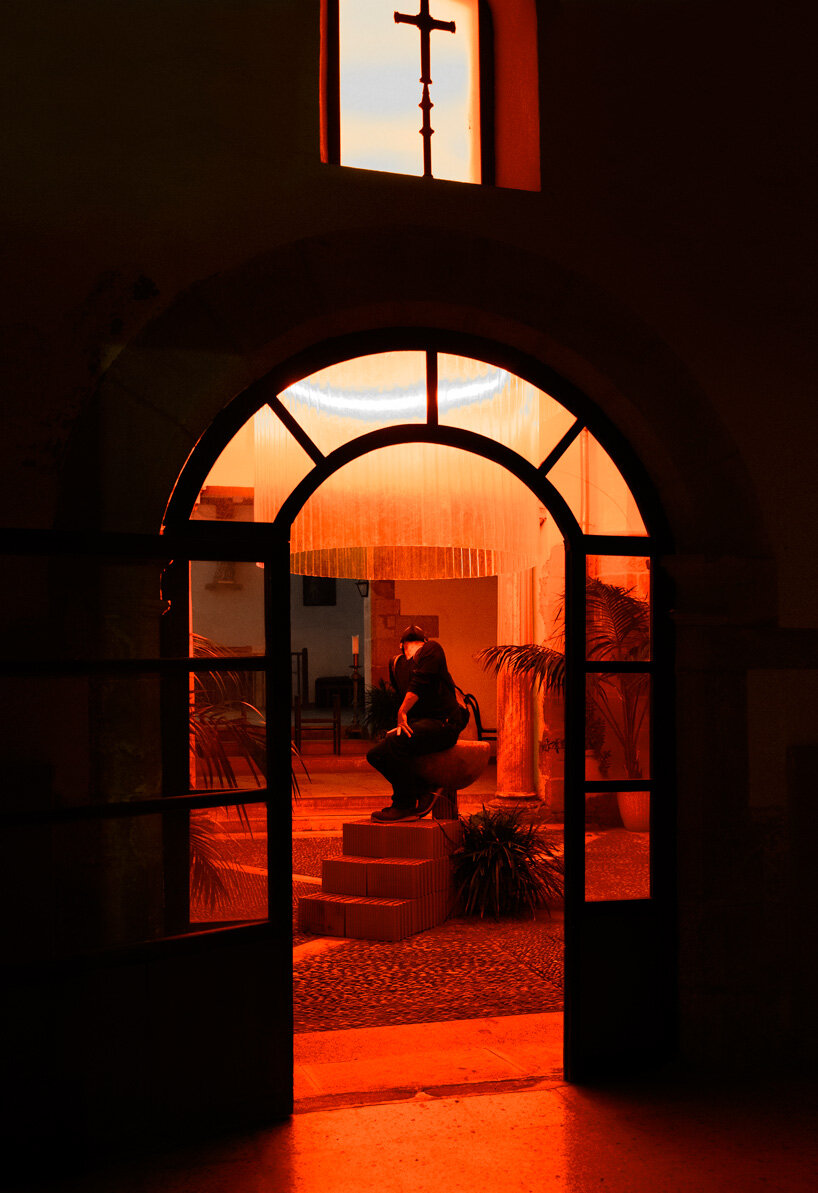

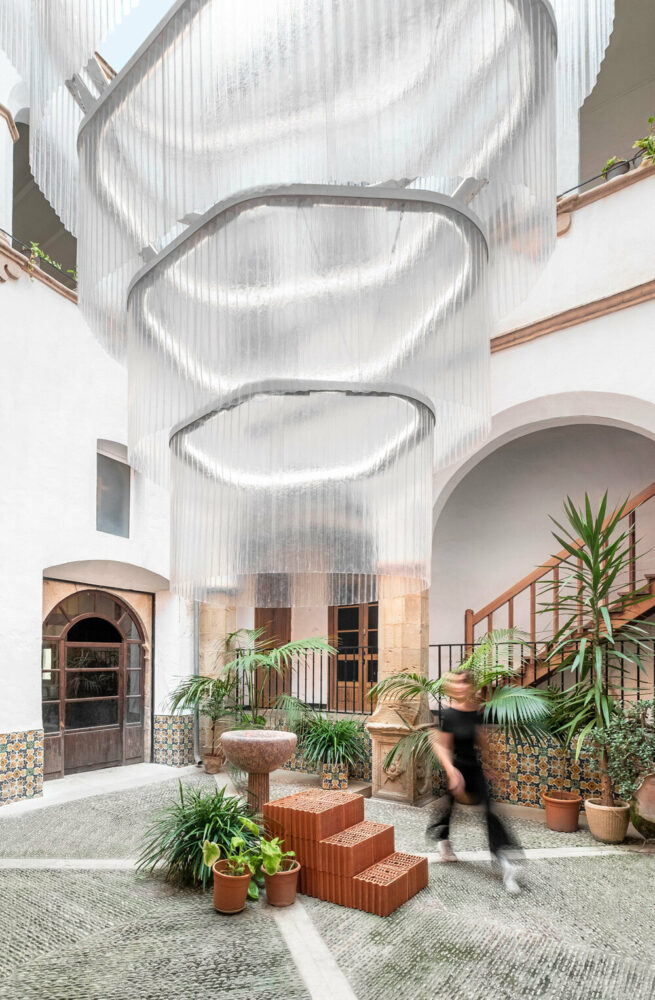

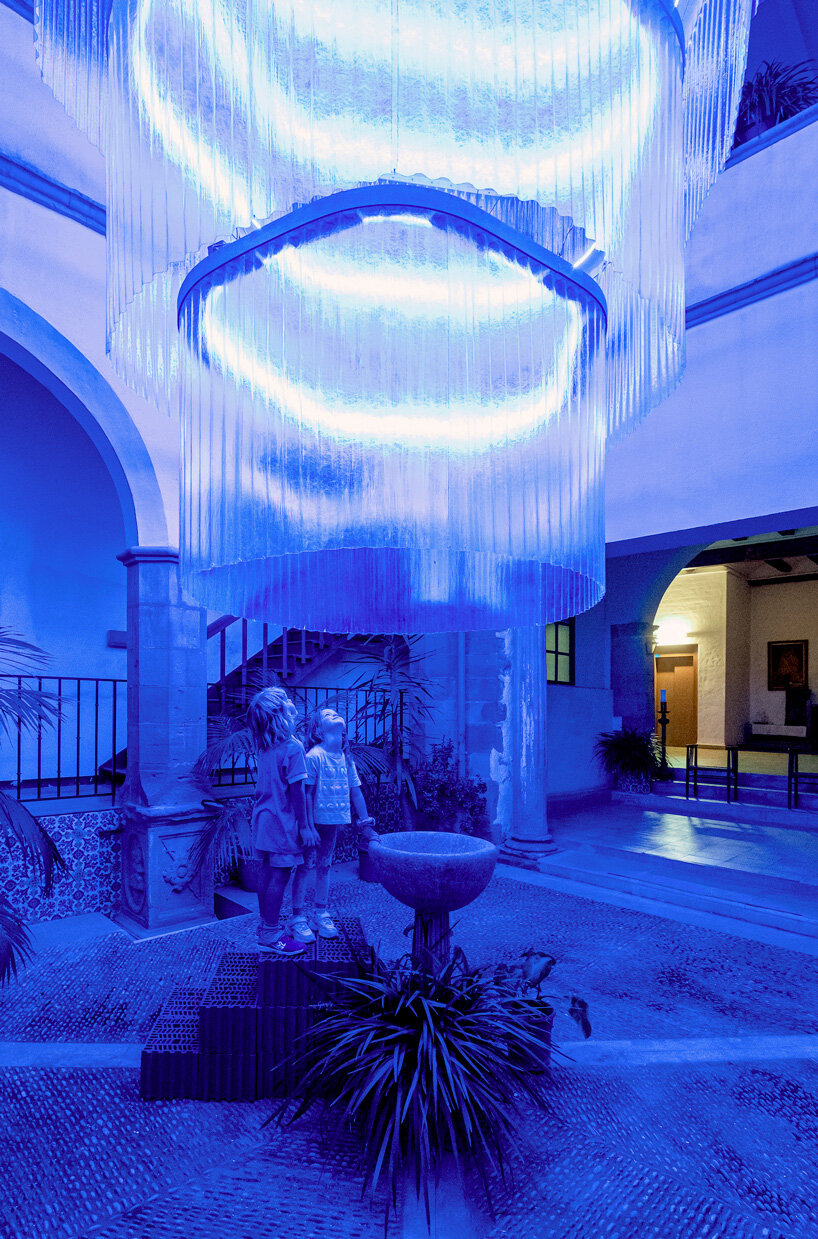

when night falls, the lamp becomes a vibrant vessel of light

monumental lamp installation lights up the main patio of a 17th century monastery in spain bouzas. del aguila
the installation transforms the patio through its brightness and color

lucerna-monumental-lamp-spanish-monastery-temporary-installation-bouzas-del-aguila-designboom-large

bouzas. del aguila

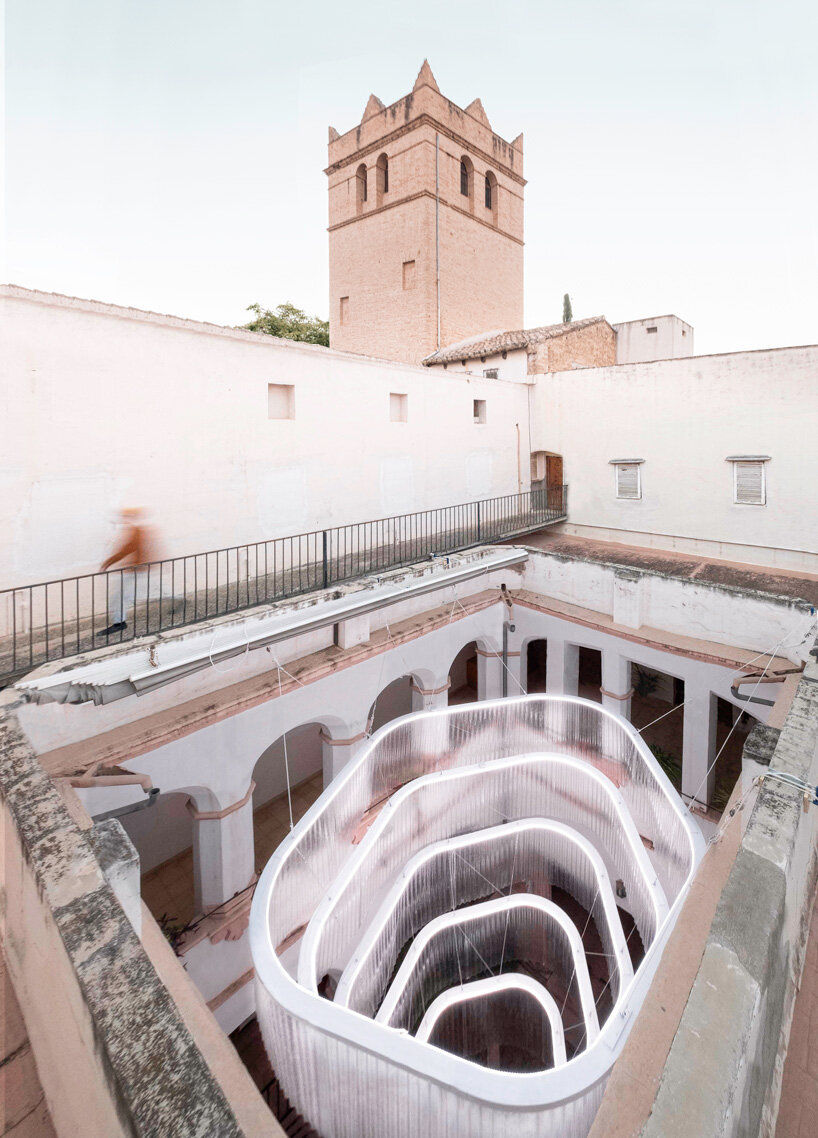

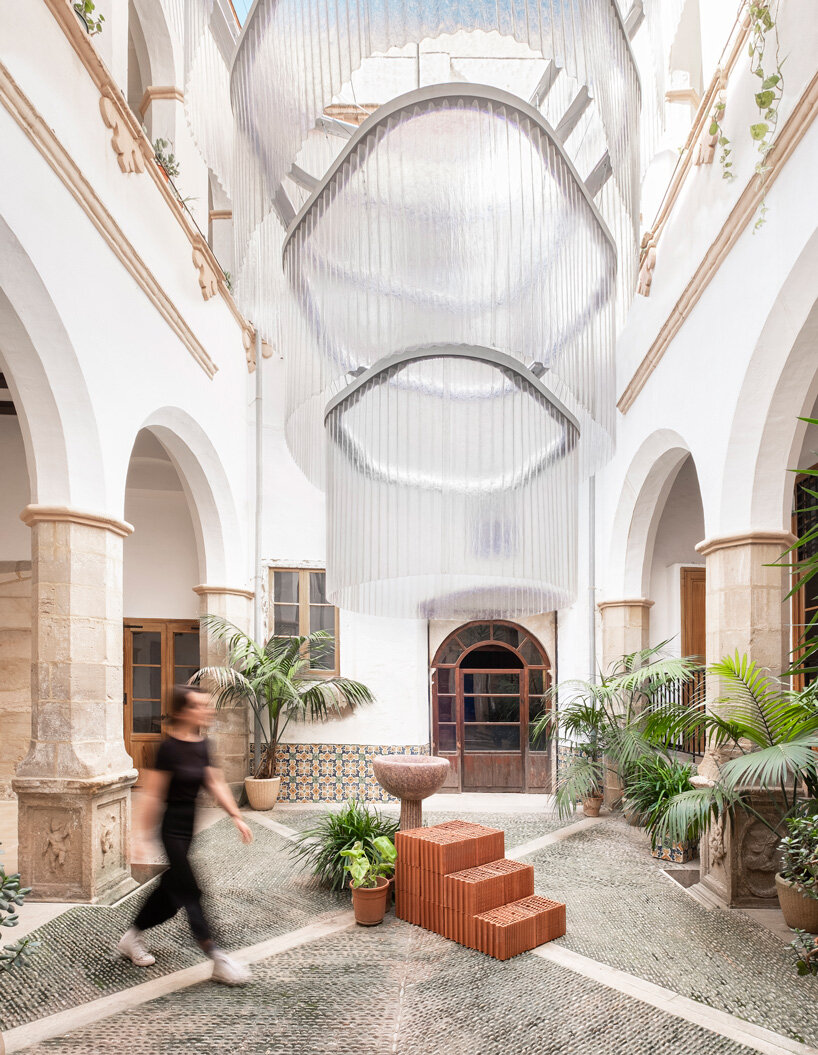

the project hangs down from the cornice of the monastery’s main patio

bouzas. del aguila
small staircase right below the installation lifts visitors up to the interior of the lamp

1/14
monumental lamp installation lights up the main patio of a 17th century monastery in spain

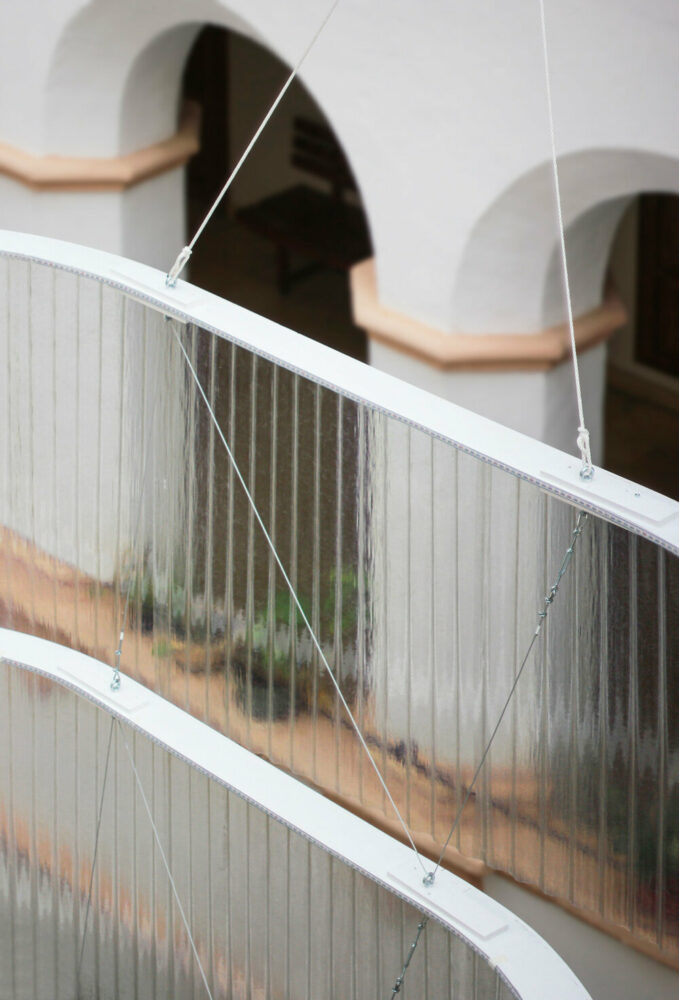

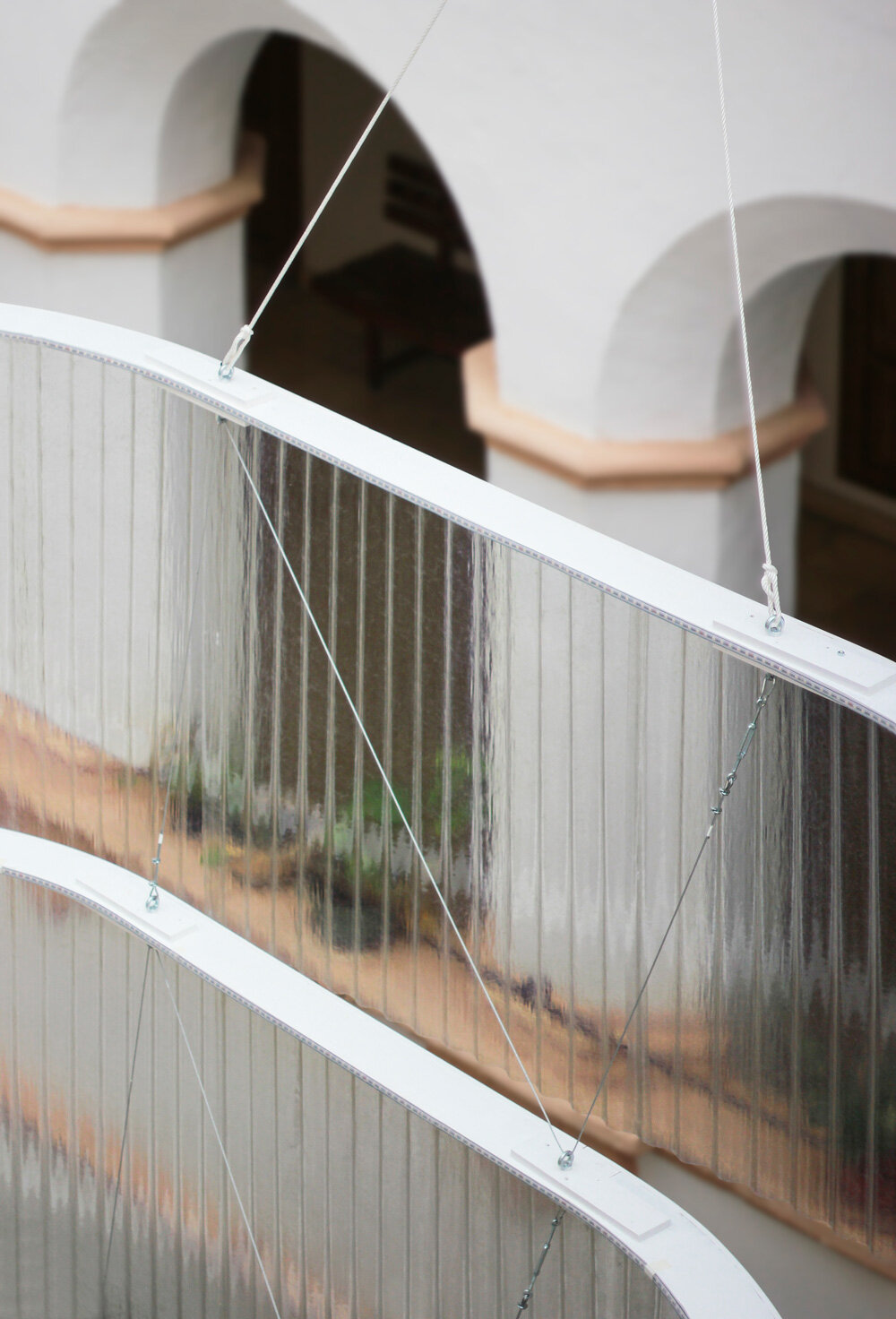

corrugated translucent fiberglass membrane covers the rings
corrugated translucent fiberglass membrane covers the rings

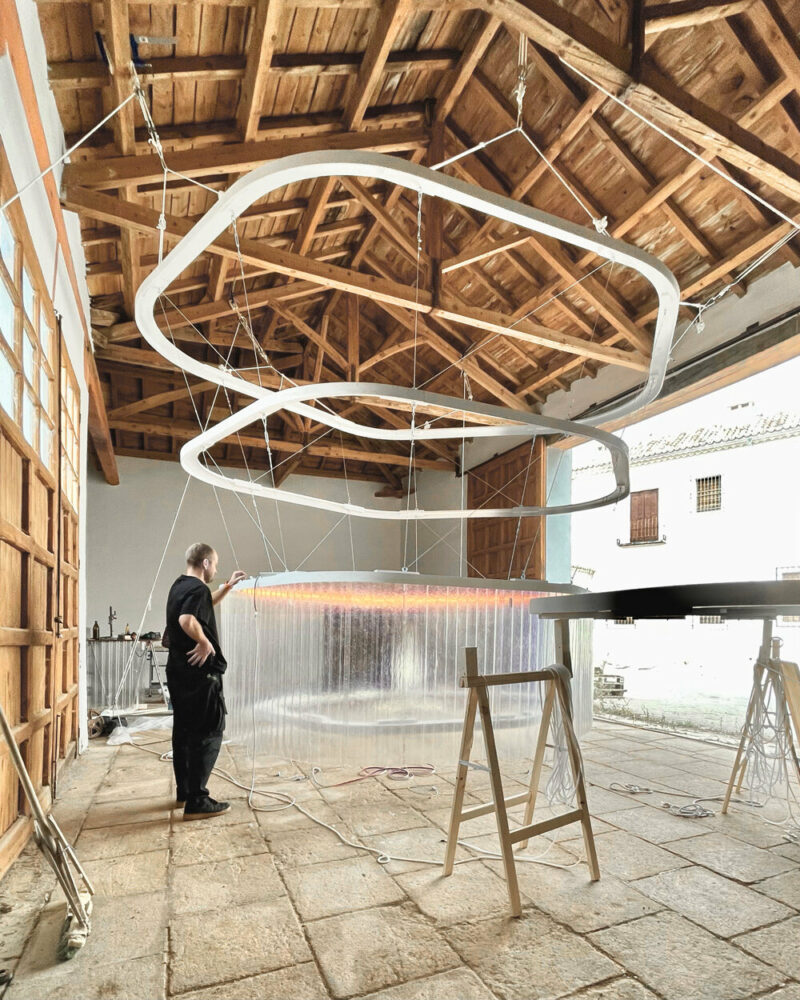

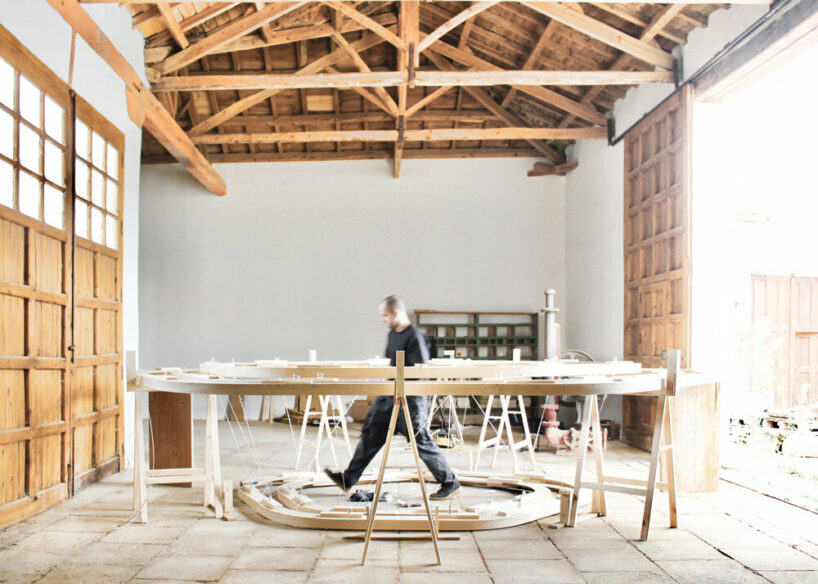

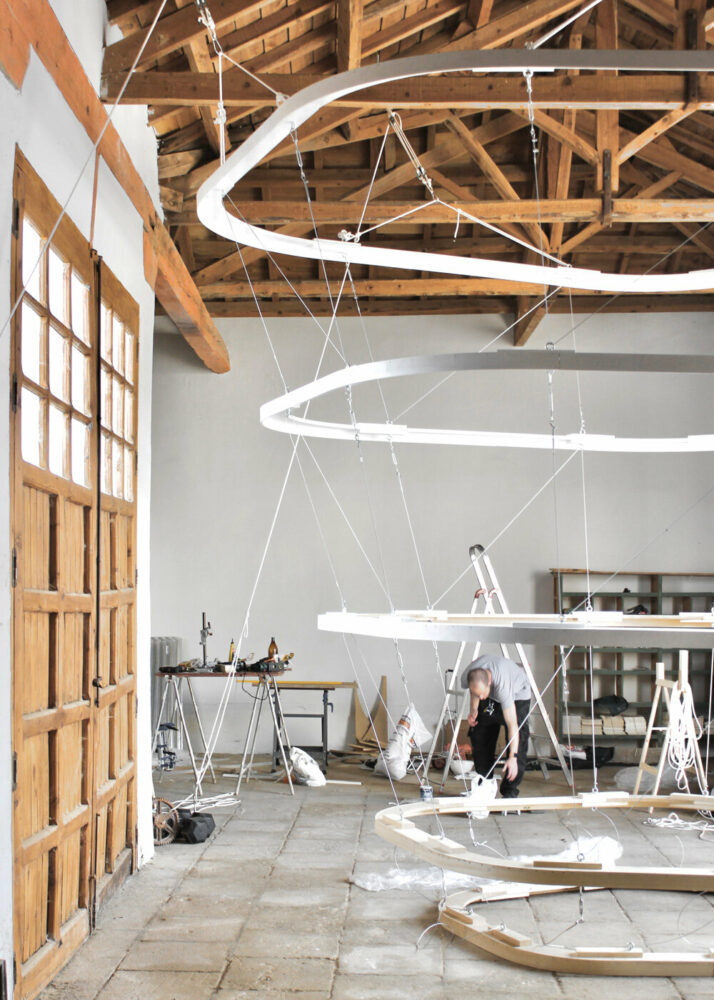

construction process
construction process
construction process
construction process
construction process
construction process

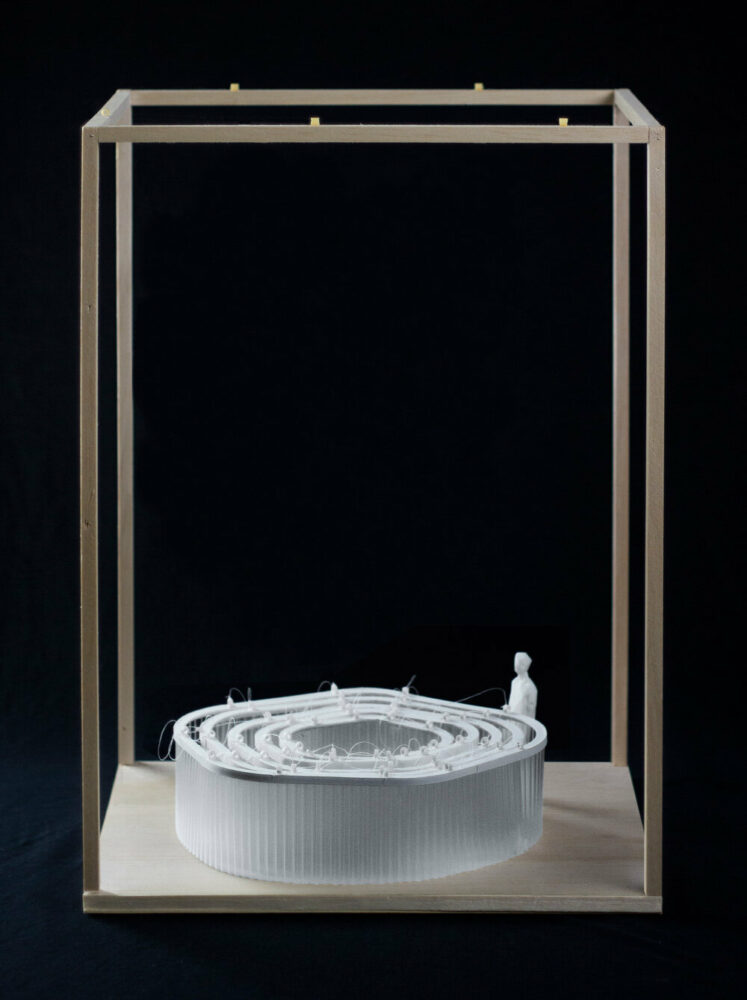

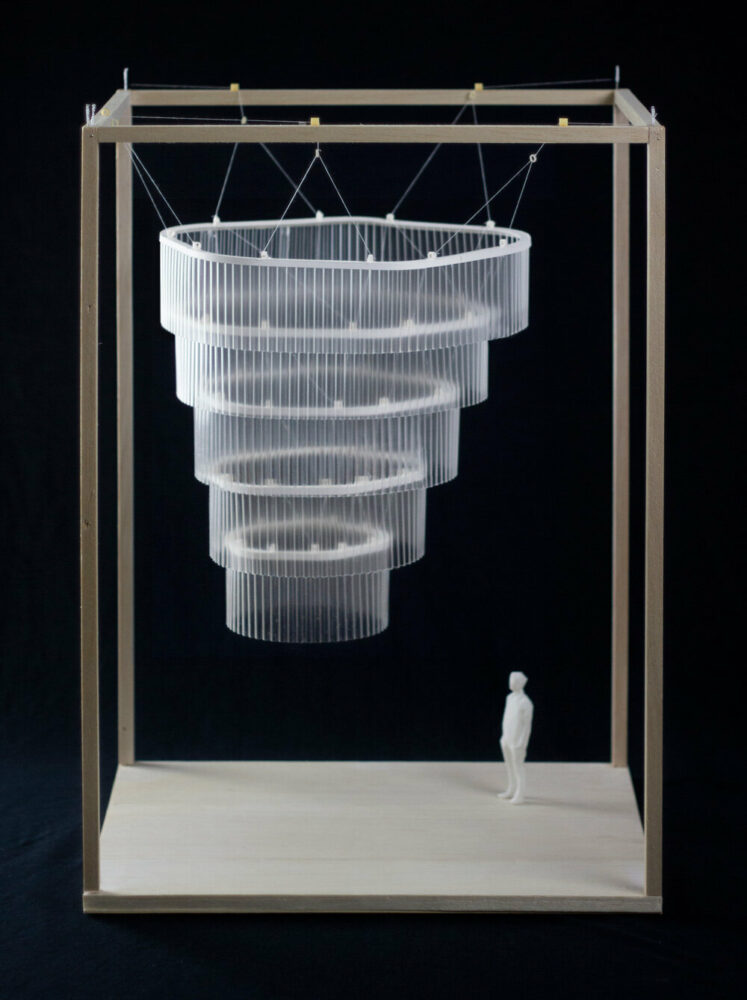

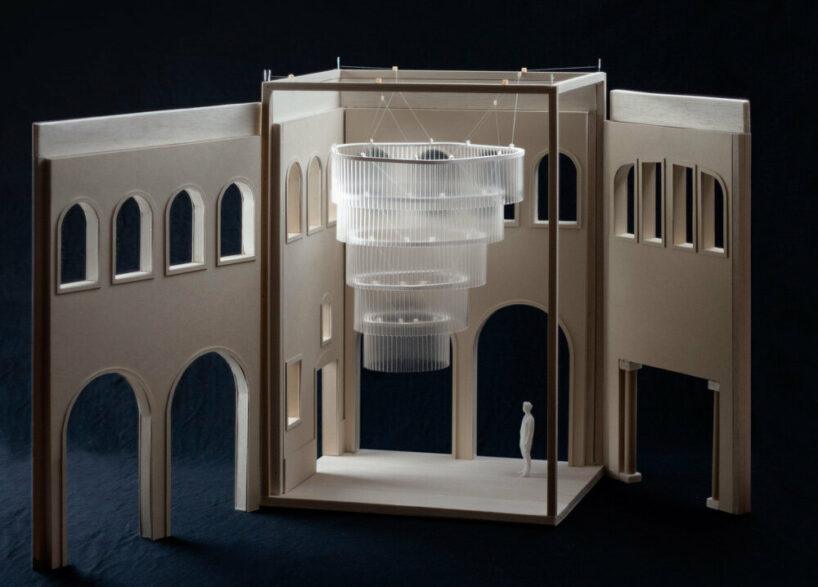

architectural model
architectural model
monumental lamp installation lights up the main patio of a 17th century monastery in spain

monumental lamp installation lights up the main patio of a 17th century monastery in spain

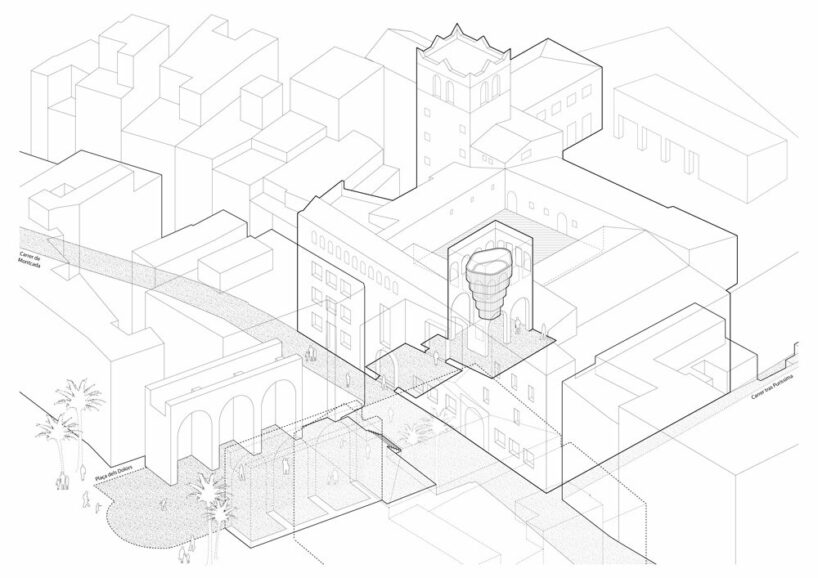

context drawing
context drawing

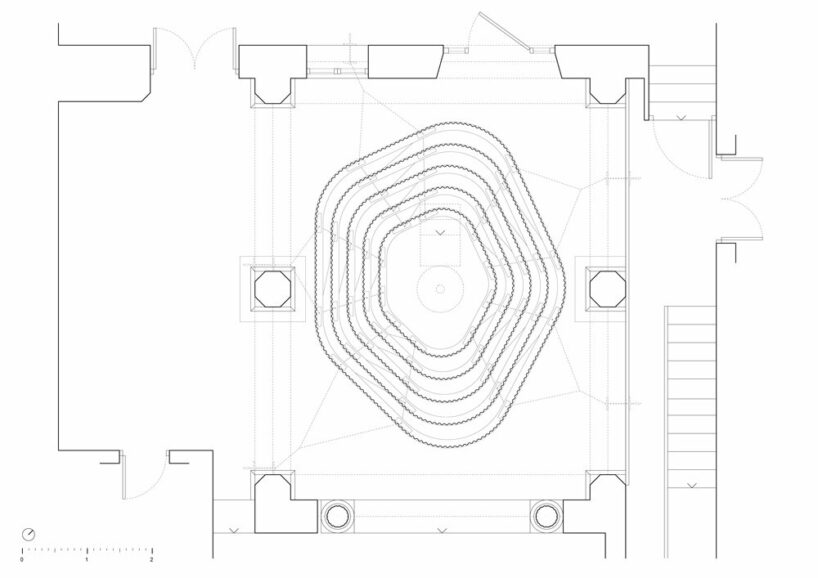

floor plan
floor plan

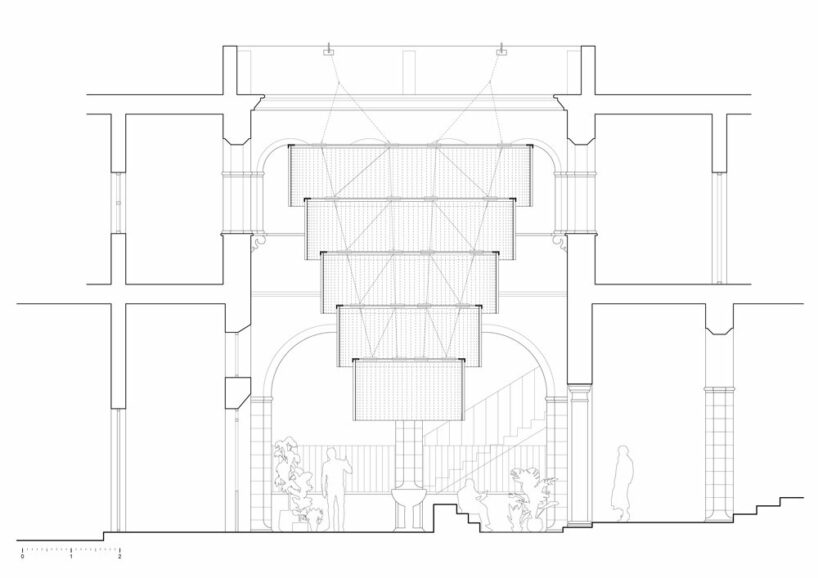

cross section
cross section

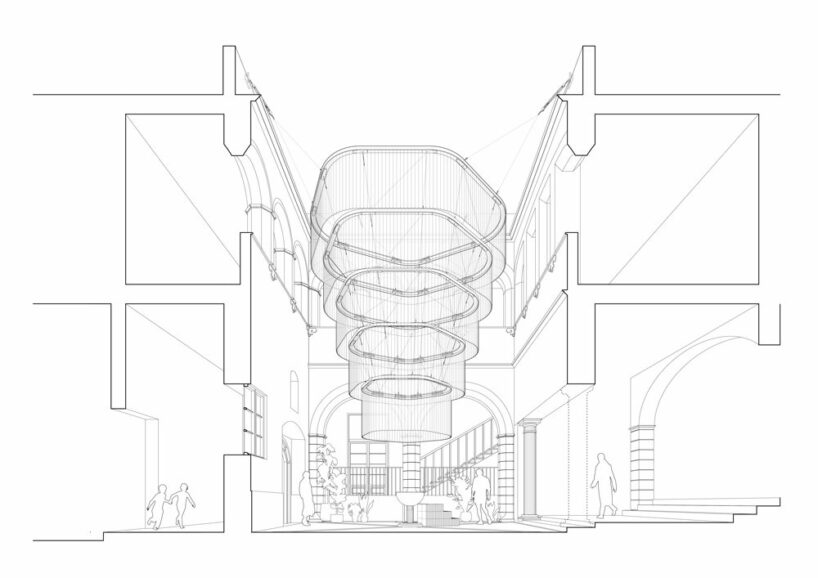

elevation
elevation

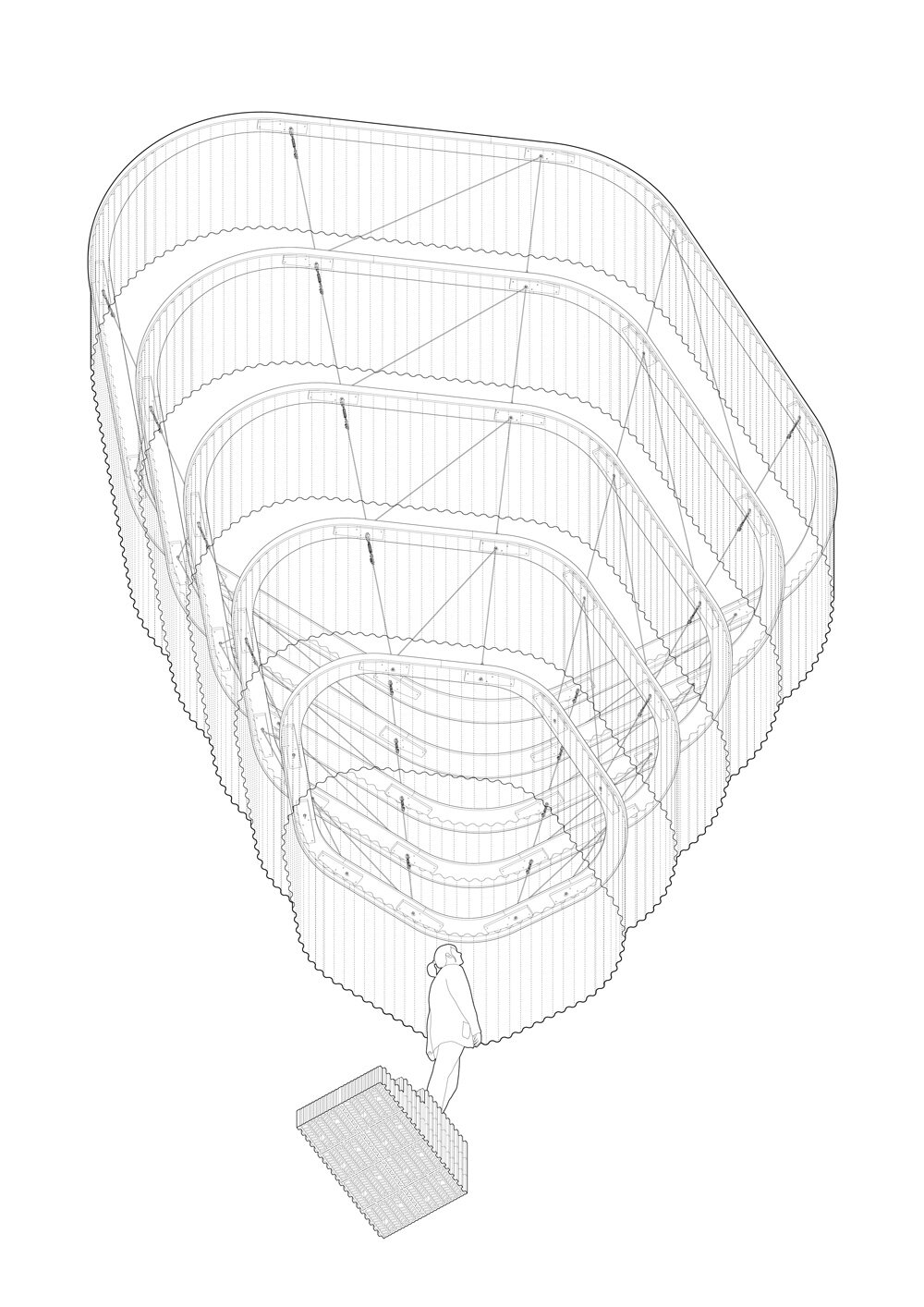

axonometric
axonometric

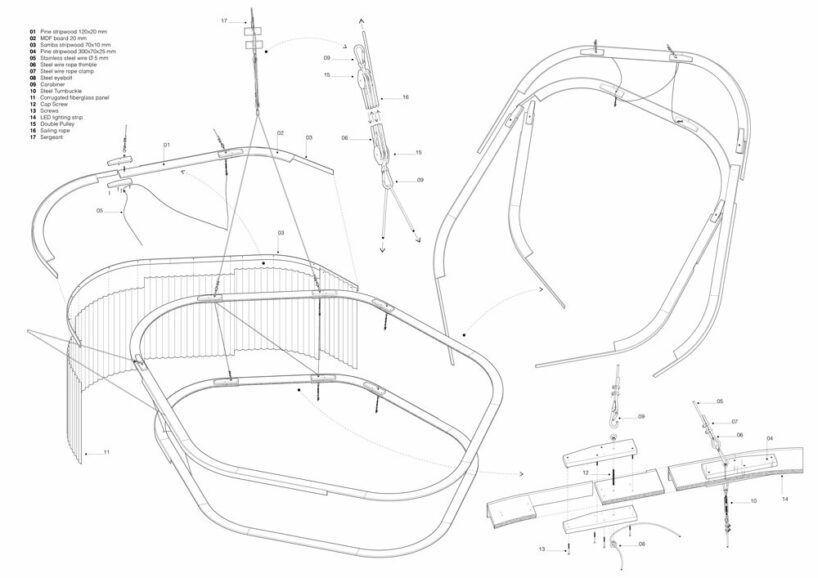

detail
detail

project info:



name: lucerna

architect: bouzas. del aguila | manuel bouzas + santiago del aguila

lighting designer: ana barbier
client: a cel obert, xarxa transversal
collaborators: difusiona, casambi
photography: antonio bouzas
