jojutla bridge to restore infrastructure



OMA has unveiled plans for a 145-meter pedestrian bridge to connect communities in the rural town of jojutla de juárez in mexico. the new ‘jojutla bridge’ will replace a preexisting main bridge and forms part of larger reconstruction efforts by infonavit after a devasting 7.1 magnitude earthquake in 2017.



‘we are beginning to face natural disasters more frequently and the wide-ranging impacts demand more public spaces and resources to be integrated into resiliency design,’  says OMA partner, shohei shigematsu. ‘in the wake of mexico’s recurring earthquakes, the jojutla bridge aims to restore infrastructure as well as the spirit of community.’

OMA jojutla bridge
image courtesy of OMA new york





designed to connect communities



when approaching the design, OMA looked at the ‘brittle’ existing infrastructure of jojutla and its fragile relationship to the apatlaco river, which divides the city’s urban center from north to south.



the project team, led by shigematsu, resolved to design a new bridge that facilitates a much-needed link between currently disconnected communities, creates a new commercial axis, and transforms the riverbank into a rehabilitated zone of activities in an effort to turn the river into a community resource rather than a threat.

OMA jojutla bridge
image courtesy of OMA new york





a linear form bent into shape

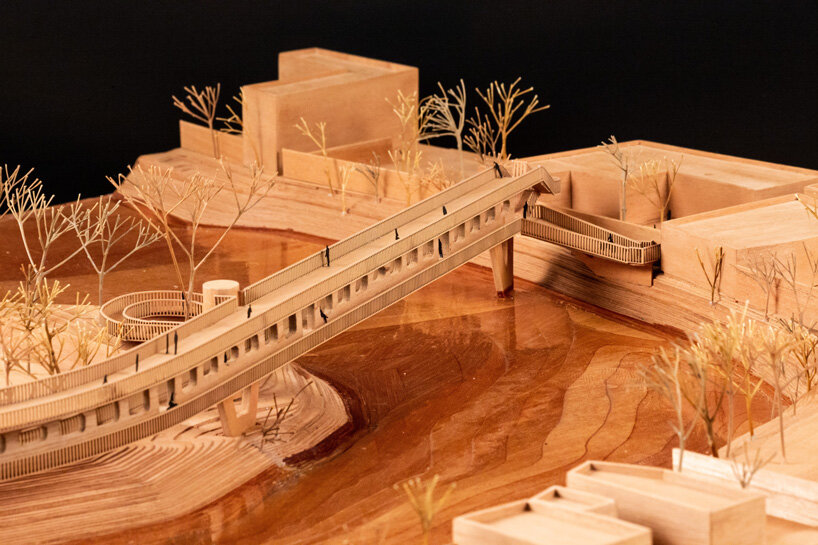

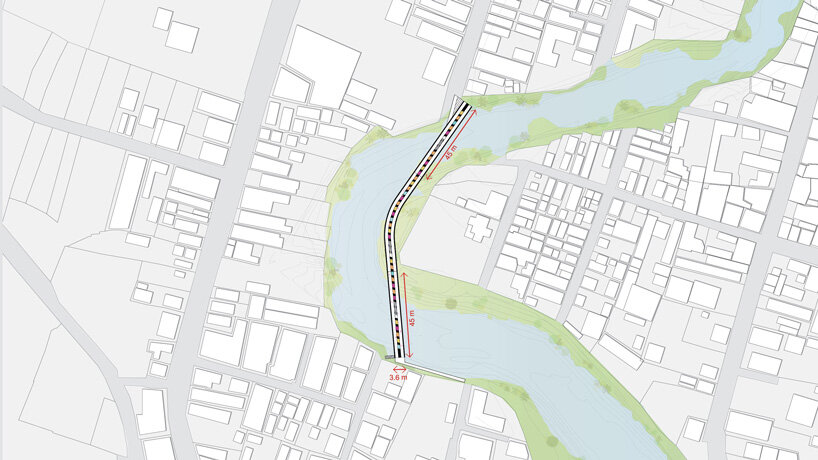

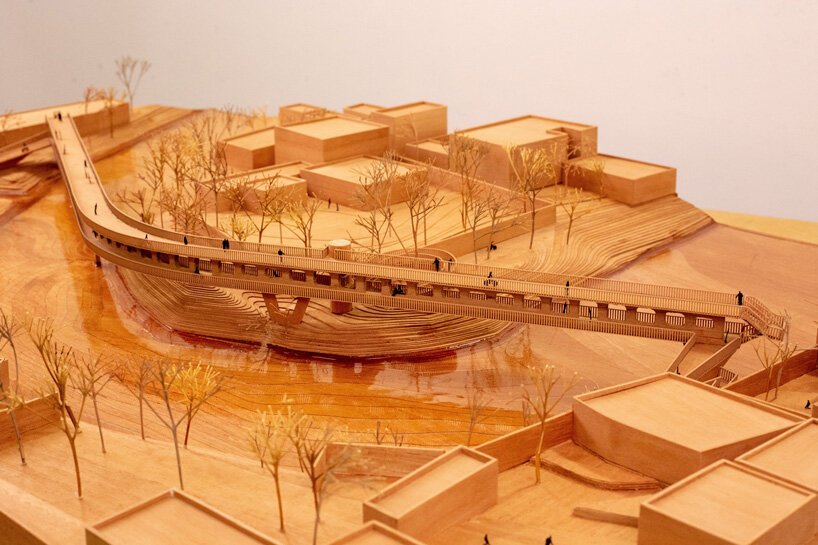

the planned bridge crosses the river twice in a slightly bent shape. this form anchors the new infrastructure to three distinct points of jojutla: panchimalco, a colony south of the municipal capital; the blocks at the bottom of pacheco alley, in close proximity to the historic center; and the juarez neighborhood, the most central but most damaged by the earthquake.



shigematsu continues, ‘its two datums simultaneously reconnect not two, but three, fractured neighborhoods, anticipate disasters beyond earthquakes by mitigating potential flooding, and provide new amenities to revitalize people’s relationship to a river that’s currently feared or overlooked.’

OMA jojutla bridge
image courtesy of OMA new york





akin to a large i-beam

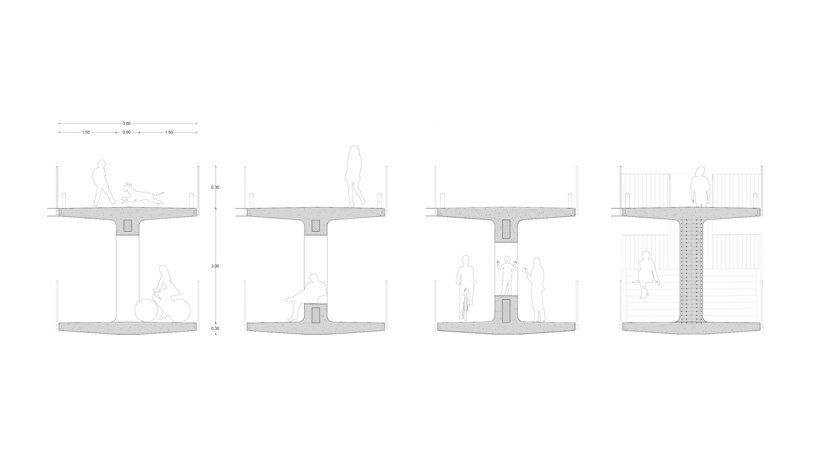

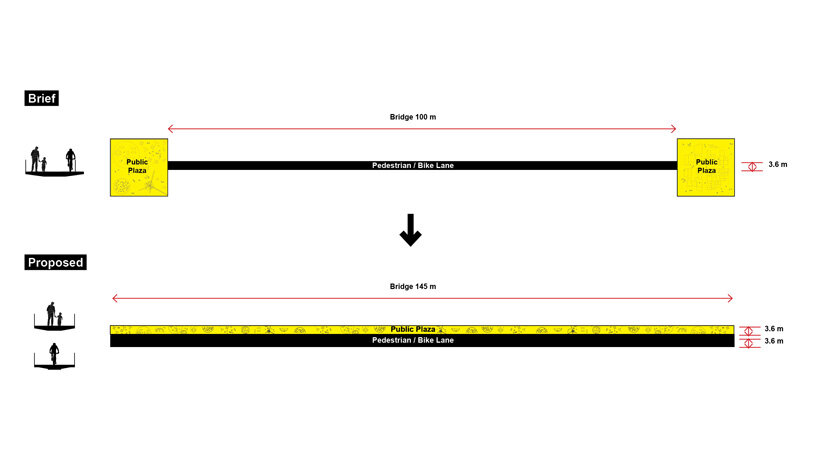

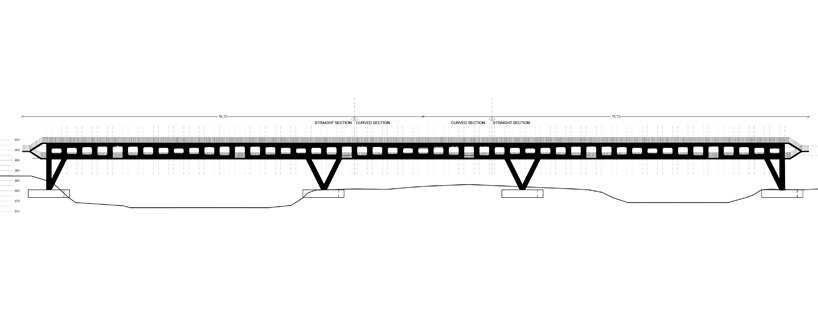

jojutla bridge will be made from concrete and takes the form of a massive I-beam, allowing for decks on two levels. the upper deck simultaneously provides a higher datum in anticipation of water level rise and shade for the dedicated
pedestrian and bicycle paths below.

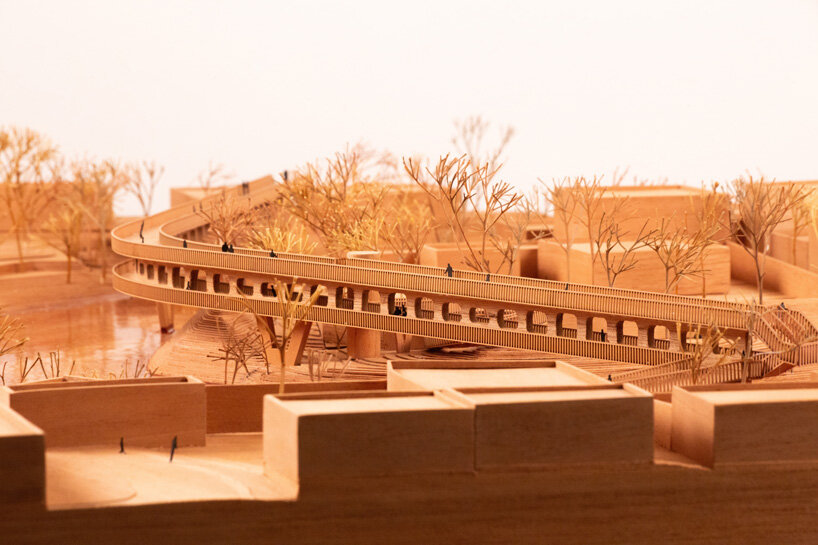

the I-beam form also creates occupiable spaces along the entire length of the bridge. habitable openings at various sizes serve as undefined spaces that accommodate a diversity of activities. windows open up the bridge to its surroundings and frame the landscape around it. unobstructed, the upper deck provides the opportunity to incorporate a linear park, plaza, and market to encourage a new commercial axis as a connector of disparate communities.

oma-jojutla-bridge-mexico-designboom-04X

image courtesy of OMA new york





1/7
image courtesy of OMA new york/CCA, model and photography by CCA
image courtesy of OMA new york/CCA, model and photography by CCA
image courtesy of OMA new york/CCA, model and photography by CCA
image courtesy of OMA new york/CCA, model and photography by CCA
image courtesy of OMA new york/CCA, model and photography by CCA
image courtesy of OMA new york/CCA, model and photography by CCA
image courtesy of OMA new york
image courtesy of OMA new york
image courtesy of OMA new york
image courtesy of OMA new york
image courtesy of OMA new york
image courtesy of OMA new york
image courtesy of OMA new york
image courtesy of OMA new york

project info:



name: jojutla bridge

architecture: OMA
client: infonavit (instituto del fondo nacional de la vivienda para los trabajadores/national workers’ housing fund institute)
location: jojutla de juárez, morelos, mexico
site: town located within the sub-basin of the atoyac river and its surrounding areas divided by a main tributary, apatlaco river
status: 2018 concept design, 2021 fundraising and development
total bridge area: 1,400 sqm (15,100 sqft)
bridge length: 145 m (476 ft)



project team:
partner-in-charge: shohei shigematsu
project architect: shary tawil
team: francisco waltersdorfer, vicky daroca, patricio fernandez
executive architect: CCA/bernardo quinzaños
structure: WSP
