a 283-meter-long footbridge warps and curves above city traffic in spain

set in las palmas, the onda atlántica footbridge sports a distinct V-shaped profile that seems to warp effortlessly over public spaces and city traffic.

Thus Newswire edited by lea zeitoun January 28, 2022 5 min

onda arquitectura + checa arquitectura complete onda atlántica footbridge in las palmas, gran canaria

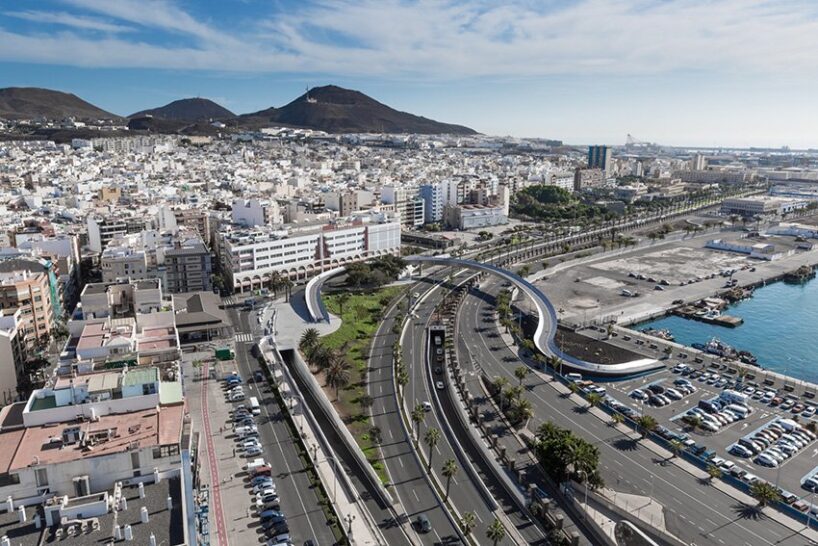

spanning 283 meters in length, the onda atlántica footbridge sits at an isthmus in the spanish city of las palmas, where tides used to cross over not long ago. urban development, however, had progressively distanced these tides to create the las canteras beach and port area. the city today aims to reconnect those two zones through recreational and leisure activities along the waterfront — and onda atlántica is one of the many new and ambitious plans to make that vision a reality.

local firms onda arquitectura and checa arquitectura were commissioned to design and build the bridge as a unique structural system that is both sturdy and light in its appearance. photographed by iwan baan, the following images reveal the sculptural nature of onda atlántica, with its distinct V-shaped profile that penetrates two plazas at its landings — giving the illusion of continuation underneath them.

a sturdy urban sculpture that warps and curves effortlessly

the footbridge stretches over public spaces without any apparent tectonic effort. it showcases three dramatic, 63-meter spans without any intermediate supports, denoting an unexpected sense of lightness. moreover, its undulating shape that originally results from site constraints dodges the existing trees while improving structural performance — allowing a design with no expansion joints to take shape. ‘the programmatic requirements for pedestrian, cyclists and accessible crossing are resolved with a unique and simple infrastructure, avoiding any differentiated elements such as stairs and auxiliary elevators,’ states the architectural team.

the V-shaped profile, meanwhile, came from a need to mitigate the acoustic impact from the highway underneath; it offers charming views to the city while providing natural light over the entire path. this distinct triangular form also turns the bridge into a two-dimensional volume at certain angles, creating the illusion of a curved sheet of paper.

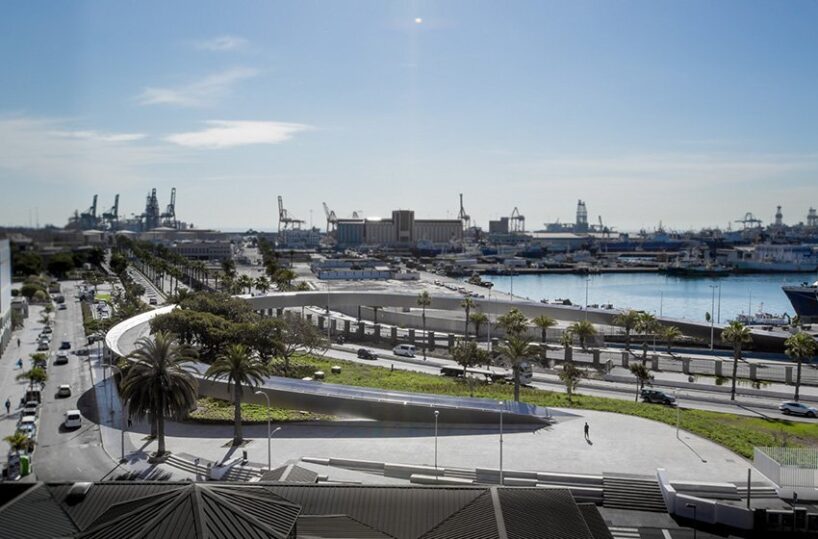

footbridge as large urban sculpture 2 — the footbridge facing the port of las palmas | images © iwan baan, javier haddad

‘the result is a highly innovative structural system, an extremely efficient triangular profile shape not common in the world of bridges engineering, capable of spanning the required curved distances with a great performative agenda and a minimalistic aesthetic,’ reveal the architects. see more of onda arquitectura’s works here, and checa arquitectura’s here.

footbridge as large urban sculpture 5 — onda atlántica ends on the pier of the cruise boats

building a hyper-functional structure inspired by naval engineering designs

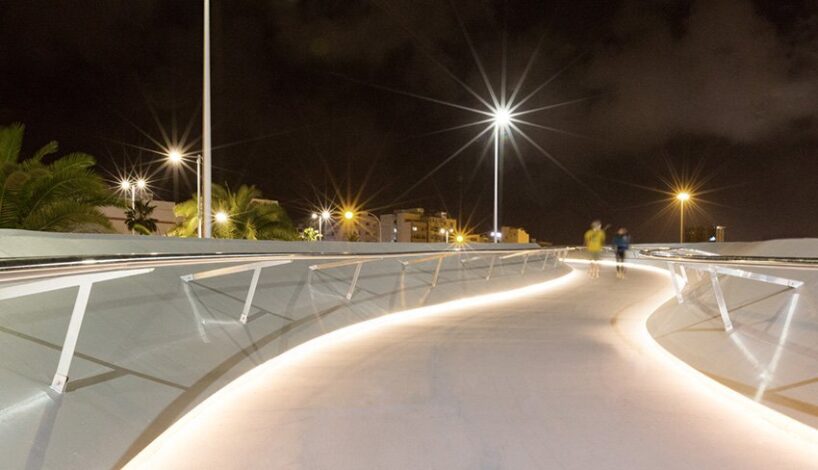

with a width of 3 meters and a maximum slope of 6%, the floor level of onda atlántica reaches a maximum height of 7.60 meters above street level, turning into a new viewing point for city dwellers. it also allows a minimum gauge of 5.50 meters at the highway, exceeding up to 6 meters at specific points.

essentially, the architects developed a structural scheme inspired by naval engineering designs — giving every component of this footbridge a structural function, except for the handrails. with that said, they adopted a system of ribs or frames arranged every 3.2 meters while tied up by 10-12mm steel plates. the 18 pieces that made up the final structure, weighing up to 40 tons apiece, were assembled at a metallurgical shop in seville and then transported by ship to the site. the bridge was later coated in a three-layer paint with a metallic finish that helps it, depending on daylight, blend into the urban fabric and ensures protection against the highly corrosive maritime conditions.

footbridge as large urban sculpture 4 — the crossings intersects at various levels to create a public square

finally, two public spaces have been redesigned to accommodate the footbridge landings. on one side, a fluid plaza receives all converging pedestrian traffic, designed with undulating green shapes that can be seen from above as a horizontal vegetal painting. on the other side, a non-walkable landscape reproduces a volcanic topography by reclaiming rocks from the neighboring isleta mountain.

footbridge as large urban sculpture 6 — the structural scheme nods to naval engineering designs

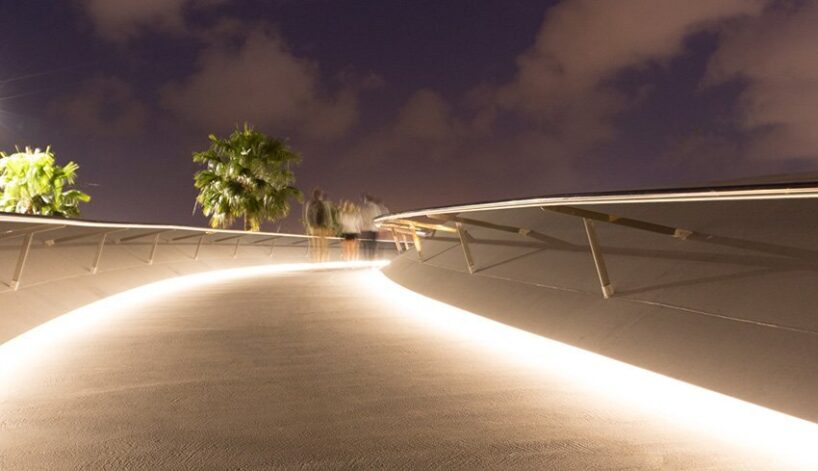

footbridge as large urban sculpture 7 — close up shot of the footbridge’s organic form

footbridge as large urban sculpture 8 — with a maxmimum slope of 6%, the floor level reaches a maximum height of 7.60m above street level

project info:

name: onda atlántica footbridge
location: las palmas de gran canaria, spain
footbridge length: 283 meters

architecture: onda arquitectura, checa arquitectura | @checarq
team: javier haddad, ramón checa, luis gonzález, carlos fuente

promoter: city council of las palmas de gran canaria

structural engineering: IngZero – ingeniería zero

structural design consultant: feroher

metallurgical shop: megusa

footbridge budget: 3,054,000 euros
plaza budget: 876,307 euros
photography: iwan baan | @iwanbaan, javier haddad

designboom has received this project from our DIY submissions feature, where we welcome our readers to submit their own work for publication. see more project submissions from our readers here.
