patterns: sunset boutique

‘sunset boutique’ by patterns in hollywood, california all images courtesy patterns photographer: joshua white

los-angeles based studio patterns has designed a high end retail store on sunset boulevard in hollywood, california. ‘sunset boutique’ features a translucent facade composed of strips that bend and inflect to expose the interior glass box.

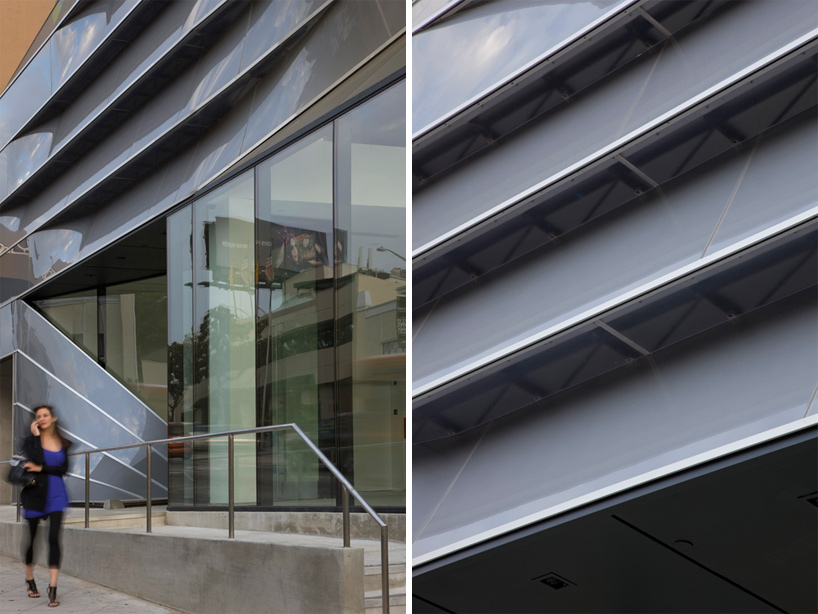

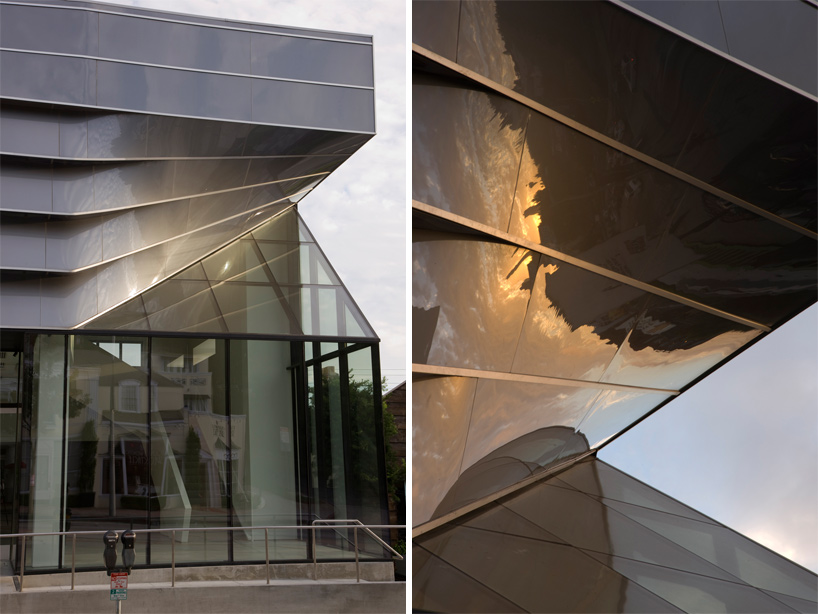

(left) from street level (right) detail of facade

as the project was officially listed as a renovation, there were clear restrictions on the scope of work from the very beginning. working with the existing elements at hand, the design is a result of a negotiation between the steel column grid which remains from the previous renovation and the singularity of the adjacent context.

facade peel-back

influenced by the sleekness of automotive fabrication, the materials used exhibit clean and seamless finishes. connection details and joineries are concealed from the outside by being recessed behind the surface. constructed out of 3/8” polycarbonate panels, the facade was molded and heat formed to control the overall form. the translucence of the skin coupled with the lighting effect allows the street face of the project to react to the daylight conditions.

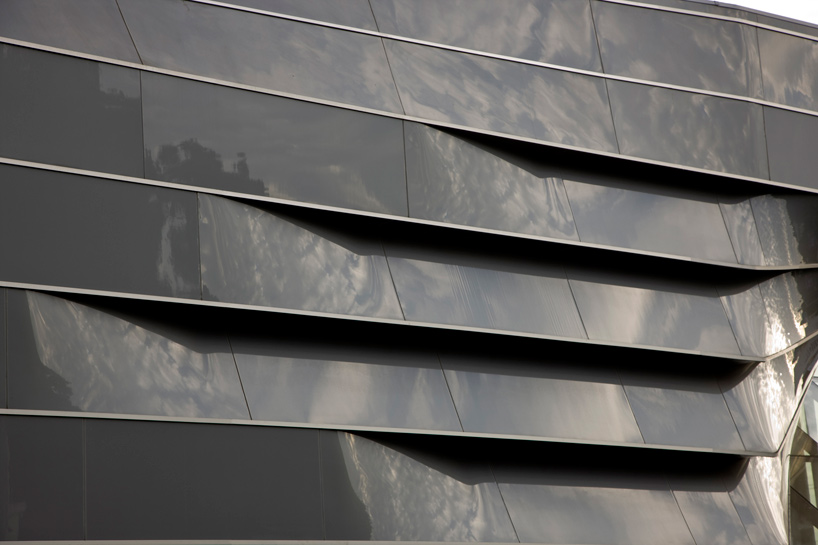

facade inflection

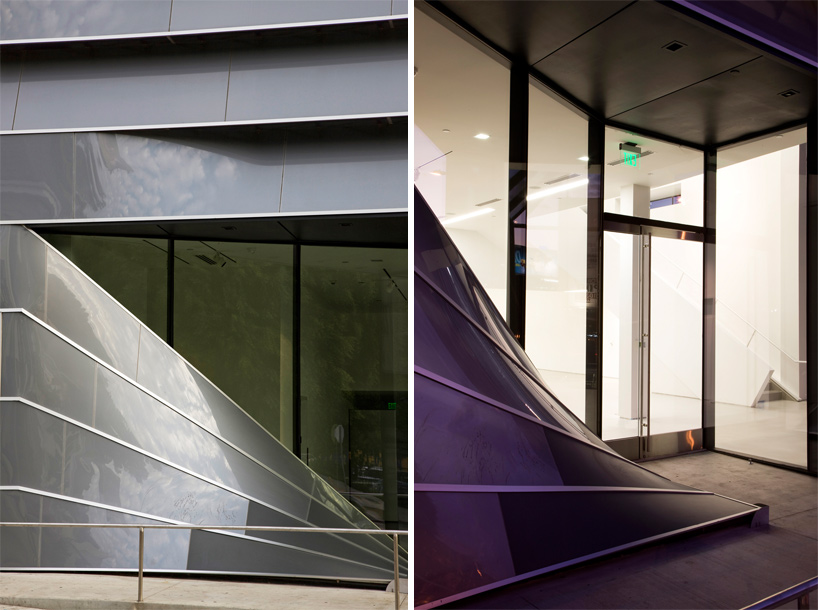

entrance

the inflection observed from the facade is also translated to the interior. the underside of the skin features a framing system in dark steel, accenting the spatial tension caused by the inward intrusion. gill-like horizontal apertures open up to allow sunlight to seep in to illuminate the all-white interior space.

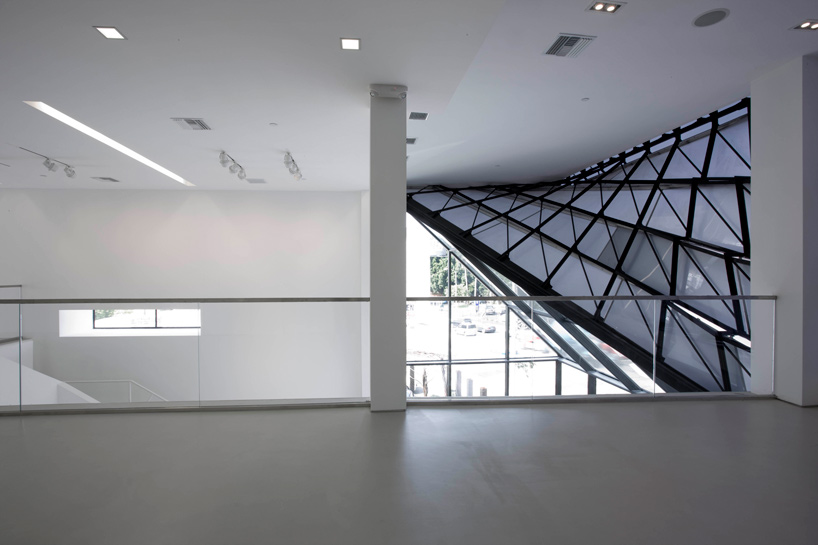

view of the facade from the second level

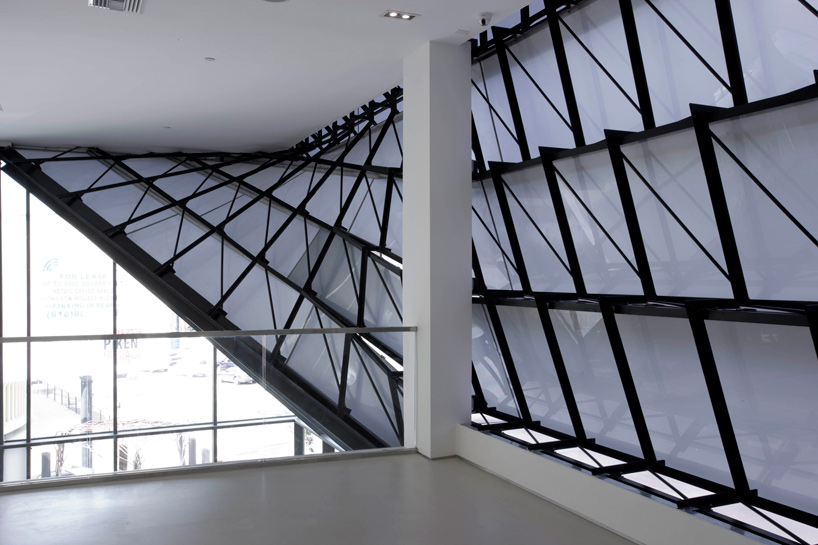

underside of facade

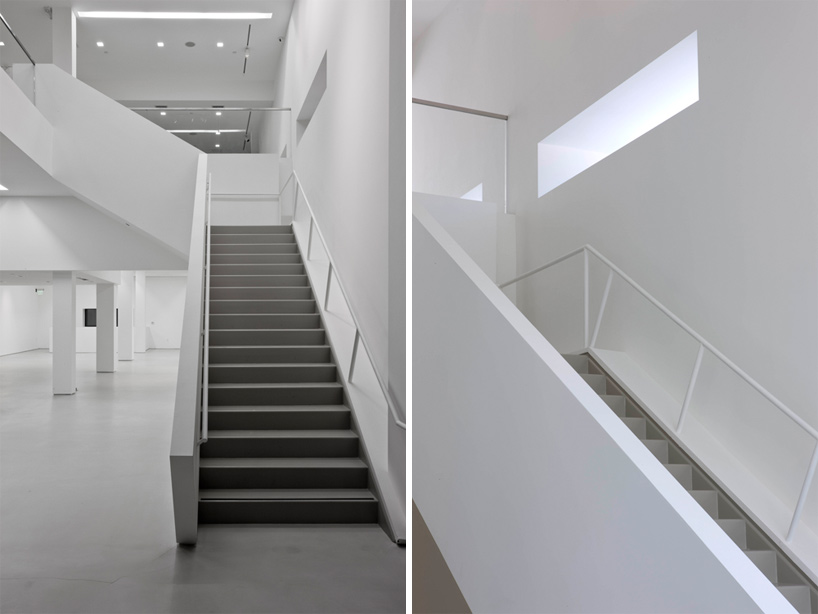

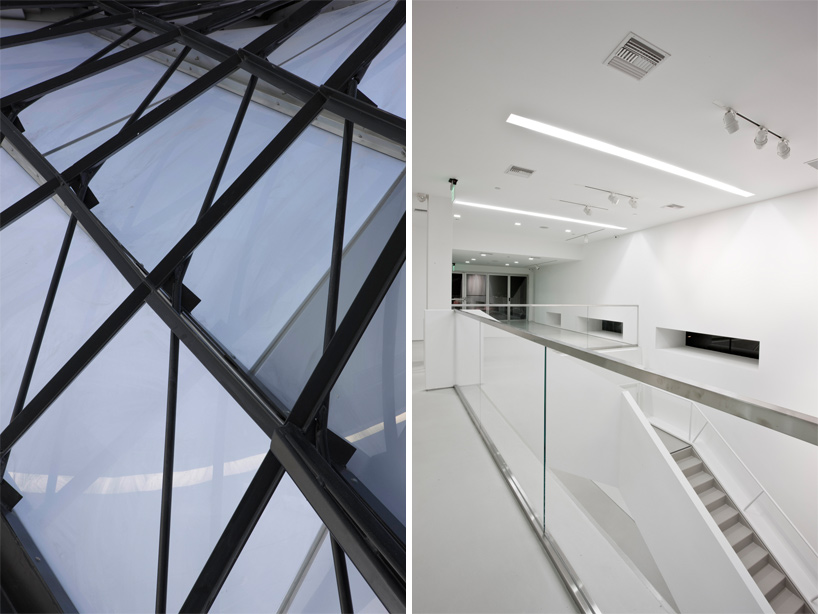

(left) detail of framing system (right) stairs down to ground level

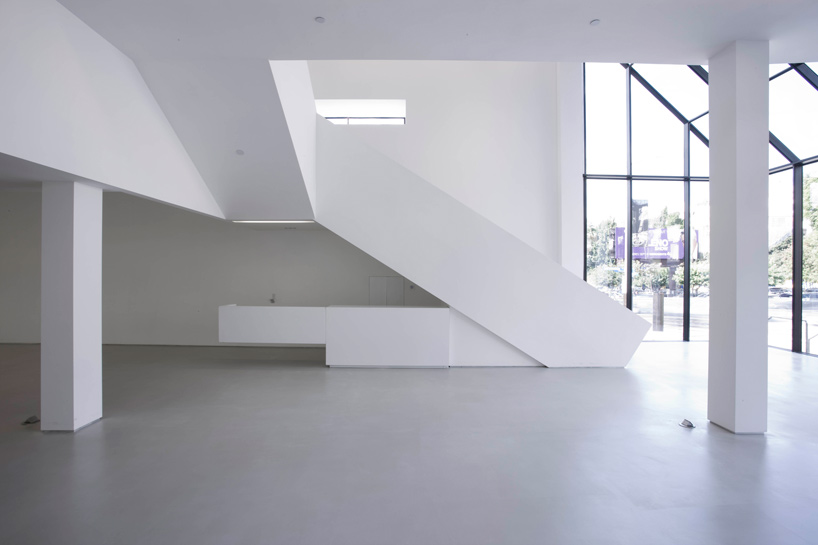

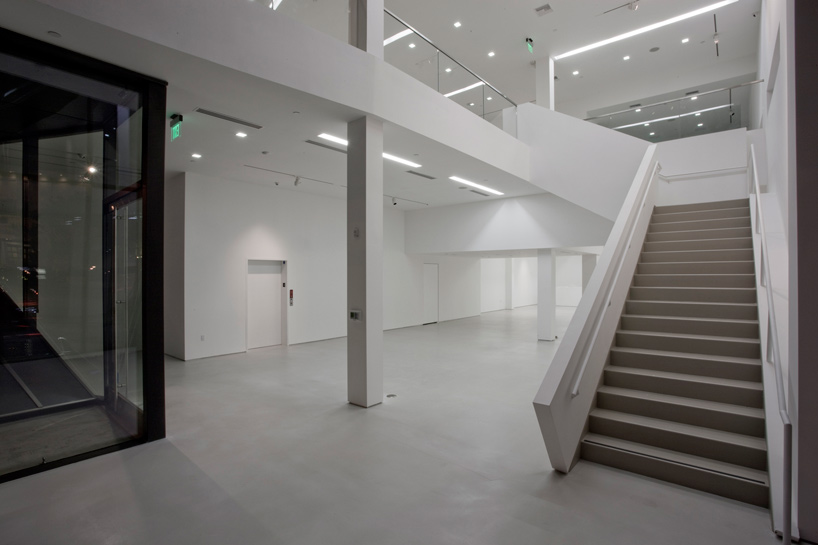

ground level from entrance

staircase

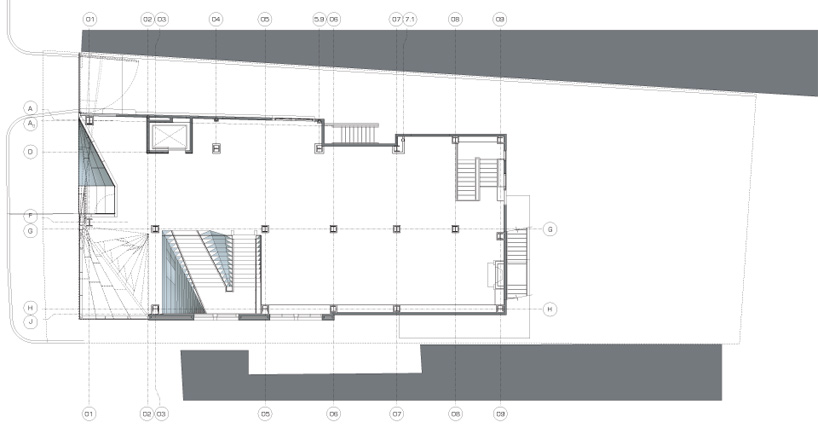

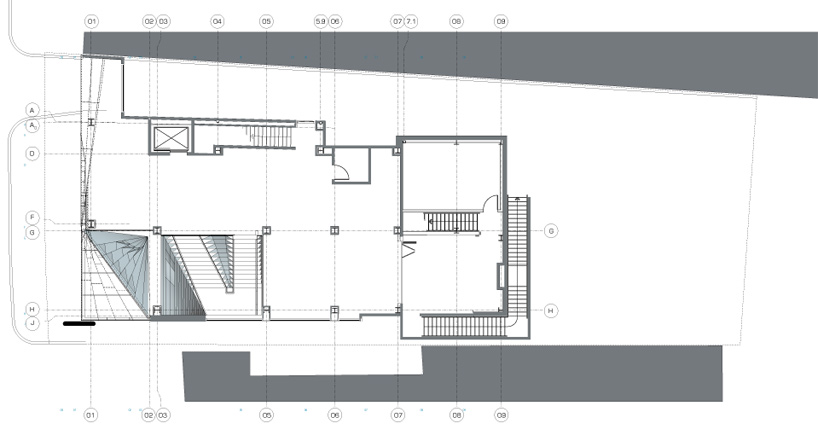

ground floor plan

first floor plan

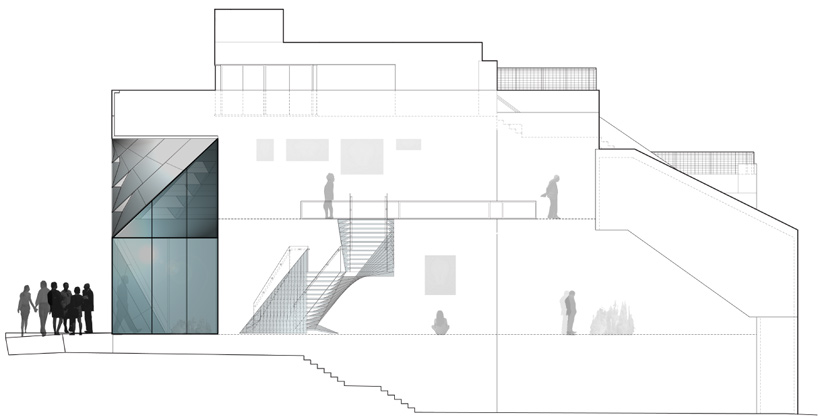

section

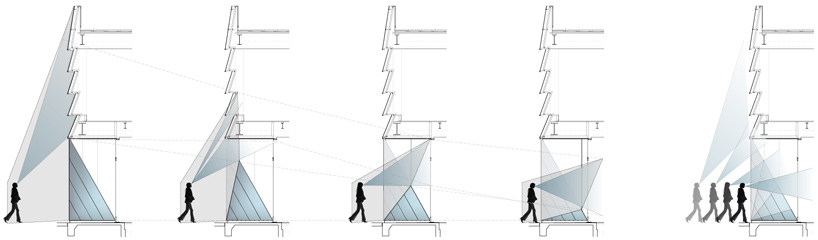

sight line diagrams

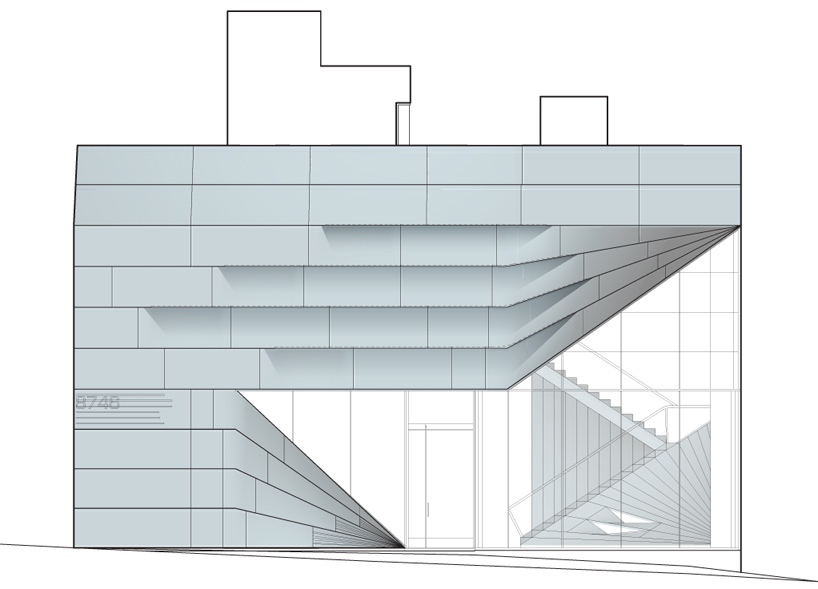

elevation

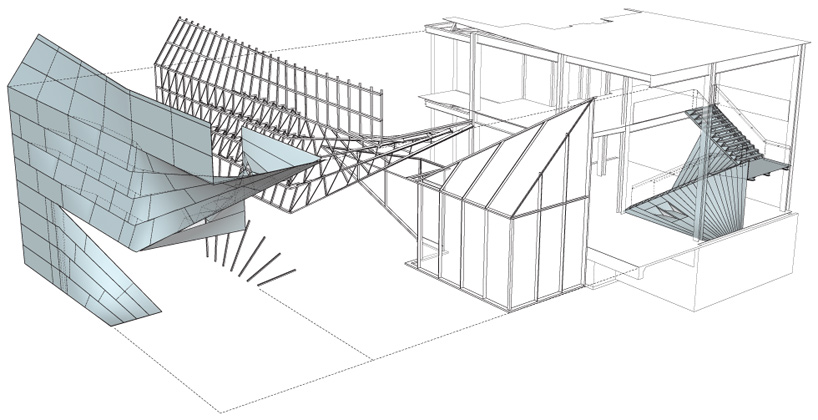

exploded axo

project info: principals in charge: marcelo spina, georgina huljich site characteristics: high end commerce and dining project scope: street storefront program: high end retain store area: 7000 ft2 collaboration and fabrication: 3form
