studio symbiosis unveils id origins headquarters



Amid the dense urban fabric of southern Mumbai, India, Studio Symbiosis revitalizes the ID Origins Headquarters with a mixed-use expansion and an organically sweeping geometric facade. As a new visual marker of the city the project enhances the low-rise Dudhwala Complex built in the 1980s, adding twelve new residential floors atop the original six floor office structure. Uniting the two dichotomous volumes, the facade is retrofitted with undulating aluminium composite panels (ACPs) weaving in delicate calligraphic strokes that merge the old and new into one cohesive frontage while transforming the monotonous urban environment.

perforated calligraphic panels clad mix-use tower by studio symbiosis emerging from mumbai’s cityscape
all images courtesy Studio Symbiosis





undulating acp panels fuse mix-use activities



Taking advantage of the ID Origins Headquarters’ location at the heart of a bustling townscape, Studio Symbiosis injects mixed-use activities into the existing commercial structure, augmenting it with twelve additional residential levels above. A load-transferring girder connects the two volumes while additional protruding peripheral columns have been added to support the structure from the ground up. Integrating the two strata and concealing the new misaligned structural elements, the architectural team devised a distinctive rhythmic facade feature that accentuates the tower’s verticality as it emerges from the monotonous urban landscape.



Parallel perforated ACP screens sweep along the glazed exterior in organic V-shaped strokes, which gradually wane as they ascend the structure. Openable glazing is inset between the cladding panels on the upper volume, while fixed curtain glazing homogenizes the office facade. The ACP elements maintain wide roots at the base, reducing solar glare and providing optimum lux levels along the commercial levels, while tapering along the residential floors to maximize panoramic views of the cityscape for inhabitants. With a planar profile and lightweight materiality, the undulating panels allowed for flexible construction altogether, reducing costs, and time of execution, by six months.

perforated calligraphic panels clad mix-use tower by studio symbiosis emerging from mumbai’s cityscape

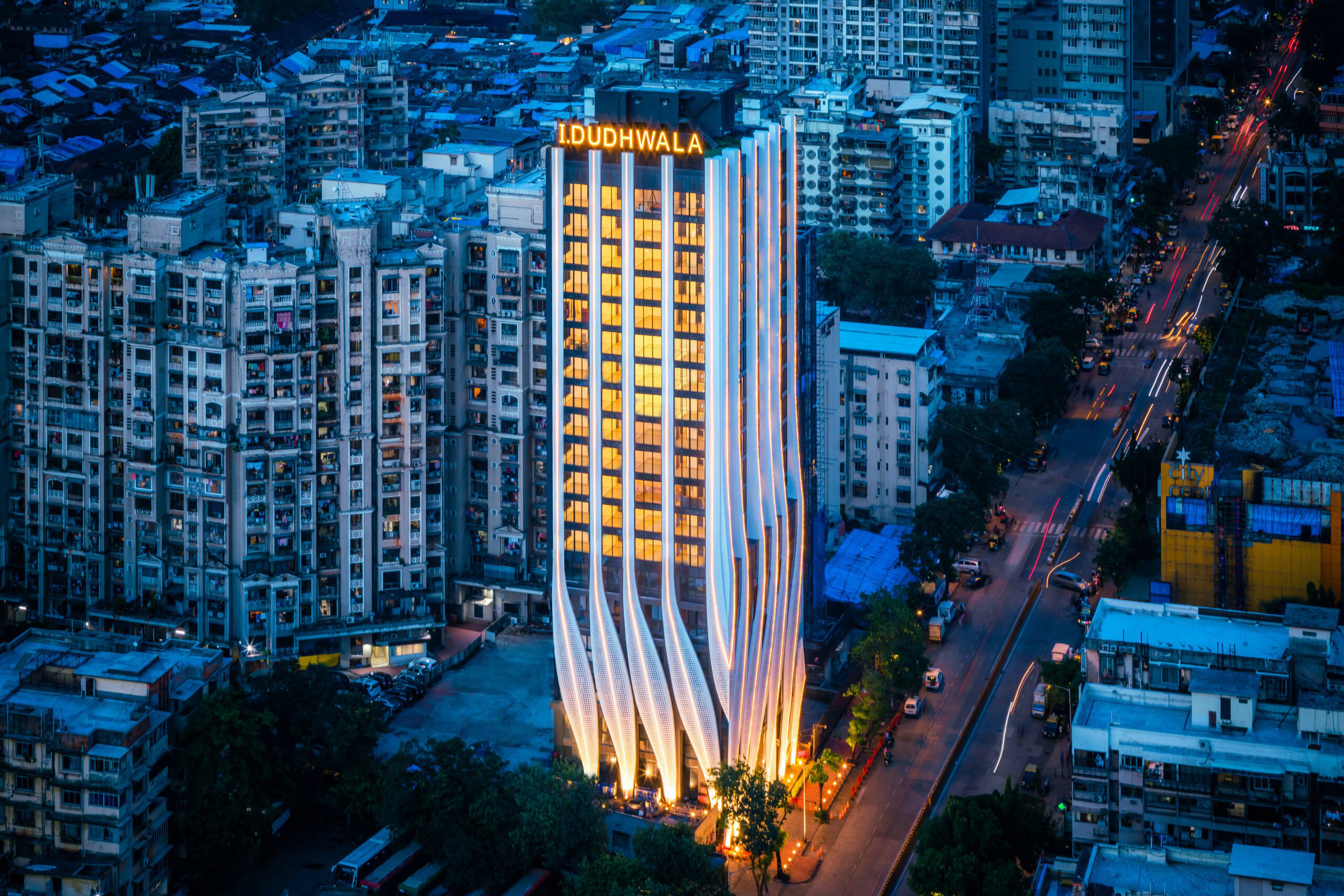

the modern structure with organic forms disrupts Mumbai’s monotonous urban environment





elevating mumbai’s urban landscape



This rehabilitation project extends beyond the structure and into the dense urban fabric of Mumbai. The new facade enhances the encompassing landscape, creating a visual and functional locus for the site spanning over 12 acres of land. Further, Studio Symbiosis rerouted the entrances and exits to decongest the entrance road, uplifting the pedestrian walkways in the vicinity of the site, dissolving the site boundary, and creating an urban lobby that becomes a part of the Mumbai streetscape.

perforated calligraphic panels clad mix-use tower by studio symbiosis emerging from mumbai’s cityscape

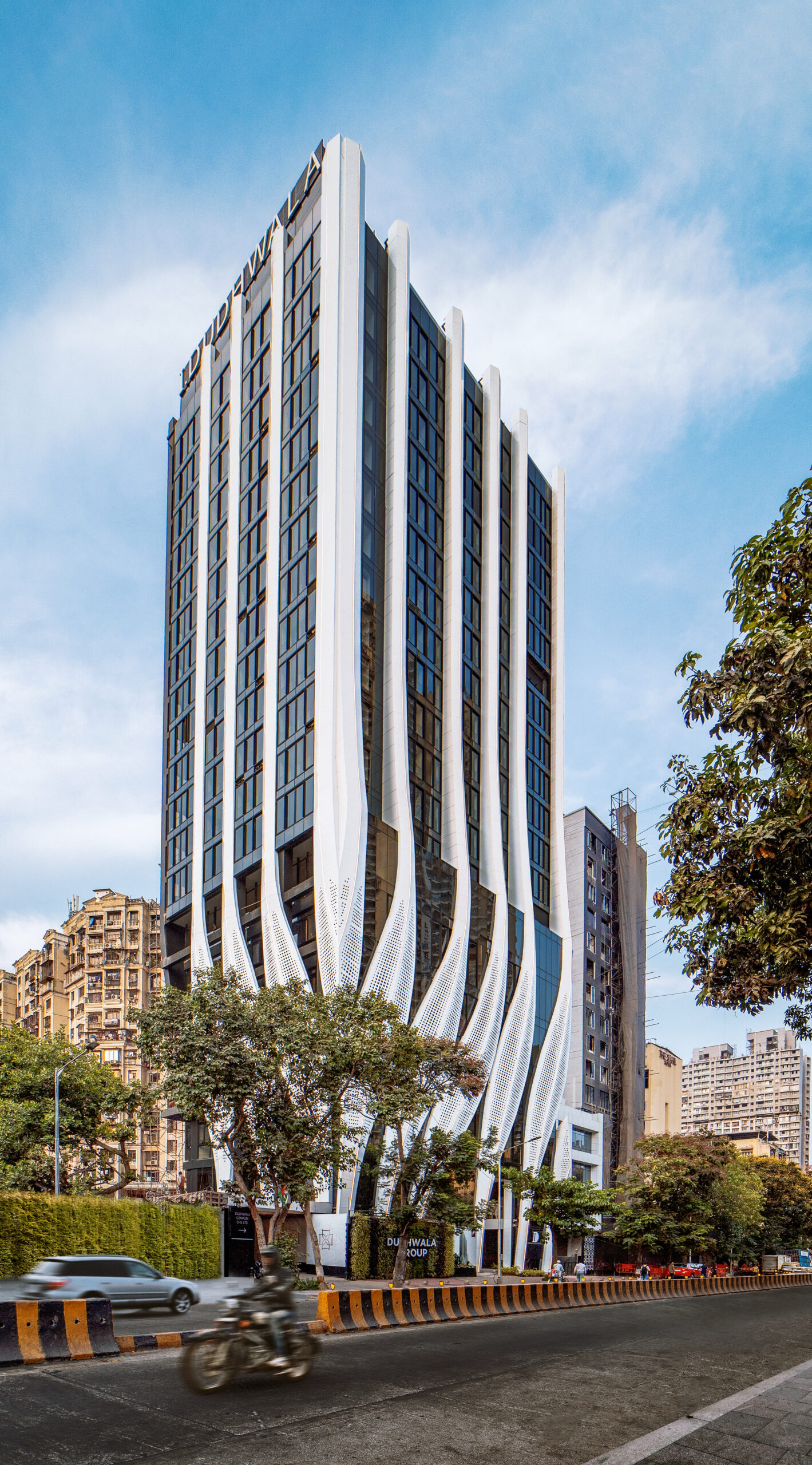

concealing the commercial levels, the V-shaped strokes gradually wane as they ascend across the extension

perforated calligraphic panels clad mix-use tower by studio symbiosis emerging from mumbai’s cityscape
twelve new residential floors were added atop the original six-floor office structure

ID-origins-mumbai-studio-symbiosis-designboom-wide3

perforated calligraphic panels clad mix-use tower by studio symbiosis emerging from mumbai’s cityscape
Studio Symbiosis dissolved the site boundary and created an urban lobby part of the Mumbai streetscape

perforated calligraphic panels clad mix-use tower by studio symbiosis emerging from mumbai’s cityscape

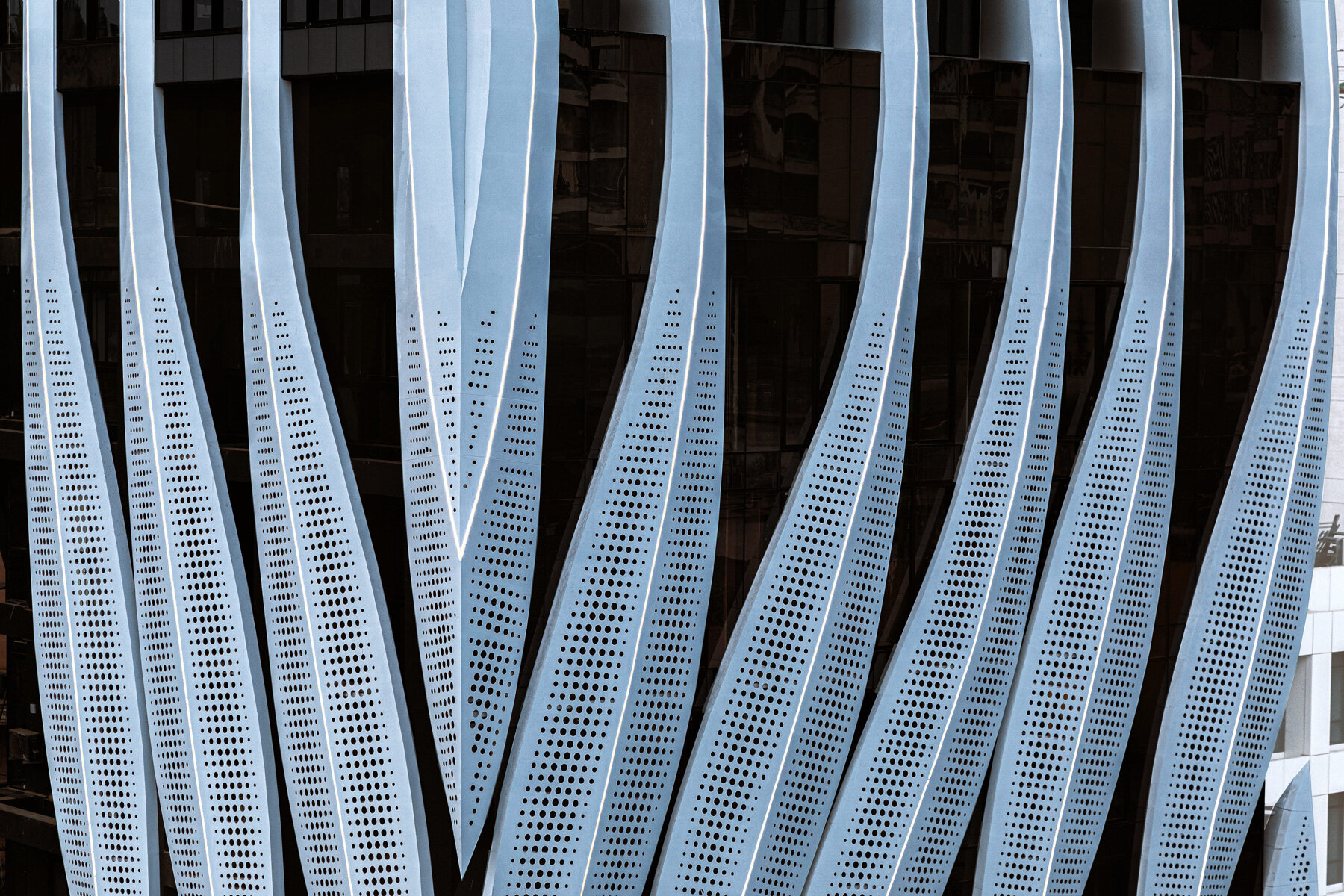

perforated ACP screens weave across the facade in delicate calligraphic strokes

perforated calligraphic panels clad mix-use tower by studio symbiosis emerging from mumbai’s cityscape

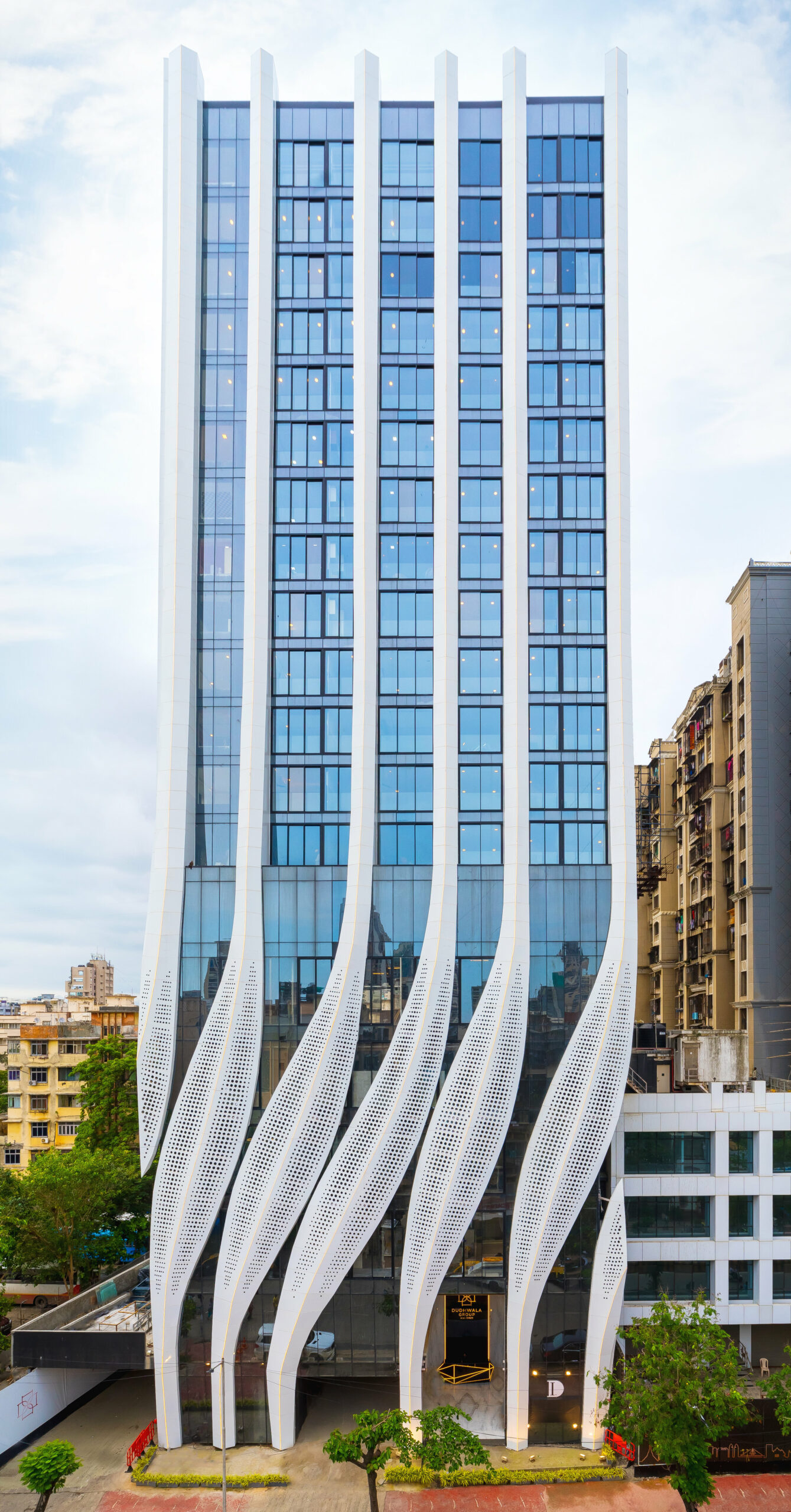

the rhythmic facade accentuates the verticality of the ID Origins Headquarters tower

ID-origins-mumbai-studio-symbiosis-designboom-wide1



project info:



name: ID Origins

architecture: Studio Symbiosis | @studiosymbiosisofficial

location: Mumbai, India

design: Amit Gupta, Britta Knobel Gupta,

project lead: Dewesh Agrawal

team: Anjan Mondal, Jitrendra Farkade

concept design: Kartik Misra, Chinmay Chowdhary, Anjan Mondal, Mandeep Chaudhary, Aditya Sharma

built area: 18,750 sqm

client: I. Dudhwala Group
