‘campus bridge’ by plystudio, singapore image © jeremy san all images courtesy of plystudio

singaporean practice plystudio have recently completed the ‘campus bridge’ for the national junior college in singapore. two buildings are separated by a drop in the grade condition of the site, requiring a partially elevated connection leading from the boarding house to the college’s entrance. the outer form merges a tent-like enclosure at one end and morphs into a partially open pavilion which integrates a porte cochère. the structure is formed with thirteen steel sections which progressively taper and adjust their height to accommodate the diverse users on opposing ends of its length, ranging from pedestrians to firetrucks.

pockets within the interior of the walkway are protected from the external rain screen. vertical tensile wires support climbing plants to compliment the resting and gathering areas. the construct is clad with zincalume single panels to contrast the clay tiles of the encompassing buildings. gaps between the metal sheets for striated streams of daylight and ventilation.

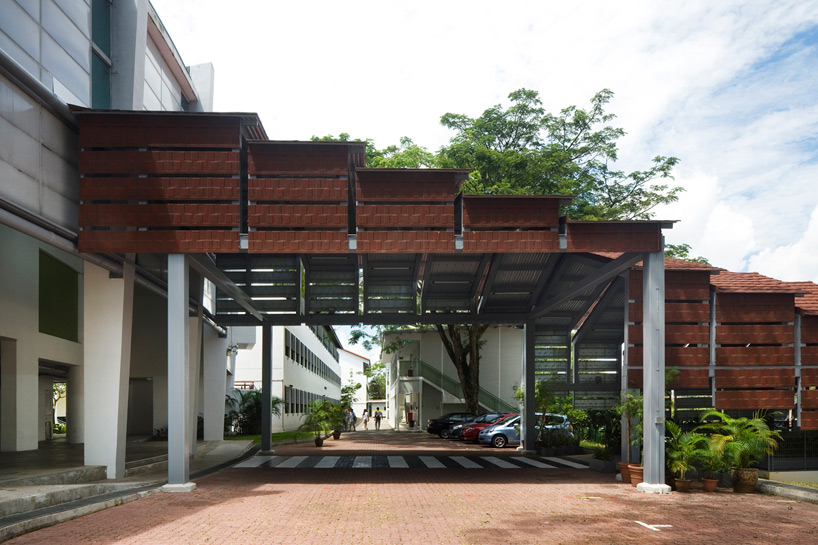

plystudio: campus bridge, singapore college drop-off image © jeremy san

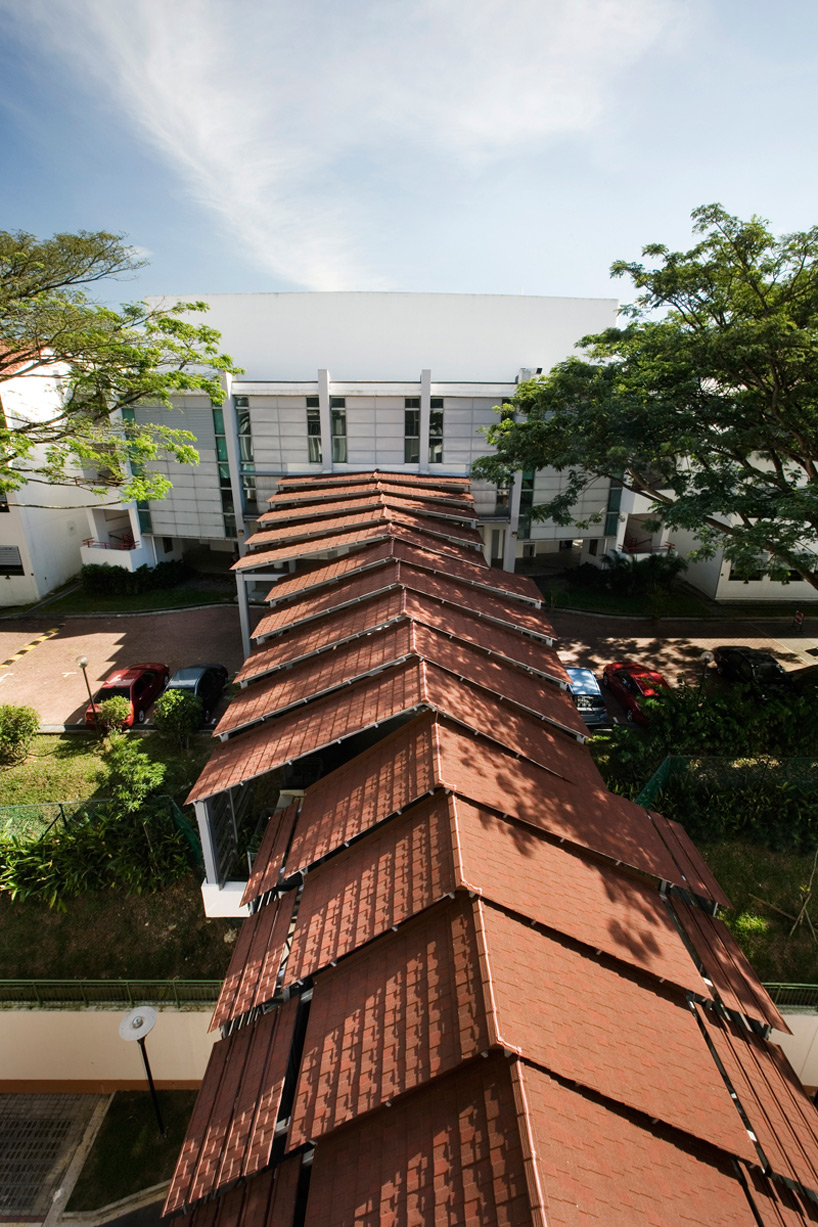

plystudio: campus bridge, singapore rooftop view image © jeremy san

plystudio: campus bridge, singapore college drop-off image © jeremy san

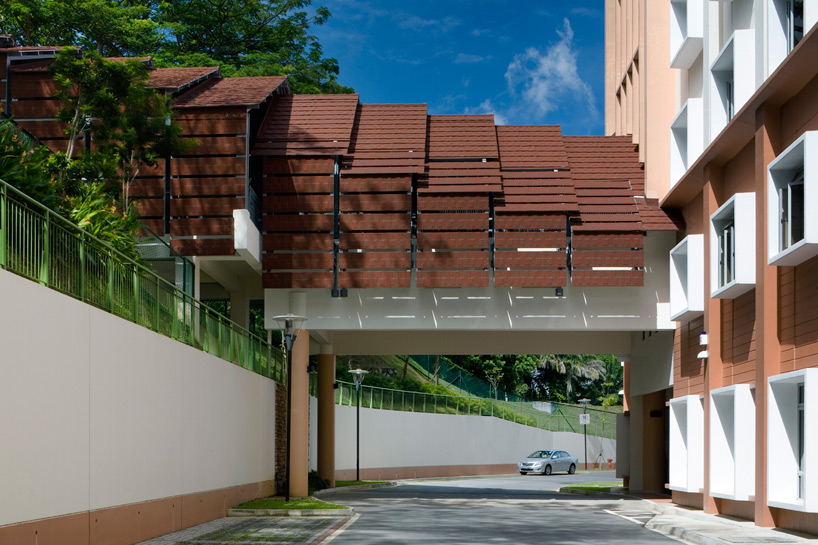

plystudio: campus bridge, singapore approaching boarding house drop-off image © jeremy san

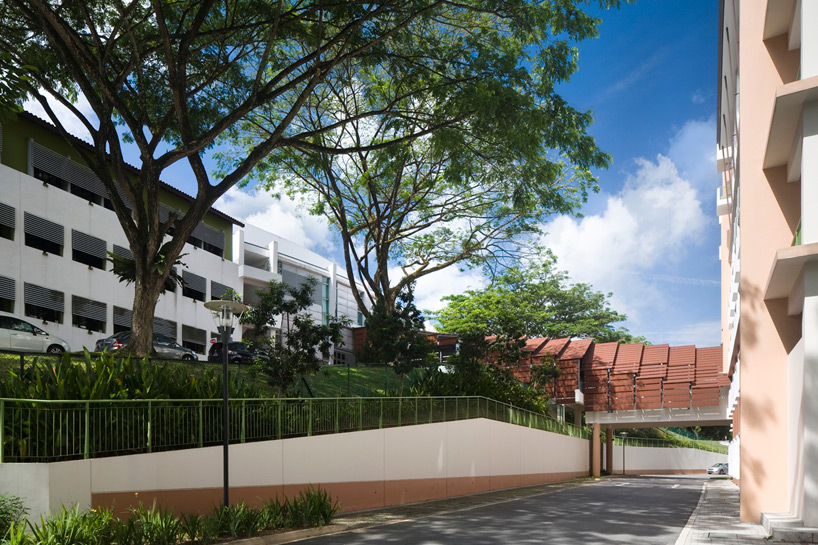

plystudio: campus bridge, singapore campus image © jeremy san

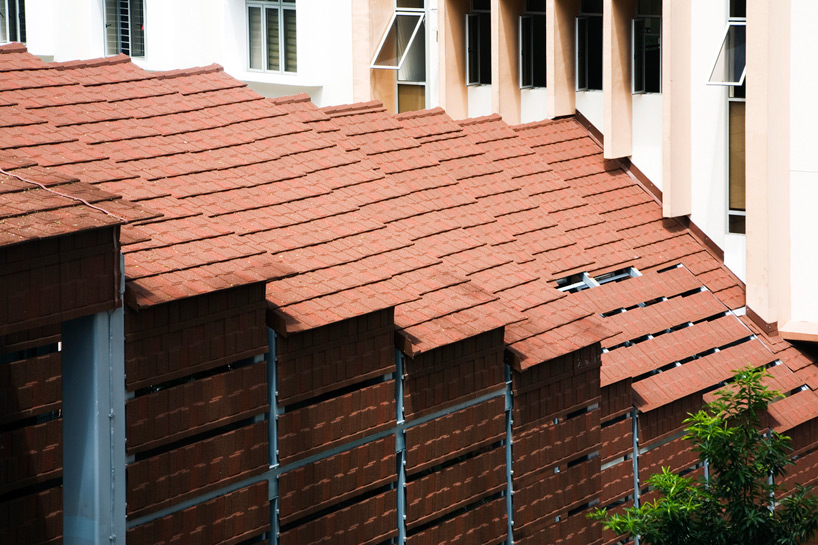

plystudio: campus bridge, singapore roof and vertical cladding image © jeremy san

plystudio: campus bridge, singapore roof cladding folds down as rain screen image © jeremy san

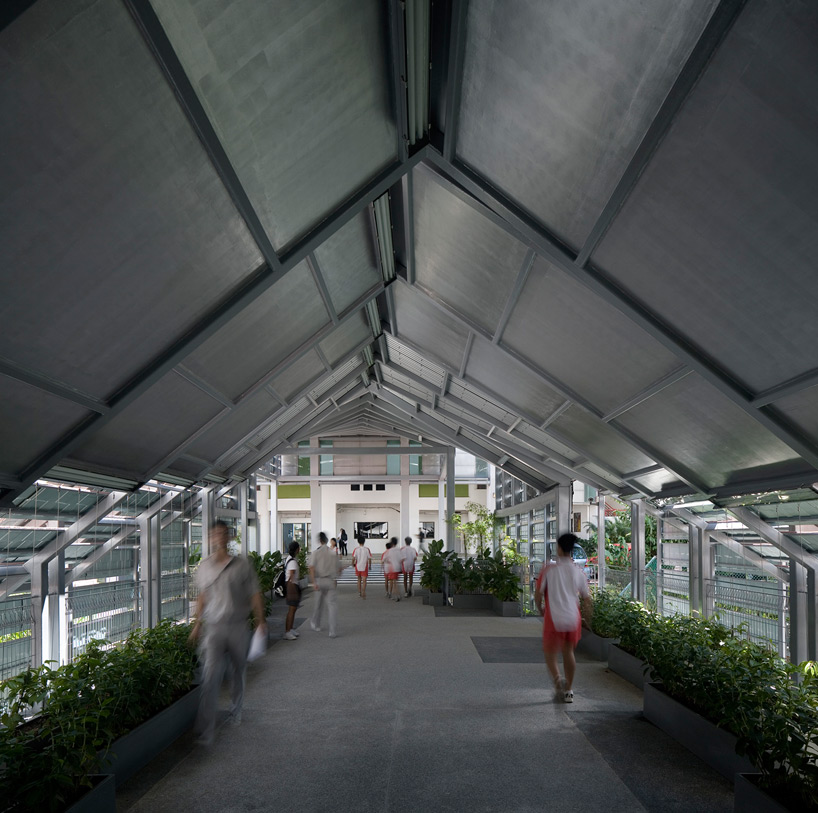

plystudio: campus bridge, singapore view towards college image © jeremy san

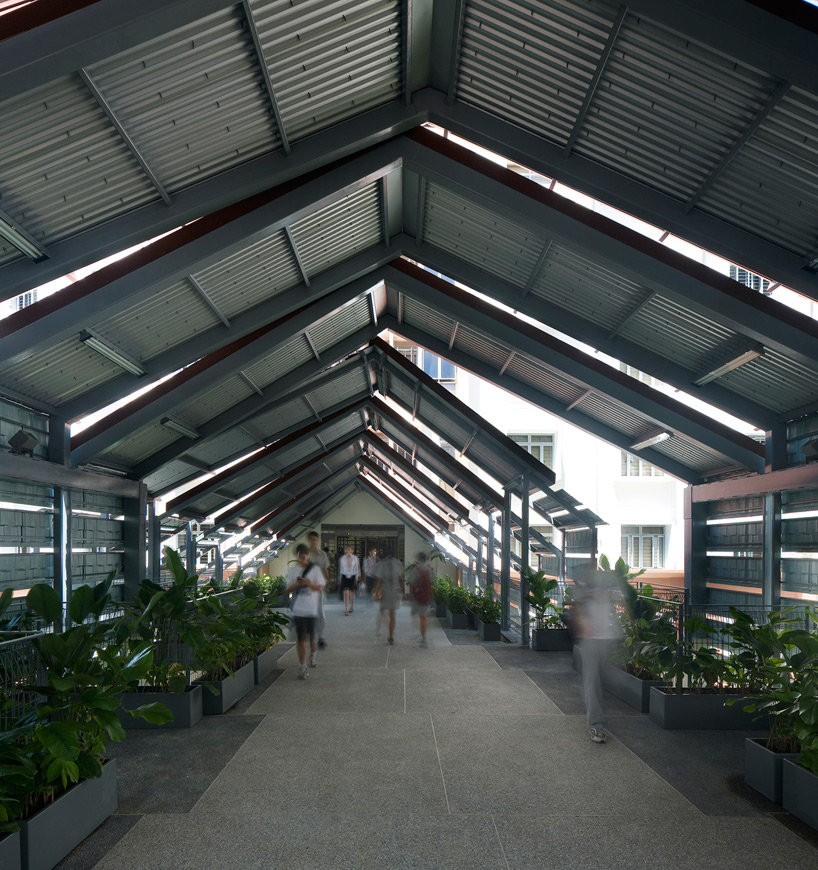

plystudio: campus bridge, singapore view towards boarding house image © jeremy san

plystudio: campus bridge, singapore view towards boarding house image © jeremy san

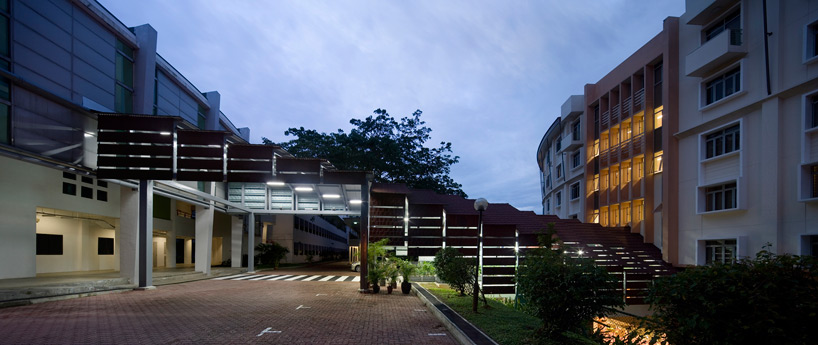

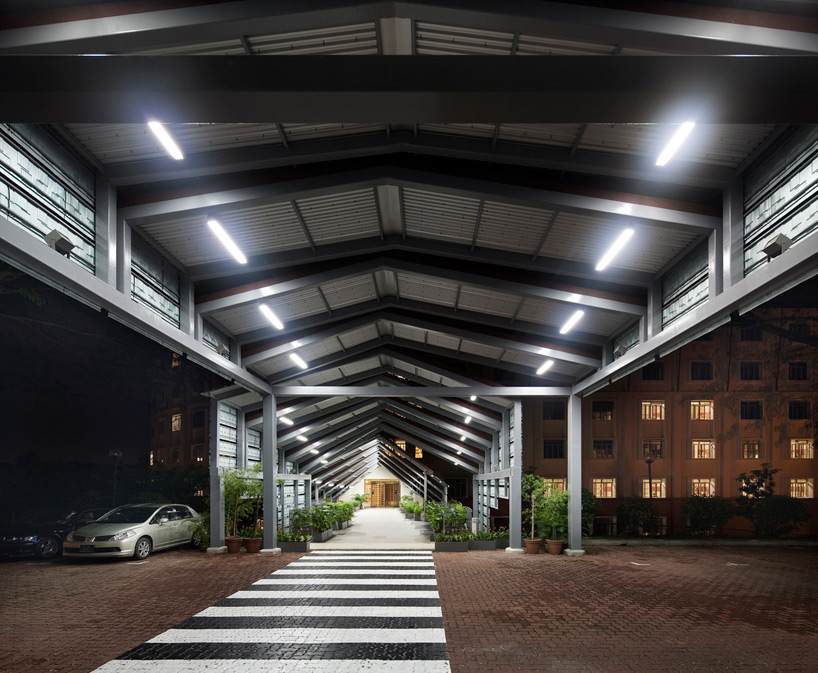

plystudio: campus bridge, singapore at night image © jeremy san

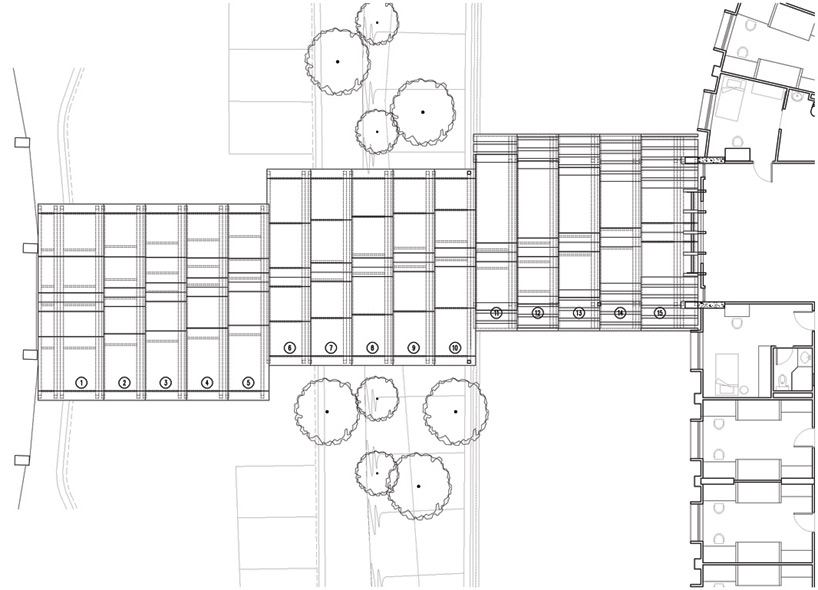

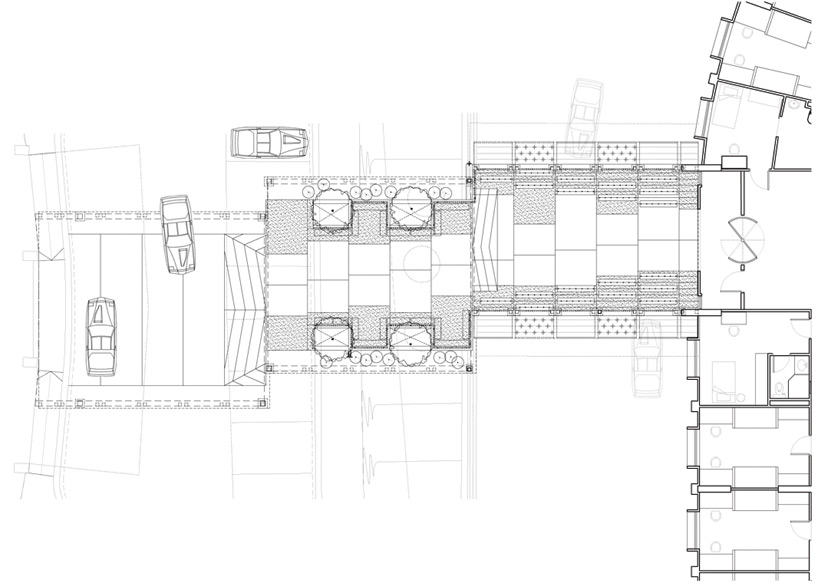

plystudio: campus bridge, singapore floor plan

plystudio: campus bridge, singapore roof plan

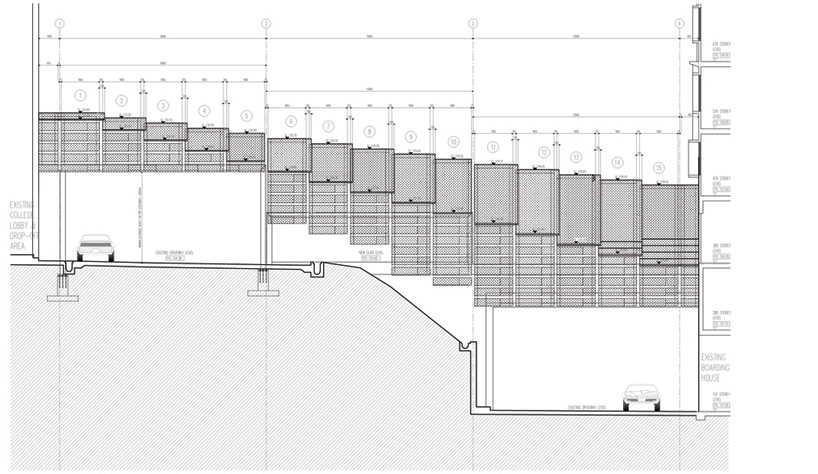

plystudio: campus bridge, singapore section

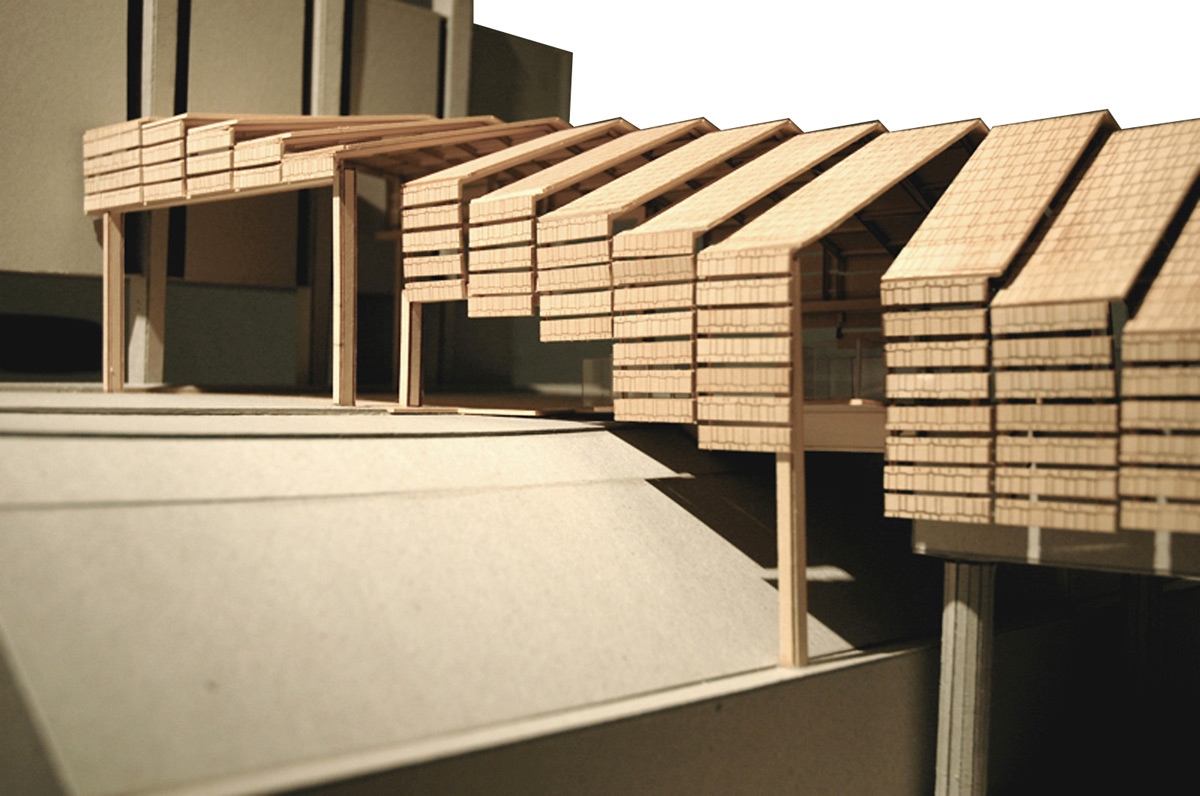

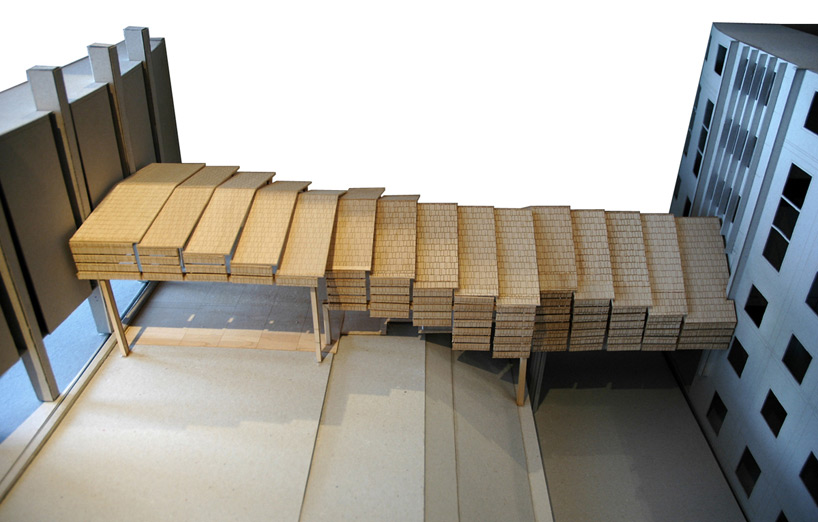

plystudio: campus bridge, singapore model

plystudio: campus bridge, singapore model

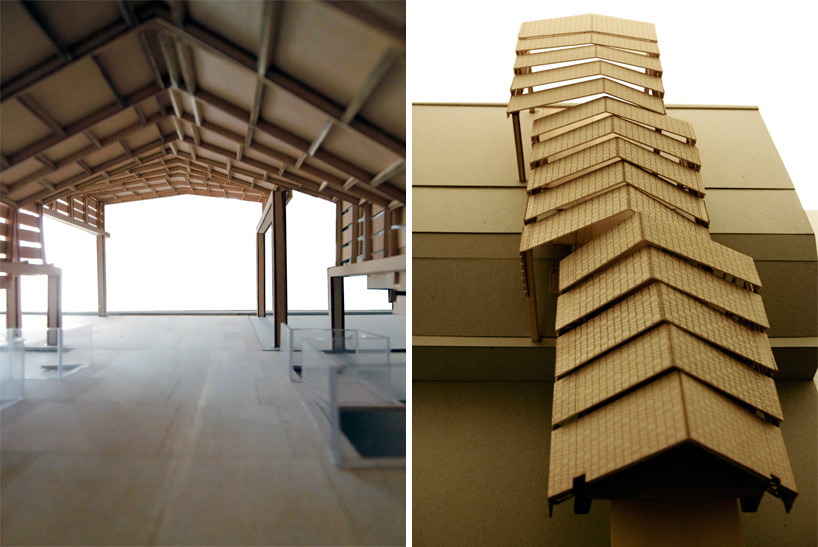

plystudio: campus bridge, singapore (left) interior of model (right) aerial view of model

plystudio: campus bridge, singapore render

plystudio: campus bridge, singapore render

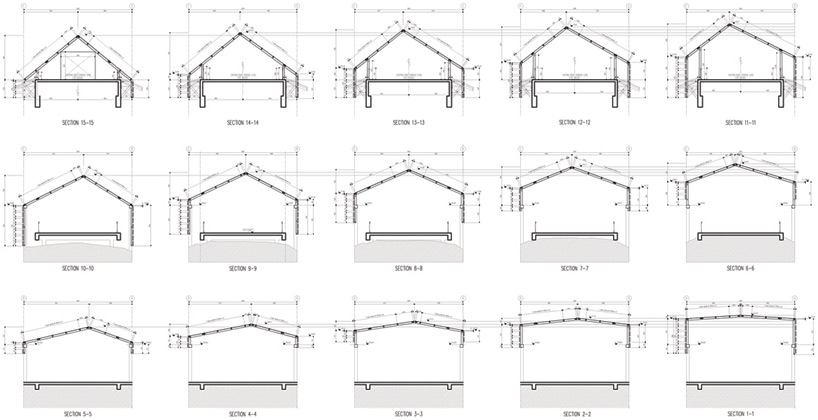

plystudio: campus bridge, singapore section diagram

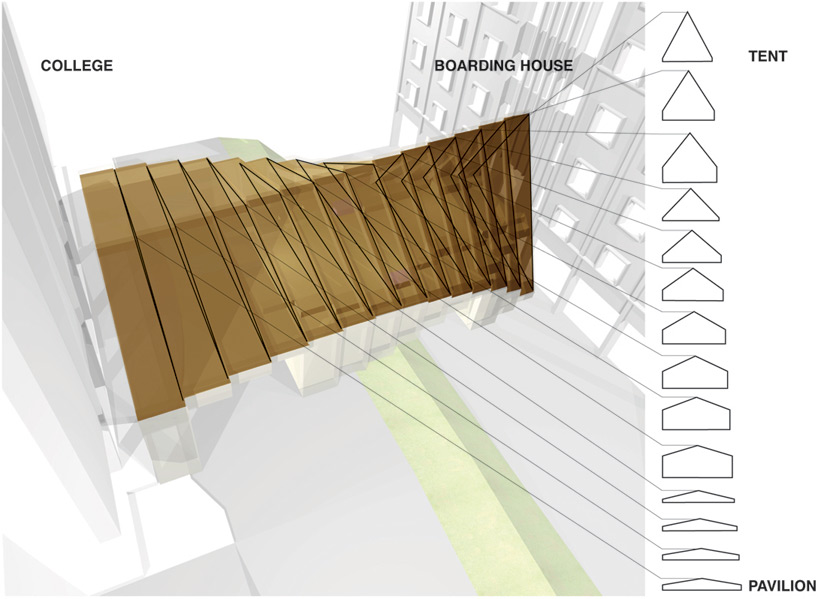

plystudio: campus bridge, singapore conceptual diagram

plystudio: campus bridge, singapore section vs. plan diagram

plystudio: campus bridge, singapore section detail

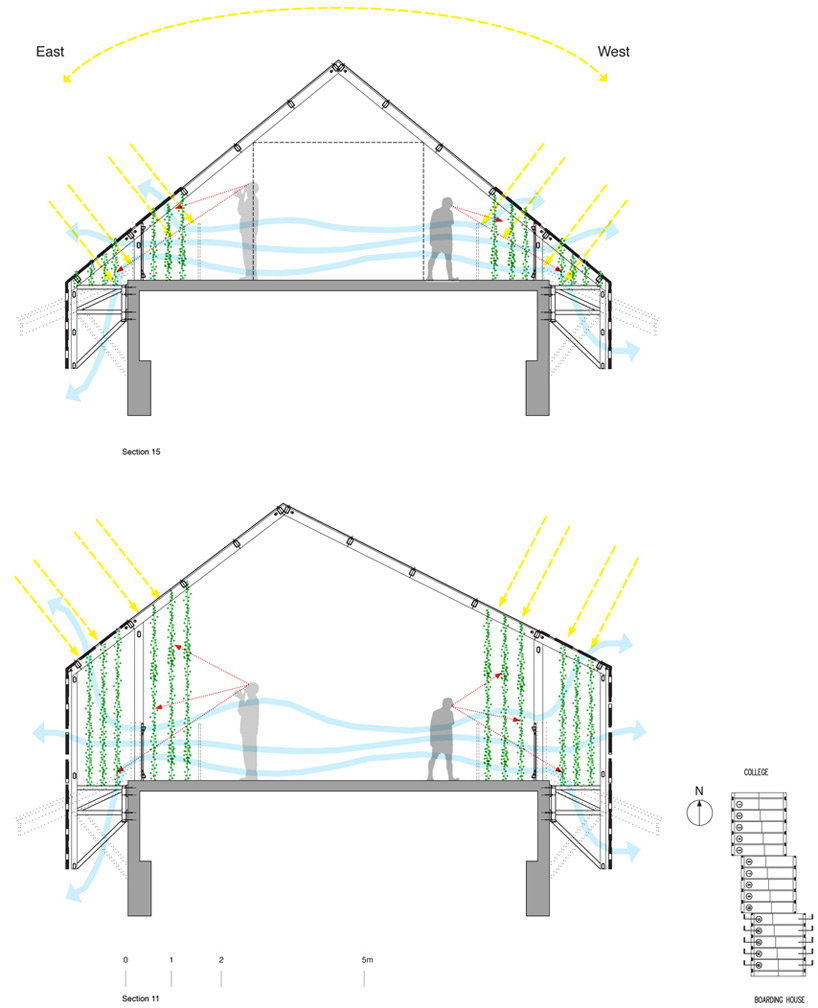

plystudio: campus bridge, singapore daylight and ventilation diagram

project info:

size: 250 m2 type of construction: steel, reinforced concrete design team: plystudio / victor lee, jacqueline yeo consulting team: the architects’ circle, wts consulting engineers, cpg consultants, koyo engineering builder: bee guan construction photography: jeremy san
