studio mxmxm assembles prefabRICATED atelier in bruges



in the backyard of an original sixties bungalow in bruges, belgium, studio mxmxm has designed a prefabricated studio/atelier for glass artist pia burrick. immersed in the surrounding trees and greenery, the 45 sqm construction is built in a black-stained wooden framework and topped with a roof of four CLT panels that pitch down towards the center like a ‘butterfly’. a glass window runs along the entire facade, sometimes high up to catch indirect northern light, sometimes halfway to create intimacy, and sometimes all the way down to create a close visual connection to the natural surroundings. four skylights further bathe the interior in ample natural light.



the wooden structure and roof are completely prefabricated and put together on site. after pouring the concrete foundation plate, only two days were needed to place these prefabricated wooden elements together, which considerably shortens the construction time.

prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium by studio mxmxmall images by tim van de velde





atelier pia burrick takes its cues from the existing bungalow



in 1956, the parents of the current residents built a modern bungalow house on this tree-rich plot in bruges. designed by architects jaqcues pêtre & jan tanghe, the building’s plan is conceived on a grid of 1,12 by 1,12 meters consisting of an outer shell of black tarred wooden walls interspersed with large windows and a cantilevered roof supported by ten steel columns. in 2020, the current residents asked studio mxmxm to design a new studio space on this plot to accommodate stained glass artist pia burrick’s practice. in harmony with the existing house, a new detached building was erected based on the same grid of 1,12 by 1,12 meters.



‘the existing house achieved maximum freedom and efficiency through a structural logic of ten steel columns and fixed dimensions,’ explains the young belgian studio. ‘the same building methods were continued in the construction of the new studio space with the latest available wood techniques.’

prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium by studio mxmxm

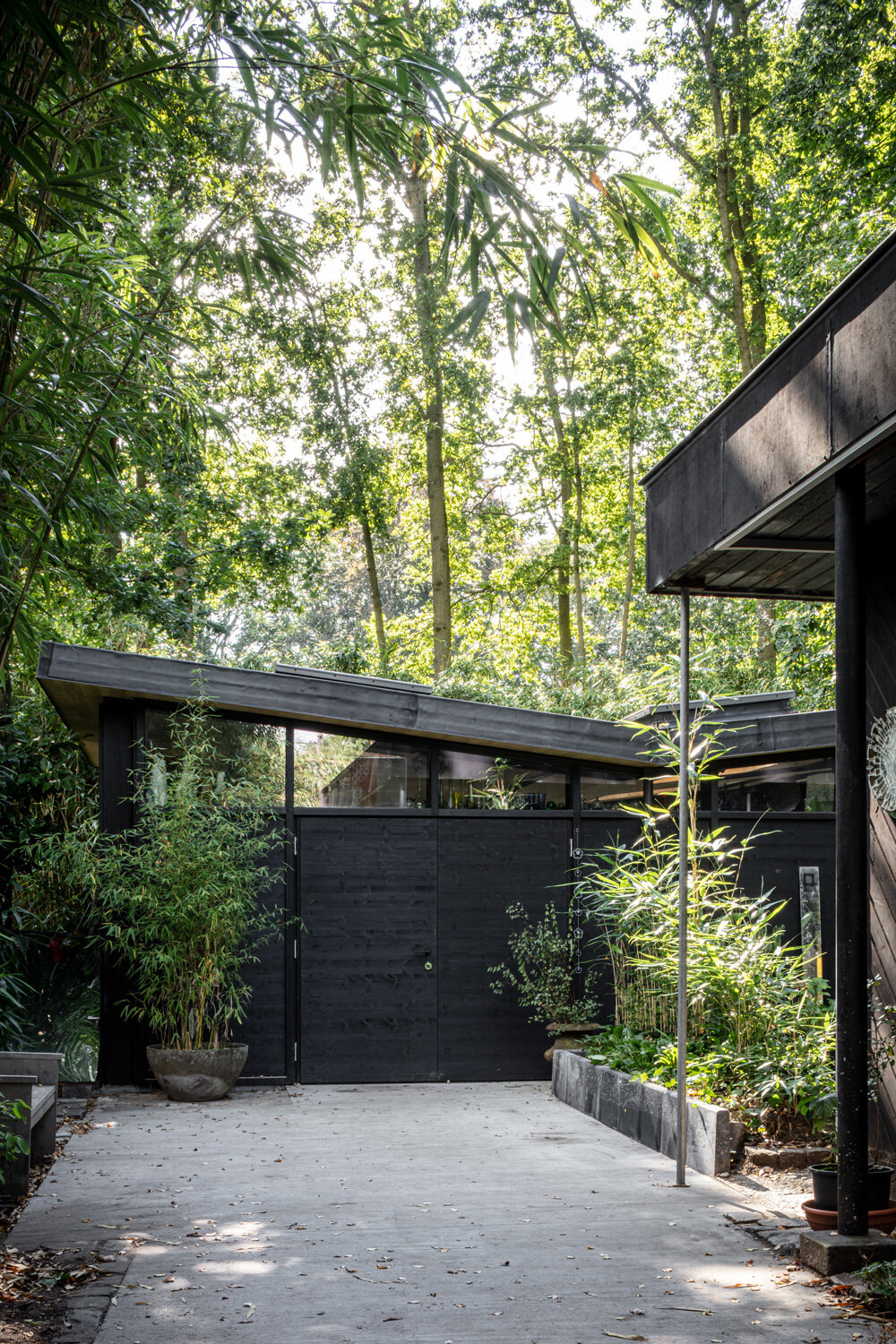

the studio is located in the backyard of an original sixties bungalow in bruges





built in a black-stained wooden framework, the prefabricated artist studio’s four facades also form the supporting structure of the roof. its four CLT panels span the entire space and are punctuated by four skylights that bring in ample natural light, along with the continuous glass window of the facade. on the inside, only the structural lines are stained black, while the infills between are out of bare wood or glass, creating a graphic pattern reminiscent to the graphics of stained glass windows. ‘this project has been rationally conceived in function of structural freedom and cost efficiency without losing its playfulness,’ adds studio mxmxm.

prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium
it perfectly communicates with the original building and the surrounding trees and garden

atelier-pia-burrick-glass-artist-studio-mxmxm-belgium-prefab-designboom-large

prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium by studio mxmxm
the roof’s CLT panels pitch down towards the center like a ‘butterfly’

atelier-pia-burrick-glass-artist-studio-mxmxm-belgium-prefab-designboom-large1

prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium

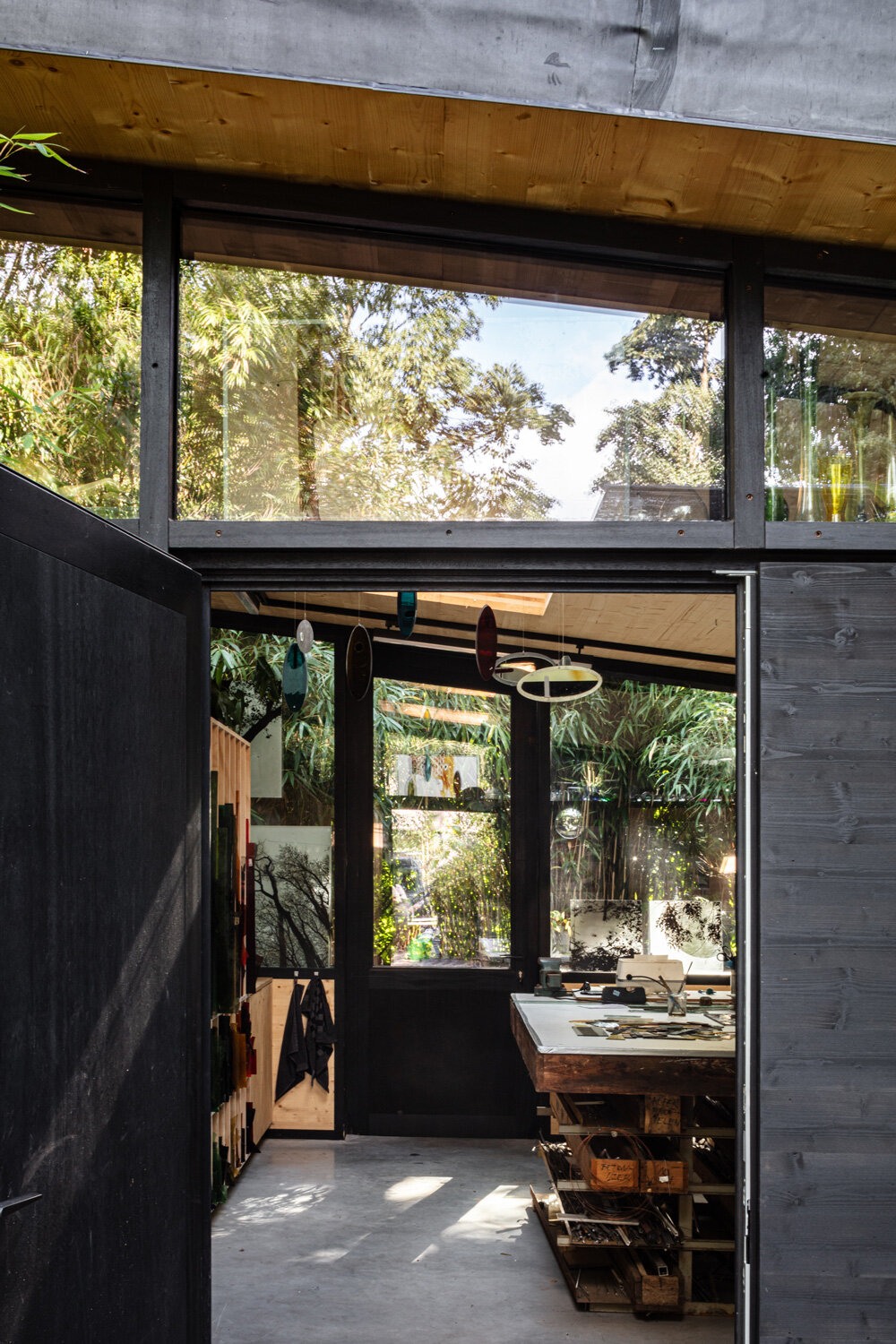

the continuous window is placed here high up to catch indirect northern light

prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium by studio mxmxm

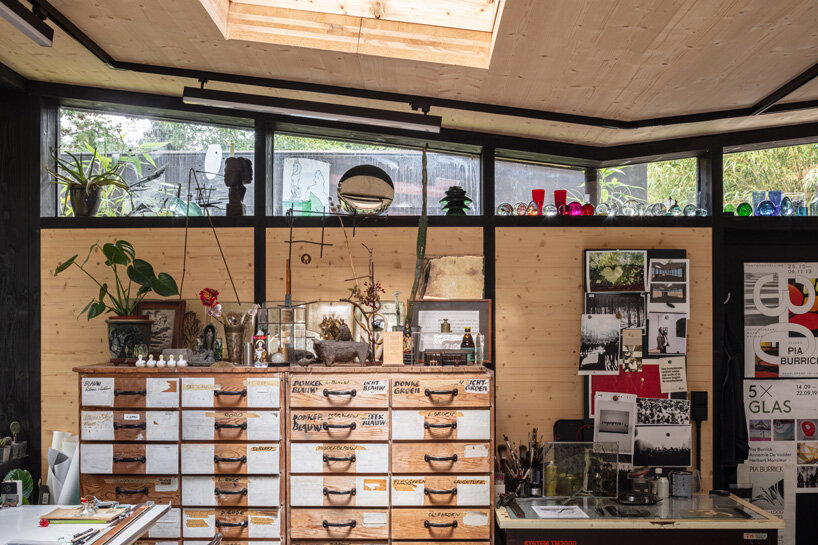

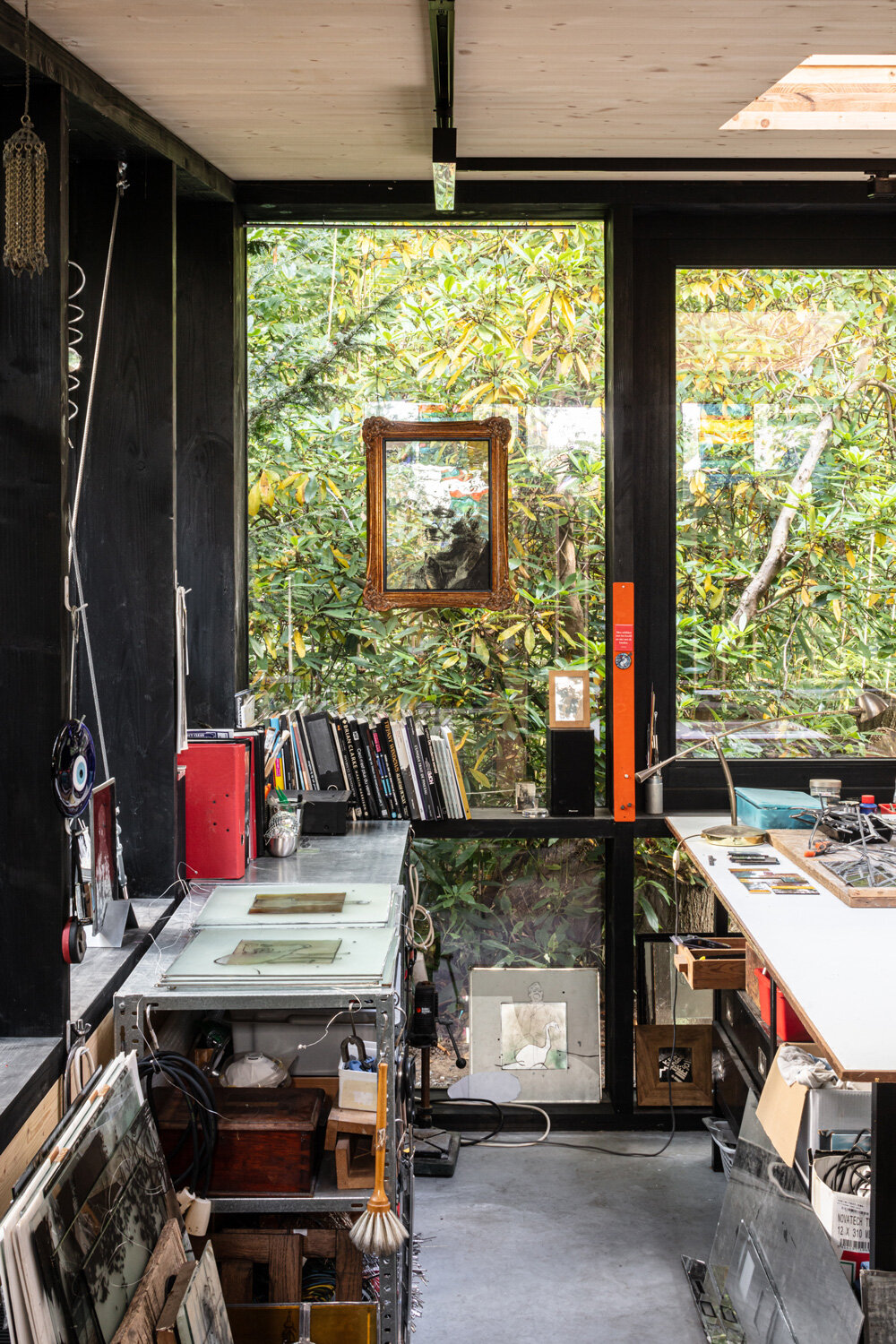

skylights bathe the studio in ample natural light

1/14

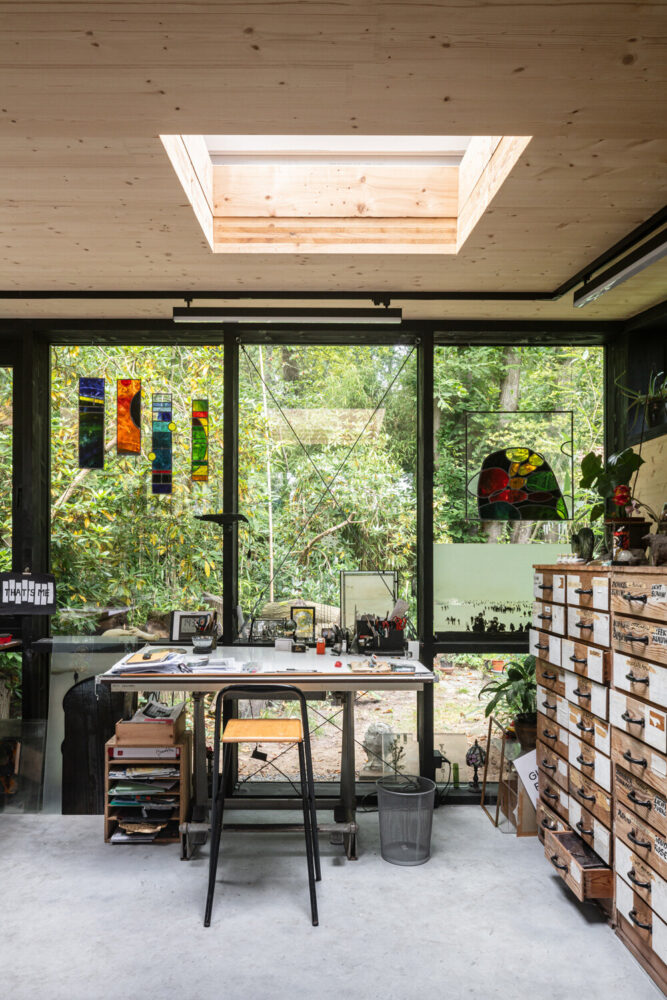

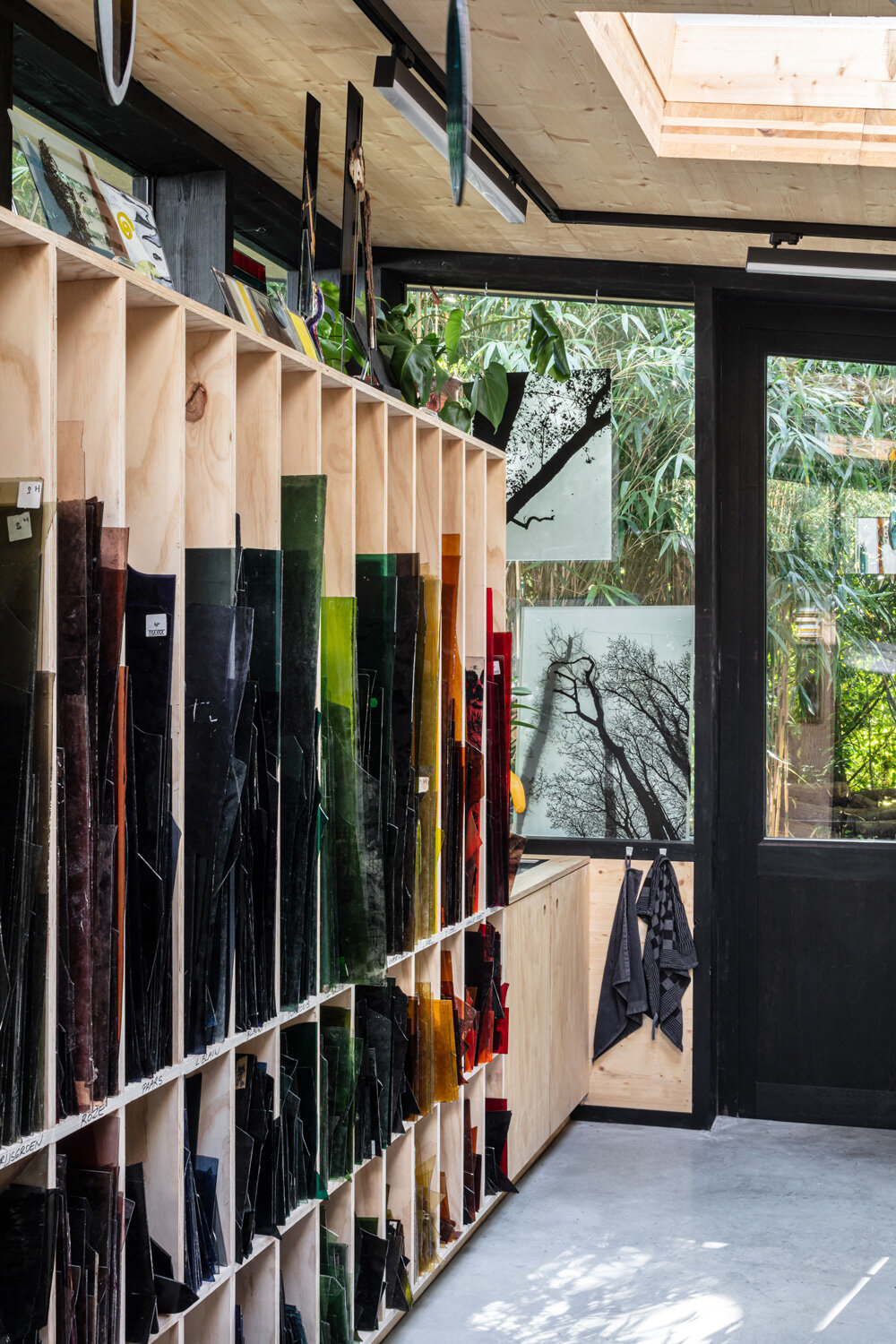

the studio has glass all around
the studio has glass all around
prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium

prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium

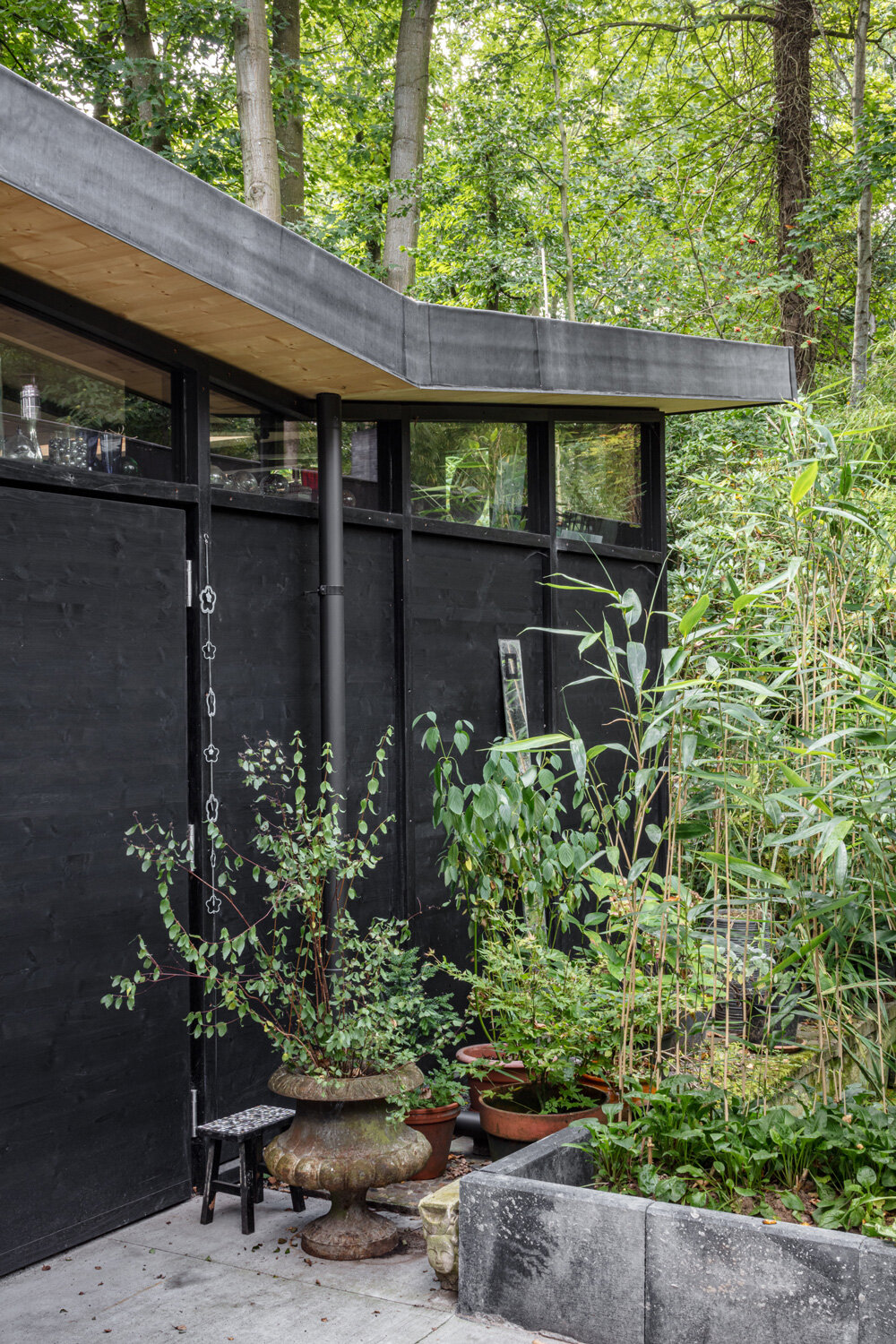

black-stained timber clads the exterior
black-stained timber clads the exterior
the building is well integrated into the surrounding nature
the building is well integrated into the surrounding nature
prefabricated artist studio nestles within the verdant backyard of a 60s bungalow in belgium

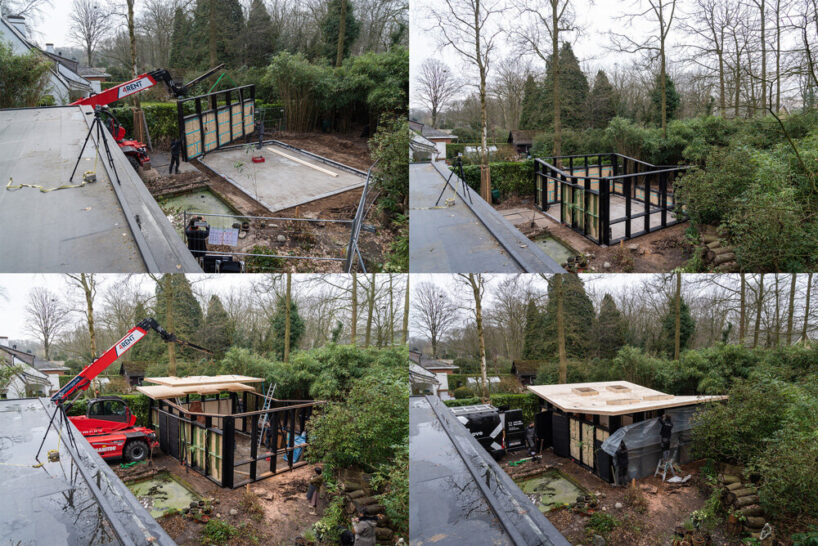

assembly process of the prefabricated construction
assembly process of the prefabricated construction

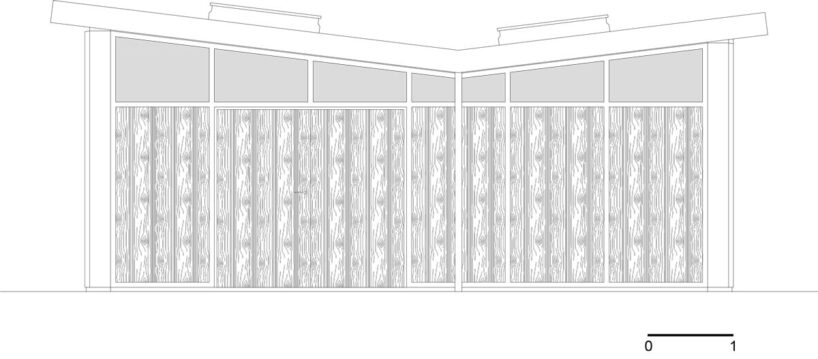

elevation 1
elevation 1

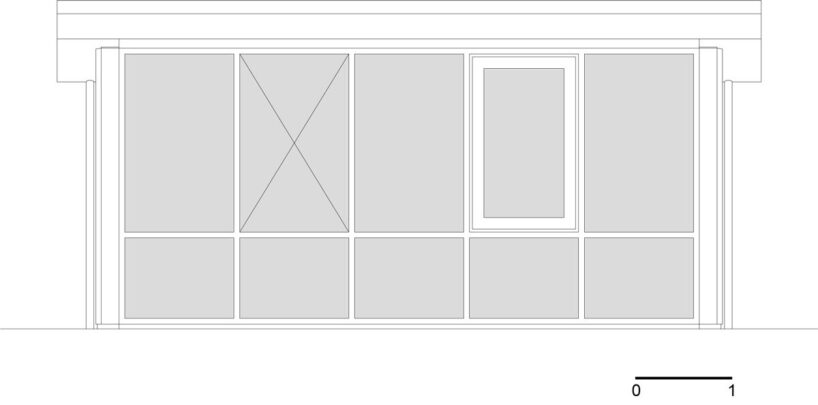

elevation 2
elevation 2

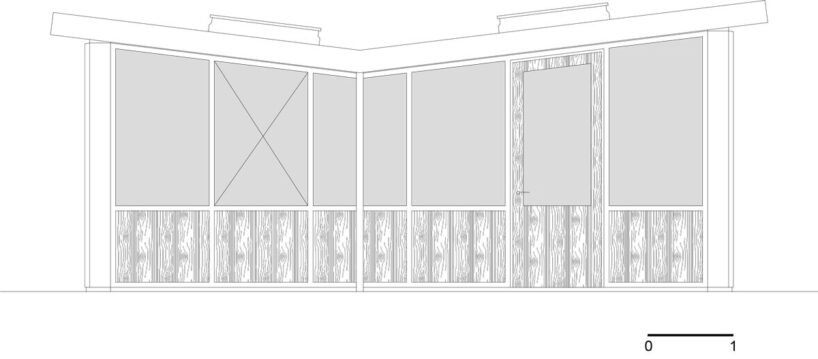

elevation 3
elevation 3

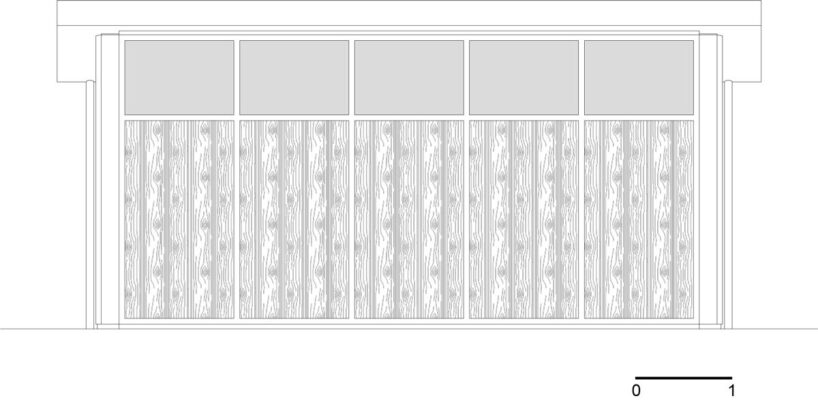

elevation 4
elevation 4

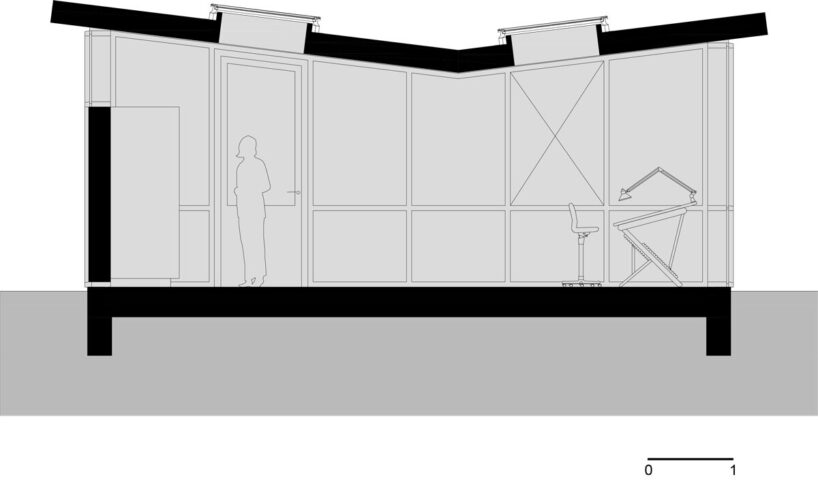

section
section

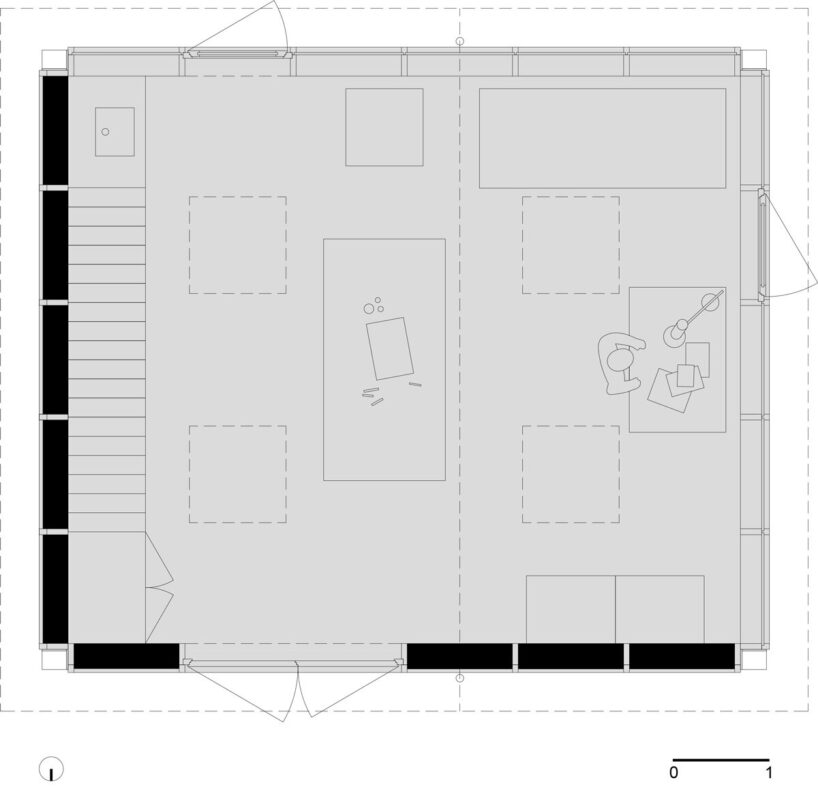

floor plan
floor plan

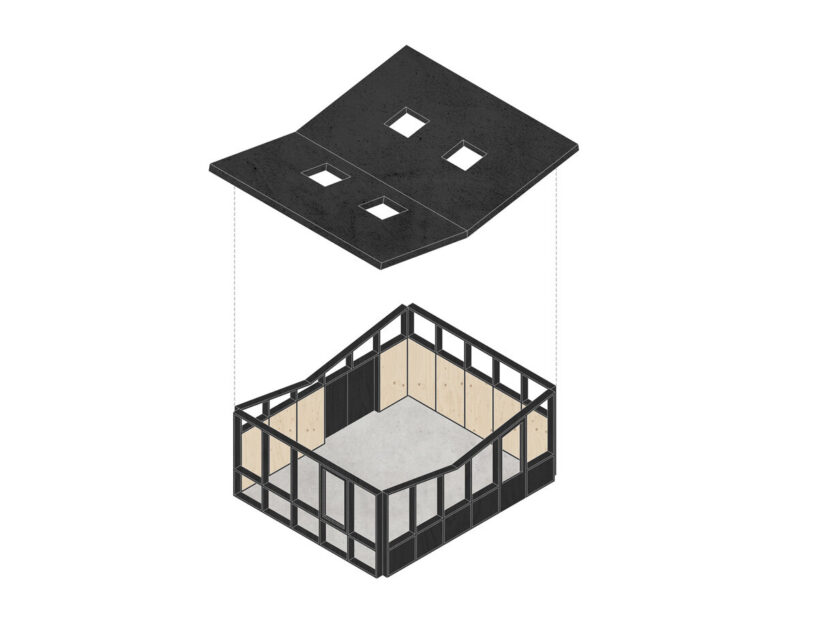

exploded view
exploded view

project info:



name: atelier pia burrick

architect: studio mxmxm

team: jason slabbynck

program: workshop space
location: bruges, belgium
scale: 45 sqm
year: 2020

photography: tim van de velde
