herzog & de meuron was recently chosen to construct the new museum building as part of the city’s famed kulturforum complex in germany. intended as a ‘place of encounter’, the structure will provide increased and additional gallery space for mies’ iconic building — which has become too small to properly exhibit the museum’s artwork.

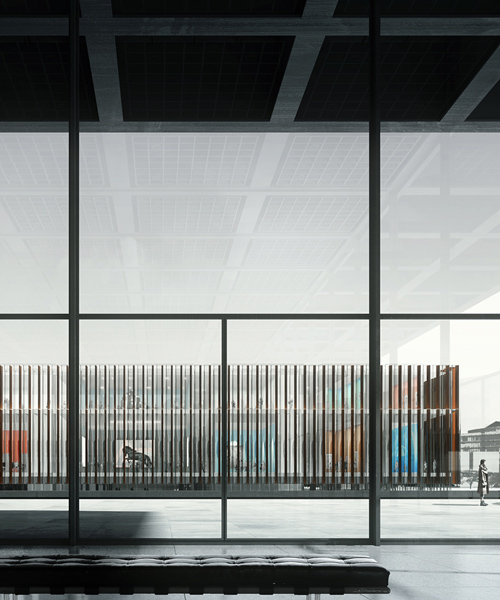

the building’s wooden sun/glare-control louvers shown in various positions
image by luxigon (also main image)
REX’s proposal forms a functional ‘objet trouvé’ for the framing of 20th century art. rather than offering a ‘blank slate’, a typology that the architects say has become constrictive, the design seeks to provide built-in tools that curators can use to display various collections. in terms of its layout, a gradational grid of galleries facilitates self-navigation, while maintaining diversity in room character, size, and proportion.
the design seeks to provide built-in tools that curators can use to present various collections
image by luxigon
in order to house the requirements of the program within the plot, the floorplate is doubled. while both floors follow the same gridded gradation, the characters of galleries are unique on each floor. the level 2 floor slab is tilted, raising the galleries’ heights from 5 meters at the south to 6.75 meters at its northern end. below, on level 1, the galleries’ heights transition conversely.
see the gallery at the bottom of the page for more information on the proposal in the words of the architects.
the ground level offers views into the galleries below
image by REX
competition model showing the level 2 floor slab tilt
image by radii
the proposal forms a functional ‘objet trouvé’ for the framing of 20th century art
image by radii
the competition brief for the museum of the 20th century required 'a lively alternation of larger and smaller rooms […that are] clearly defined, fixed spatial volumes [...] offering the greatest possible flexibility [...]. there should be no explicit round tour. rather, there should be many paths and single avenues through the exhibition spaces available for individual selection.'

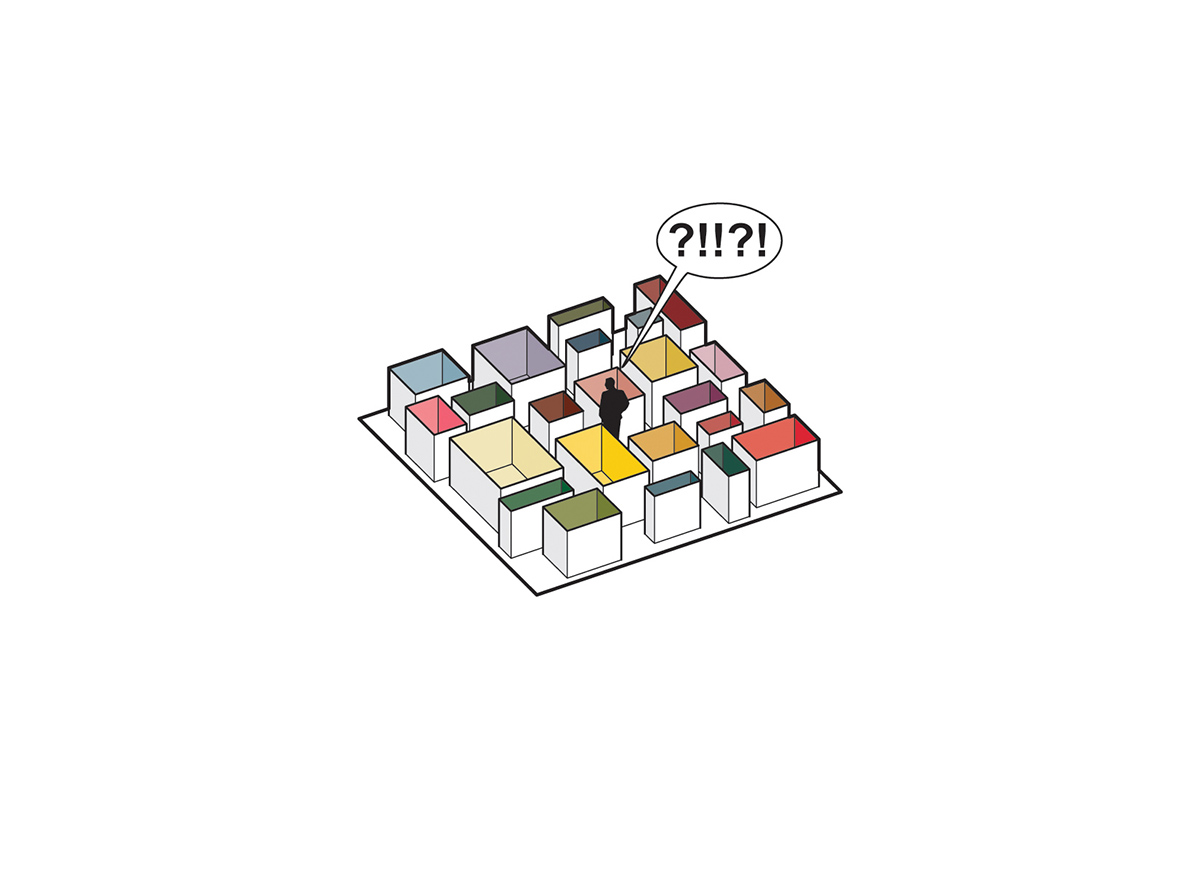

a random field of galleries—each endowed with distinct characters—provides individual choices of routes and modes of perception, but renders the overall collection and individual thematic complexes difficult to organize and illegible. intuitive wayfinding is obfuscated, causing futile wanderings.

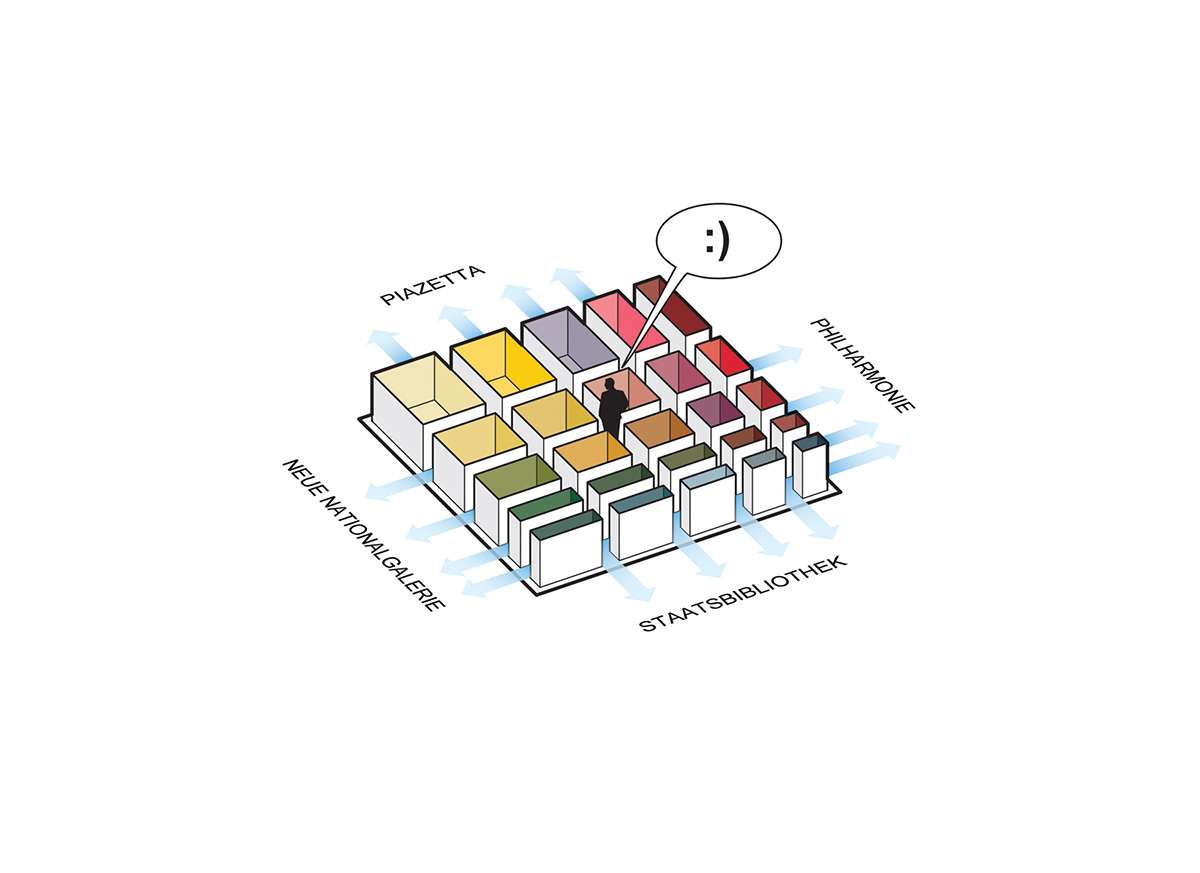

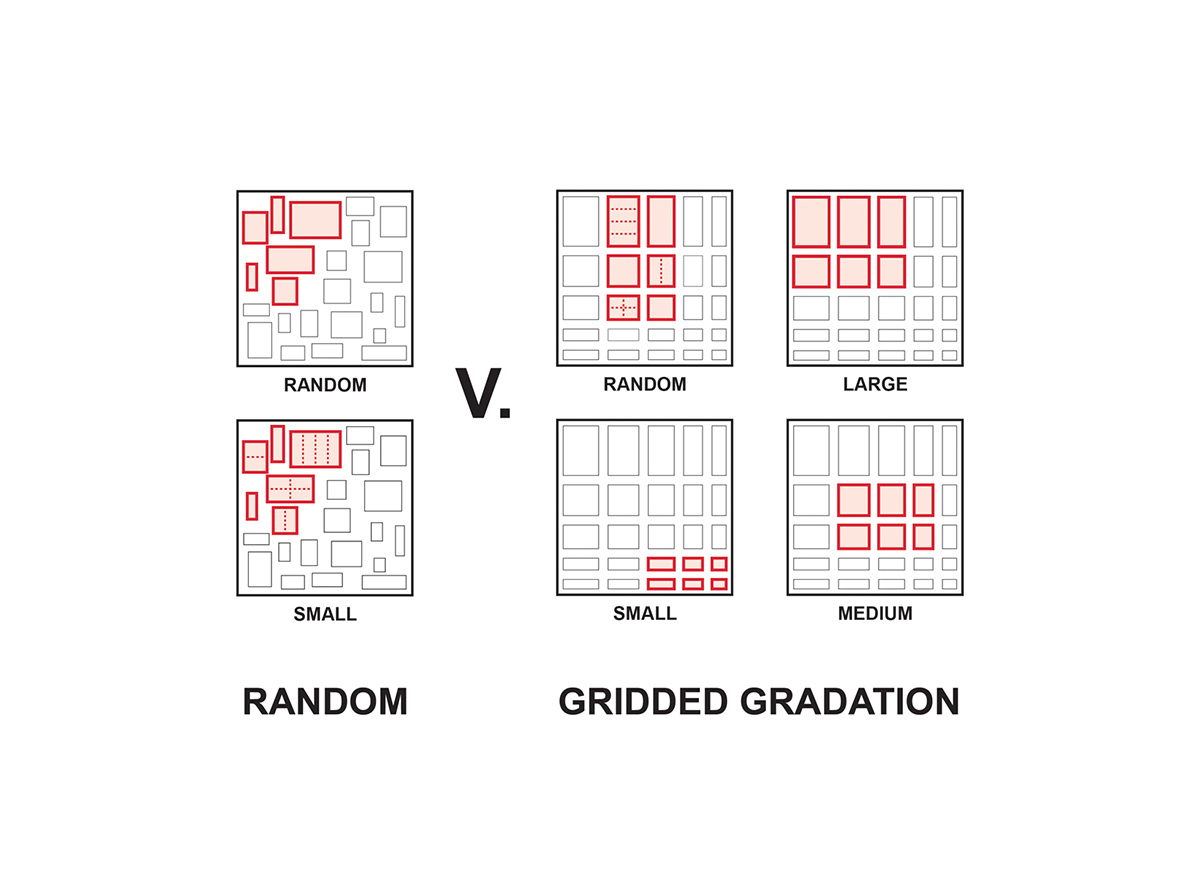

a gradational grid of galleries, however, offers curatorial clarity and facilitates self-navigation, while still offering diversity in room character, size, and proportion, as well as multiplicity of experience and individual choice of route. from anywhere on the floor, patrons can see the neue nationalgalerie, the piazzetta, the philharmonie, and the staatsbibliothek down the hallways created by the matrix, further aiding orientation.
unlike an arbitrary assemblage of rooms of various sizes which limits curatorial ‘play’ to a haphazard combination or a constellation of small rooms only (via divided larger galleries), the gridded gradation expands curatorial freedom as it provides flexible zones of potential collaborating galleries for any exhibition or theme desired: all large galleries, all small galleries, mixed gallery sizes (via division of some larger galleries), or even all medium sized galleries (by organizing a show in the center.)

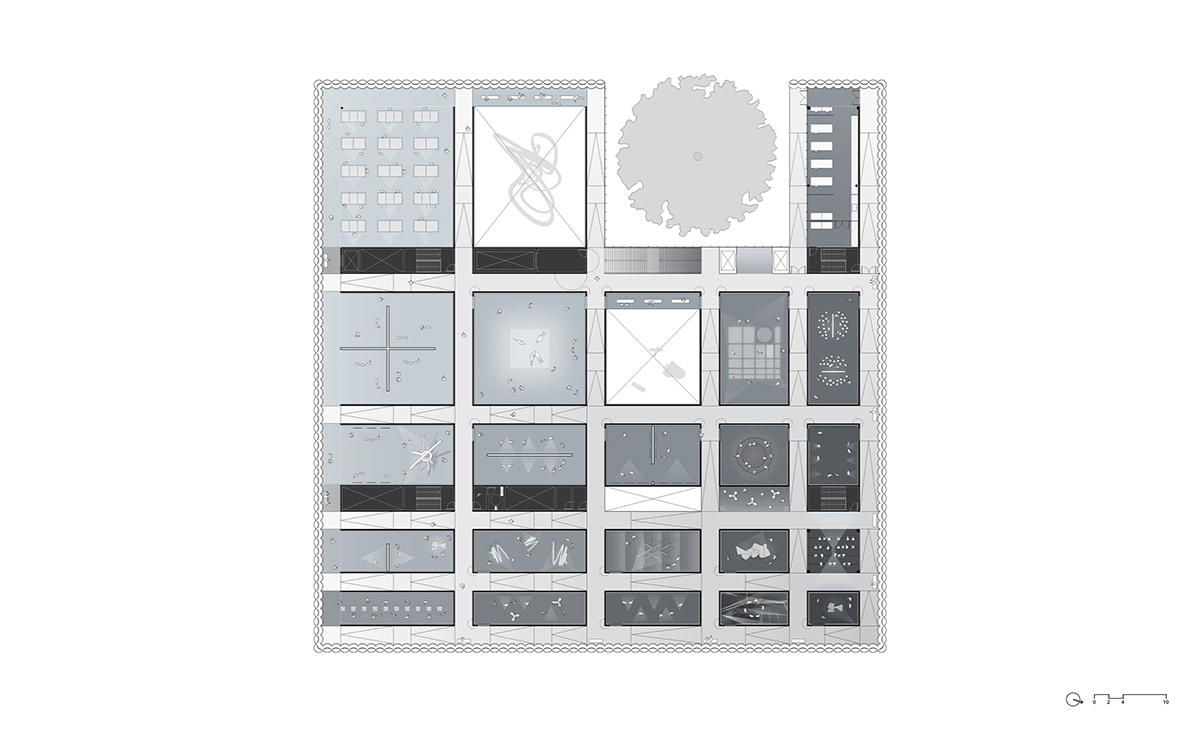

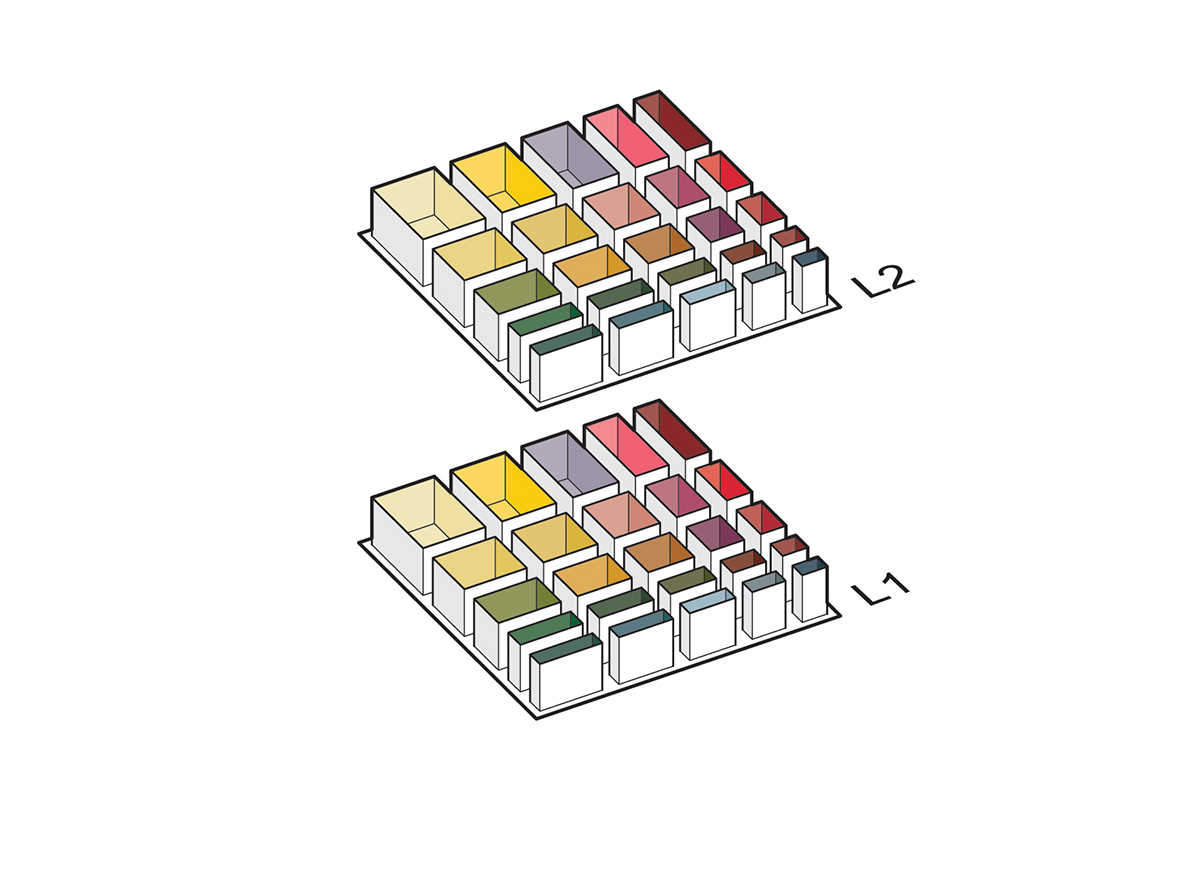

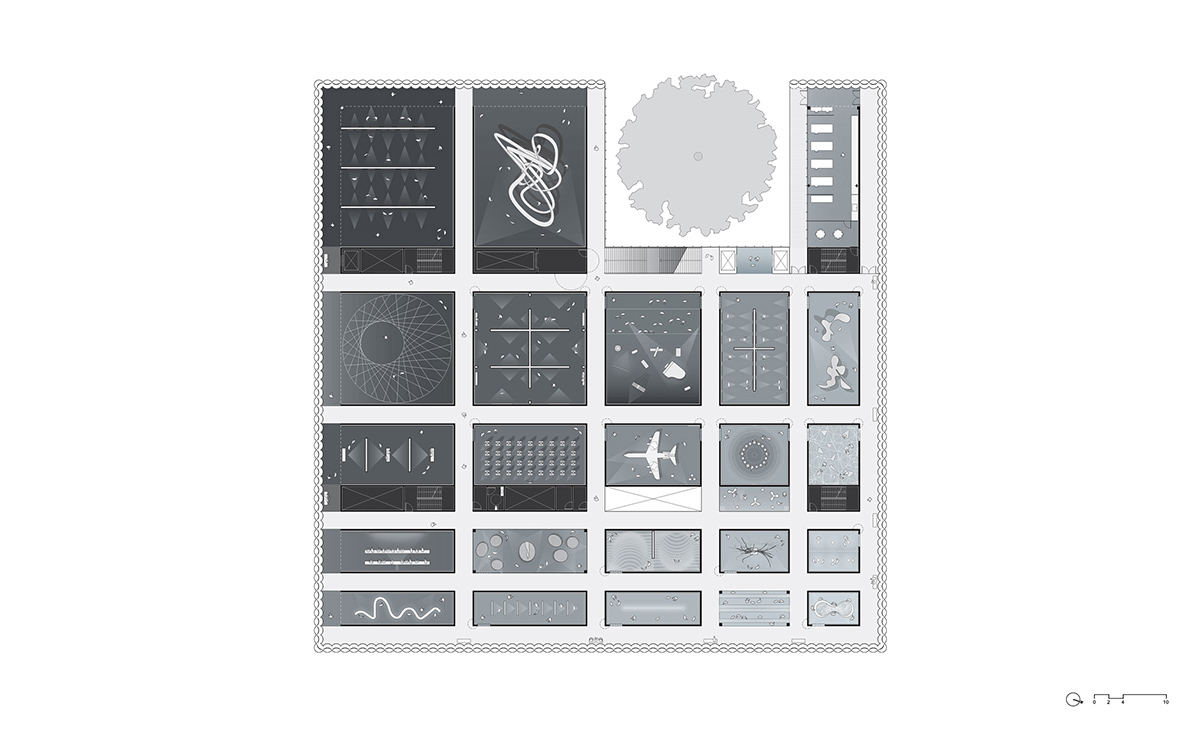

to fit the museum’s program requirements within the delineated square, the floorplate is doubled. while both gallery floors follow the same gridded gradation, the characters of galleries are unique on each floor.

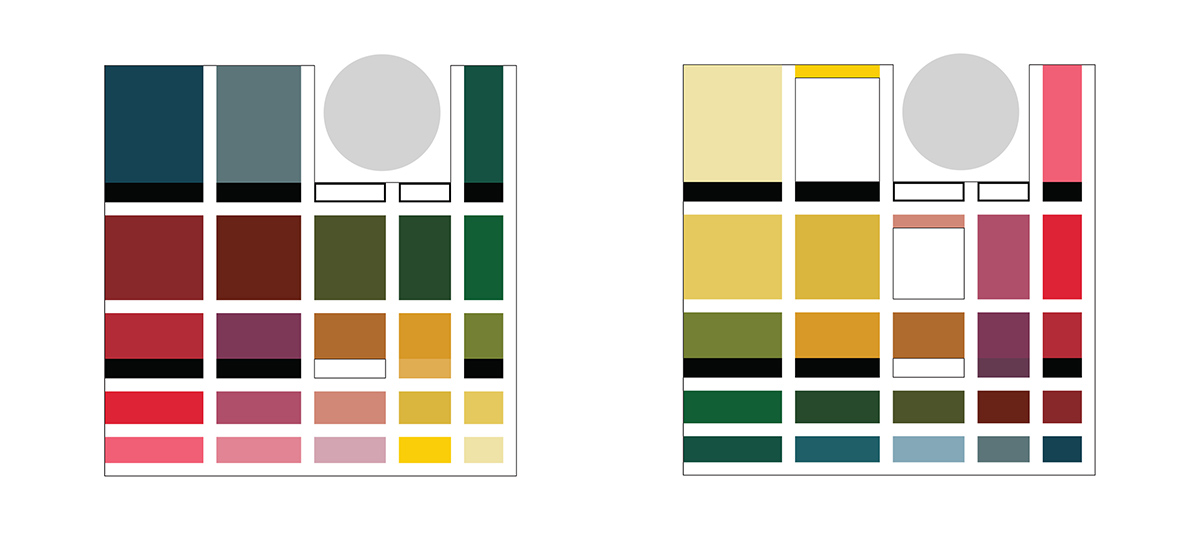

to increase diversity of the galleries and the multiplicity of experiences:

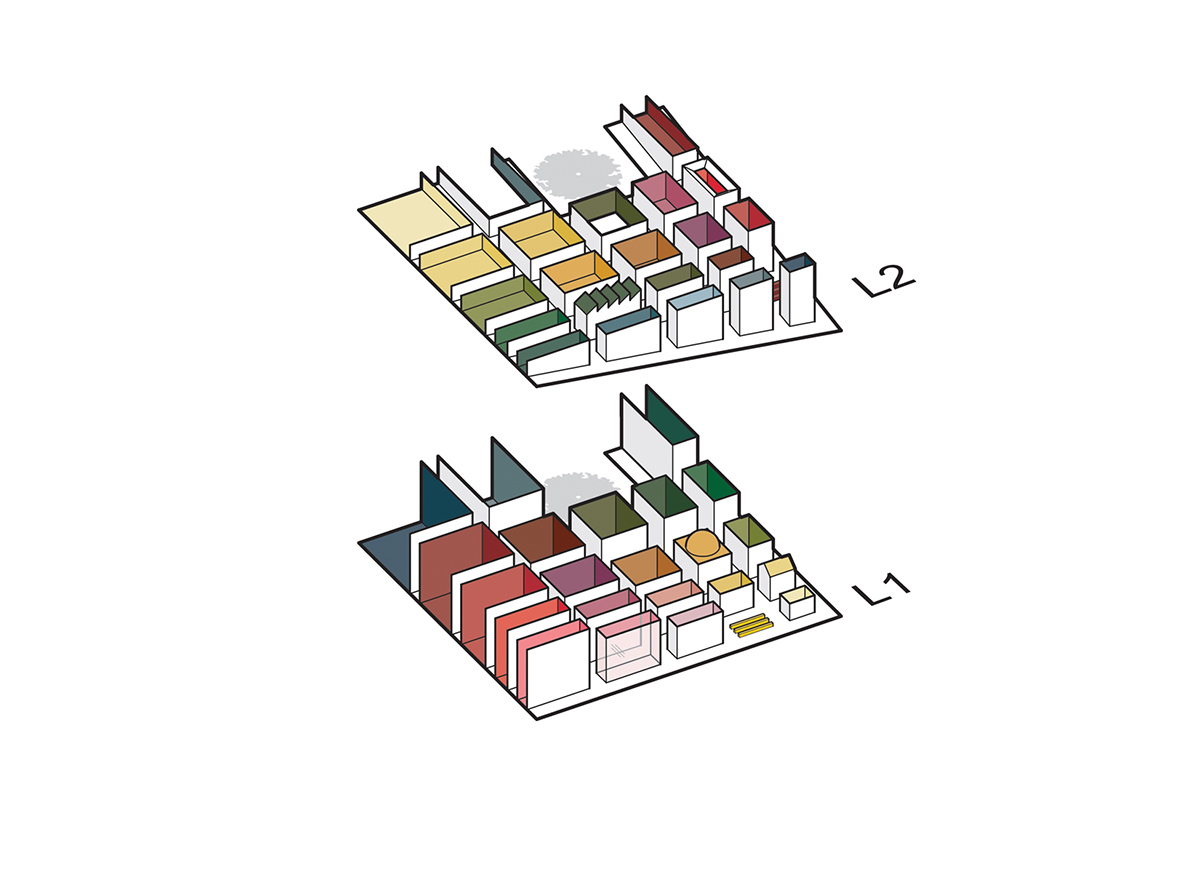

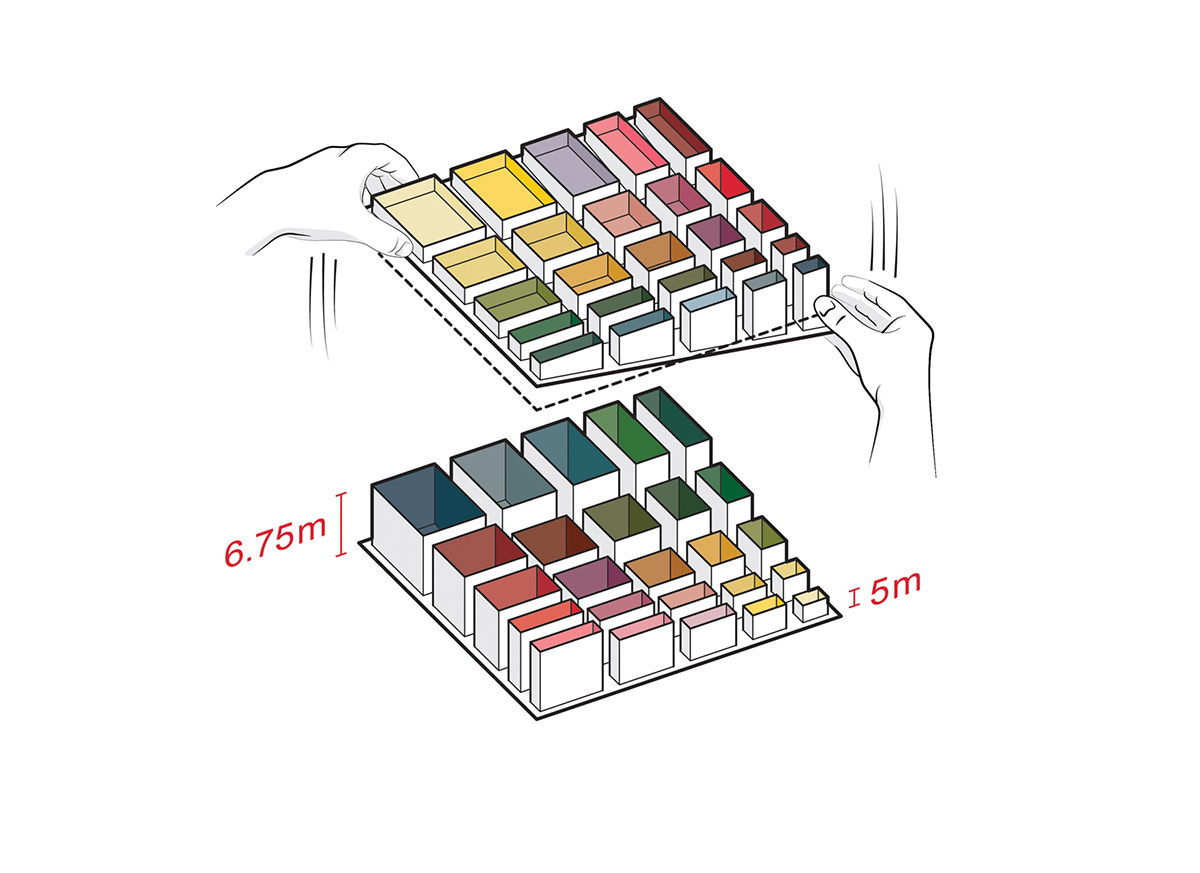

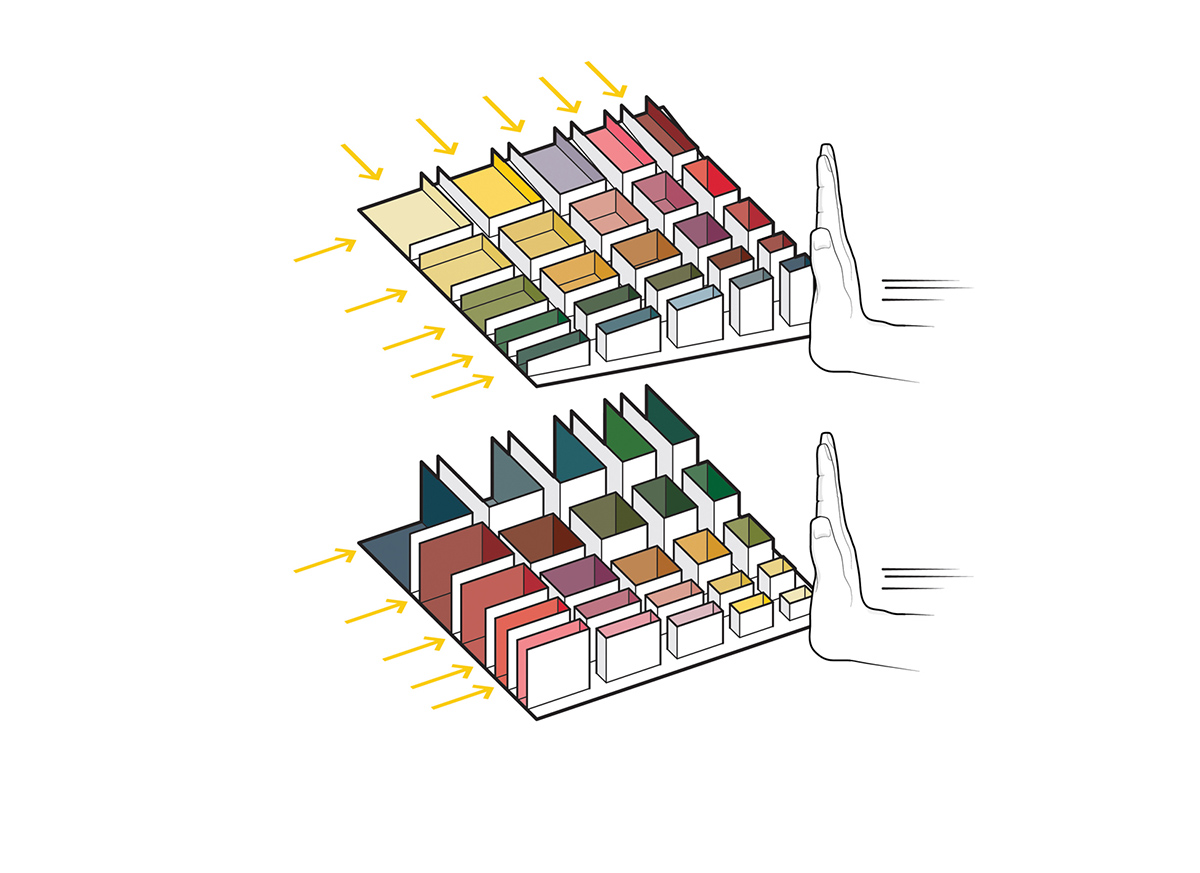

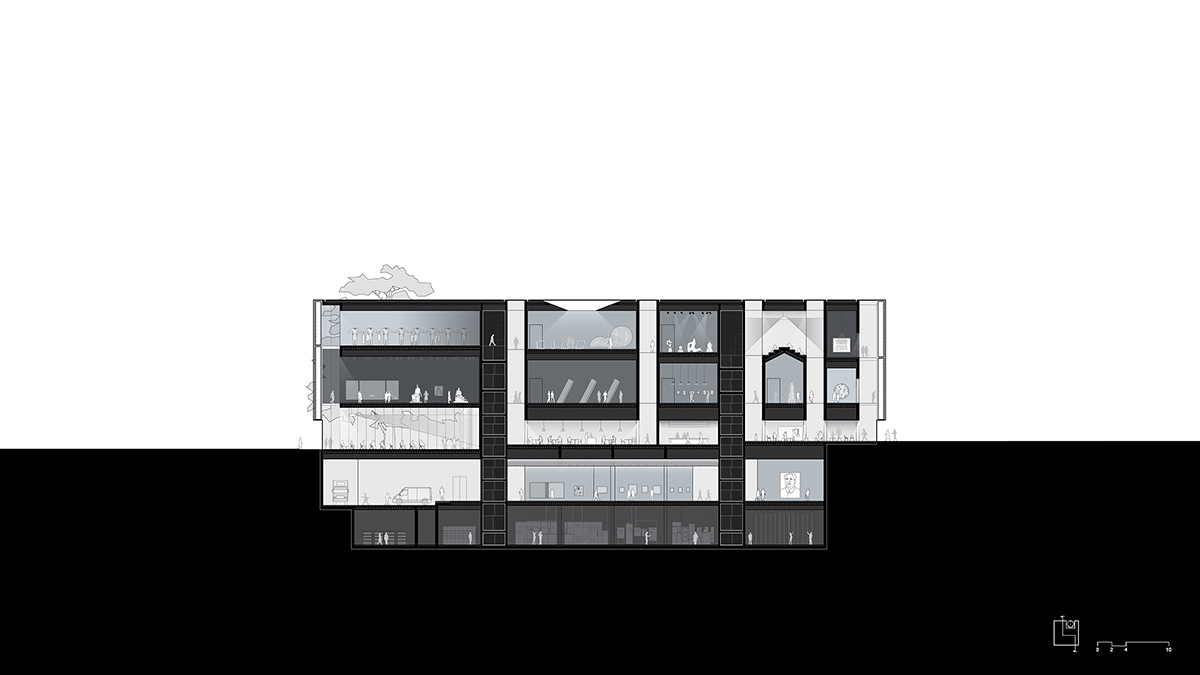

i) the level 2 floor slab is tilted—sloped from south to north—raising the galleries’ heights from 5 m at the southern end to 6.75 m at the northern end. conversely, the galleries’ heights on level 1 transition from 6.75 m at the southern end to 5 m at the northern end;…
…ii) the gradation is pushed towards the southwest to offer optional side daylight to the galleries along the southern and western perimeters (similar to the basement galleries of the neue nationalgalerie, which reach west to the façade of its sculpture garden); and…
…iii) unique attributes are added to multiple galleries, such as ceiling and floor shapes, glass walls, skylights, and double-heights (accommodating the 9 m height of the joseph beuys gallery and the large, column-free space dedicated to neue nationalgalerie’s installations.)
the result is a ‘wunderkammer,’ an environment where the extreme individualization of each gallery’s interior contrasts with the more abstract and seeming sameness of their exteriors and the museum’s hallways. this creates an unusual, intensively immersive experience. in this museum matrix, patrons encounter surprise and slight disorientation at once, yet can still find their place on the floors with the visual cues of the gradating galleries and the always visible façade and exterior views.

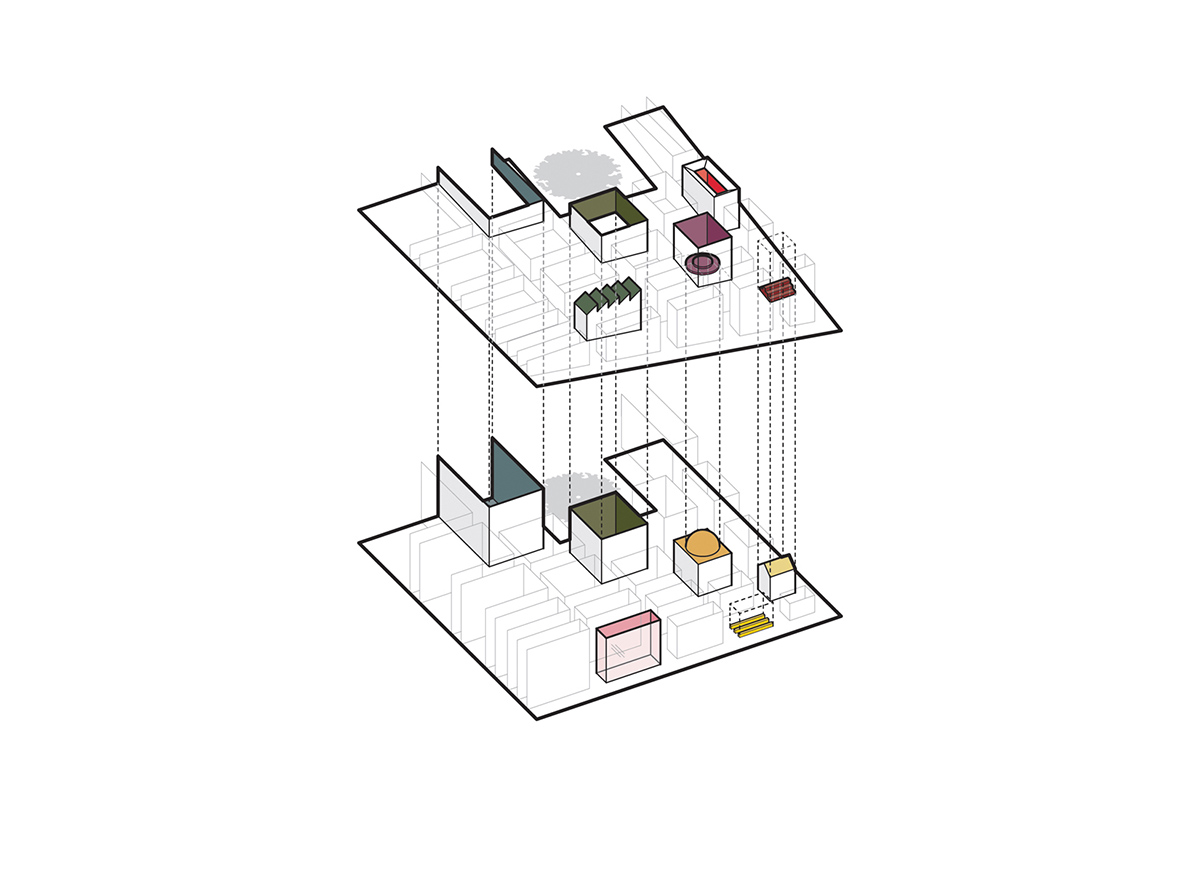

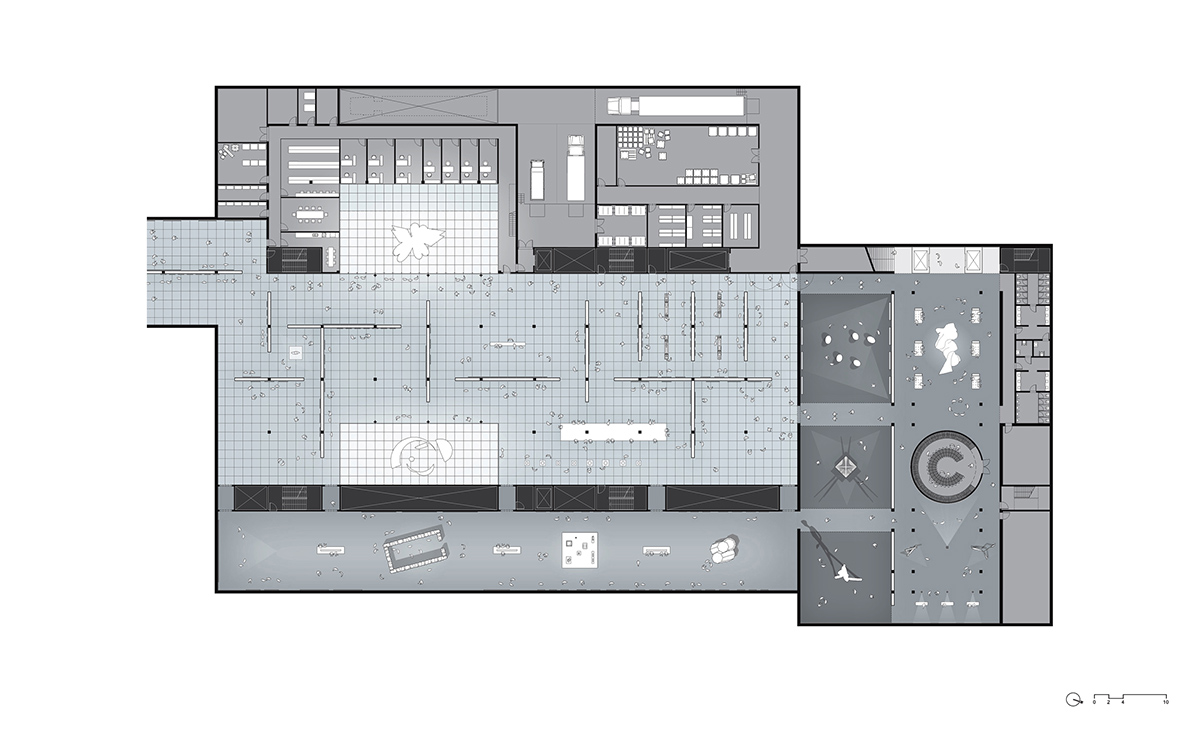

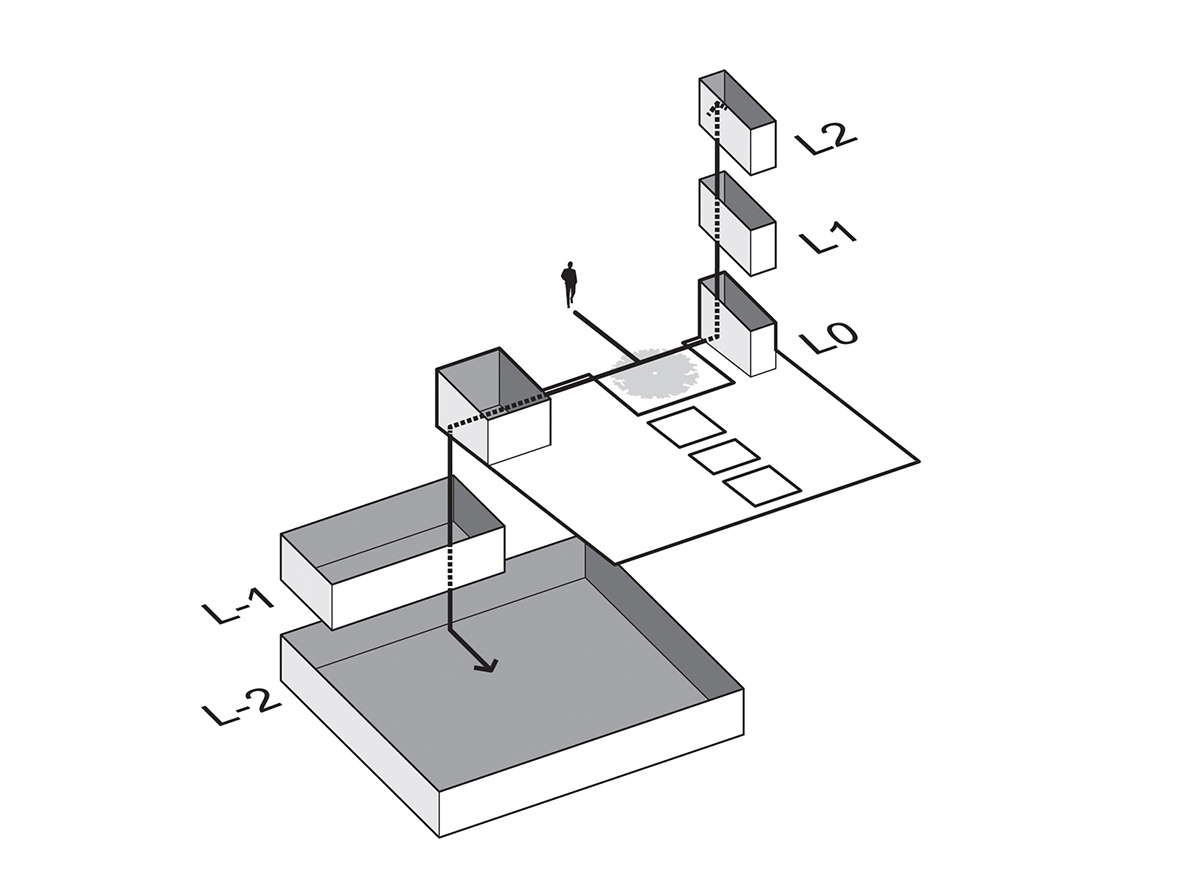

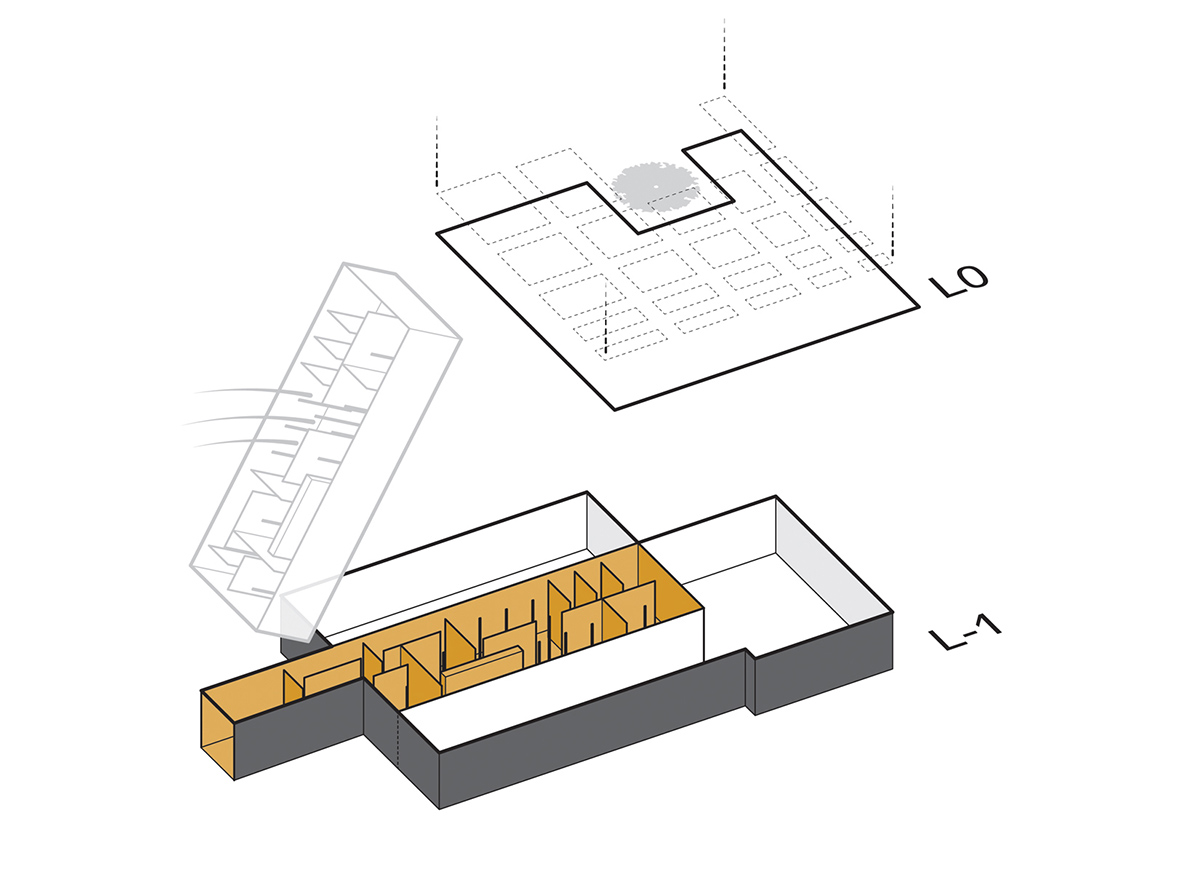

the gradational grid is projected from the gallery floors onto the ground plane of level 0. similarly, the level -1 gallery that will house the nationalgalerie’s art dating from before 1945 and early post-war, is a mirror plan of mies’ 11 x 4 module layout in the adjacent neue nationalgalerie, and even includes views into its own sculpture gardens. this organization emphasizes the continuity of content and the desired round-tour experience between the collections of the neue nationalgalerie and the museum.

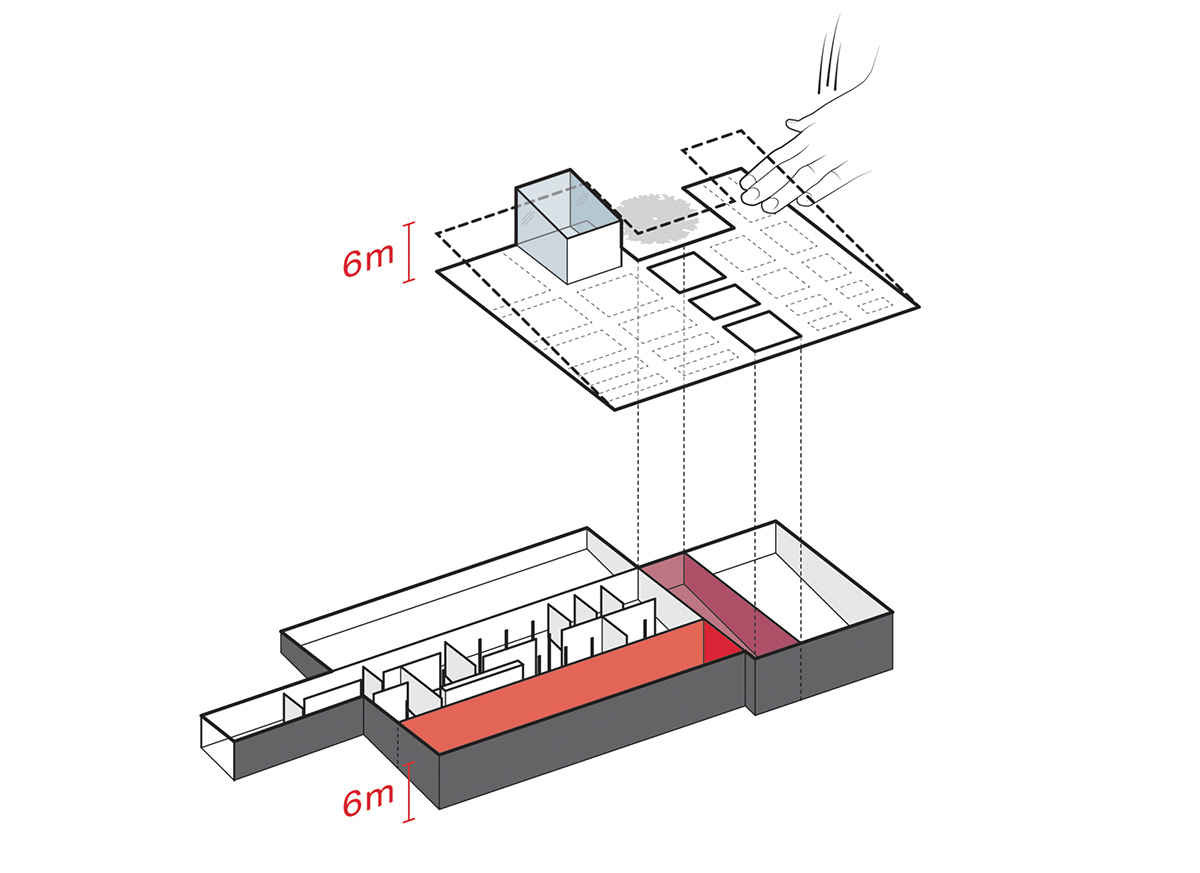

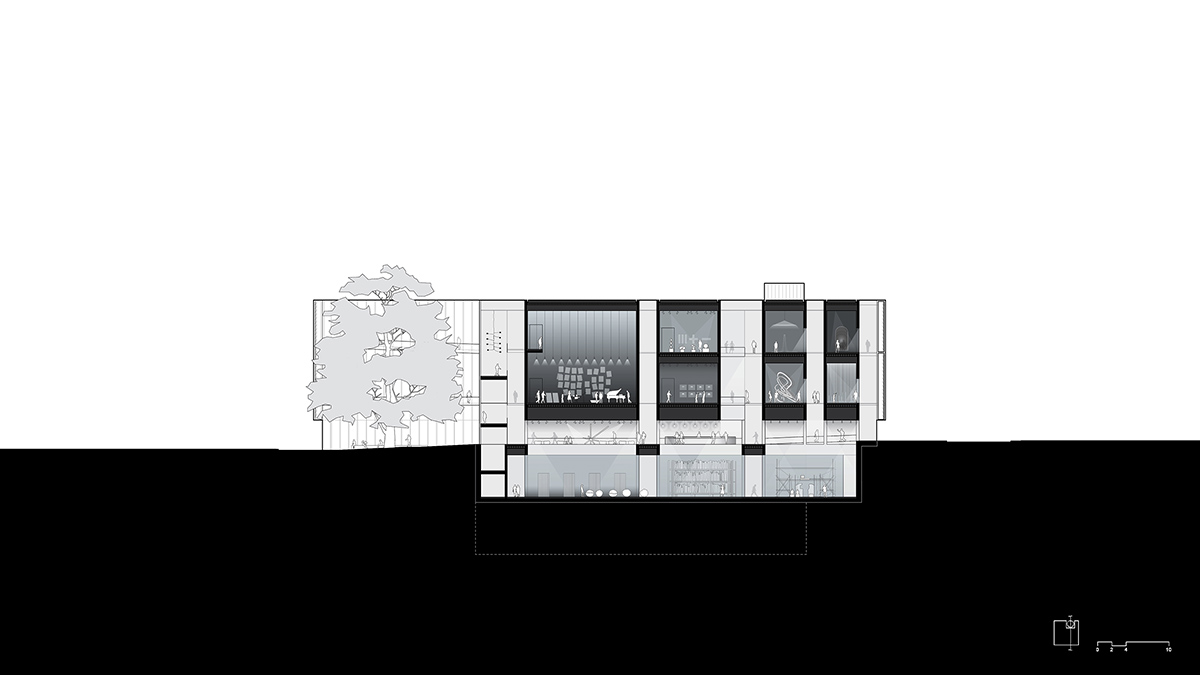

the site’s east-to-west slope is integrated within the building, enabling the 6 m heights necessary for the media/event space on level 0 and the marx collection on level -1. by placing the changing exhibitions gallery on level -1—and cutting out the level 0 floor slab above it—that gallery also achieves extra high ceilings, as well as sightlines from the public and education functions on the ground level (foyer, restaurant/bar, education/art appreciation, shop, and entrance to the media/event space).

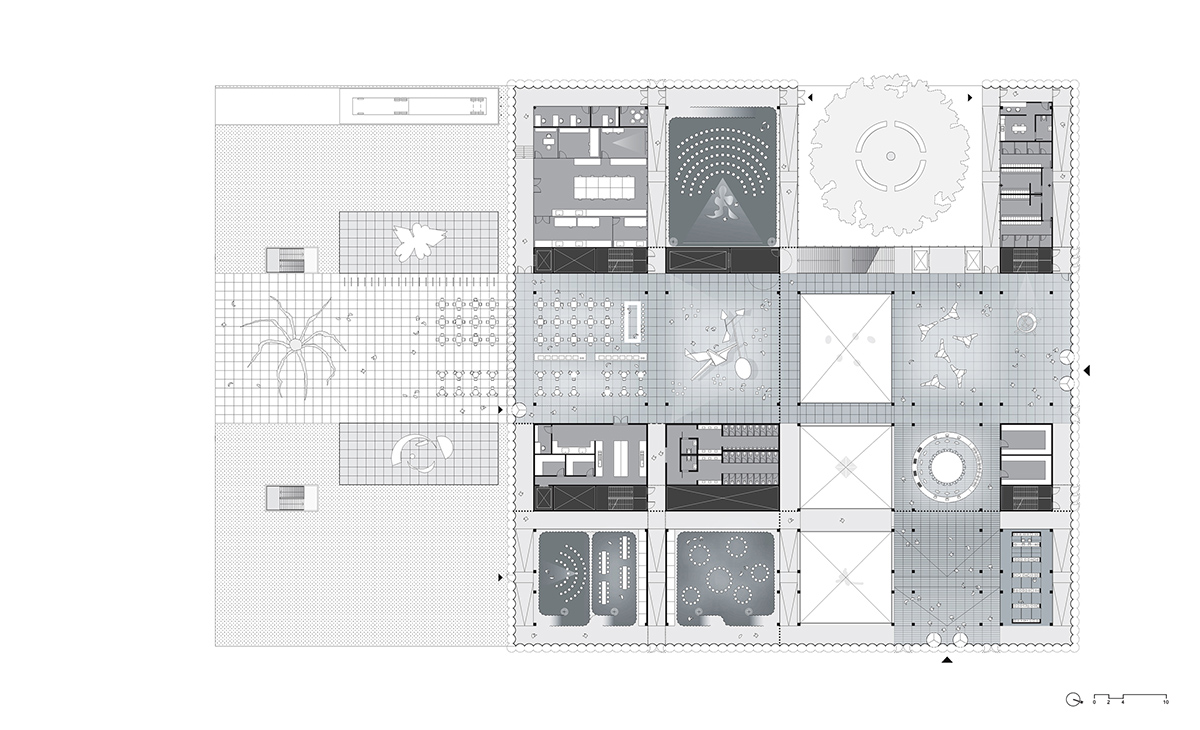

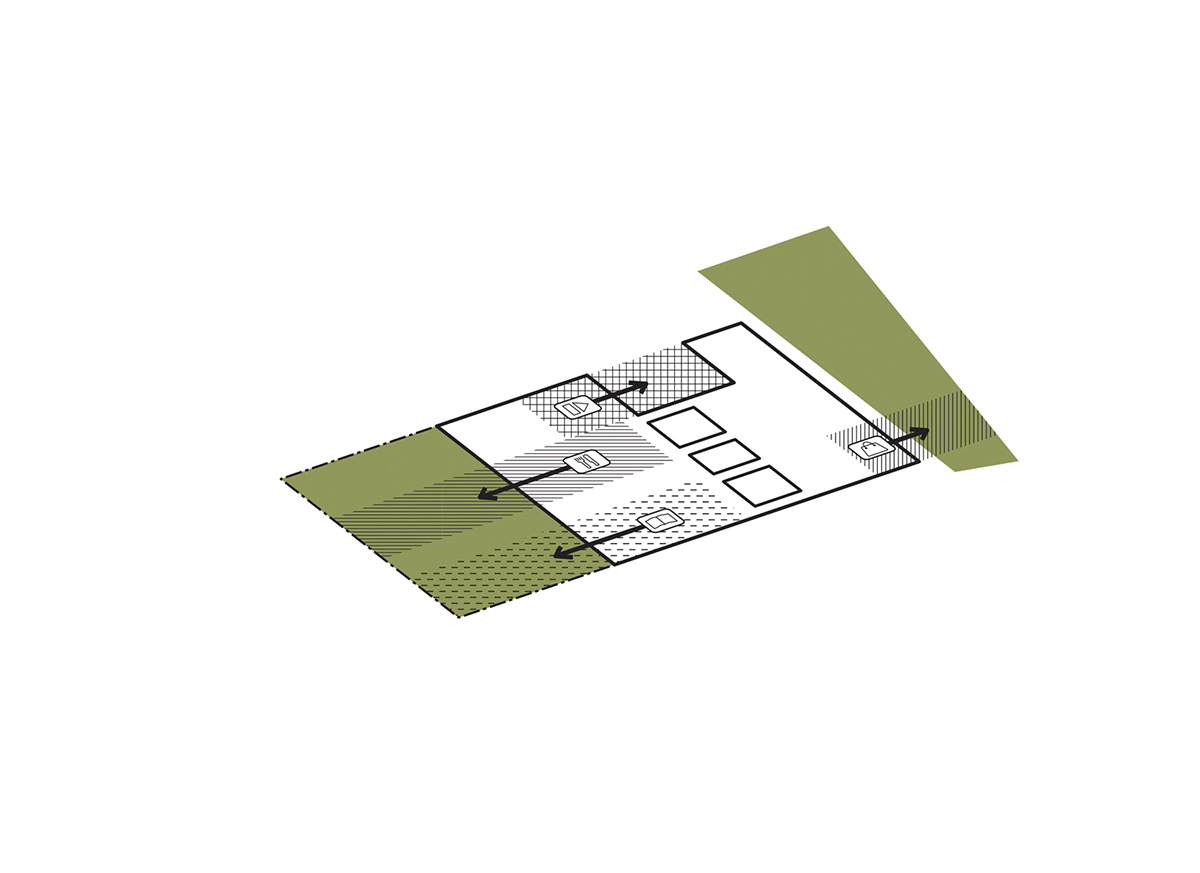

on level 0, the grid of the projected gradation from the galleries above is selectively dissolved to reinforce one major and one minor urban axis, and lines of sight. these axes also define a grand space at ground level which can be used—in conjunction with the changing exhibitions gallery and including the restaurant/bar—as a large, urban-sized event space. at the nexus of the two axes is the museum’s vertical circulation: a grand stair and a glass elevator core, that both look into the lush courtyard of the plane tree.
the ‘memory’ of the gradation also informs the ground level’s zoning, delineating distinct areas for those functions which need discrete access and must operate independently: restaurant/bar, education/art appreciation, museum shop, and media/event space. each of these areas is directly adjacent to its own exterior public space.
the building's northwest 'spur'—just north of the plane tree—and the southwest quadrant of levels 0 and -1 are dedicated to staff uses, including administration, restoration workshops (adjacent to their respective gallery spaces), and the freight elevator to the depot (art storage). museum staff has its own entrance within the plane tree's courtyard, and all administrative functions are conveniently located adjacent to elevator cores and egress stairs to facilitate staff movement vertically.

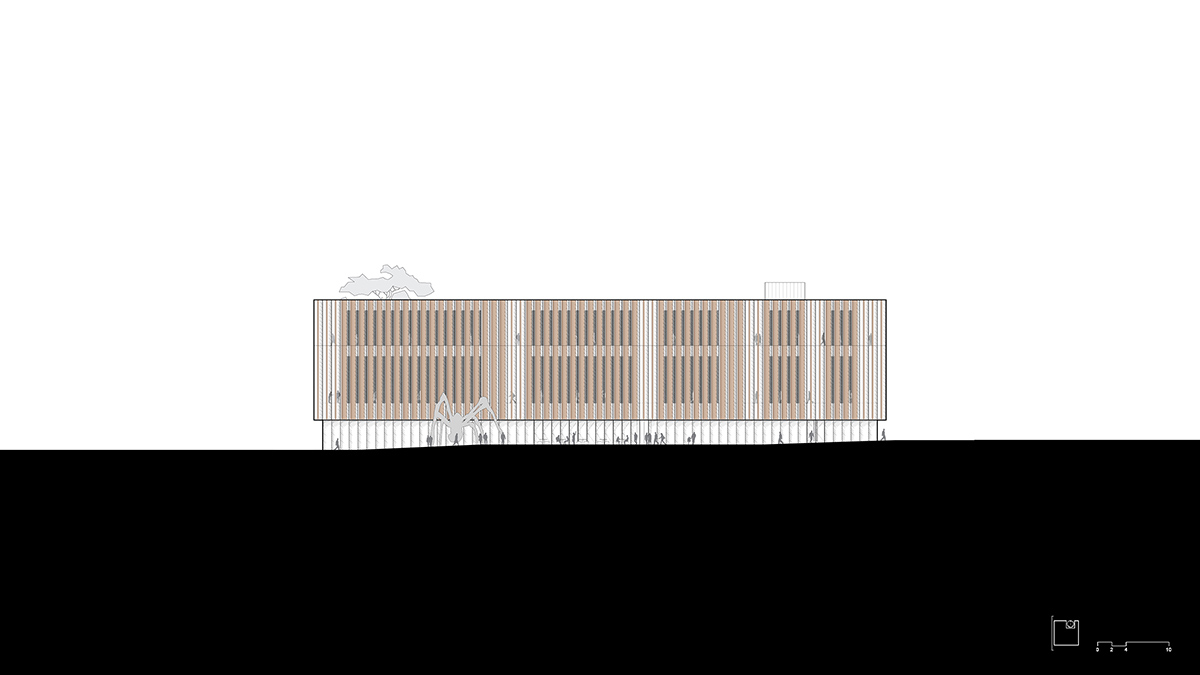

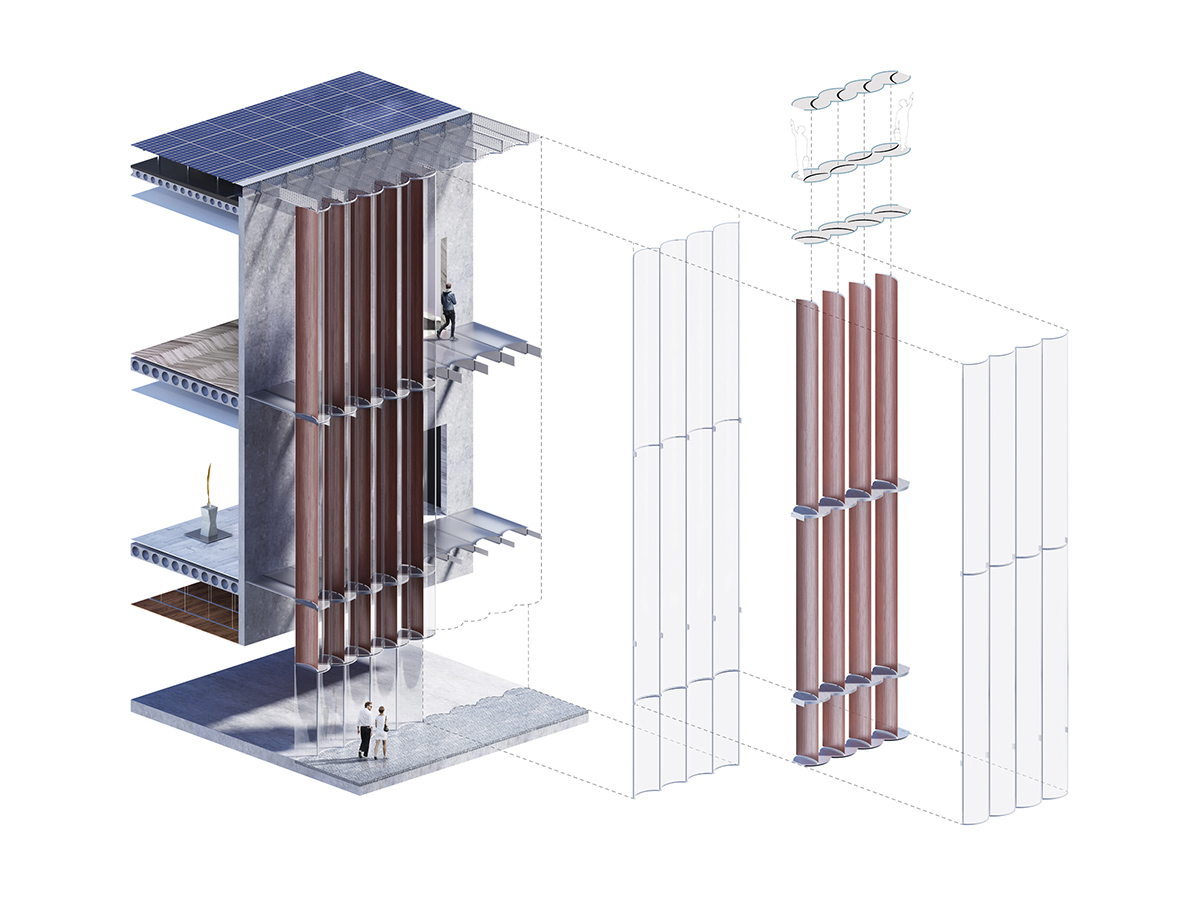

the museum’s double-skinned window-wall is one of the building’s most notable sustainable features. each facade’s two glazing layers, the naturally-ventilated cavity between them, and its enclosed, vertical, wooden sun/glare-control louvers, work in concert to significantly reduce the museum’s mechanical and electrical loads.

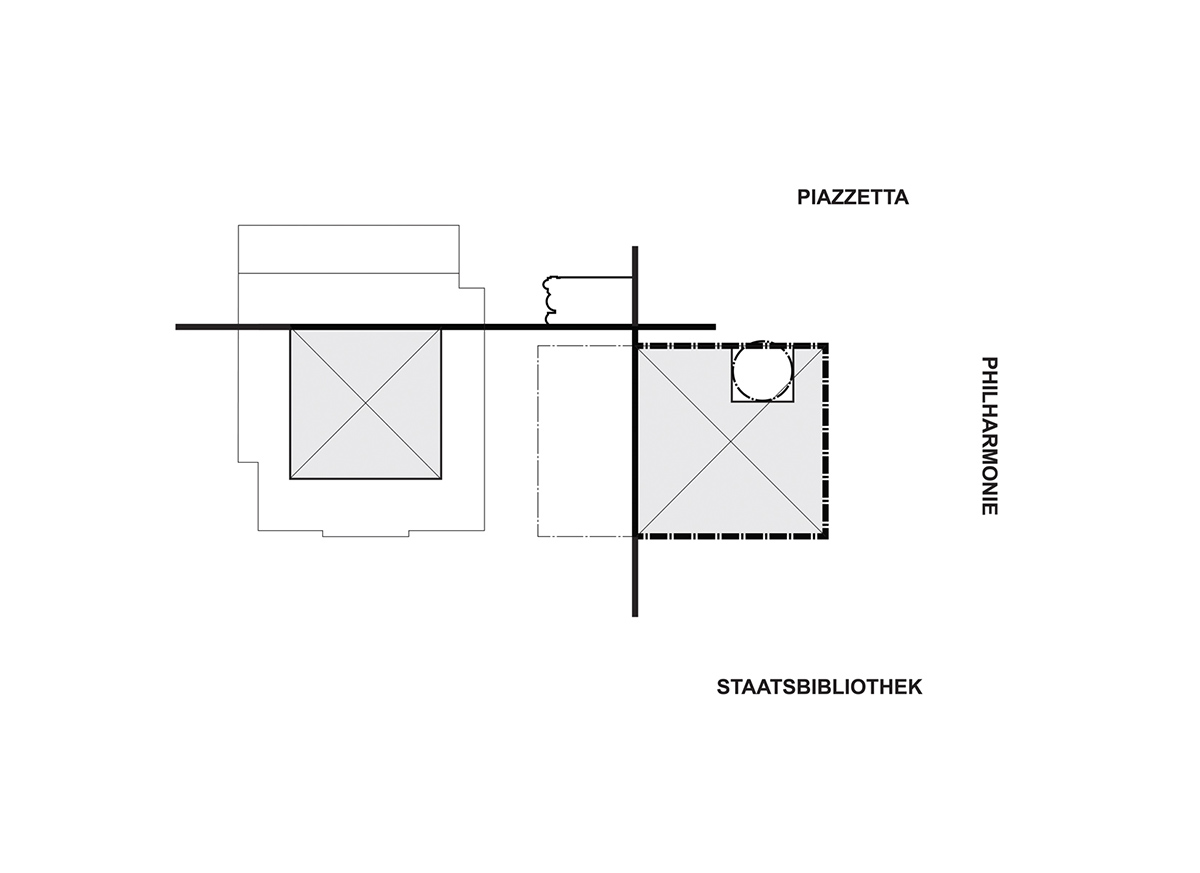

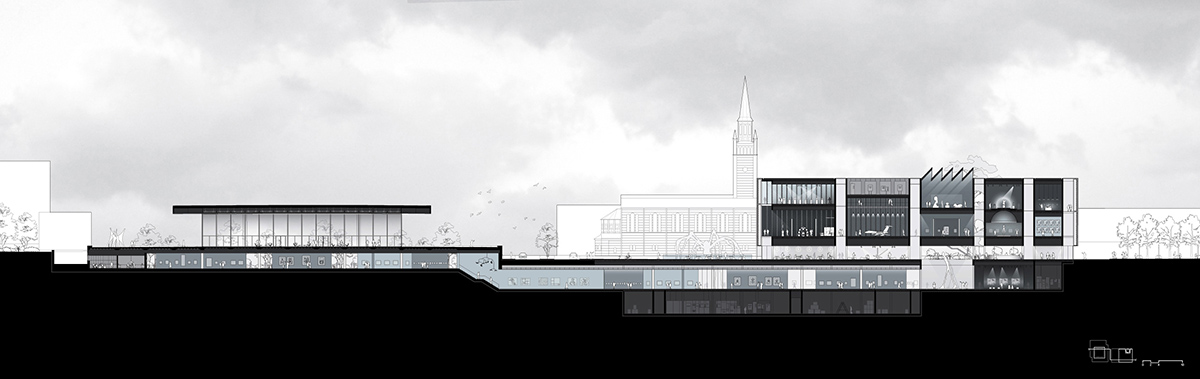

taking a cue from mies van der rohe’s alignment of the western edge of the neue nationalgalerie with the eastern wall of st. matthäus kirche, the southern edge of the museum aligns with st. matthäus’ north wall, protecting the unobstructed view of the church from potsdamer strasse. the square form of the museum fits ideally in the remainder of the site area. the large, protected plane tree notches this pure plan. additional alignments reinforce the two-museum campus concept. the clear height of the museum’s ground level (level 0) matches the height of the neue nationalgalerie’s plinth. the height of the museum’s level 2 at its southern edge aligns with the top of the neue nationalgalerie’s roof.

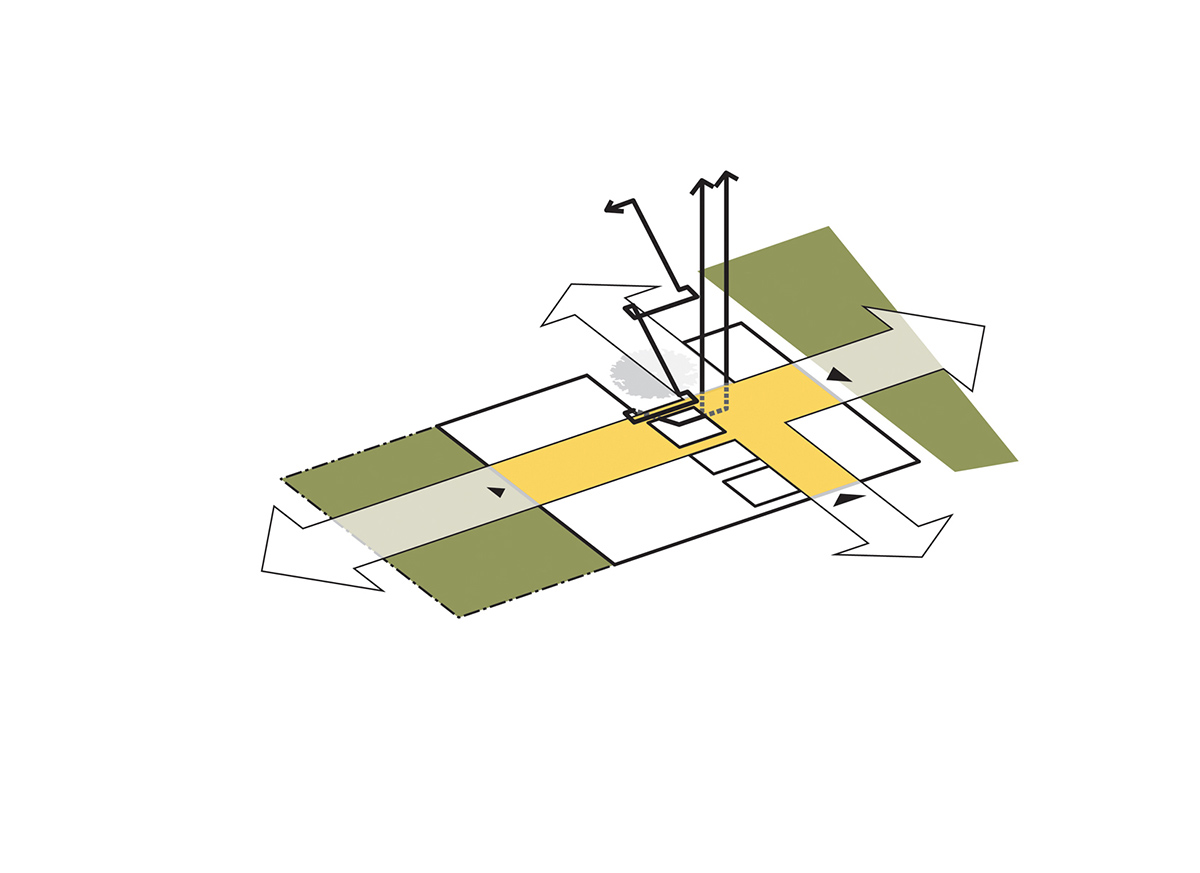

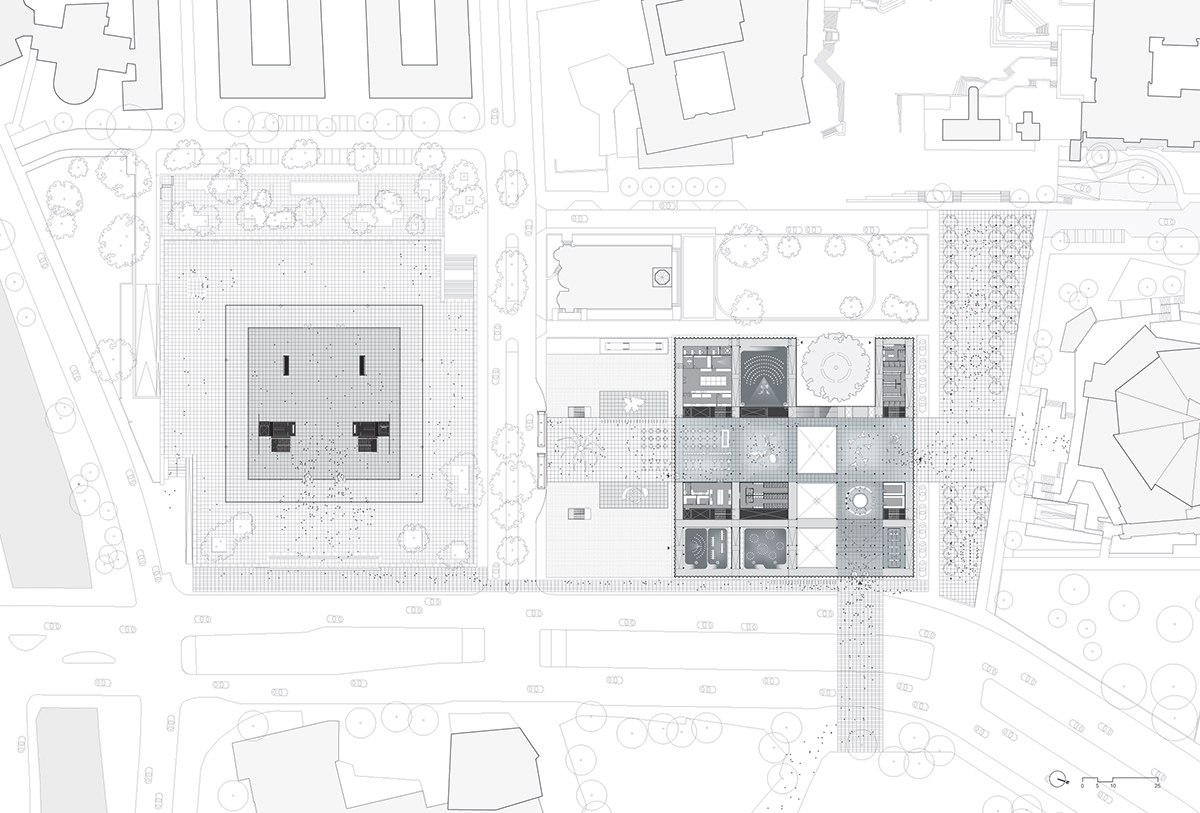

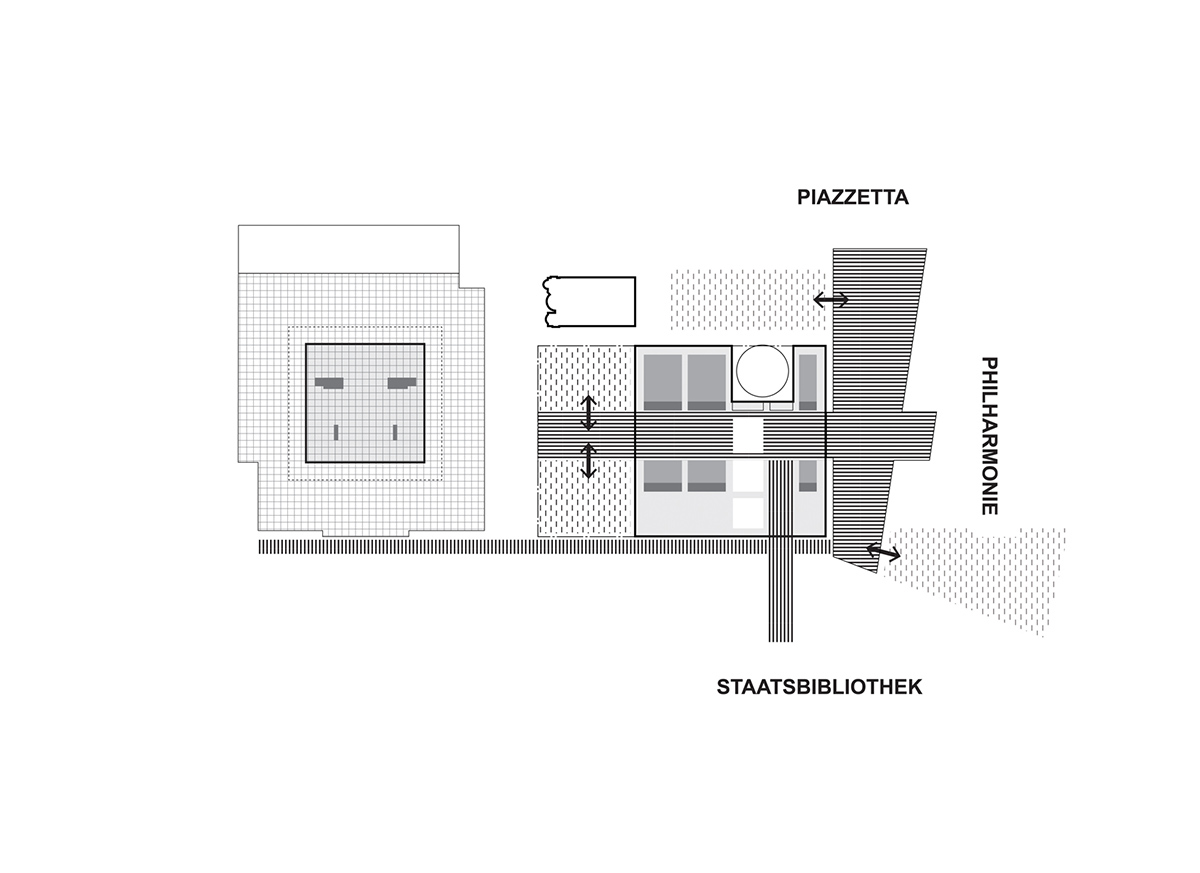

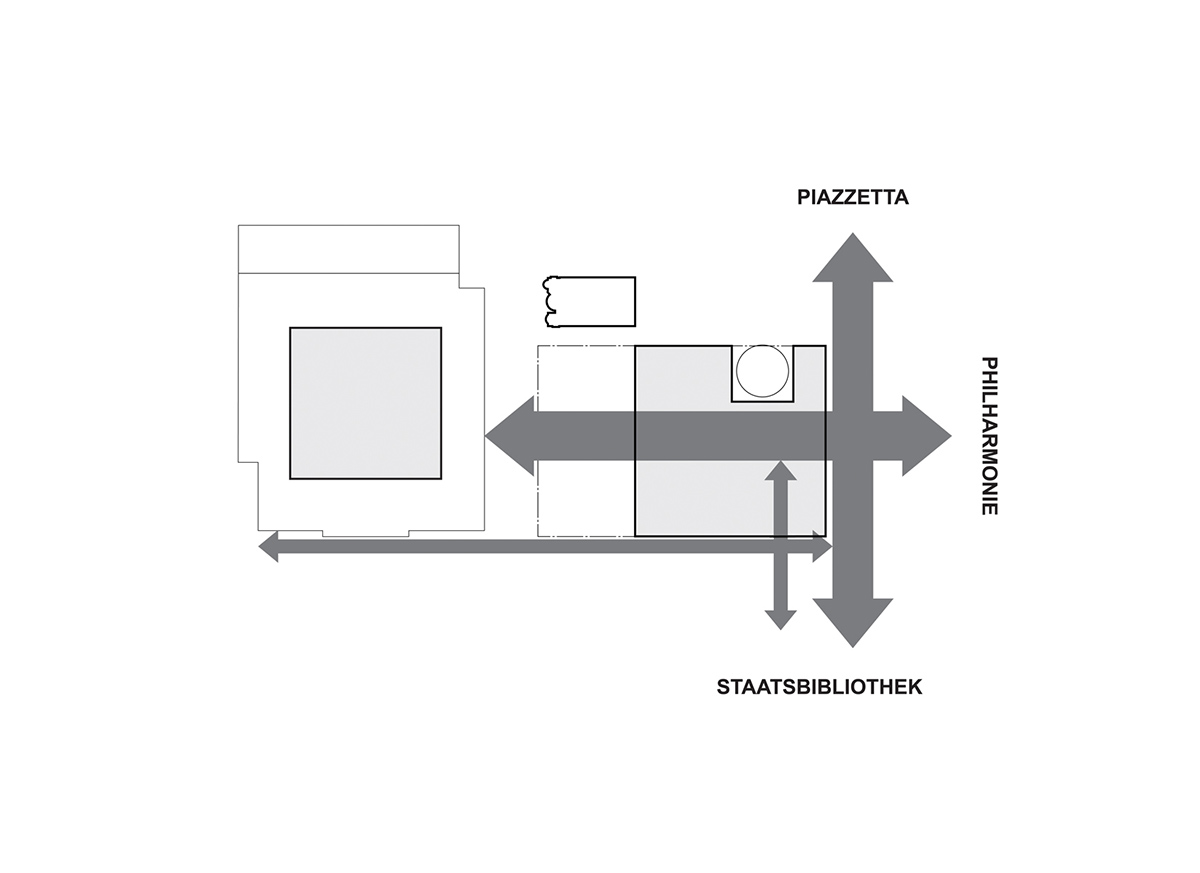

two major axes transect and organize the site and the museum’s connections to its neighbors. the north-south axis from the philharmonie to the neue nationalgalerie traverses through the museum. the east-west axis passes between the museum and the kammermusiksaal, from the piazzetta to the staatsbibliothek. two minor axes complete the site’s hierarchy: the first along potsdamer strasse connects the museum and the neue nationalgalerie, and the second from the plane tree through the museum, and across to the staatsbibliothek, folds the latter more closely into the kulturforum. these four axes organize a new primary pedestrian circulation for the kulturforum, while offering significant public spaces.
the urban landscape program of the museum defines and creates a hierarchy amongst the existing and future open spaces. in continuity with the neue nationalgalerie’s plinth, granite paves the four axes that form the pedestrian public spaces. the renewed open spaces that are partially existing draw their inspiration from the naturalist landscapes of the tiergarten with random tree bosques sculpting grass clearings. in contrast, a gridded allée of trees on both side of scharoun platz frames the views from the piazzetta to the staatsbibliothek while allowing outdoor performances, art shows, and special events. between the museum and the neue nationalgalerie, two simple lawns frame the void to maintain the visual link between the two buildings.

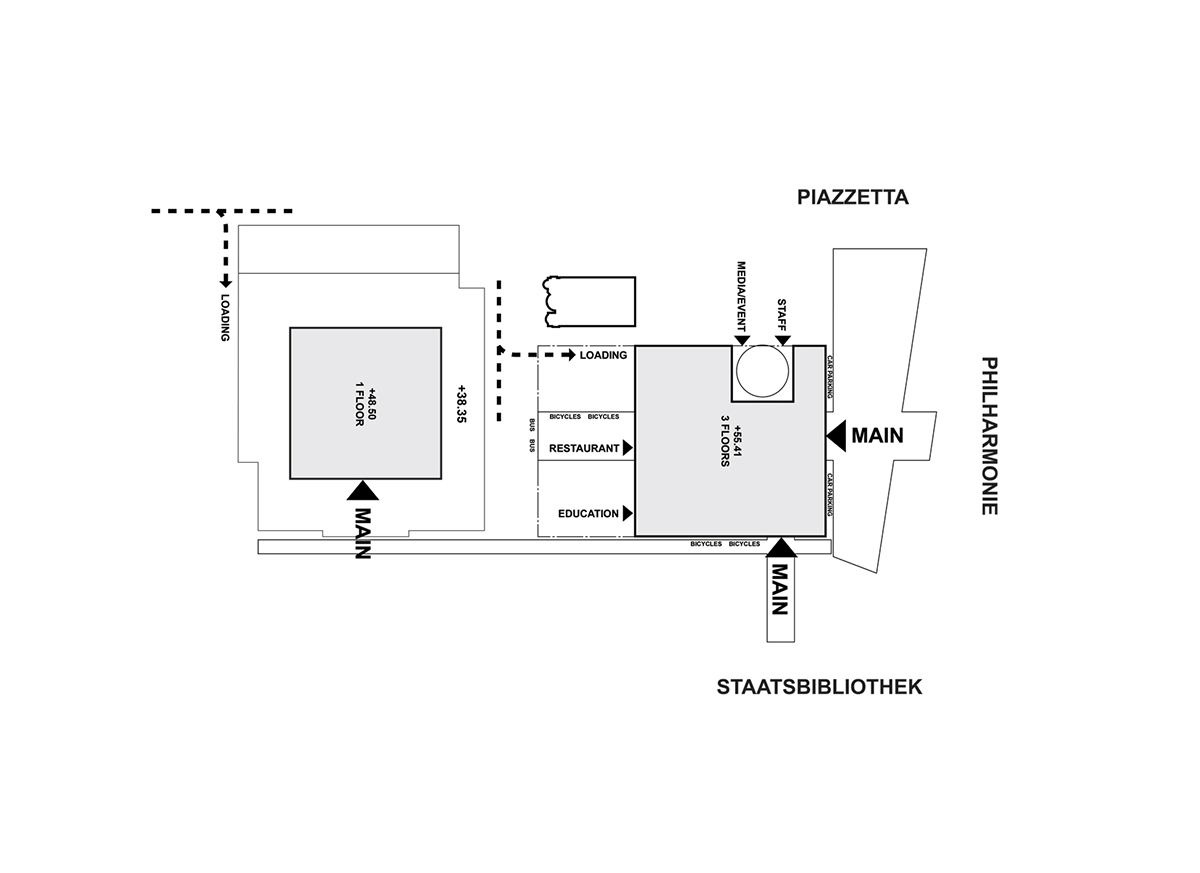

the two public entrances of the museum take advantage of the site’s pedestrian circulation axes and maximize the museum’s relationship to the neue nationalgalerie. the museum’s entrance on potsdamer strasse connects—via the new, granite-paved pedestrian axes—with the neue nationalgalerie’s entrance as well as to the grounds of the staatsbibliothek. additional entrances are dedicated to certain functions that can remain open while the museum is closed: restaurant/bar, education/art appreciation, museum shop, and media/event space. they face the building’s open spaces and the plane tree courtyard.
client: stiftung preußischer kulturbesitz (ministry for culture and media), bundesrepublik deutschland (federal republic of germany)
program: museum—forming a curatorial unity with the mies van der rohe-designed neue nationalgalerie — consolidating the nationalgalerie’s holdings of 20th century art, the marx, pietzsch, and marzona collections, and works from the museum of prints & drawings and the art library’s museum collections; and (A-Z) administration, art storage, café, education/art appreciation spaces, exhibition spaces, media/event space, restaurant, restoration areas, and shop
area: 29,500 sqm (318,000 sqf)
construction cost: €110 million
status: limited international competition, 2016
design architect: REX
personnel: julie bauer, maur dessauvage, kelvin ho, isabelle moutaud, elizabeth nichols, kelsey olafson, joshua prince-ramus, cristina webb
executive architect: rw+
consultants: burohappold, front, hhpberlin, marti-baron+miething, werner sobek
