s2arch and RWTH aachen university build a new school in south africa s2arch and RWTH aachen university build a new school in south africa
jul 29, 2013

s2arch and RWTH aachen university build a new school in south africa

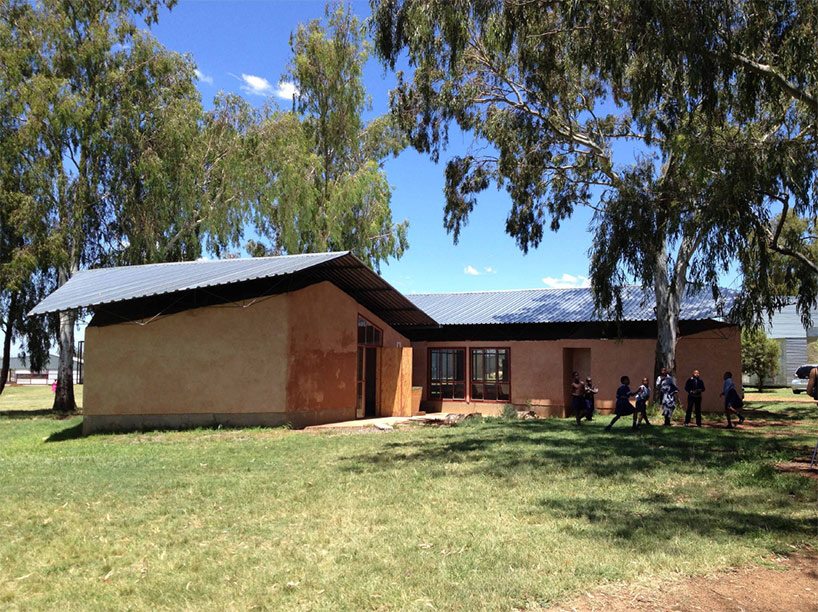

‘ithuba science center’ by RWTH aachen university and s2arch, montic, johannesburg, south africa
image © leon krige
all images courtesy of RWTH aachen university







a few years ago, european and south african NGO s2arch undertook a project in montic, just south of johannesburg, to build the ithuba skills college that would provide education in natural sciences and english to underprivileged local children. in addition, all the design would be done by various european faculties of architecture and would be built by volunteers in collaboration with the local community and students. the most recent addition consists of the ithuba science center – two classrooms dedicated to biology and chemistry, a muti-use hall, and necessary support program – by students at the RWTH aachen university in germany. the concept took the regular rectangular footprint and cut an open public corridor through the center dividing two angular forms joined by a folded roof. a steel frame structure is supported on a poured concrete foundation and infilled with bales of a straw/clay composite – a traditional german insulation technique that creates a monolithic wall with high thermal properties. large operable openings allow for plenty of ventilation and light, while the double pitched metal roof overhangs to provide adequate shading, separated from the structure of the building forms to allow hot air to escape through the plenum.






image © leon krige






image © leon krige






view from the neighboring building
image © leon krige






image © leon krige






plastered walls create a natural earth-tone look and provide a high degree of insulation
image © nora muller






image © nora muller






dividing exterior corridor
image © nora muller






image © nora muller






image © nora muller






interior of the classroom clad in pinewood boards
image © leon krige






image © leon krige






large windows make for light-filled spaces
image © leon krige






image © leon krige






construction of the cob walls
image courtesy RWTH aachen university






image courtesy RWTH aachen university






image courtesy RWTH aachen university






construction
image courtesy RWTH aachen university






image courtesy RWTH aachen university






image courtesy RWTH aachen university






floor plan / level 0






section
image courtesy RWTH aachen university






section
image courtesy RWTH aachen university






axonometric
image courtesy RWTH aachen university






image courtesy RWTH aachen university





 project info:





conducted by:
ithuba skills college, johannesburg
s2arch, social and sostainable architecture, wien: elias rubin

partners:
ithuba community college, johannesburg
s2arch, social and sostainable architecture, wien: elias rubin, marlene wagner

participants:
rwth aachen – faculty of architecture
department of building typologies and design basics:
dipl.-ing. bernadette heiermann, dipl.-ing. nora elisabeth müller, dipl.-ing. judith reitz, prof. anne-juchen bernhardt
department of structures and structural design:
dipl.-ing. christoph koj, prof. martin trautz

department of theory of architecture:
prof.dr. manfred speidel mit tatsuya tokura

advisors:
transsolar energietechnik gmbh: dipl.-ing. markus krauss, felix pöhler
engineers without borders
regional group aachen

completion: spring 2012
