VUILD pioneers self-build construction with off-grid residence



Architecture studio VUILD completes Nesting Naoshima, an off-grid residence that explores self-build construction techniques. Located on the art island of Naoshima, the high-performance home serves as a secondary residence for its owner and doubles as rental accommodation to support the local economy. The project marks an innovative step toward developing a self-build model that simplifies construction without compromising on energy efficiency and sustainability, as the whole residence runs on renewable solar energy.



The foundation employs a spike frame method, a pile foundation with driven single pipes, enabling completion within just two days. Structural members, including columns and beams, are crafted from 30-millimeter-thick cedar wood, machined with a Shopbot CNC router, and pre-assembled in a factory. By designing the structure from board materials, the heaviest components remain under 20 kilograms, eliminating the need for cranes or heavy machinery during assembly.

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
all images by Tomoyuki Kusunose, courtesy of VUILD, unless stated otherwise





Nesting Naoshima’s structure reduces energy consumption



In May 2023, an open call was announced for the first owner to construct a self-built home using VUILD’s method. From over 50 applicants, one was selected to realize the Japanese team’s prototype, challenging the development of a self-build construction system for every phase of the project.

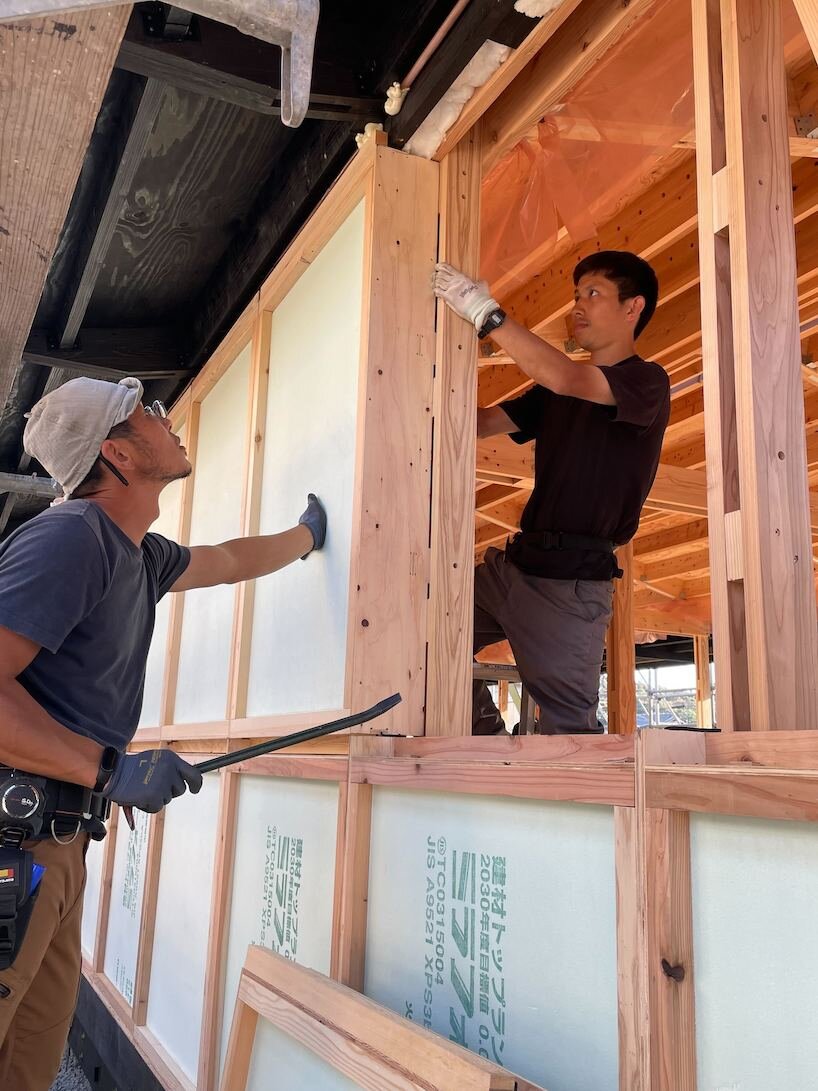

The load-bearing walls of the residence incorporate diagonal bracing, while a prefabricated curtain wall system enhances airtightness and thermal insulation. The roof flashing follows a modularized design, and the interior ceiling is structured as panels, reducing the necessity for specialized tools or expertise. These labor-saving strategies enabled the entire construction process to be completed within two months. The home achieves a thermal performance value (UA) of 0.44 W/m²K, meeting HEAT20 G2 standards to ensure high insulation and airtightness—key factors in reducing energy consumption for self-sufficient living.



Further reinforcing its off-grid capabilities, the south-facing roof integrates an 8.16kW solar array, projected to generate 9,300kWh annually. This system fully powers the residence, including small air conditioning units in the attic space, making it an energy-independent prototype for future self-built homes.

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
VUILD completes Nesting Naoshima, an off-grid residence that explores self-build construction techniques.

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
the project marks an innovative step toward developing a self-build model that simplifies construction

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
the whole residence runs on renewable solar energy

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
the load-bearing walls of the residence incorporate diagonal bracing

self-assembled-residence-vuild-renewable-solar-energy-japan-art-island-designboom-1800-02

simplifying construction without compromising on energy efficiency

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
the south-facing roof integrates a solar array

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
structural members are crafted from 30-millimeter-thick cedar wood

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
the heaviest components remain under 20 kilograms

self-assembled-residence-vuild-renewable-solar-energy-japan-art-island-designboom-1800-03

enhancing airtightness and thermal insulation

self-assembled residence by VUILD runs on renewable solar energy at japan’s art island
eliminating the need for cranes or heavy machinery during assembly





1/13
the load-bearing walls of the residence incorporate diagonal bracing | image by VUILD
the load-bearing walls of the residence incorporate diagonal bracing | image by VUILD
the interior ceiling is structured as panels | image by VUILD
the interior ceiling is structured as panels | image by VUILD

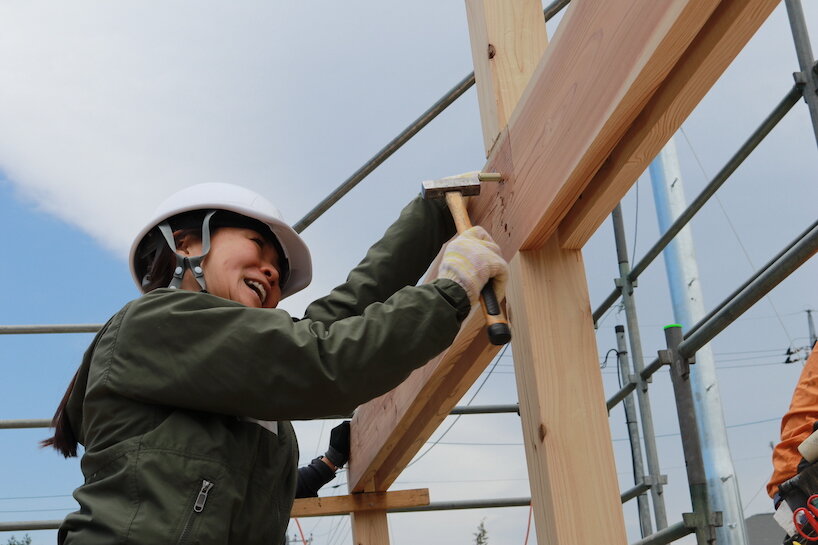

structural members are machined and pre-assembled in a factory | image by VUILD
structural members are machined and pre-assembled in a factory | image by VUILD

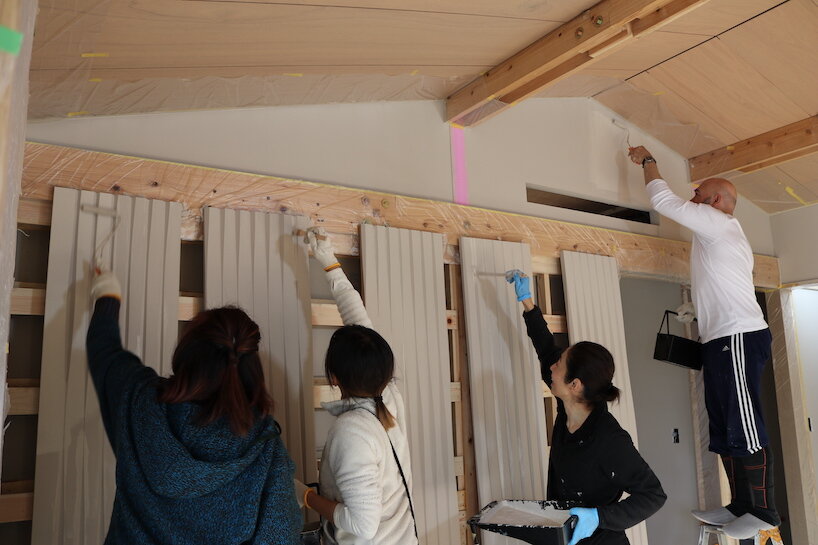

reducing the necessity for specialized tools or expertise | image by VUILD
reducing the necessity for specialized tools or expertise | image by VUILD

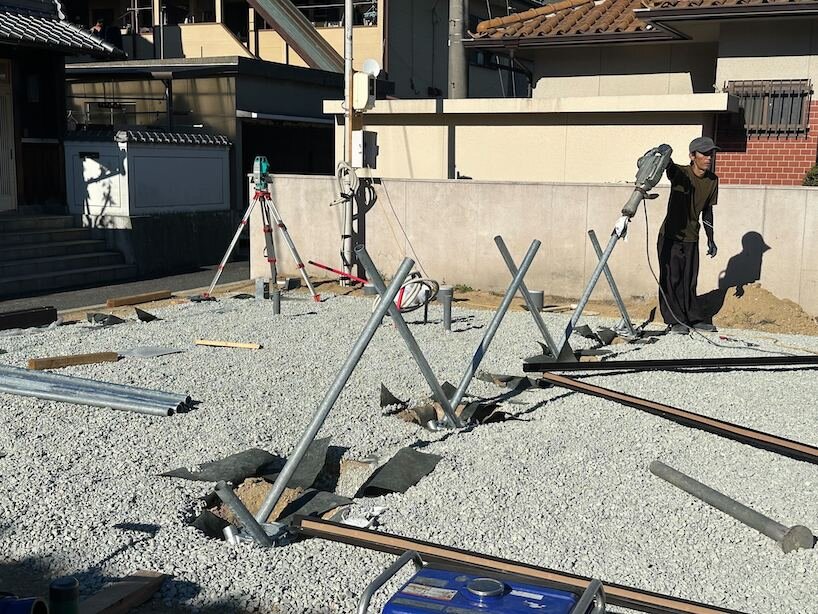

the foundation employs a spike frame method | image by VUILD
the foundation employs a spike frame method | image by VUILD

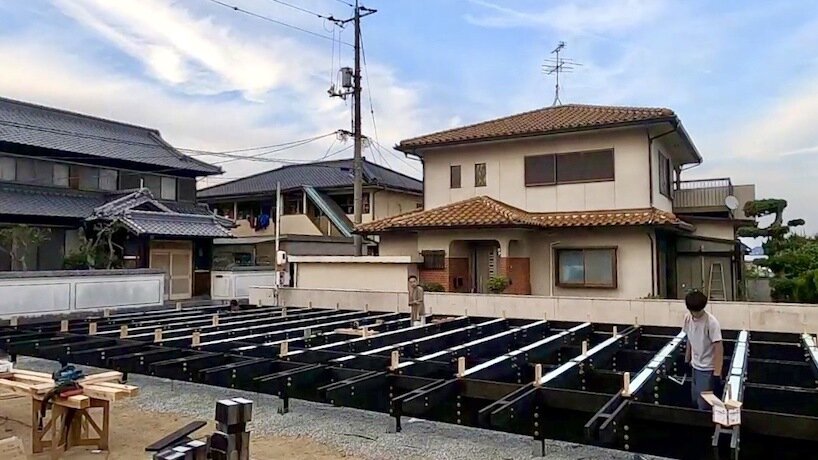

a pile foundation with driven single pipes enables completion within two days | image by VUILD
a pile foundation with driven single pipes enables completion within two days | image by VUILD

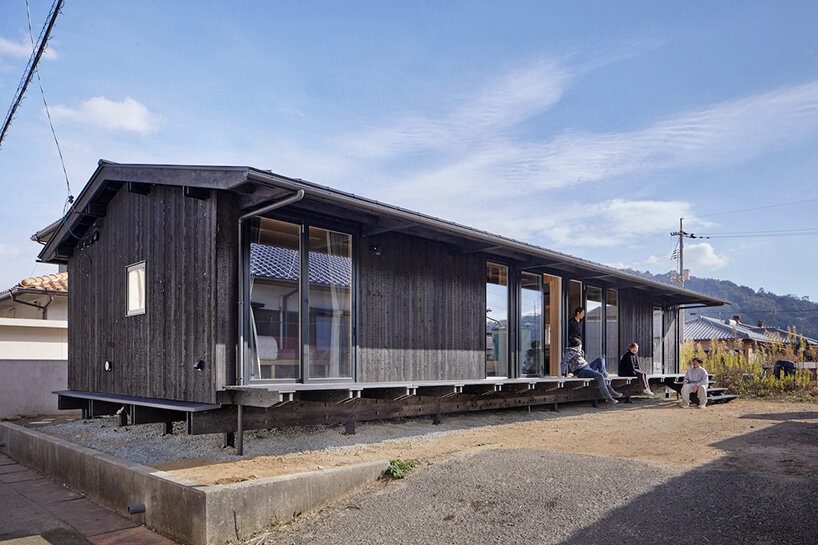

designing the structure from board materials
designing the structure from board materials

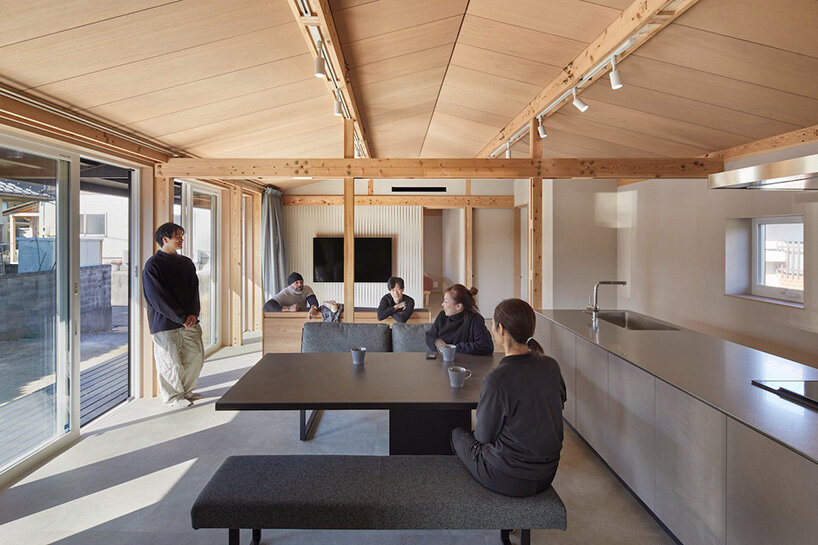

challenging the development of a self-build construction system for every phase of the project
challenging the development of a self-build construction system for every phase of the project

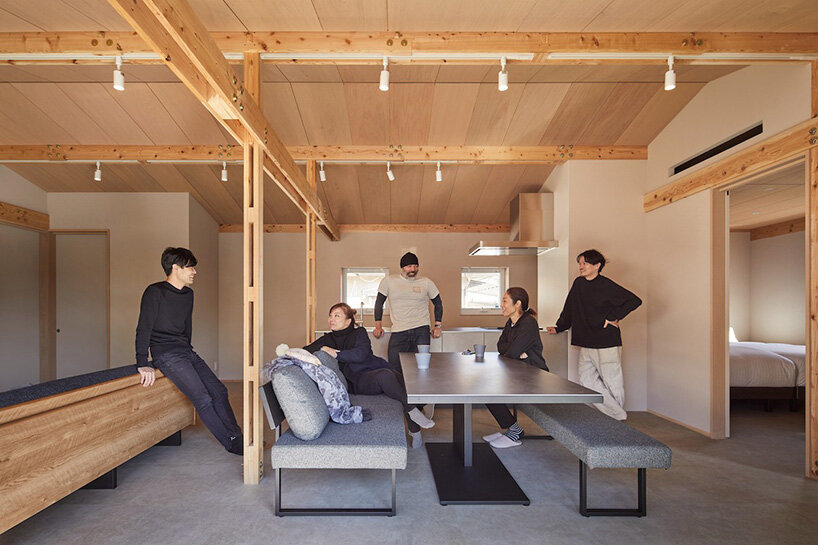

an open call was announced for the first owner to construct a self-built home using VUILD’s method
an open call was announced for the first owner to construct a self-built home using VUILD’s method

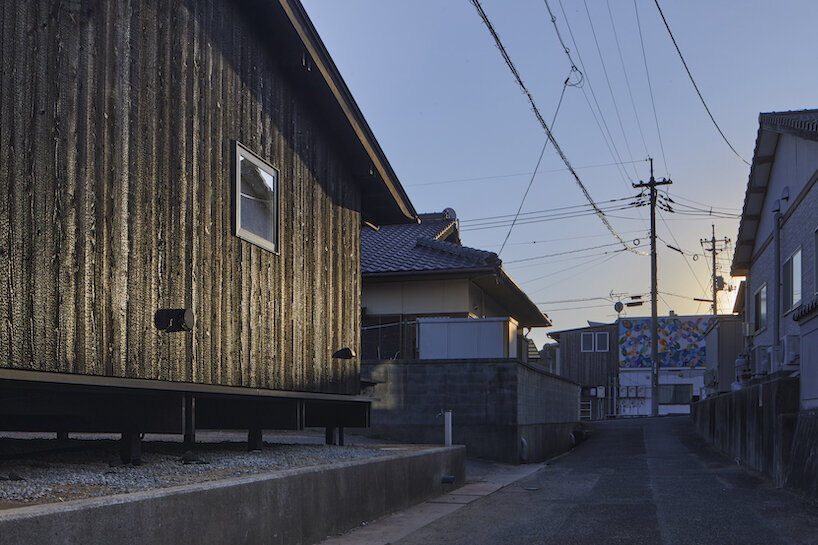

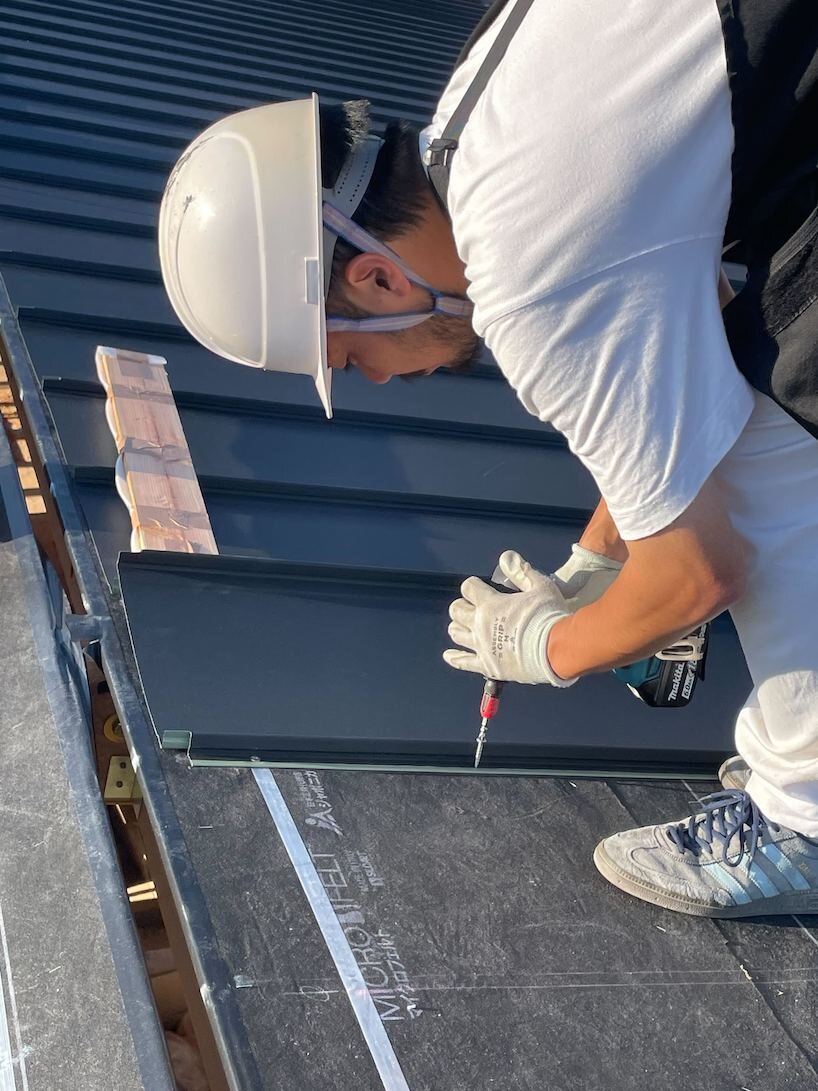

the roof flashing follows a modularized design
the roof flashing follows a modularized design

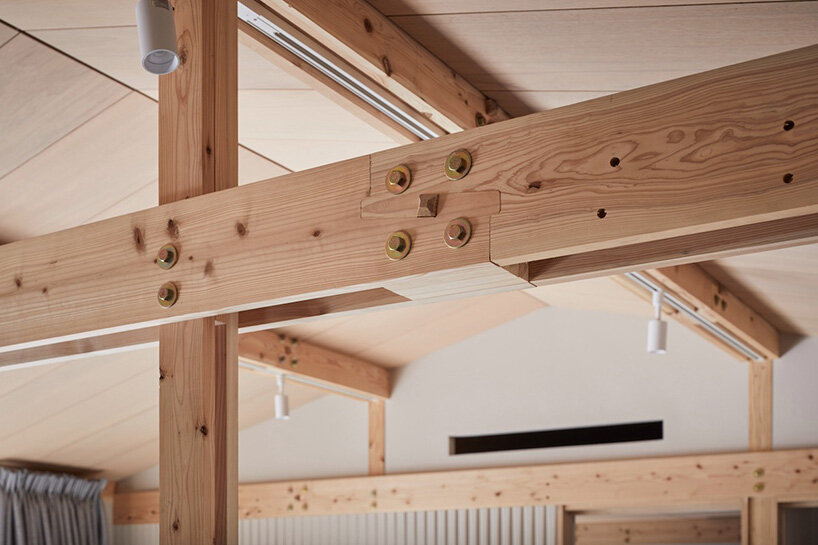

labor-saving strategies enabled the entire construction process to be completed within two months
labor-saving strategies enabled the entire construction process to be completed within two months

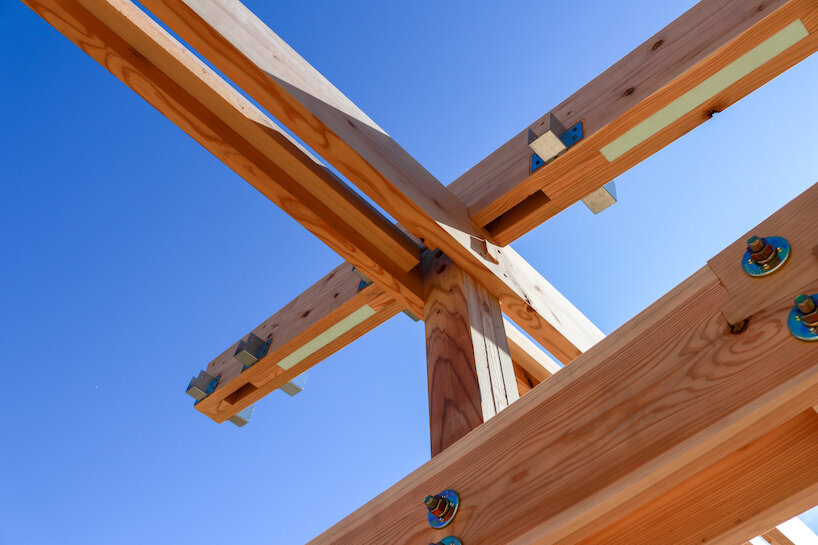

reducing energy consumption for self-sufficient living
reducing energy consumption for self-sufficient living

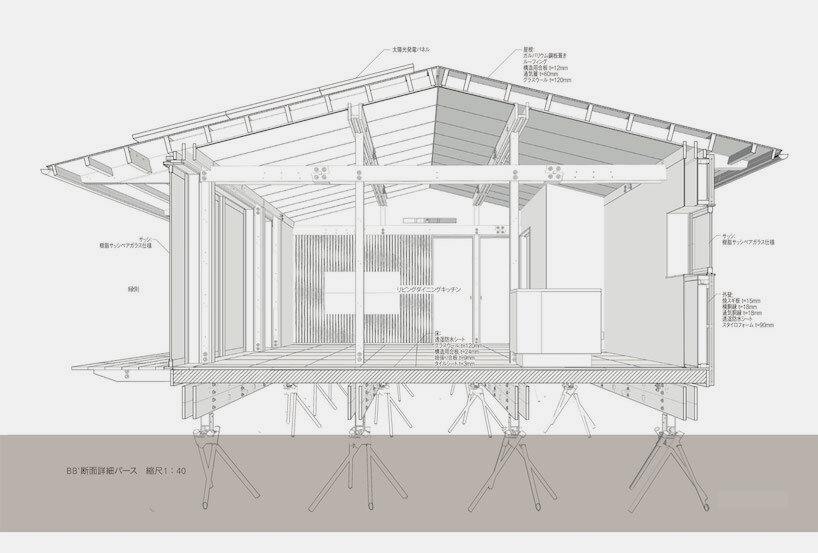

section perspective by VUILD
section perspective by VUILD

project info:



name: Nesting Naoshima
architect: VUILD

location: Naoshima, Japan

design team: Koki Akiyoshi, Takuji Urakami, Toshiki Nishimura, Shinji Noda
structural design: yasuhirokaneda
structure lead: Yasuhiro Kaneda
environmental system planning advisor: Takase Laboratory
Tokyo University of Science lead: Kozo Takase
lighting design Advisor: TILe
lighting design lead: Taira Iwakabe

photographer: Tomoyuki Kusunose
